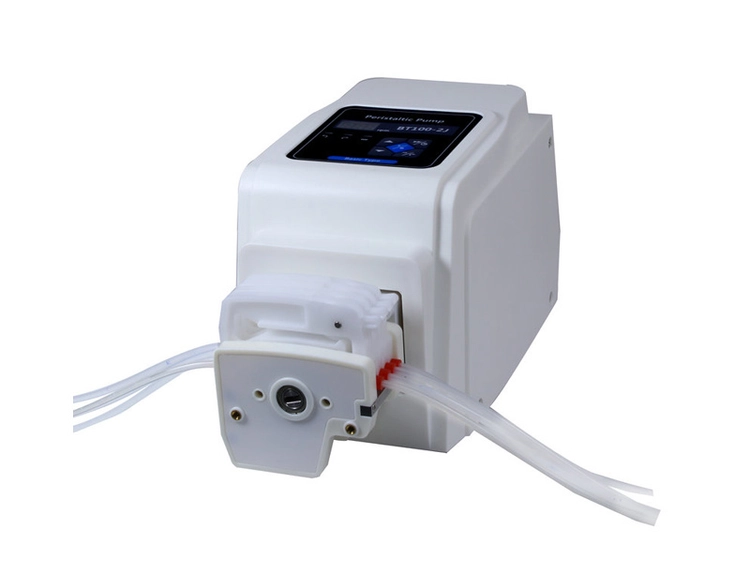

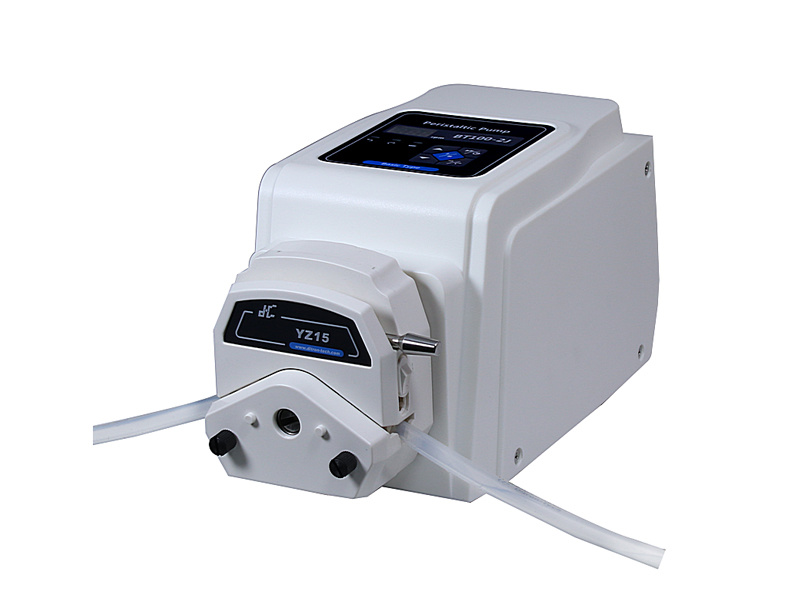

[Ditron-tech] BT100-2J Speed-adjustable peristaltic pump
SALE

Name: [Ditron-tech] BT100-2J Speed-adjustable peristaltic pump
Brand: Ditron-tech
Price: 866000 KRW
Availability: InStock

866,000원 950,000원

Model: BT100-2J

Max Flow : 0.008–625mL/min

Max Speed: 0.1-150rpm

상품

원산지 CHINA

적립

8,660 포인트 적립예정 적립예정

배송

택배 · 기본 무료 · 도서산간 배송비 popover

120,000원 이상 구매 시 무료배송

구매평

Q&A

반품/교환

구매하기 장바구니 0

장바구니 장바구니

구매하기 구매하기

구매평

Q&A

반품/교환

상품이 없습니다.

Product Model	BT100-2J
Applicable pump head	YZ Series	DMD15
Number of channels	1, 2	1
Flow range (ml/min)	0.008 - 625	0.013-822
Rotational Speed Adjustment Range	0.1-150RPM
Rotational Speed Resolution	0.1 (<100 RPM), 1 (100–600 RPM)
Display function	3-digit digital display for RPM
Direction Control	Reversible Operation Direction Feature
How to operate	Film-button control: convenient, fast, and reliable
Full-speed function	The pipeline can be quickly filled and drained using the full-speed button.
Power-loss memory function	After power is restored, resume operation exactly as it was before the power outage.

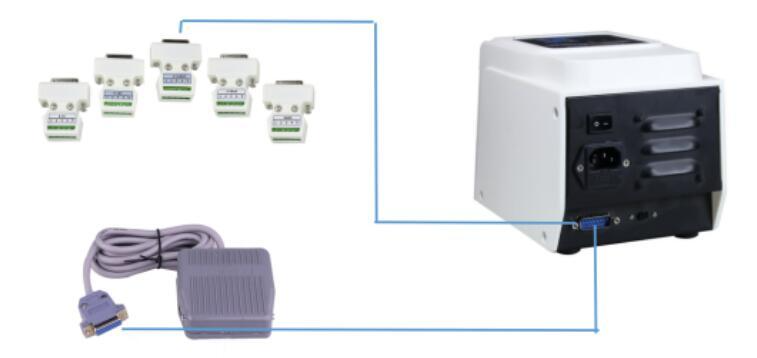

External Control Function	Choose from different models of external control modules to enable start/stop, direction, and flow control. Four external control module options are available: 0–5V, 0–10V, 4–20mA, and 0–10kHz.
Communication feature	Optional communication module available for RS485 communication control (using the universal Modbus protocol).
Smart Temperature Control	Intelligent temperature-controlled operation of the cooling fan reduces running noise.
Foot pedal switch control	Optionally available foot switch for start/stop control
Power consumption	<35W
Applicable Power Source	Wide-range voltage AC 90-260V, 50Hz/60Hz
Work environment	Temperature: 0–40°C, Humidity <80%—no condensation

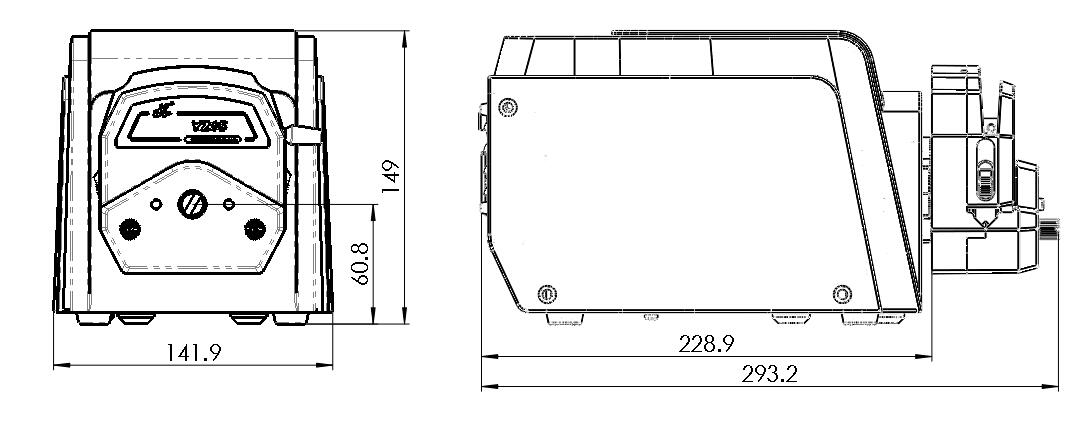

External dimensions	225mm × 143mm × 148mm (excluding the pump head)
Drive weight	2.2KG
Protection Level	IP31

BT100-2J	DG-1(2,4,6)A	1, 2, 4, 6	Inner diameter ≤ 3.2 mm, wall thickness 0.8–1 mm	0.03-56
	DG-1(2,4,6)A	1, 2, 4, 6	Inner diameter ≤ 3.2 mm, wall thickness 0.8–1 mm	0.0026 - 41

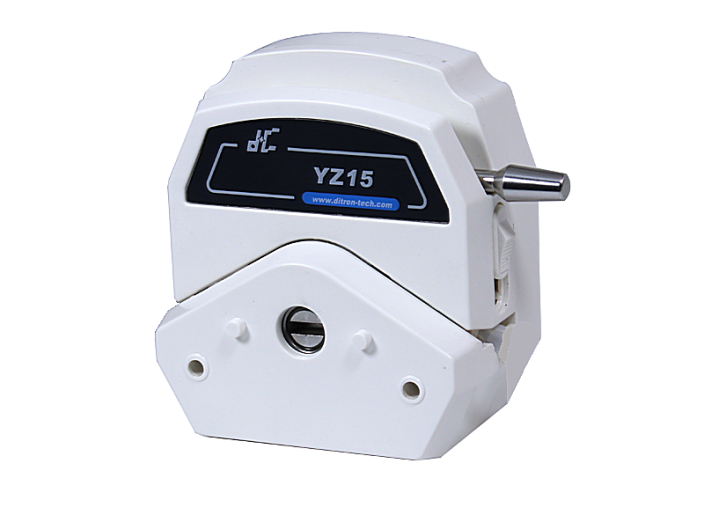

	YZ15	1, 2	13#, 14#, 19#, 16#, 25#, 17#, 18#	0.008 - 625
	YZ25	1, 2	15#, 24#	0.17-460

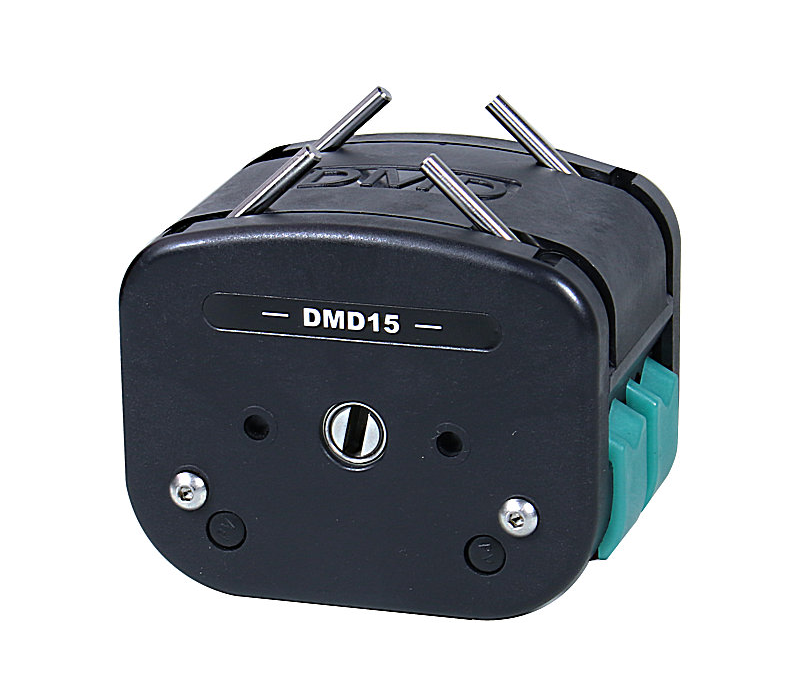

	DMD15	1	213#, 214#, 219#, 216#, 225#, 217#, 2*18#	0.008-822
	313D	1	13#, 14#, 19#, 16#, 25#, 17#, 18#	0.008 - 625

Product Model	BT100-2J
Applicable pump head	YZ Series	DMD15
Number of channels	1, 2	1
Flow range (ml/min)	0.008 - 625	0.013-822
Rotational Speed Adjustment Range	0.1-150RPM
Rotational Speed Resolution	0.1 (<100 RPM), 1 (100–600 RPM)
Display function	3-digit digital display for RPM
Direction Control	Reversible Operation Direction Feature
How to operate	Film-button control: convenient, fast, and reliable
Full-speed function	The pipeline can be quickly filled and drained using the full-speed button.
Power-loss memory function	After power is restored, resume operation exactly as it was before the power outage.
External Control Function	Choose from different models of external control modules to enable start/stop, direction, and flow control. Four external control module options are available: 0–5V, 0–10V, 4–20mA, and 0–10kHz.
Communication feature	Optional communication module available for RS485 communication control (using the universal Modbus protocol).
Smart Temperature Control	Intelligent temperature-controlled operation of the cooling fan reduces running noise.
Foot pedal switch control	Optionally available foot switch for start/stop control
Power consumption	<35W
Applicable Power Source	Wide-range voltage AC 90-260V, 50Hz/60Hz
Work environment	Temperature: 0–40°C, Humidity <80%—no condensation
External dimensions	225mm × 143mm × 148mm (excluding the pump head)
Drive weight	2.2KG
Protection Level	IP31

BT100-2J	DG-1(2,4,6)A	1, 2, 4, 6	Inner diameter ≤ 3.2 mm, wall thickness 0.8–1 mm	0.03-56
	DG-1(2,4,6)A	1, 2, 4, 6	Inner diameter ≤ 3.2 mm, wall thickness 0.8–1 mm	0.0026 - 41
	YZ15	1, 2	13#, 14#, 19#, 16#, 25#, 17#, 18#	0.008 - 625
	YZ25	1, 2	15#, 24#	0.17-460
	DMD15	1	213#, 214#, 219#, 216#, 225#, 217#, 2*18#	0.008-822
	313D	1	13#, 14#, 19#, 16#, 25#, 17#, 18#	0.008 - 625
