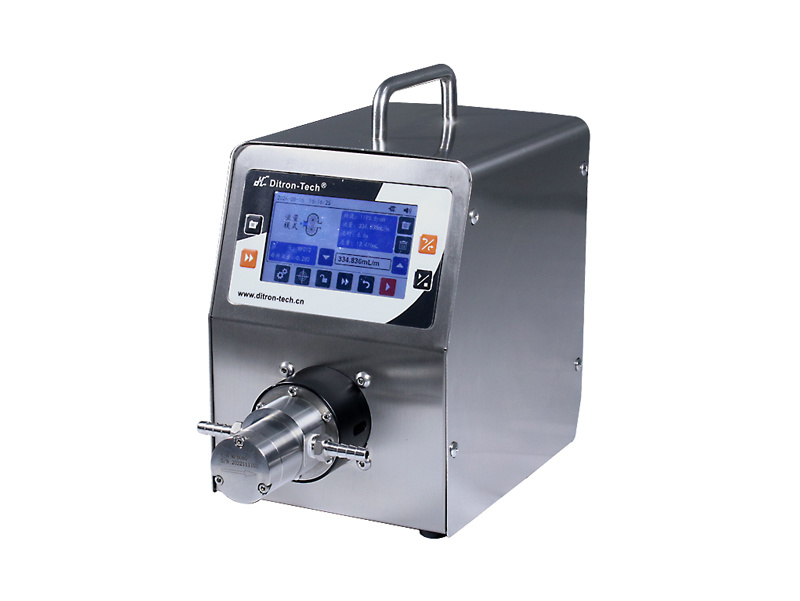

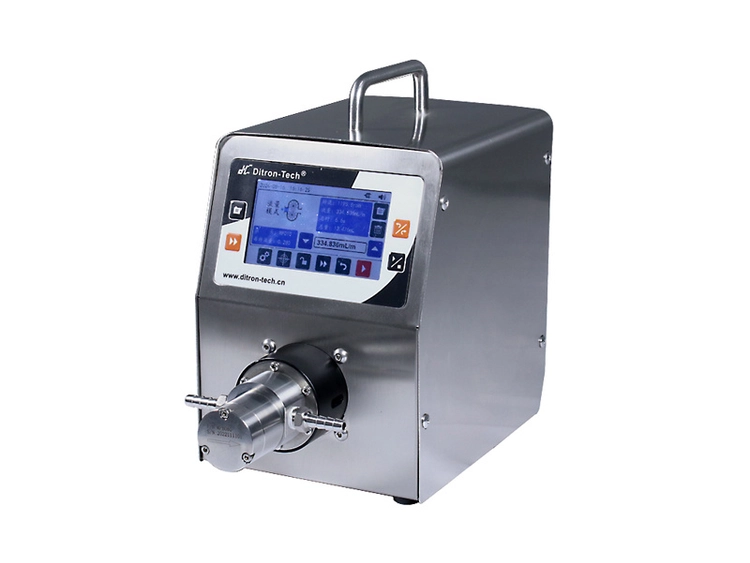

[Ditron-tech] CL4000W Smart Flow-Type Gear Pump

Name: [Ditron-tech] CL4000W Smart Flow-Type Gear Pump
Brand: Ditron-tech
Price: 2622400 KRW
Availability: InStock

가격문의(상세정보 참조)

Model: CL4000W

Max Flow : 15–5640 mL/min

Max Speed: 300-4000rpm

0

상품

원산지 CHINA

적립

26,224 포인트 적립예정 적립예정

배송

택배 · 기본 무료

120,000원 이상 구매 시 무료배송

구매평

Q&A

반품/교환

0

구매평

Q&A

반품/교환

상품이 없습니다.

Pump head model	MP005	MP010	MP015	MP030	MP060
Displacement per revolution	0.05mL	0.28mL	0.35mL	0.9mL	1.41mL
Flow range: mL/min	15-200	84-1120	105-1400	270–3600	423-5640
Rotational speed range	300-4000rpm
Electric motor	DC Brushless Motor
Drive Format	Magnetic Drive
Traffic Range	15-5640 mL/min (with outlet pressure at 0)
Export Pressure Range	0-15 bar, the higher the outlet pressure, the lower the flow rate.
Transporting liquids	Particles in the liquid ≤10 µm
Work Mode	Traffic patterns, timed speed control, constant-speed dosing, and timed dosing
Cumulative Liquid Volume	Total Liquid Volume Cumulative and Zeroing Function
Time Accumulation	Total Runtime Cumulative and Reset Function
Solution Storage	Save the currently running scheme for easy recall.
Flow Calibration	Input measured flow rates for automatic calibration, enabling more precise liquid transfer.
Lock screen feature	Screen lock to prevent accidental touches or unauthorized parameter changes
Full-speed function	Quick-Fill and Quick-Drain Liquid Hose
Direction Control	Liquid Flow Direction Control
Appointment Initiation	Set the date and time, then schedule the launch.
Scheduled Startup	Start on schedule at the set time
Language Settings	Switch between Chinese and English interfaces
Restore factory settings	Factory Reset Function
Rotational Speed Control Accuracy Error	≤0.2%
External signal input	0-5V, 0-10V, 4-20mA, and 0-10kHz external signal speed control function (available only in flow mode)
Start-stop control	External signal start/stop control, with optional switch and voltage modes.
Foot pedal switch	Optional foot pedal switch for start/stop control
Communication Function	Using the Modbus RTU communication protocol
Filling Time	0.1s-9999.9Hr
Time interval	0.1s-9999.9Hr
Operating Method	4.3-inch industrial touchscreen with membrane buttons
Number of allocations	0–99,999 times (0 indicates infinite looping)
Work environment	Temperature: 0–40°C, Relative Humidity <80%
Applicable Power Source	AC 90–260V, 50/60Hz
Power Consumption	<150W

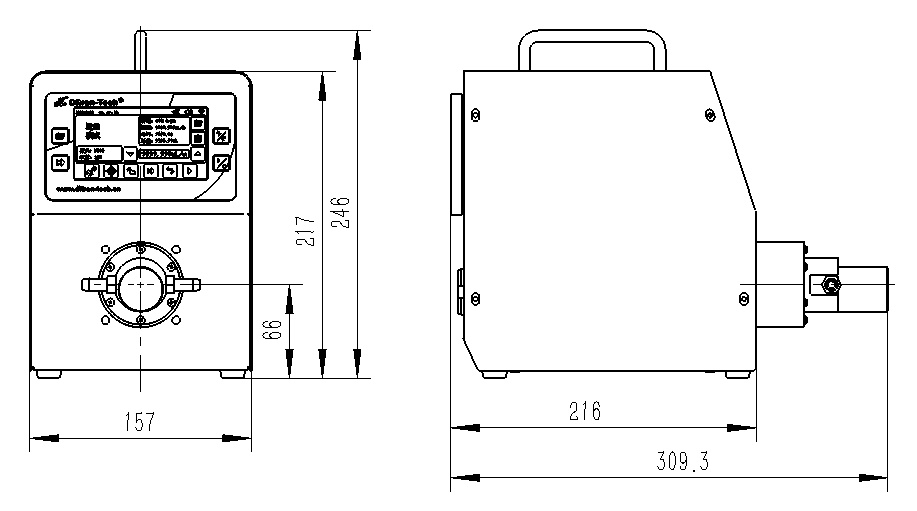

Size	310x157x246mm
Weight	5kg
Protection Level	IP31

Drive	Applicable Pump Head	Rotational Speed Range (RPM)	Displacement (mL/rev)	Flow range (mL/min)	Outlet Pressure (kgf)
CL4000W	MP005	300–4,000	0.05	15-200	15
	MP010		0.28	84-1120	15
	MP015		0.35	105-1400	15
	MP030		0.9	270–3600	15
	MP060		1.41	423-5640	10
