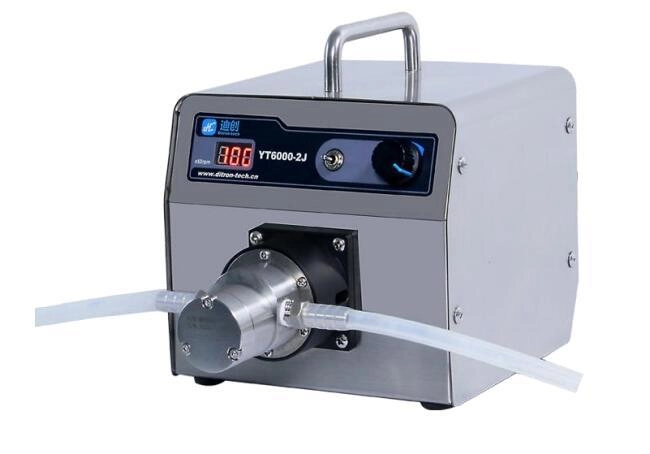

[Ditron-tech] YT6000-2J gear pump
Product Introduction :
◆ Flow Range: 0-6300mL/min
◆ Speed Ratio Display Function, displays numbers 0-100, resolution 6rpm
◆ 316L material gear pump head, with corrosion resistance
◆ Magnetic drive, effectively preventing overload damage to the machine
◆ Fully sealed design, no leakage
◆ High flow linearity, low pulsation, high precision, high outlet pressure
◆ Wide voltage power supply, AC 90-260V

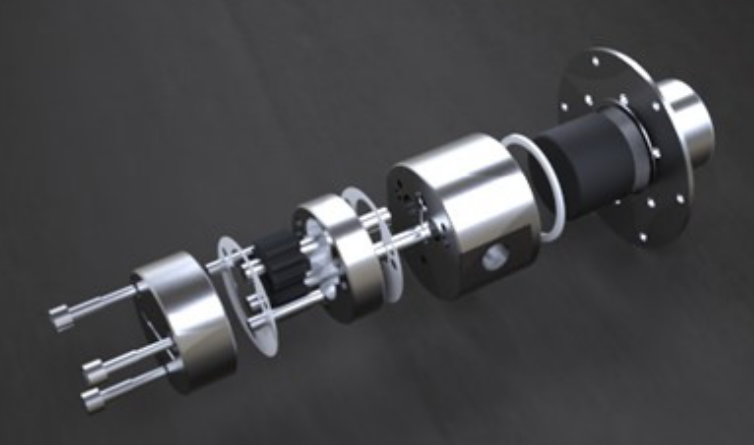

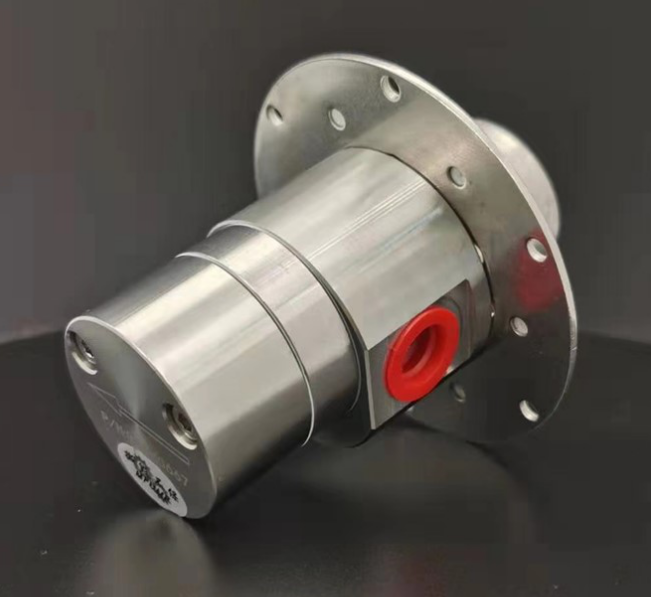

Gear pump head

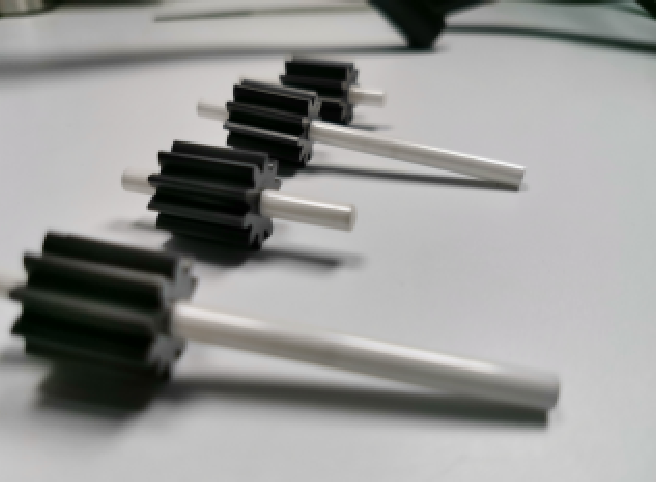

◆ 316L stainless steel pump body with PEEK material gears, offering excellent corrosion resistance.
규격
Standard
Product Model : YT6000-2J
| Drive Type | Magnetic Drive |
| Flow Range | 0-6300mL/min |
| Outlet Pressure | 10Bar |
| Display Function | Displays speed ratio, displays numbers 0-100, display value 100 indicates full speed, i.e., 600rpm |
| Control Mode | PWM DC Motor Control Technology |
| Flow Adjustment | Long-life potentiometer adjusts motor speed, thereby adjusting flow rate |
| Motor | Brand DC geared motor drive, long life |
| Power Consumption | <80W |
| Applicable Power Supply | Wide voltage AC90-260V, 50Hz/60Hz |
| Operating Environment | 0-40℃, humidity <80% non-condensing |
| Driver Weight | 5.5kg |
| Protection Level | IP31 |
Selection Guide
Driver | Applicable Pump Head | Speed Range (RPM) | Flow Rate (mL/rev) | Flow Range (mL/min) | Outlet Pressure (kgf) |
| YT6000-2J | CL15 | 0-6000 | 0.25 | 0-1500 | 15 |
CL30 | 0.5 | 0-3000 | 15 | ||
CL60 | 1.41 | 0-6300 | 10 |
◆ The flow rate is the flow rate when the outlet pressure is 0. The flow rate decreases as the outlet pressure increases.

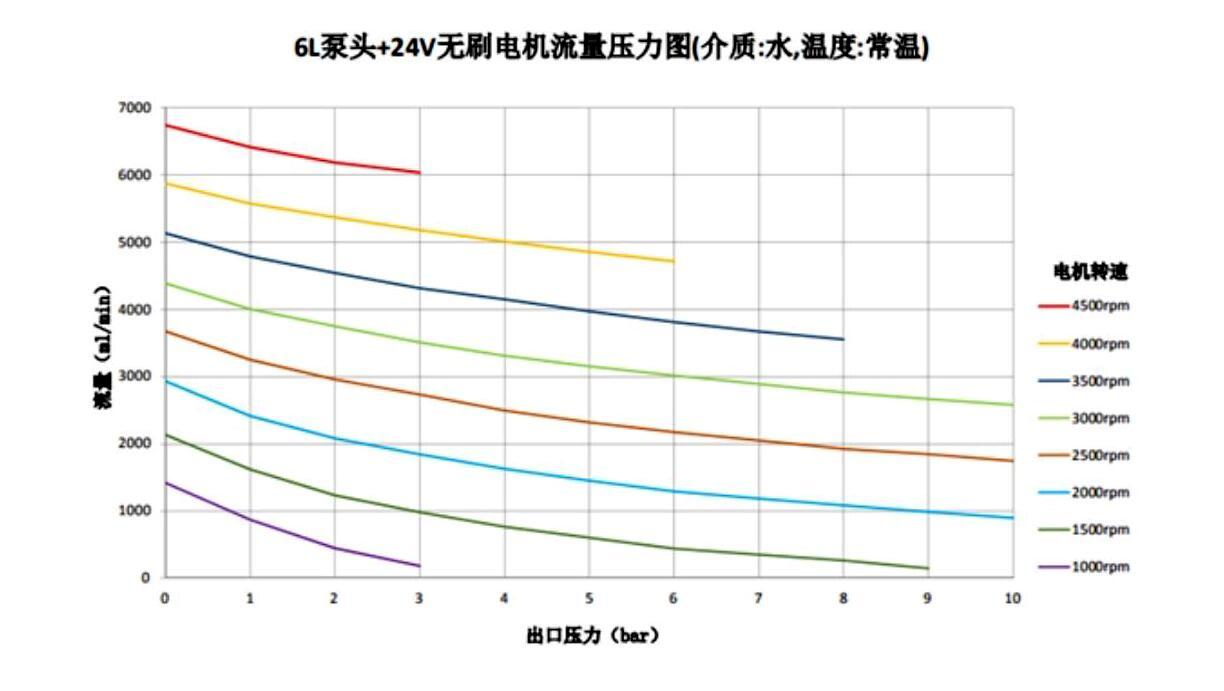

Traffic Pressure Curve
External dimensions
YT6000-2J gear pump
