Model: WG600-1J+CL180
Max Flow : 0.75–18 L/min (medium: water)
Max Speed: 25–600 rpm

안내사항 |
가격 기재가 되지 않은 별도 문의 상품인 경우 반드시 '온라인 견적문의' 혹은 '전화 문의' 후 구매 부탁드립니다. 설치/교육 신청의 경우 별도의 연락 후 직접 납품 드립니다. |

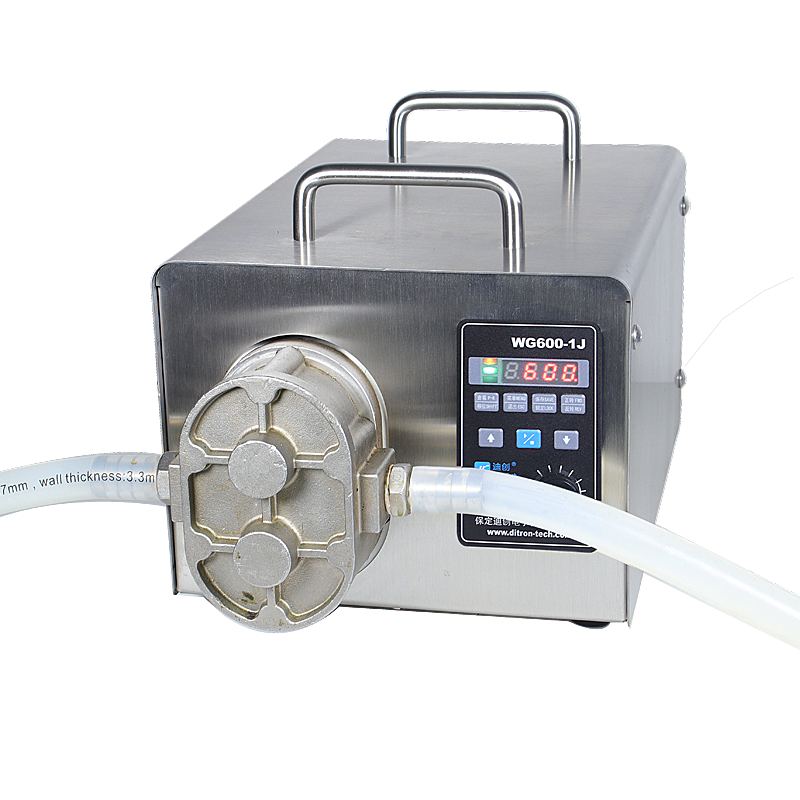

[Ditron-tech] WG600-1J+CL180 Gear Pump

Product Introduction :
◆ Suitable for transferring viscous liquids such as honey and glue;
◆ Flow range: 0.75–18 L/min (medium: water);
◆ Rotational speed range: 25–600 rpm;
◆ Adjustable flow, speed display
◆ AC servo motor drive, high torque, maintenance-free, and highly precise.
◆ Stainless steel gear pump head, offering high strength and exceptional stability.
◆ High flow linearity, low pulsation, high precision, and strong outlet pressure;
규격
Standard
Product Model : WG600-1J
| Applicable pump head | CL180 |
| Number of channels | 1 |
| Flow Range | 0.75–18 L/min (medium: water; handling viscous liquids; flow rate decreases) |
| Rotational Speed Adjustment Range | 25-600RPM |
| Rotational Speed Resolution | 1RPM |
| Display function | Digital display shows RPM |
| Direction Control | Reversible Operation Direction Feature |
| How to operate | Potentiometer knob for speed adjustment, with switchable button control for speed selection. |
| External Control Function | 0-5V analog control for speed |
| Communication feature | RS485 Communication Control (using the Universal Modbus RTU Protocol) |
| External Start-Stop Control | Forward and Reverse Operation Control |
| Power consumption | ≤400W |
| Applicable Power Source | AC 180V-260V 50Hz |
| Work environment | Temperature: 0–40°C, Humidity: Below 80%, No Condensation |
Selection Guide
| Drive | Applicable pump head | Rotational Speed Range (RPM) | Flow rate (mL/rev) | Flow Range (L/min) | Outlet Pressure (Bar) |
| WG600-1J | CL180 | 25-600 | 300 | 0.75-18 | 10 |

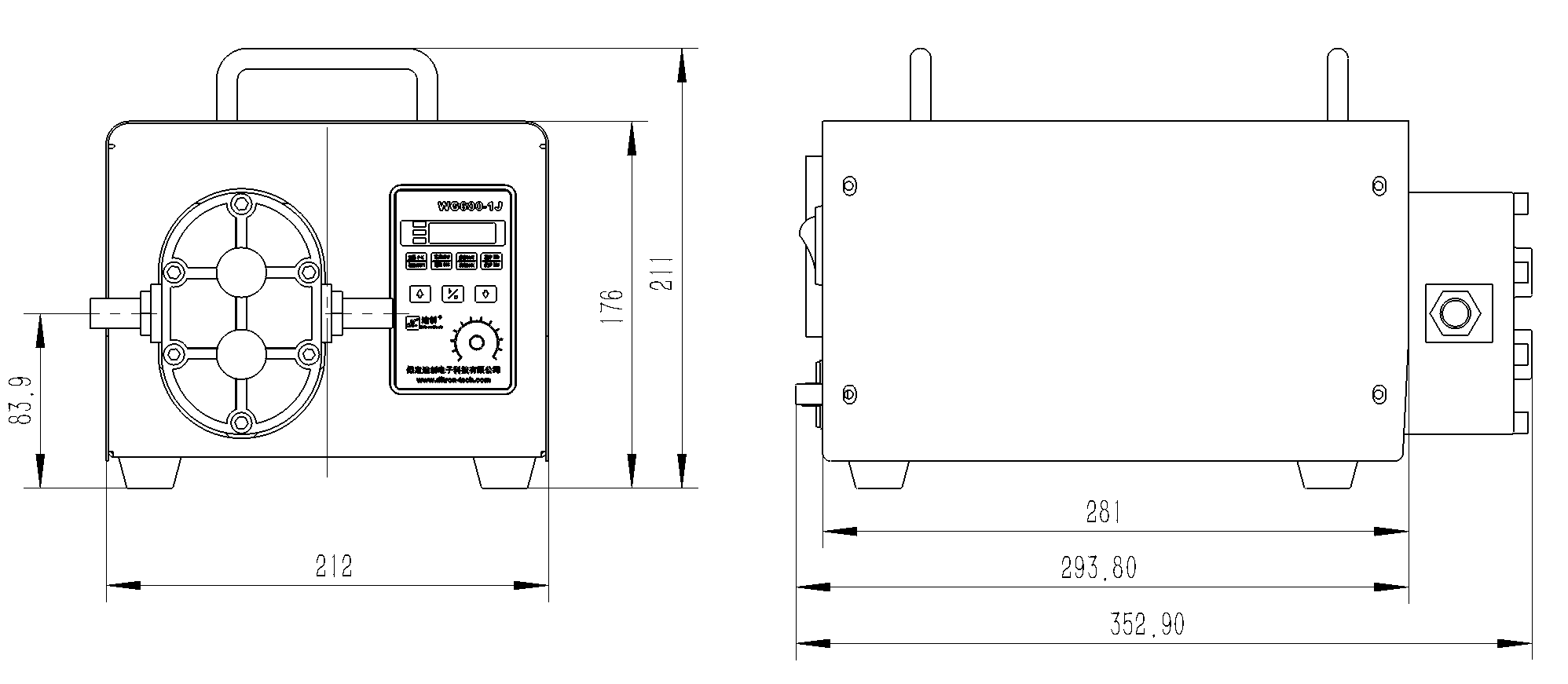

External dimensions

WG600-1J+CL180 Gear Pump
모바일 환경에서는 표를 좌·우로 스크롤해주세요.
고객센터
배송안내
배송기간
주의사항

안내사항 |
가격 기재가 되지 않은 별도 문의 상품인 경우 반드시 '온라인 견적문의' 혹은 '전화 문의' 후 구매 부탁드립니다. 설치/교육 신청의 경우 별도의 연락 후 직접 납품 드립니다. |

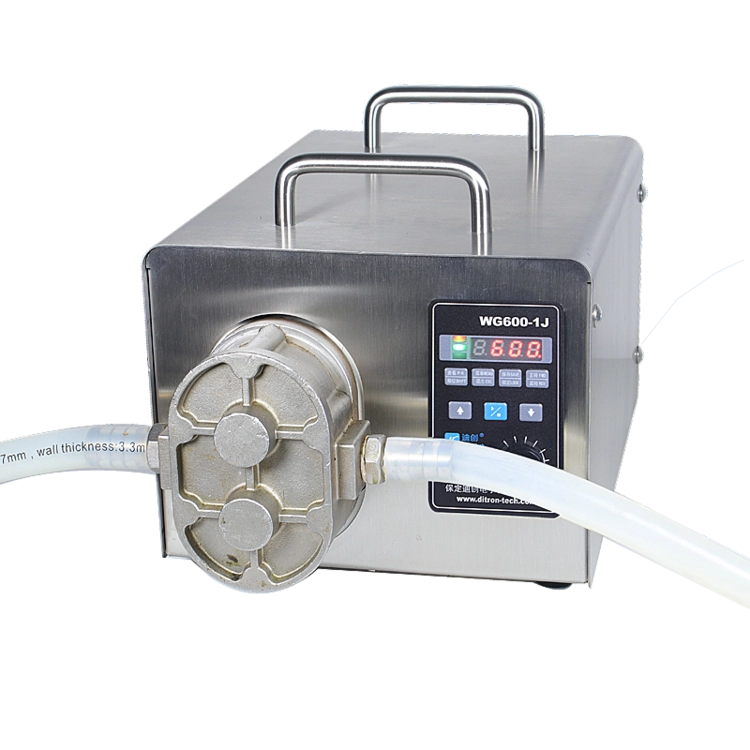

[Ditron-tech] WG600-1J+CL180 Gear Pump
