· 간편한 조작, 튼튼한 외형
· CW/CCW로 자유로운 방향 전환 가능
· 0.1-100RPM 조절가능
· 합리적인 가격
· 누수 및 오버히트 방지 기능
· 다양한 External control function
· 다양한 pump head 장착 가능
· EMP-100A
· Made in Korea

안내사항 |
가격 기재가 되지 않은 별도 문의 상품인 경우 반드시 '온라인 견적문의' 혹은 '전화 문의' 후 구매 부탁드립니다. |

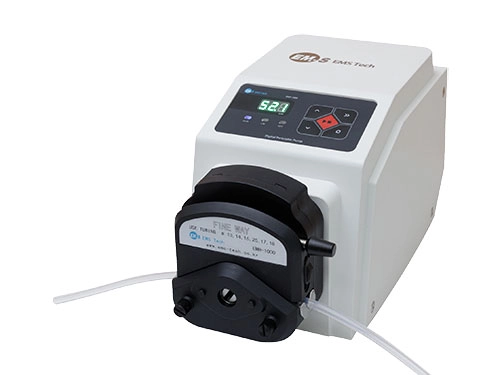

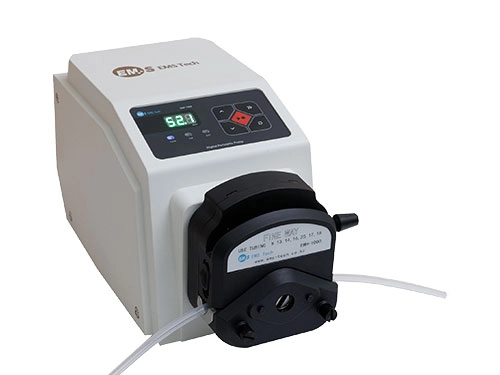

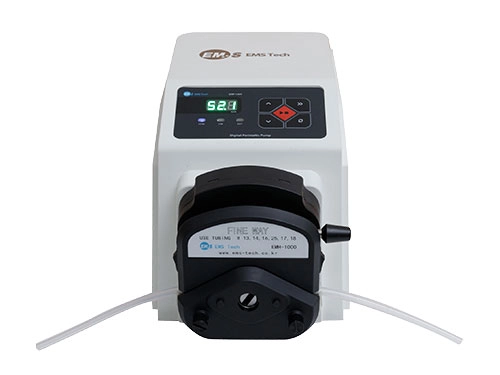

디지털 튜브연동 펌프 (EMP-100A)
Digital Peristaltic Pump(Drive Only) for 100RPM
디지털 튜브연동 펌프 EMP-100A Description · 간편한 조작, 튼튼한 외형
|
상세규격(Specifications)
| RPM (회전속도) | 0.1 ~ 100 RPM |
| Flow Capacity (유량범위) | 0.07 to 380 mL/min (Full Range) |
| 사용온·습도 | Temperature : 0~40℃, Relative Humidity<80% |
| Housing Materials | Carbon Steel Casing, Special Coating Processing |

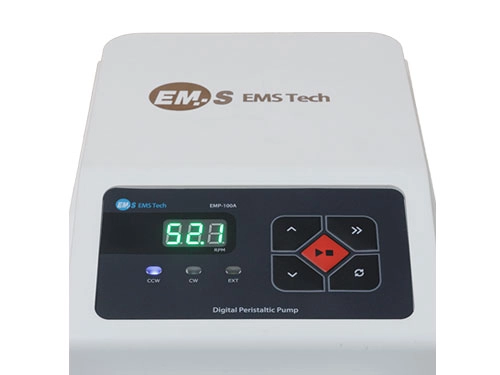

| Display | 3 digit LED Display (RPM) |
| System Power | 230VAC, 60Hz, 30W |
| Dimensions (L*W*H) | 243x151x157mm (펌프헤드 제외) / 2.5kg |
| External Interface | Internal/External, Stop/Start, CW/CCW, Speed (4~20mA or 0-5V, 0-10KHz) |
| Applied Pump Head | EMH-1000, Easy-LoadⅠ, Easy-LoadⅡ, Easy-LoadⅢ, Standard, MC Series, DG Series |
| IP Raiting | IP 31 |
Size

Option
| Pump head | Model No. | Applicable hose | Reference flow range |
| EMH-1000 | #13, #14, #16, #25, #17, #18 | 0.07-380ml/min |
YZ25-13A | #15, #24 |
0.2-270ml/min | |
| DG-(1-2)A 6Scroll wheel | Wall thickness: 0.8-1mm | 0.00025-48ml/min(Single channel) |
DG-(1-2)B 10Scroll wheel | Inner diameter: ≤3.17mm | 0.0002-32ml/min(Single channel) | |
| DMD15-2A/1A | #13, #14, #19, #16, #25 | ≤290ml/min |
모바일 환경에서는 표를 좌·우로 스크롤해주세요.
