Four-channel filling system
Suitable for filling liquids ranging from 0.1 to 100 ml, equipped with a convenient 7-inch industrial touch screen for easy operation, and features the installation of a DMD15 pump head.
안내사항 |
가격 기재가 되지 않은 별도 문의 상품인 경우 반드시 '온라인 견적문의' 혹은 '전화 문의' 후 구매 부탁드립니다. 설치/교육 신청의 경우 별도의 연락 후 직접 납품 드립니다. |

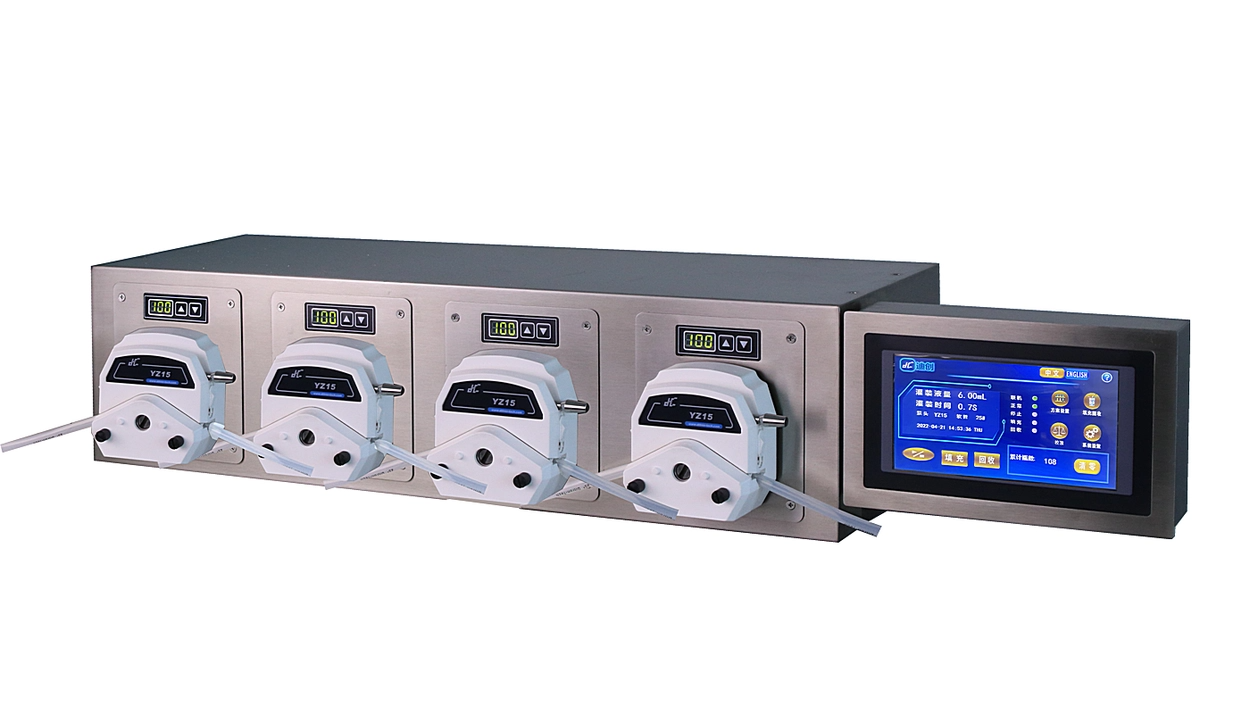

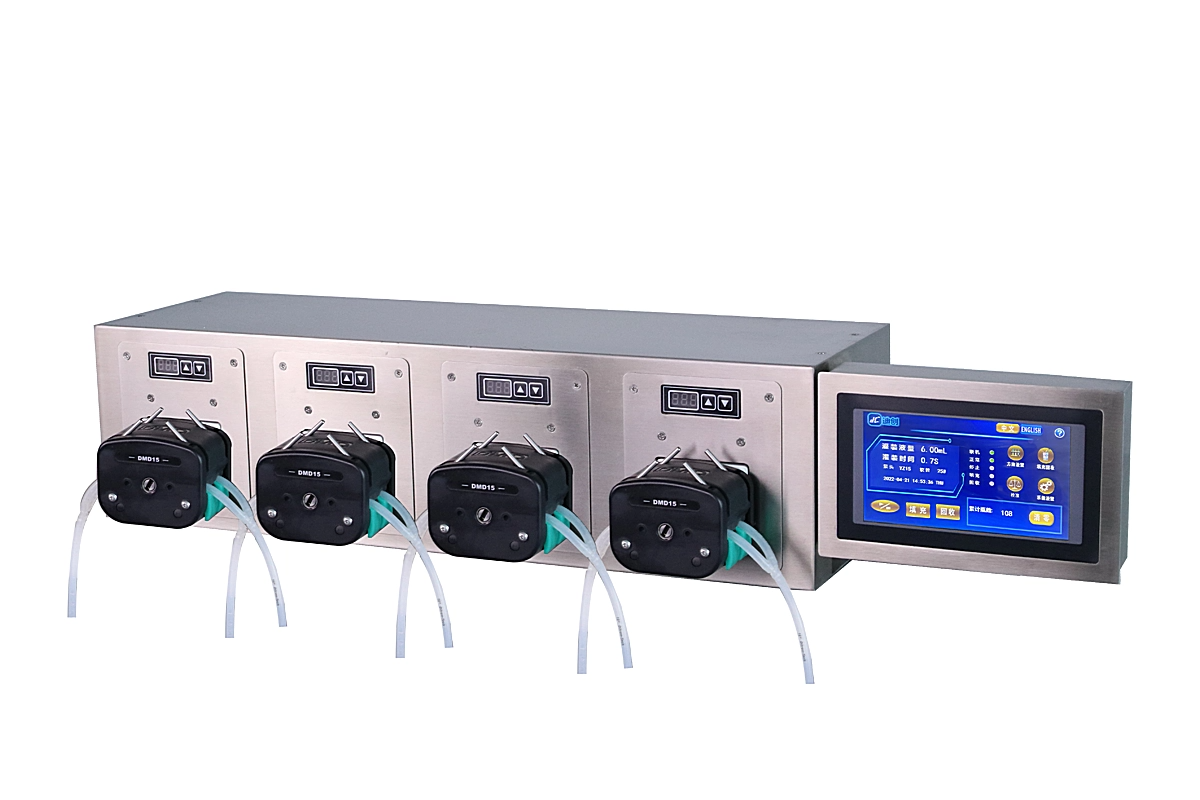

[Ditron-tech] GR4-1BD+DMD15 Peristaltic Pump Intelligent Filling System
Product Introduction
◆ Adopting peristaltic pump filling, the liquid flows only through the tubing, ensuring no cross-contamination.
◆ Suitable for filling liquids ranging from 0.1 to 100 ml.
◆ The drive unit is designed as a standalone module for easy integration with customer systems. The 7-inch industrial touch screen ensures convenient operation, while the menu-based interface offers a clear and user-friendly experience.
◆ Multiple pump heads are available, including YZ15, YZ25, DMD15, and more. When using the YZ series pump head, the filling accuracy is ±2%. With the optional DMD15 pump head, the filling accuracy can be as high as ±1%.
◆ The 4-channel configuration serves as the basic structure and can be assembled in a modular fashion. By stacking and installing, it can be expanded up to a maximum of 32 channels.
◆ Each channel address can be conveniently adjusted via its dedicated mask button and is clearly indicated by an LED.
◆ It features three operational modes: internal control, external control, and communication control, making it suitable for the needs of different users.
◆ Each channel is equipped with an independent function to stop filling upon bottle shortage.
◆ The external communication interface uses an RS485 bus, with adjustable baud rates and parity settings. The communication protocol is based on the standard Modbus protocol.
◆ Control the start/stop and left/right turning of each channel of the execution unit as desired.
◆ Capable of controlling single-channel or multi-channel operations for simultaneous emptying and recovery.
◆ The suction angle and suction duration can be set, and all channels perform suction simultaneously.
◆ Provides password functionality: Protects system parameters set by users to prevent accidental operations.
◆ Provides functions for saving and recalling filling schemes.
◆ Provides multiple calibration functions: ratio adjustment, volume calibration, and weighing calibration, with independent calibration for each channel.
◆ Provides an online adjustment function, allowing users to conveniently modify the liquid output settings online.
Typical Applications
◆ Pharmaceutical Liquid Filling Plant
◆ Pharmaceutical Machinery Accessories
◆ Vaccine Filling
◆ Reagent Filling

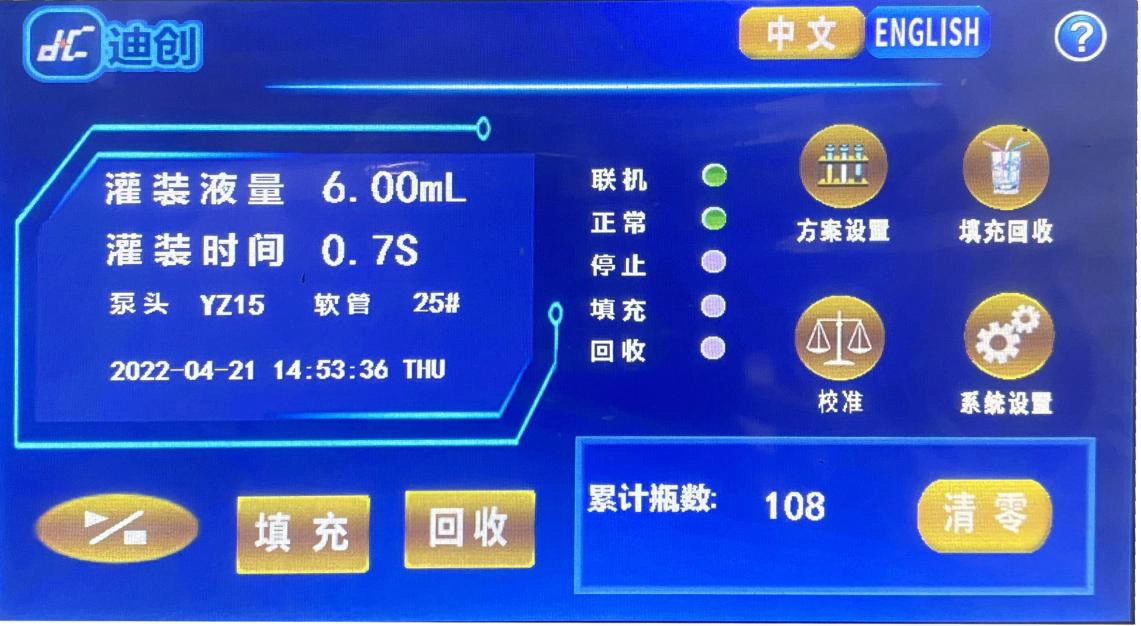

Control Panel

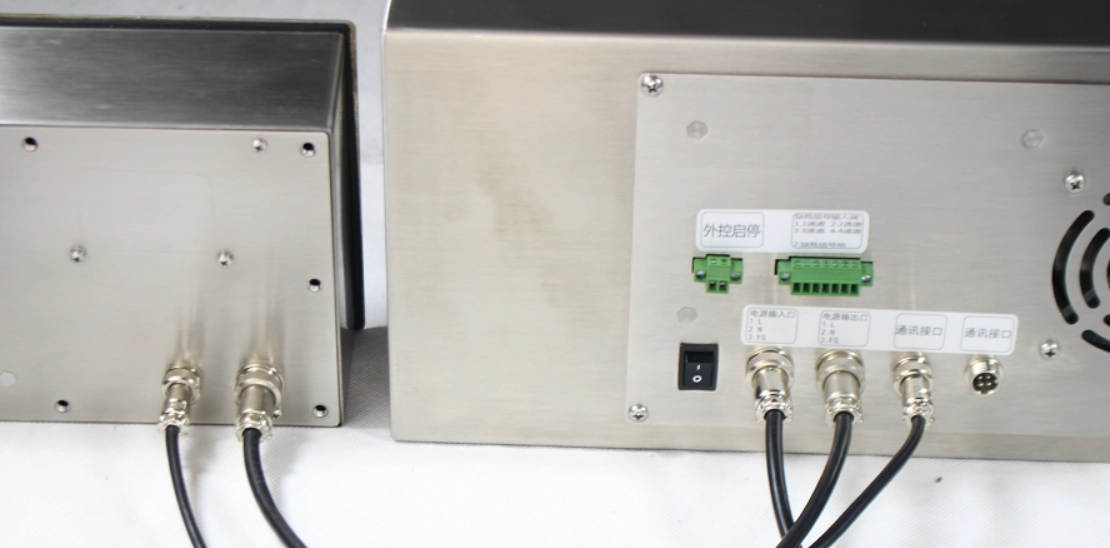

External Signal Control
◆ Each channel is equipped with an independent function to stop filling upon bottle shortage.
◆ External switch signals control the start and stop of each channel.
Technical Specifications
◆ The filling system execution unit can be equipped with various pump heads and corresponding hoses. Quantitative filling is performed via the filling system controller.
◆ The following table provides all applicable pump heads and hoses for the filling system, along with the recommended filling ranges in seconds:
| Pump Head Mode | Applicable Hose | Filling range (ml) at a filling time of 1 second | |
| Silicone tube | Pharmed Management | ||

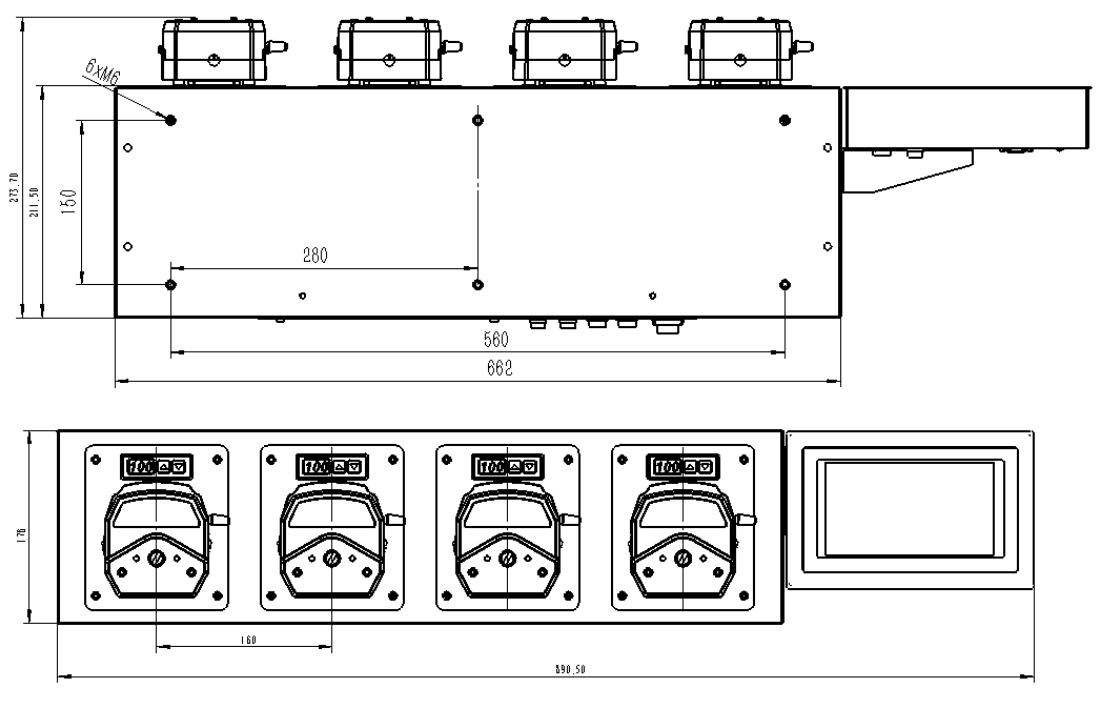

dimensions
GR4-1BD+DMD15 Peristaltic Pump Intelligent Filling System
