[Ditron-tech] GR1-6B

Name: [Ditron-tech] GR1-6B
Brand: Ditron-tech
Availability: InStock

가격문의(상세정보 참조)

Flow range: 0–500 ml/min

filling volume range: 0.1–8000 mL

optimal filling volume: 0.1–250 mL

0

상품

원산지 CHINA

적립

0 포인트 적립예정 적립예정

배송

택배 · 기본 4,000원 · 도서산간 배송비 popover

120,000원 이상 구매 시 무료배송

구매평

Q&A

반품/교환

0

구매평

Q&A

반품/교환

상품이 없습니다.

Peristaltic pump tubing	Standard equipment includes a 17# imported long-life Pharmed peristaltic pump tube (with imported food-grade silicone tubing for connecting pipelines).
Filling Volume Setting Range	0.1–8000 mL
Optimal Filling Liquid Volume	0.1-250mL
Traffic Range	0-500mL/min
Traffic Regulation	Imported potentiometers regulate the flow rate (determining the size of liquid discharge from the filling nozzle).
Number of Filling Nozzles	Single-head
Filling Mode	Three working modes are available: manual filling, automatic filling, and preset filling.
Display Function	4-digit LED display for filling operation time, 4-digit LED display for filling interval time, and 5-digit LED display for filling count.
Filling Time Setting	Set range: 0.01 seconds to 999.9 seconds
Interval Time Setting	Set range: 0.01 seconds to 999.9 seconds
Number of fillings	Displayed 59,999 times
Filling Cycle Setting	Two modes are available: cumulative count and preset count.
Method of Operation	Membrane button control offers convenience, speed, and reliability; imported potentiometer knobs allow for precise flow adjustment.
Power-off Memory Function	After power is restored, the parameters will remain in their pre-power-off state. Pressing the start button (or activating the foot switch) will resume operation using the previously set parameters.
Foot Pedal Switch Control	Standard foot pedal switch controls start and stop.
Filling Bracket	Standard filling bracket equipped, adjustable in height and length directions.
Filling nozzle	304 Stainless Steel Nozzle
Power Consumption	<40W
Applicable Power Supply	Wide-range voltage AC 90-260V, 50Hz/60Hz
Work environment	0-40°C, with humidity below 80% to prevent condensation.

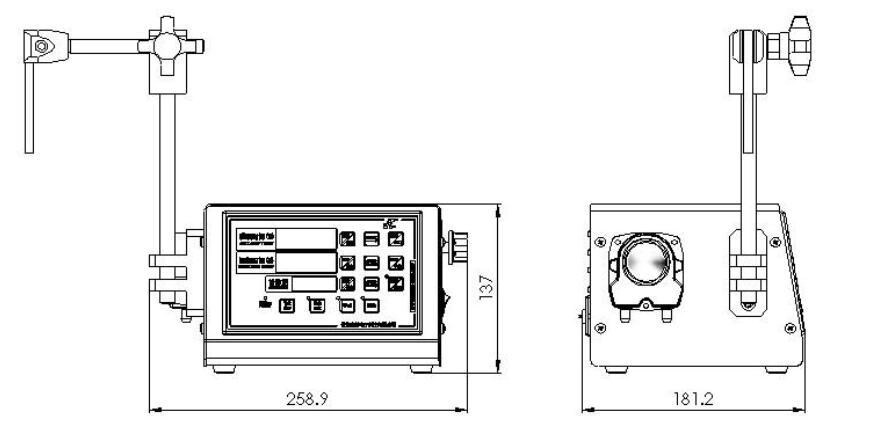

Dimensions	250mm x 180mm x 140mm (excluding the filling bracket)
Weight	3.5KG
Protection Level	IP31

5ml	0.7	4.99	4.90	4.96	4.90	4.90
10ml	1.4	10.16	10.01	10.04	10.33	9.99
20ml	2.87	19.99	19.86	19.93	20.11	19.86
50ml	7.10	50.05	50.34	50.13	50.27	50.06
100ml	15	99.86	99.68	99.56	100.15	99.90
◆ Note: Measurements were taken when the speed control knob was turned to its highest setting. Each filling volume was tested five times. The experimental medium is water. This value is measured empirically and may vary between product batches. Additionally, changes in the medium can also affect the filling data. As the medium viscosity increases, the filling machine flow rate decreases, resulting in longer filling times.

Peristaltic pump tubing	Standard equipment includes a 17# imported long-life Pharmed peristaltic pump tube (with imported food-grade silicone tubing for connecting pipelines).
Filling Volume Setting Range	0.1–8000 mL
Optimal Filling Liquid Volume	0.1-250mL
Traffic Range	0-500mL/min
Traffic Regulation	Imported potentiometers regulate the flow rate (determining the size of liquid discharge from the filling nozzle).
Number of Filling Nozzles	Single-head
Filling Mode	Three working modes are available: manual filling, automatic filling, and preset filling.
Display Function	4-digit LED display for filling operation time, 4-digit LED display for filling interval time, and 5-digit LED display for filling count.
Filling Time Setting	Set range: 0.01 seconds to 999.9 seconds
Interval Time Setting	Set range: 0.01 seconds to 999.9 seconds
Number of fillings	Displayed 59,999 times
Filling Cycle Setting	Two modes are available: cumulative count and preset count.
Method of Operation	Membrane button control offers convenience, speed, and reliability; imported potentiometer knobs allow for precise flow adjustment.
Power-off Memory Function	After power is restored, the parameters will remain in their pre-power-off state. Pressing the start button (or activating the foot switch) will resume operation using the previously set parameters.
Foot Pedal Switch Control	Standard foot pedal switch controls start and stop.
Filling Bracket	Standard filling bracket equipped, adjustable in height and length directions.
Filling nozzle	304 Stainless Steel Nozzle
Power Consumption	<40W
Applicable Power Supply	Wide-range voltage AC 90-260V, 50Hz/60Hz
Work environment	0-40°C, with humidity below 80% to prevent condensation.
Dimensions	250mm x 180mm x 140mm (excluding the filling bracket)
Weight	3.5KG
Protection Level	IP31

5ml	0.7	4.99	4.90	4.96	4.90	4.90
10ml	1.4	10.16	10.01	10.04	10.33	9.99
20ml	2.87	19.99	19.86	19.93	20.11	19.86
50ml	7.10	50.05	50.34	50.13	50.27	50.06
100ml	15	99.86	99.68	99.56	100.15	99.90
◆ Note: Measurements were taken when the speed control knob was turned to its highest setting. Each filling volume was tested five times. The experimental medium is water. This value is measured empirically and may vary between product batches. Additionally, changes in the medium can also affect the filling data. As the medium viscosity increases, the filling machine flow rate decreases, resulting in longer filling times.
