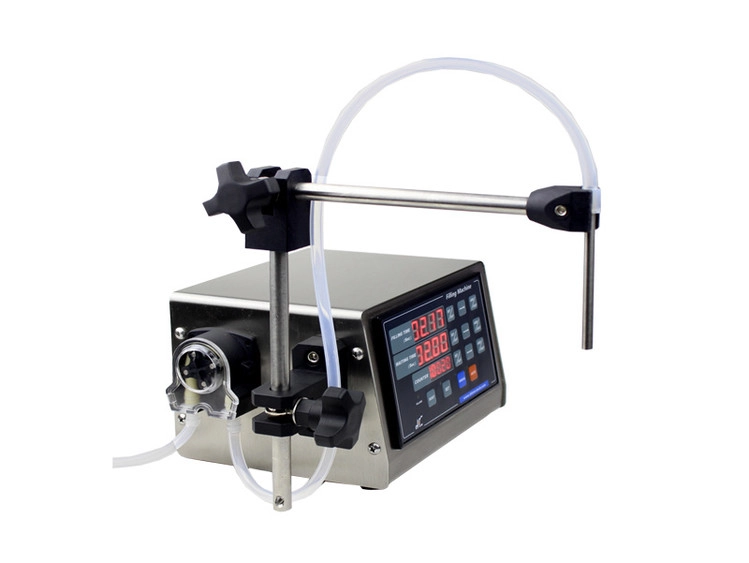

[Ditron-tech] GR1-6B Plus

Name: [Ditron-tech] GR1-6B Plus
Brand: Ditron-tech
Availability: InStock

가격문의(상세정보 참조)

Flow range: 0–500 ml/min

filling volume range: 0.1–8000 mL

0

상품

원산지 CHINA

적립

0 포인트 적립예정 적립예정

배송

택배 · 기본 4,000원 · 도서산간 배송비 popover

120,000원 이상 구매 시 무료배송

구매평

Q&A

반품/교환

0

구매평

Q&A

반품/교환

상품이 없습니다.

Peristaltic pump tubing	Standard equipment includes a 17# imported long-life Pharmed peristaltic pump tube (with imported food-grade silicone tubing for connecting pipelines).
Filling Liquid Volume Setting Range	0.1–8000 mL
Traffic Range	0-500mL/min
Rotational Speed Range	1-300rpm
Traffic Regulation	Rotary encoder switch adjusts the flow rate.
Number of Filling Nozzles	Single-head
Filling Mode	Three operational modes are available: manual filling, automatic filling, and preset filling.
Display Function	4-digit LED display for filling operation time, 4-digit LED display for filling interval time, and 5-digit LED display for filling count.
Filling Time Setting	Set range: 0.01 seconds to 999.9 seconds
Interval Time Setting	Set range: 0.01 seconds to 999.9 seconds
Number of fillings	Displayed 59,999 times
Filling Cycle Setting	Two modes are available: cumulative count and preset count.
Method of Operation	Membrane button operation is convenient, quick, and reliable.
Power-loss memory function	After power is restored, the parameters will remain in their pre-power-off state. Pressing the start button (or activating the foot switch) will resume operation using the previously set parameters.
Footswitch Control	Standard foot pedal switch controls start and stop.
Filling Bracket	Standard filling bracket equipped, adjustable in height and length directions.
Filling nozzle	304 Stainless Steel Nozzle
Power Consumption	<40W
Applicable Power Supply	Wide-range voltage AC 90-260V, 50Hz/60Hz
Work environment	0-40°C, with humidity below 80% to prevent condensation.
Protection Level	IP31
