LabSmart

[INNOFLUID] LabSmart

가격문의(상세정보 참조)

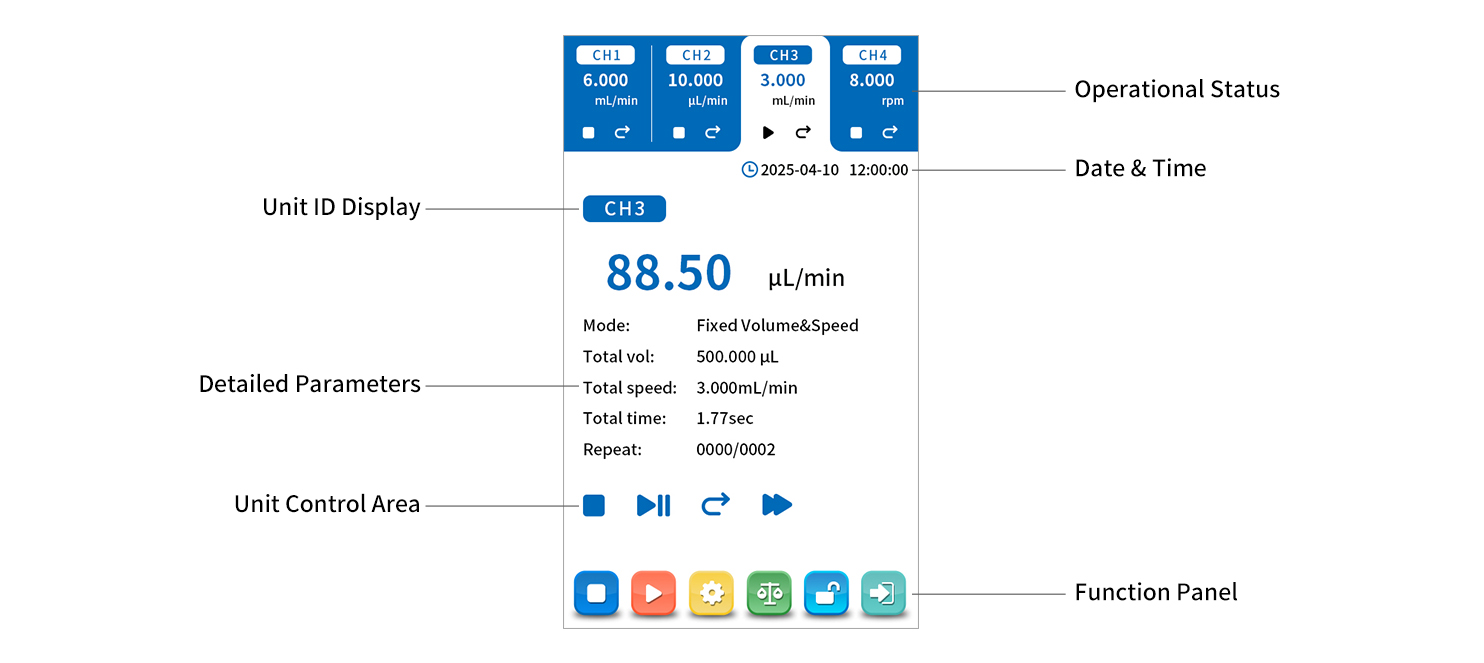

5" HD Color Touchscreen: Proprietary anti-shake algorithm ensures ultra-responsive control and crystal-clear visuals.

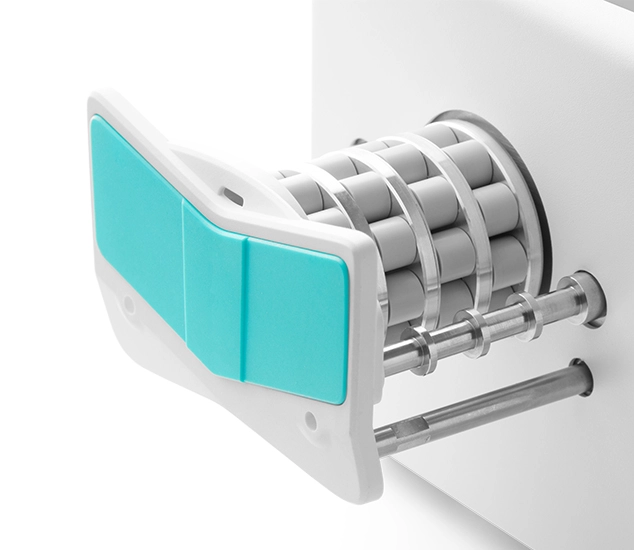

10-Roller Pump Head: Significantly reduces fluid fluctuation for smooth flow; custom high-strength polymer extend service life.
Supports four operating modes: Flow Rate Mode, Timed&Volume, Time&Speed, and Volume&Speed. Multi-channel and multi-mode support, with multi-group recipe storage for complex scenarios.
High-performance main control chip with mode-specific algorithms for unmatched stability and precision.
0.001 rpm Resolution: Custom high-microstep motor with optimized drive logic for delicate and precise micro-volume control.
Wide-Voltage Design: Robust anti-interference capability ensures stable, continuous operation in harsh environments.
Spring-Loaded Mechanism: Infinitely adjustable tubing gaps to maximize tubing longevity and dosing accuracy.
Optional leak detection sensor with a pre-programmed leak response procedure to protect equipment safety.

원산지 CHINA

1,706 포인트 적립예정 적립예정

택배 · 기본 무료 · 도서산간 배송비 popover

120,000원 이상 구매 시 무료배송

반품/교환

반품/교환

상품이 없습니다.

Flow rate resolution	0.001uL/min
Speed range	0.01-150rpm
Operation method	Touch screen
Flow rate range	0.02uL/min(0.130.86)-48.379mL/min(31)
Temperature	0-40℃
Power-off memory	Retains pre-power-loss data and parameters upon re-energization
Communication interface	RS232/RS485
Back suction angel	0-360°
Power supply	AC100-240V/100W
Speed resolution	0.01rpm
Common modes	Up to 10 common modes can be saved
External control signals	Passive switch signal: such as a foot pedal switch Active switch signal: compatible with 5–24 V DC input
Relative humidity	<80%
Motor type	Stepper motor
Output interface	Outputs the motor running status and rotation direction (open-collector output)
IP	IP31
