D15

[Hilintec] D15 Dual-Head Positive Negative Pressure Mini Gas Pump

가격문의(상세정보 참조)

The D15 series is a versatile micro diaphragm pump that functions as both a vacuum pump and a compressor.

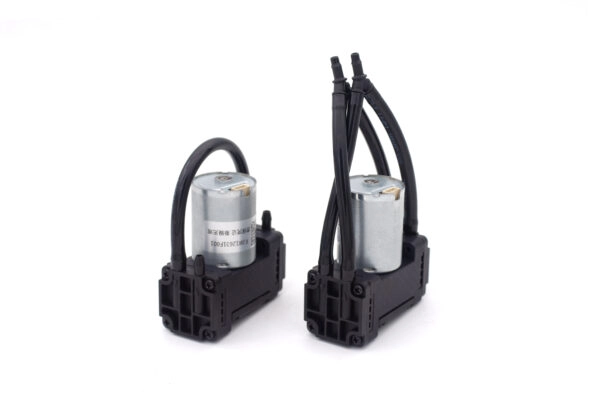

It is distinguished by its dual-head design: the D15PB (series connection) is optimized for high pressure (up to 100 kPa positive pressure and -75 kPa relative vacuum), while the D15HB (parallel connection) is designed for high flow (up to 3.2 L/min peak flow).

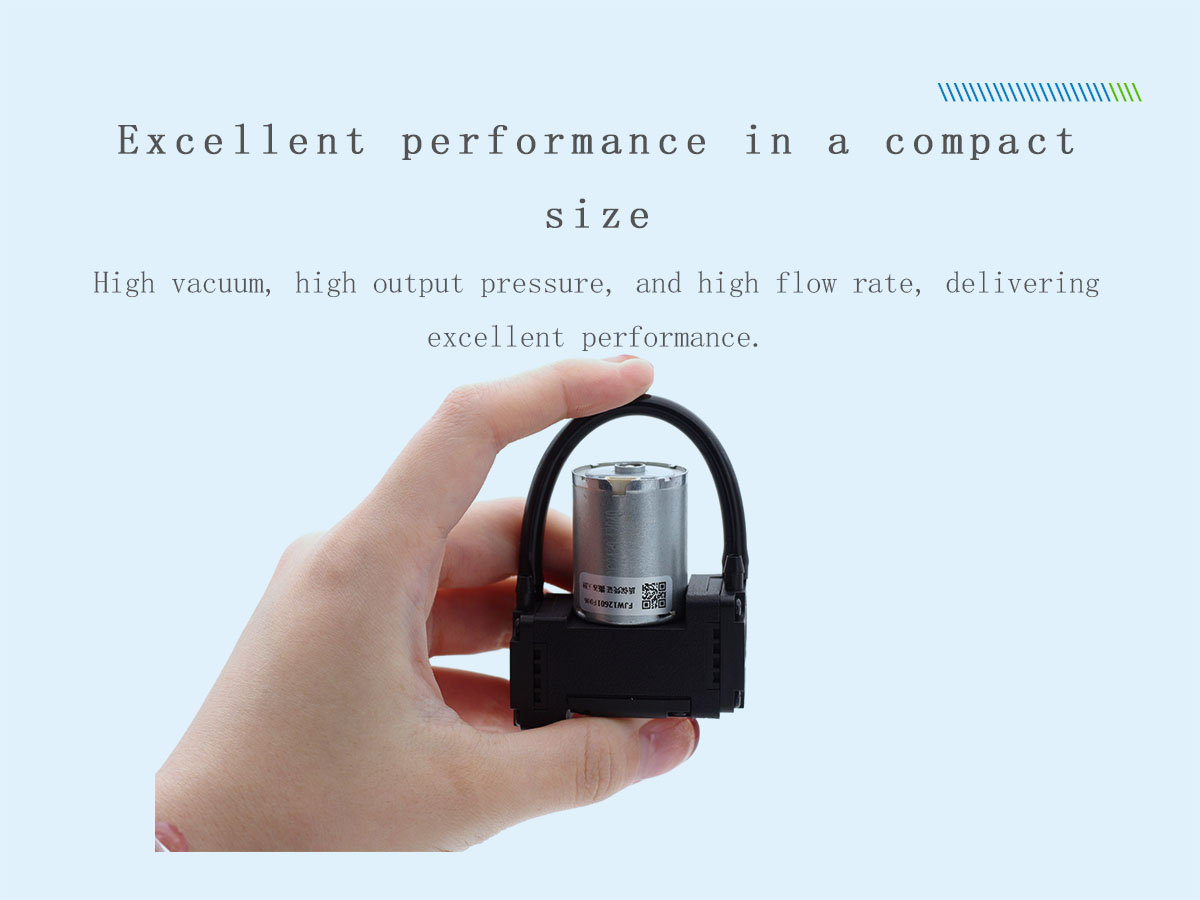

Despite its powerful output, the pump maintains a compact size of approximately 56x49x25mm and weighs only about 80g.

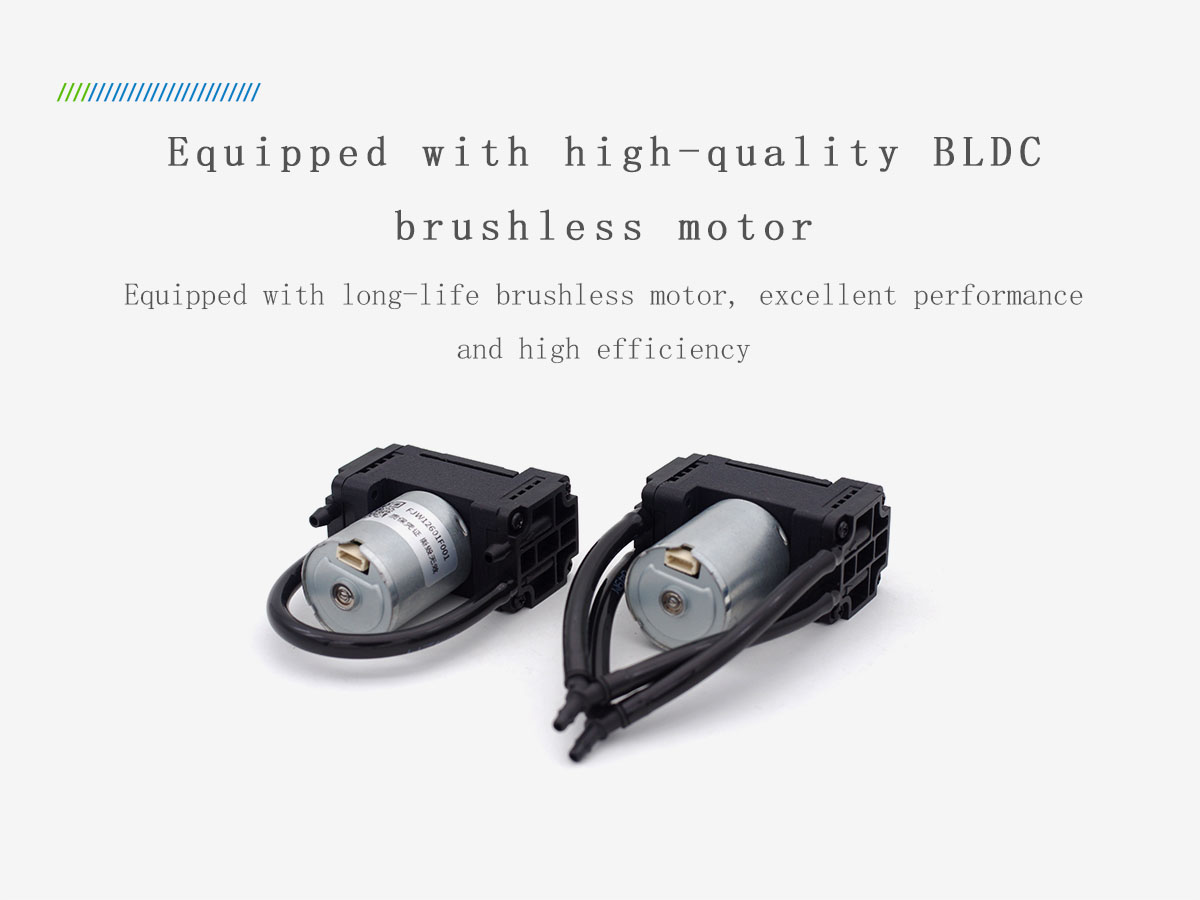

Driven by a high-quality BLDC motor, it supports PWM speed control, tachometer (FG) feedback, and features comprehensive protection (stall, over-current, reverse polarity).
The standard wetted parts (EPDM) offer good resistance to alcohols, acids, alkalis, and ozone, making it suitable for a wide range of media.

원산지 CHINA

0 포인트 적립예정 적립예정

택배 · 기본 4,000원 · 도서산간 배송비 popover

120,000원 이상 구매 시 무료배송

반품/교환

반품/교환

상품이 없습니다.

Models	D15PB with BL brushless motor	D15HB with BL brushless motor
Versions	Standard	Standard

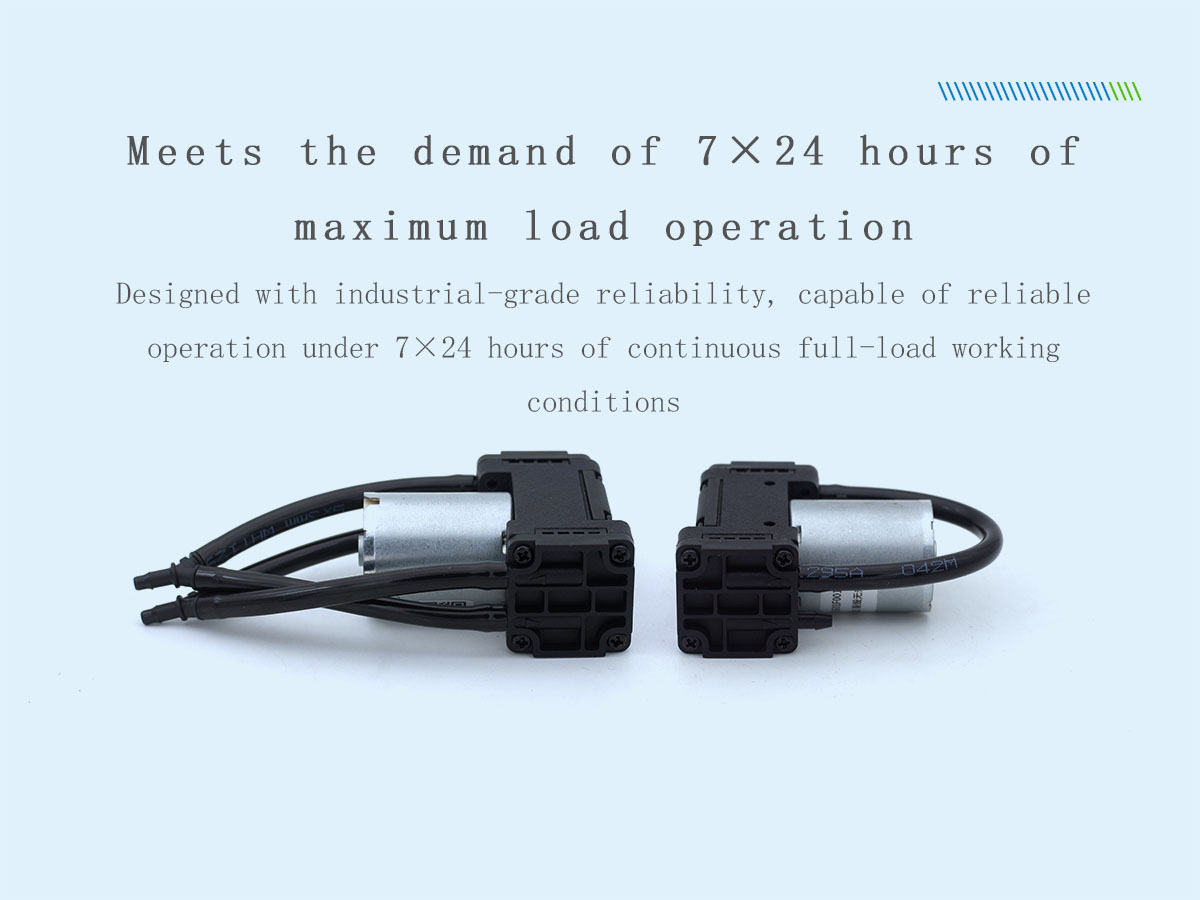

Fully Loaded Lifetime(hrs)	6000	6000
Unloaded Lifetime(hrs)	8000	8000
Motor Lifetime(hrs)	10000	10000
Test conditions	In a clean and non-corrosive laboratory, the pump is fully loaded (the outlet is blocked, the inlet is directly connected to the atmosphere) or unloaded (the inlet and outlet are directly connected to the atmosphere), and runs continuously around the clock; ambient temperature: 5~33 degrees, relative humidity: 50%-85%, fluctuates with the climate.
Working Condition
Operating temperature	Permissible ambient temperature is 0~50 degrees, it is not suitable to be exposed to the sun, and it should work in a clean and ventilated environment
Medium	Permissible temperature of the medium is 0~40 degrees, the transferring gas is allowed to be rich in water vapor, but cannot contain solid particles
Wetted materials	EPDM, fiber reinforced PA, tolerance to alcohol, acid, alkali, etc. (except strong acid, concentrated acid, lipids, benzene, gasoline, etc.)

Models	D15PB with BL brushless motor	D15HB with BL brushless motor
Versions	Standard	Standard
Fully Loaded Lifetime(hrs)	6000	6000
Unloaded Lifetime(hrs)	8000	8000
Motor Lifetime(hrs)	10000	10000
Test conditions	In a clean and non-corrosive laboratory, the pump is fully loaded (the outlet is blocked, the inlet is directly connected to the atmosphere) or unloaded (the inlet and outlet are directly connected to the atmosphere), and runs continuously around the clock; ambient temperature: 5~33 degrees, relative humidity: 50%-85%, fluctuates with the climate.
Working Condition
Operating temperature	Permissible ambient temperature is 0~50 degrees, it is not suitable to be exposed to the sun, and it should work in a clean and ventilated environment
Medium	Permissible temperature of the medium is 0~40 degrees, the transferring gas is allowed to be rich in water vapor, but cannot contain solid particles
Wetted materials	EPDM, fiber reinforced PA, tolerance to alcohol, acid, alkali, etc. (except strong acid, concentrated acid, lipids, benzene, gasoline, etc.)

Technical Infomation
