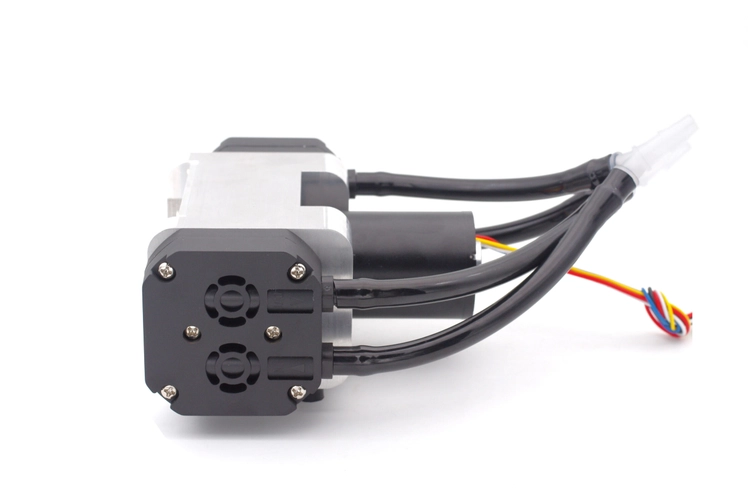

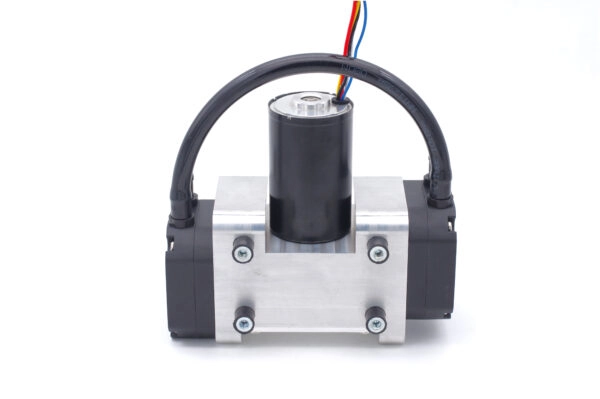

[Hilintec] D50 High Vacuum High Flow Dual head Diaphragm Pump

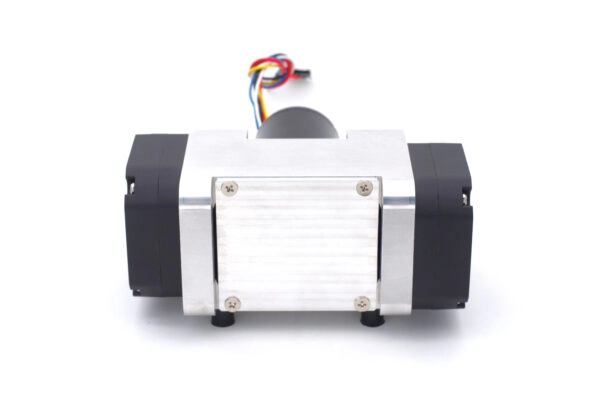

Overall Descriptions

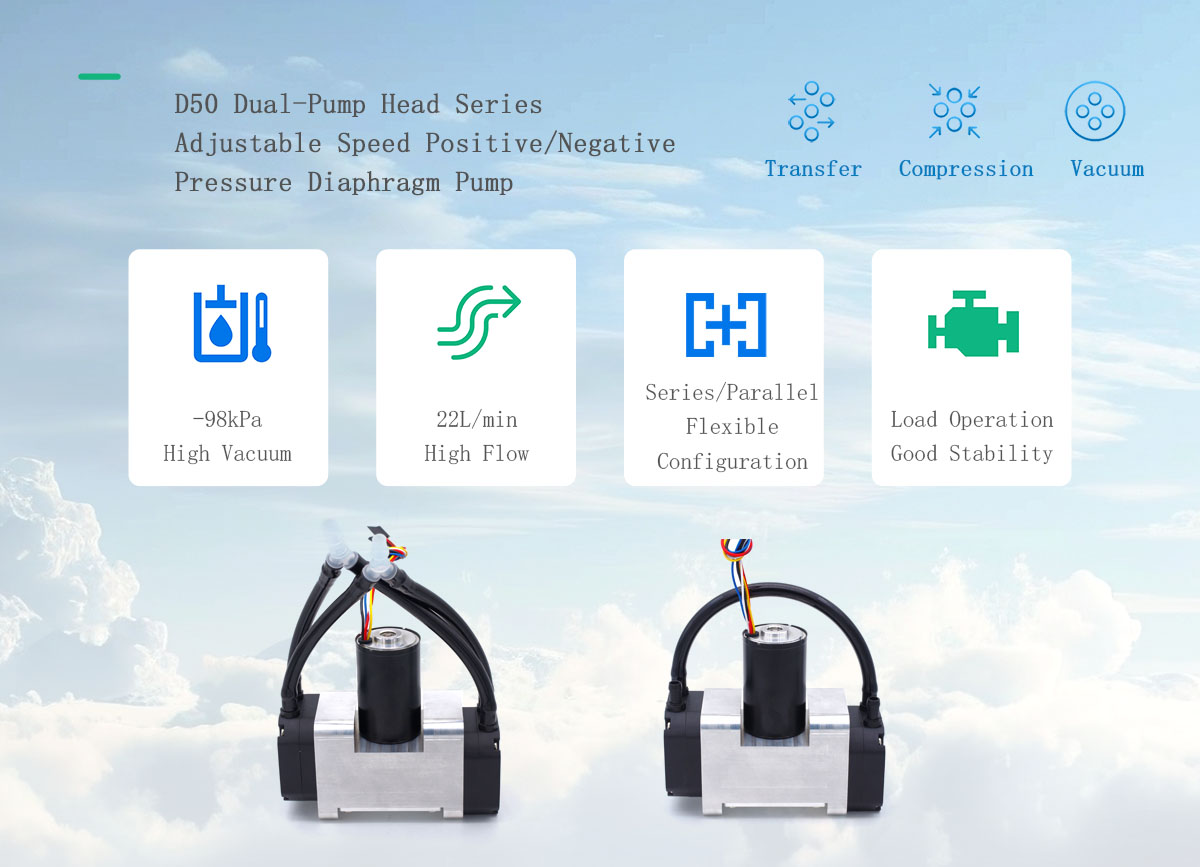

The D50 series are high-vacuum, high-flow dual head diaphragm pumps with a 24V operating voltage. They achieve a relative vacuum level exceeding -98kPa and a maximum flow rate of up to 22L/min. These pumps feature premium brushless motors, allowing speed adjustment via PWM duty cycle control. Multiple pipe fitting options are provided, including PC6, PC8, Rp1/8, NPSC1/8 cylindrical internal threads, as well as hose connectors, meeting diverse customer requirements for pipeline connections.
![[Hilintec]D50 High Vacuum High Flow Dual head Diaphragm Pump](https://cdn.imweb.me/upload/S2022051324e164f1aeda4/754f7883b9e78.jpg)
Powerful Suction,High Flow

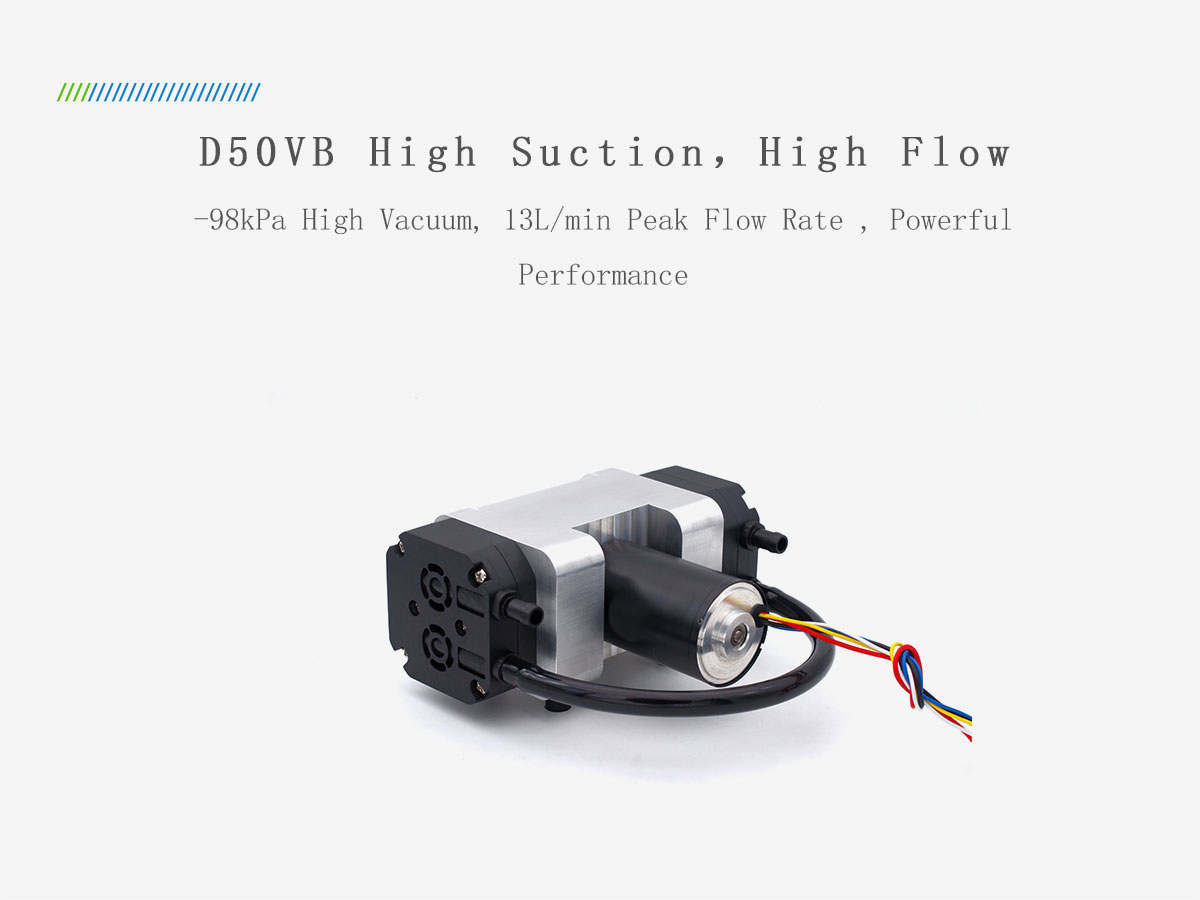

The D50VB vacuum pump delivers exceptional performance with a vacuum level up to -98kPa(3kPa.abs) and a peak flow rate reaching 13L/min. Its balanced high-vacuum and high-flow design caters to critical processes like gas sampling, analytical instrumentation, and automated systems where both speed and suction depth are essential.![[Hilintec]D50 High Vacuum High Flow Dual head Diaphragm Pump](https://cdn.imweb.me/upload/S2022051324e164f1aeda4/93bfaf0e20fa1.jpg)
High Flow,High Vacuum

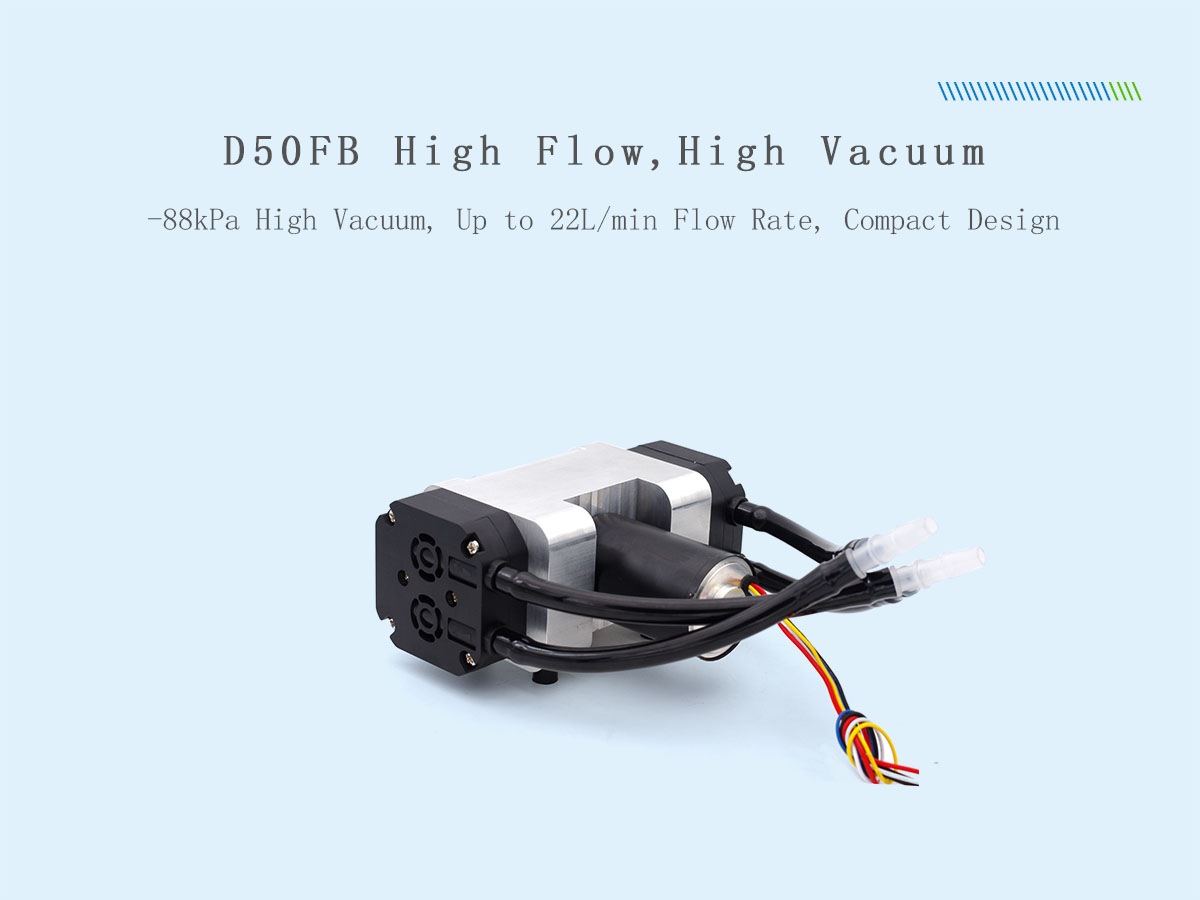

The D50FB vacuum pump delivers outstanding performance with both high flow rate and high vacuum capability, achieving an impressive vacuum level up to -88kPa and a peak flow rate of 22L/min. Despite its remarkably compact design, this powerful unit maximizes performance to fully meet demanding requirements for both strong vacuum and high flow applications.If you need a pump with high air-tightness, please check the D50TS model![[Hilintec]D50 High Vacuum High Flow Dual head Diaphragm Pump](https://cdn.imweb.me/upload/S2022051324e164f1aeda4/5b8ebc6810496.jpg)
Modular Connections
This mini gas pump offers comprehensive connection compatibility with multiple standard fitting options including 8mm and 4mm hose connector,quick-connect PC6 and PC8, , as well as internal threaded Rp1/8 and NPSC1/8 connections.

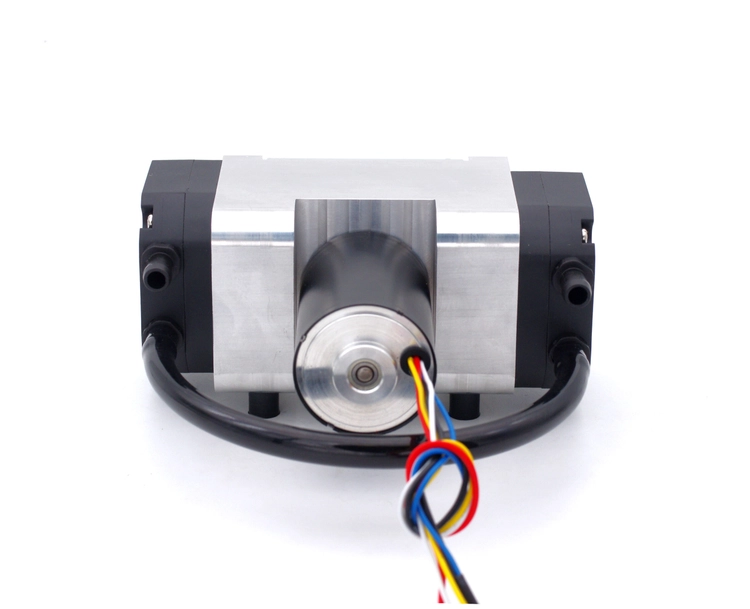

Dual Head Diaphragm Pump Design

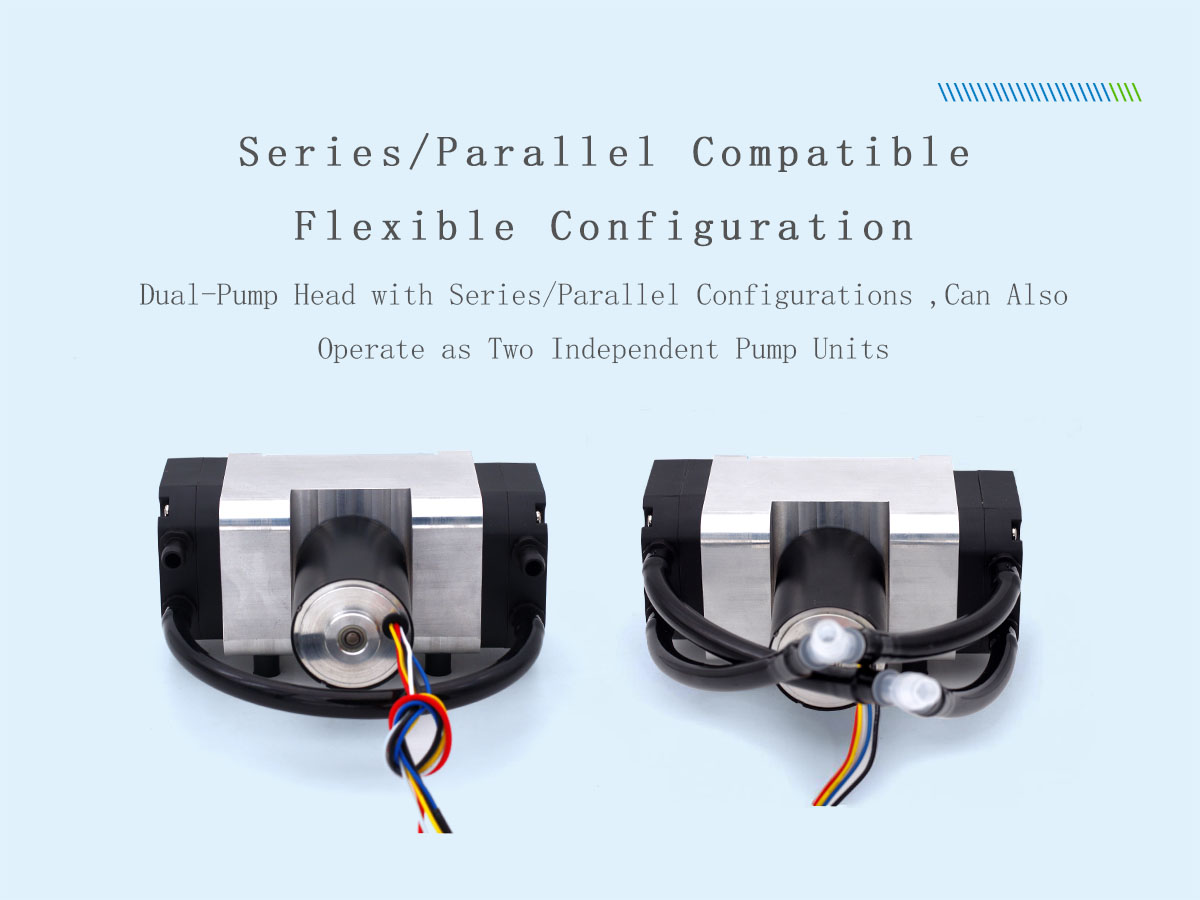

The two pump heads can be connected in series, in parallel, or used as two independent pump heads to meet various application requirements.
![[Hilintec]D50 High Vacuum High Flow Dual head Diaphragm Pump](https://cdn.imweb.me/upload/S2022051324e164f1aeda4/f18d87778b2f8.jpg)
Long Lifetime
This pump is equipped with a high-quality brushless DC motor capable of continuous operation, delivering reliable performance with an extended service life of up to 7,500 hours under full load conditions. The premium motor design ensures smooth, maintenance-free operation while providing excellent durability for demanding industrial applications.
Advanced Multi-Protection System
This model features intelligent self-protection with stall protection, over-current protection, and reverse-connection protection. This comprehensive safety system actively prevents damage from high-load conditions, power supply faults, or operational errors, ensuring uninterrupted performance and extended service life.

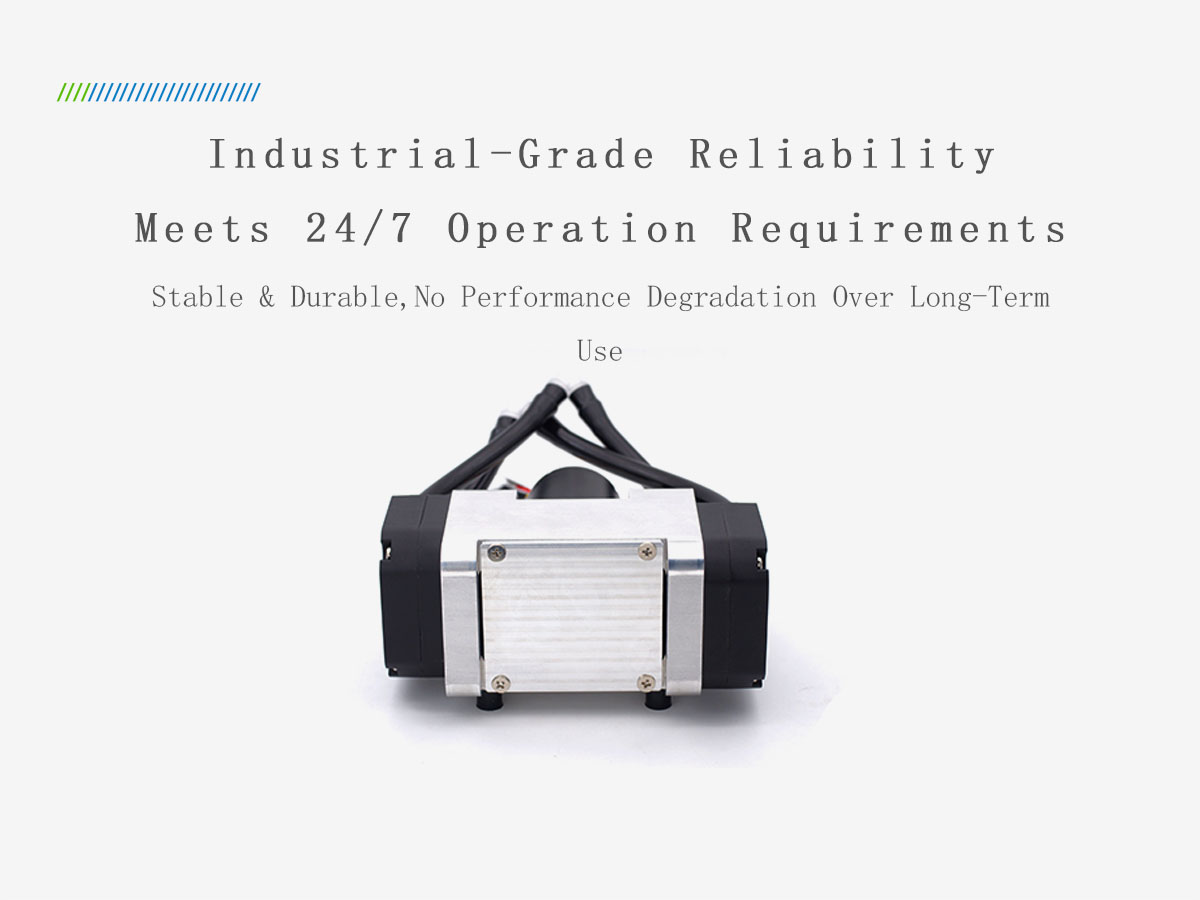

Industrial-grade Reliability
In response to industrial-grade reliability requirements, we have designed a special test process for possible load conditions. Therefore, no matter what load the product actually works under, its actual service life can reach and exceed its nominal service life. If the actual working load is less than the nominal maximum load, its life can be further extended. Therefore tt can operate without stopping for a long time under the maximum load. The product has passed the life test under the maximum load, and can promise to reach the nominal life under various loads.
![[Hilintec]D50 High Vacuum High Flow Dual head Diaphragm Pump](https://cdn.imweb.me/upload/S2022051324e164f1aeda4/bd21acaf9c140.jpg)
Speed Control Function
The mini gas pump’s flow rate can be adjusted by controlling the motor speed. For brushless motor (BLDC) models, speed regulation is achieved by adjusting the PWM duty cycle.
Technical Infomation
D50 PERFORMANCE DATA
| | |
| Diaphragm: EPDM Valves: EPDM Pump Head: PA6
| Diaphragm: EPDM Valves: EPDM Pump Head: PA6
|
| | |
| | |
Max. Average Flow rate(L/min) | | |
Max. Peak Flow rate
(L/min) | | |
| | |
| | |
D50 CONFIGRATION OPTIONS
| |
| |
| |
| |
| |
| |
| Default H8 hose connector/H4 hose connector/ PC6 push-in quick connector/PC8 push-in quick connector /Rp1 /8 internal thread /NTSC1 /8 internal thread |
| |
| |
D50 RELIABILITY DATA
| |
| |
Fully Loaded Lifetime(hrs) | |
| |
| |
| Fully-loaded lifetime: Pumps are fully loaded under rated voltage ,the inlet is blocked, and the outlet is directly connected to the atmosphere; the fully-loaded lifetime represents the continuous operating life under the most extreme and harsh working conditions. When the actual working condition is intermittent use or the working pressure is lower than the maximum rated pressure, the product lifetime will approach the unloaded lifetime Unloaded lifetime: Both the inlet and the outlet of the pump are connected to the atmosphere, and the pump operates continuously for 7*2 4 hours without stopping; Motor lifetime: The motors run continuously for 7*2 4 hours without load under good ventilation and heat dissipation conditions
|
| |
| Permissible ambient temperature is 0~50 degrees, it is not suitable to be exposed to the sun, and it should work in a clean and ventilated environment |
| Permissible temperature of the medium is 0~40 degrees, the transferring gas is allowed to be rich in water vapor, but cannot contain solid particles |
| EA material tolerance to alcohol, acid, alkali, etc. (except strong acid, concentrated acid, lipids, benzene, gasoline, etc.),PV material has excellent corrosion resistance and tolerance to strong acids, strong alkalinity and various corrosive gases |
Applications
- Gas sampling
- Medical equipment
- Analytical instruments
- Environmental online monitoring
- Pneumatic automation
