· 사용이 간편한 보급형 모델
· 컴펙트 사이즈로 공간 활용 극대화 (W×D×H : 190×270×215mm, 펌프헤드제외)
· 최대 2채널의 펌프 헤드 장착이 가능 (Tubing종류에 따라 다름)
· CW, CCW and Start, Stop, Timer (99분 59초까지 1초단위), 외부연동(풋스위치 4~20mA or 1~5V)기능
· 0.1~100 rpm까지 0.1 rpm, 100~600 rpm까지 1 rpm 단위로 설정 가능
· 외부기기에서 펌프 상태 확인 가능(Open Collector)
· 누수 감지 센서 연동 가능(Leak Detector)
· 정전 복구 기능 선택 가능(정전 복귀 후 Auto Start 기능)
· 사용자 친화적인 디자인
· EMP-650IP
· Made in Korea

안내사항 |
가격 기재가 되지 않은 별도 문의 상품인 경우 반드시 '온라인 견적문의' 혹은 '전화 문의' 후 구매 부탁드립니다. |

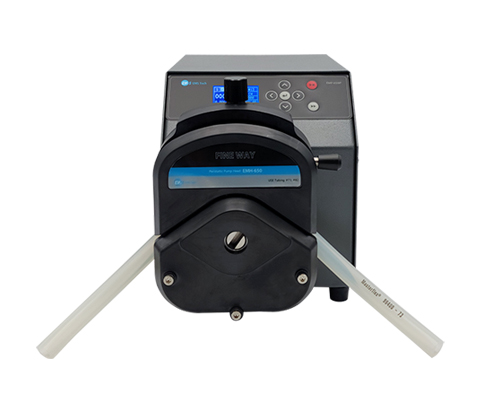

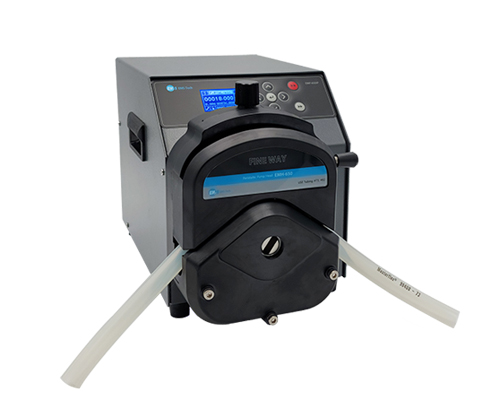

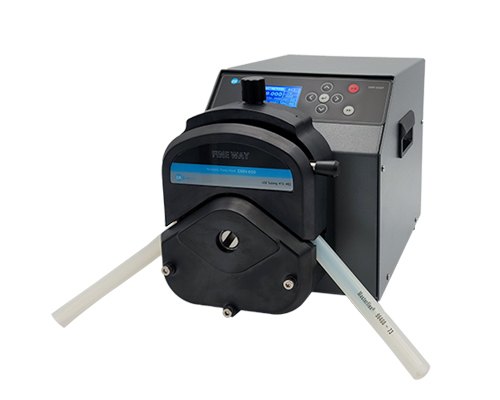

산업용 디지털튜브연동 펌프 (EMP-650IP)
Industrial Digital Peristaltic Pump
산업용 디지털튜브연동 펌프 EMP-650IP Description · 사용이 간편한 보급형 모델 |
상세규격(Specifications)
Motor Type(모터종류) | Stepping Motor |
RPM(회전속도) | 0.1 ~ 600 |
Flow Capacity(유량범위) | 0.01 to 13 LPM (Full Range) |
사용온·습도 | Temperature : 0~50℃, Relative Humidity<80% |
Housing Materials | Carbon Steel Casing, Special Coating Processing |
Display | 4 digit LED Display(RPM or Timer) |
System Power | 230VAC, 60Hz |
Dimensions(W×D×H) | 190×270×215mm (펌프헤드제외) |
External Interface | Input : Internal/External, Stop/Start, CW/CCW, Speed(4~20mA or 1~5V), Leak Sensor |
Output : Alarm, Pumping, Direction(CW/CCW) | |
Applied Pump Head | I/P Easy-Load |
작동모드 | RPM : 0.1 ~ 600, Timer : 00:01 ~ 99:59 |
Flowrate
Model | Available tubing | Max flow rate(ml/min) | Speed range(rpm) | Rollers material | casing material | Rollers NO. | weight(kg) |
EMH-650 | 73# | 6000 | ≤600 | 304 | PSU | 3 | 1.65 |
82# | 11000 |
Option

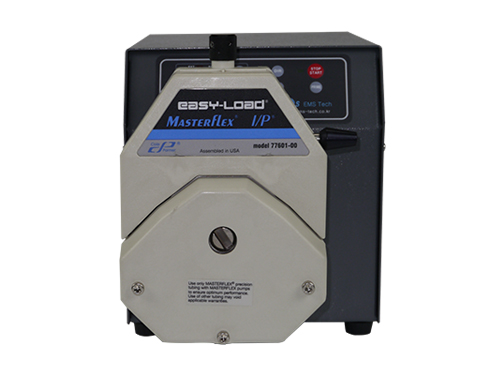

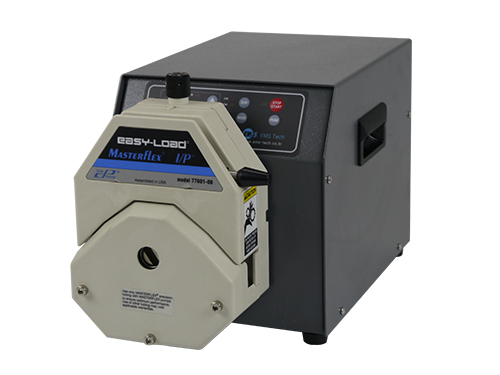

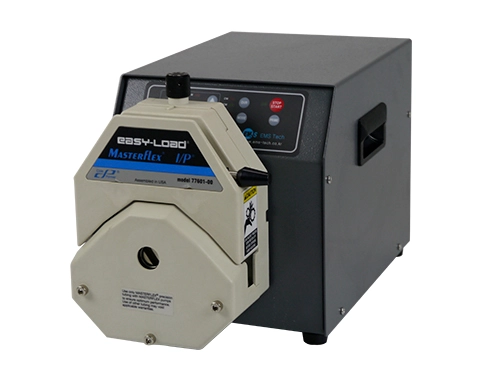

77602-00 | Masterflax I/P Easy-Load Pump Head |
EMT-FS-100L | Foot Switch for EMP-600A Series & EMP-650IP |
LD-2000 | Liquid Leak Detector(액체누수감지기) for EMP-600A Series & EMP-650P |
