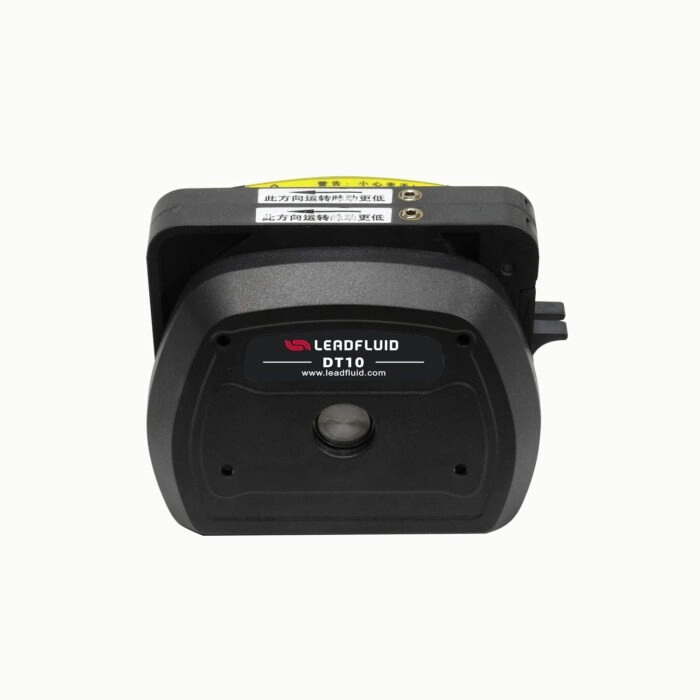

[LEADFLUID] DT Series Peristaltic Pump Head

가격문의(상세정보 참조)

DT series pump head is designed for small and medium flow ,multichannel fluid transmission, according to different tubing size, there are two series DT10 series and DT15 series.

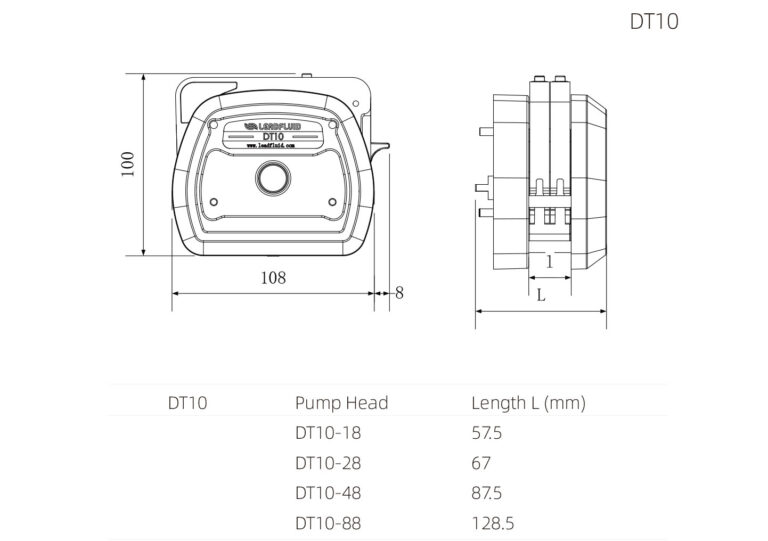

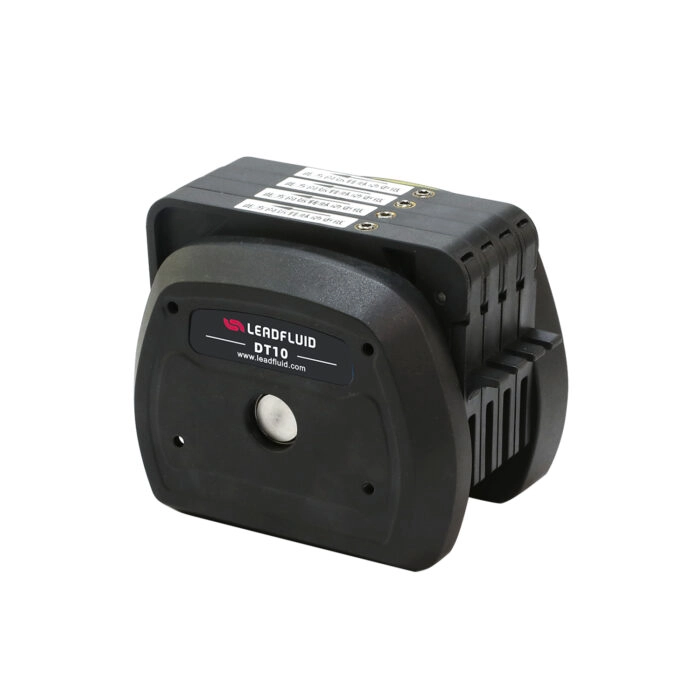

DT10 pump head single channel flow range 0.00023～64mL/min, suitable for tubing 13#, 14# and ID 0.13～3.2mm, wall thickness 0.8～1mm.

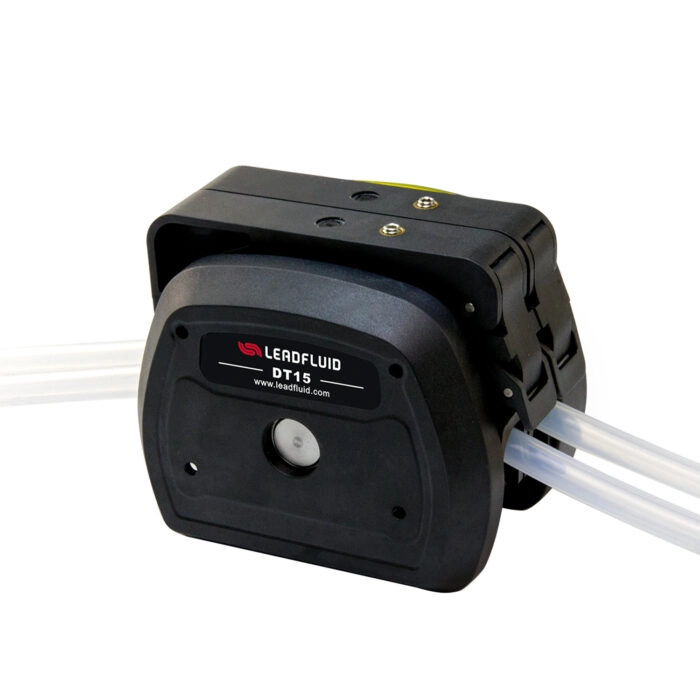

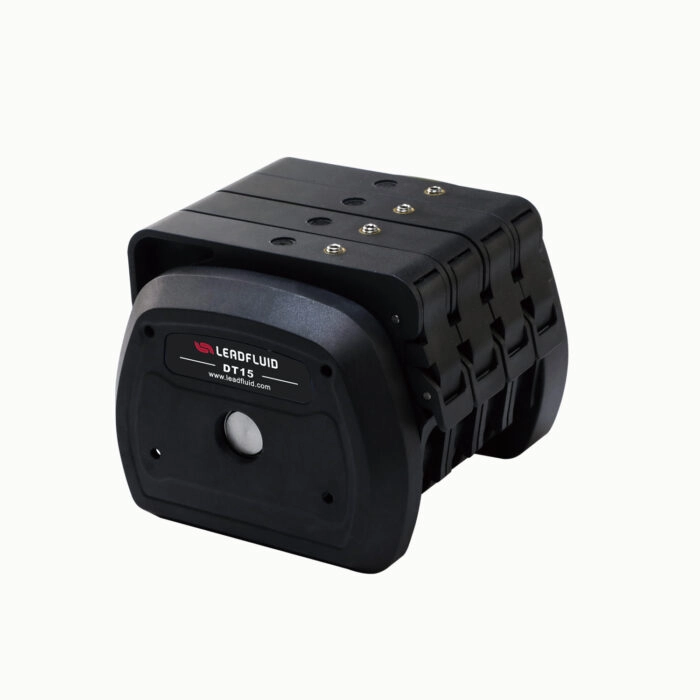

DT15 pump head single channel flow range 0.067～2240mL/min, suitable for tubing 19#,16#, 25#, 17#.

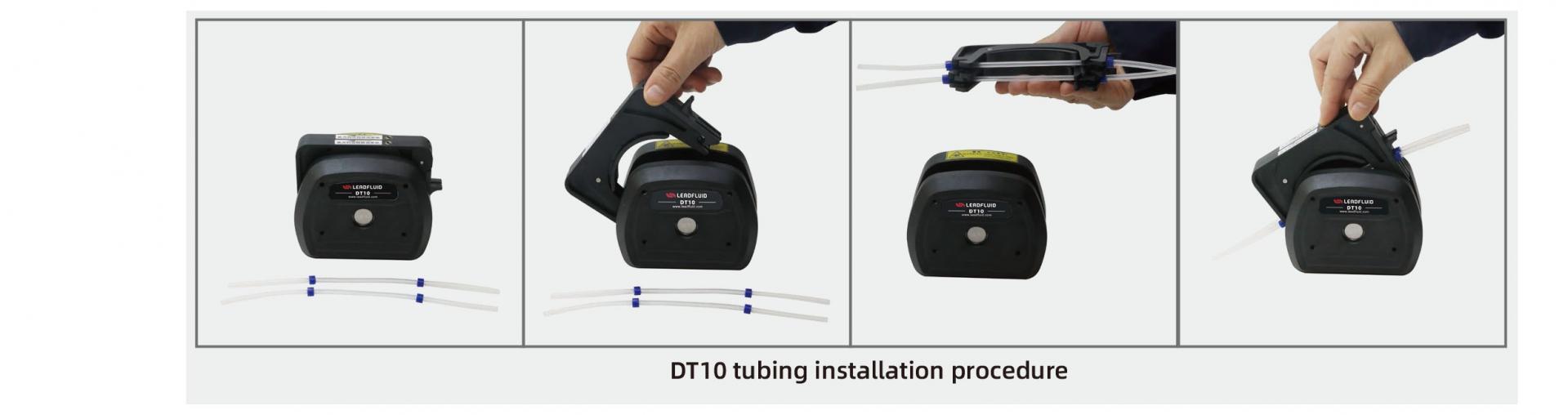

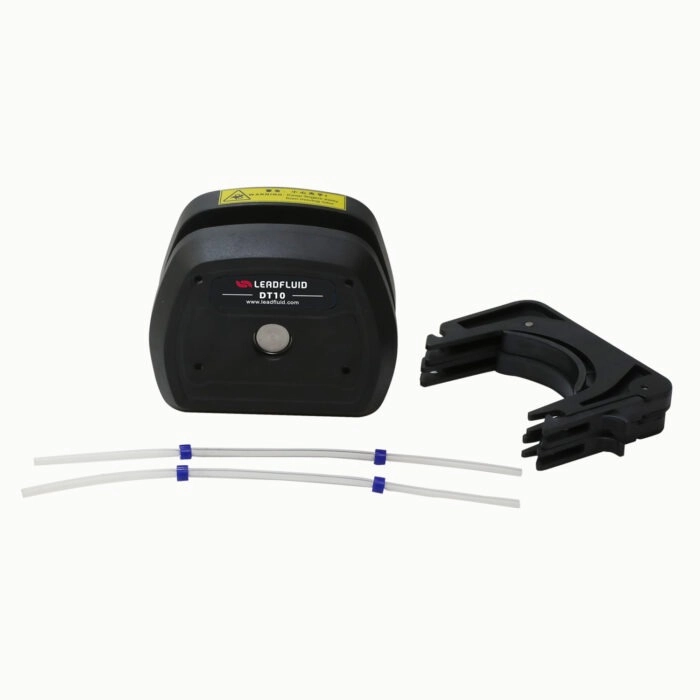

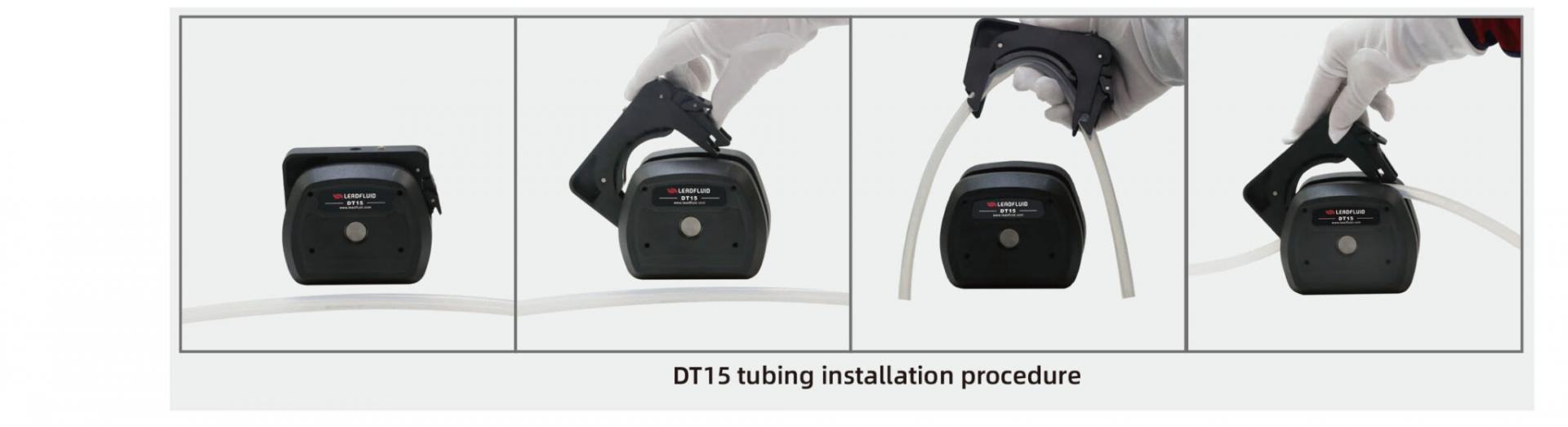

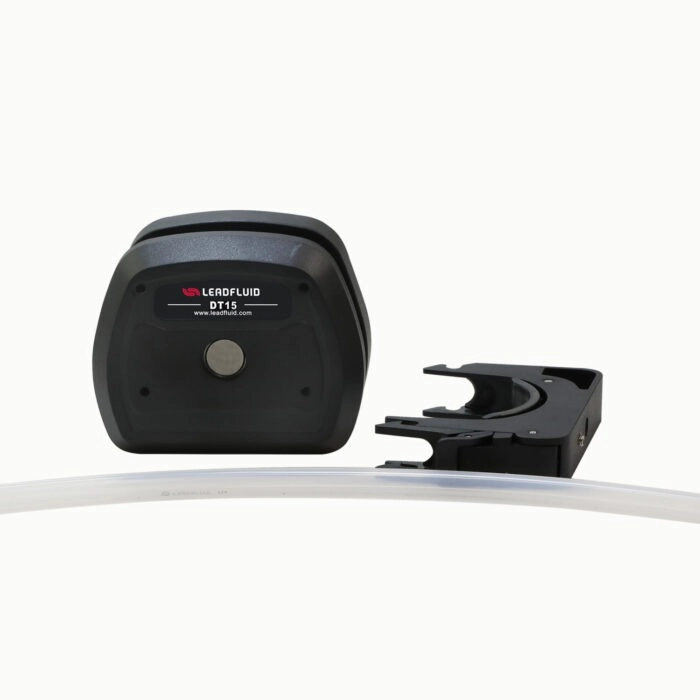

The plug card structure that can be installed and removed independently, it is convenient and quick to replace and fix the pump tubing.
Multi-roller design reduces pulsation effectively.
The roller is made of high-strength stainless steel, and the shell and card are made of PPS, which is resistant to high temperature and excellent chemical resistance.
The roller is a bearing design, gap adjustment and the flow conisstency is better.
Can instead of 2 or 4 YZ15 pump heads, smaller size.
Can match stepper motor, servo motor ,AC gear motor, DC gear motor etc.

원산지 CHINA
