[Fitting] Pre-torque Flangeless Fittings UNF나사탭 연결 아답터 피팅 PP,PTFE 재질 1/4-28UNF Thread HPLC용

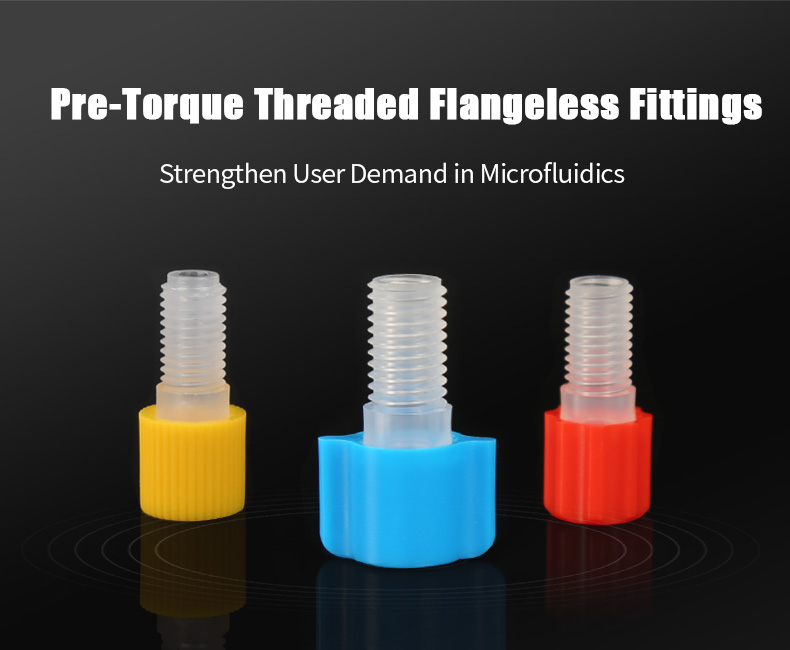

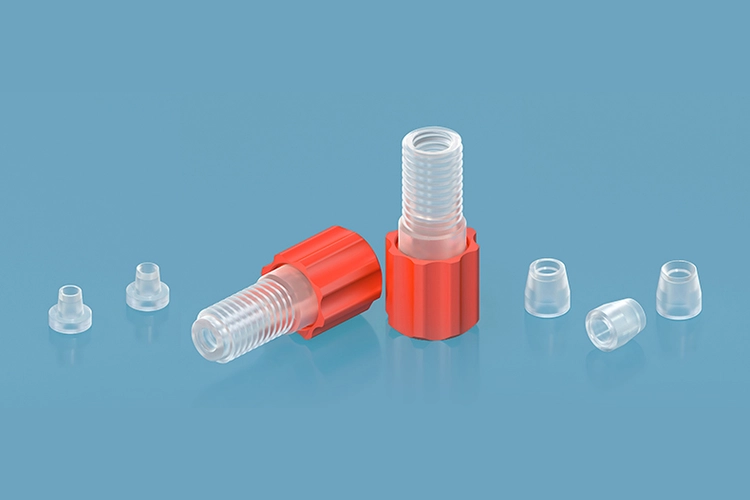

Pre-torque Flangeless Fitting —two-piece set 시리즈

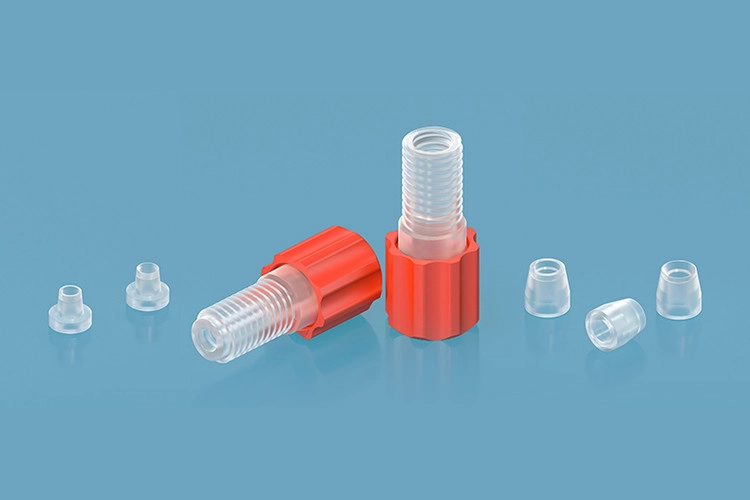

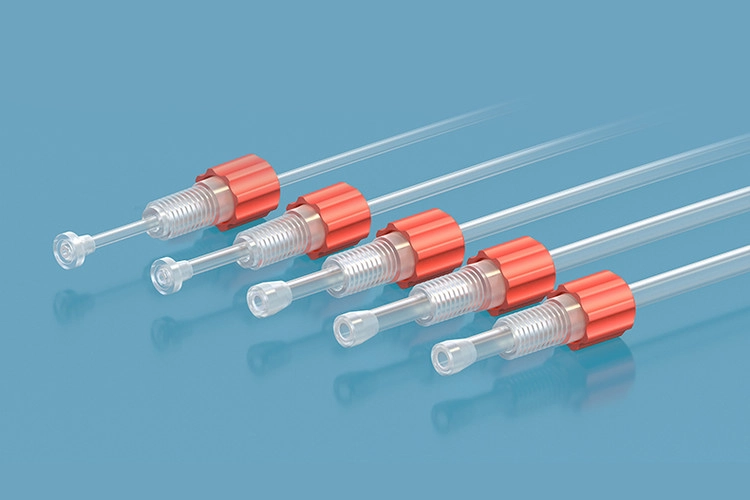

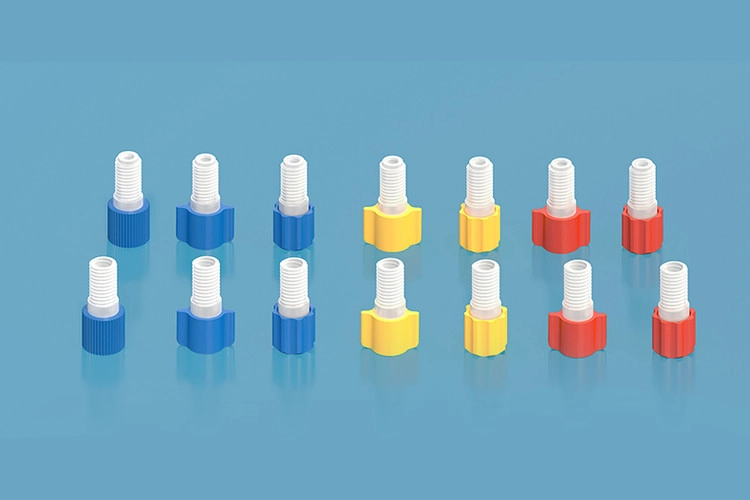

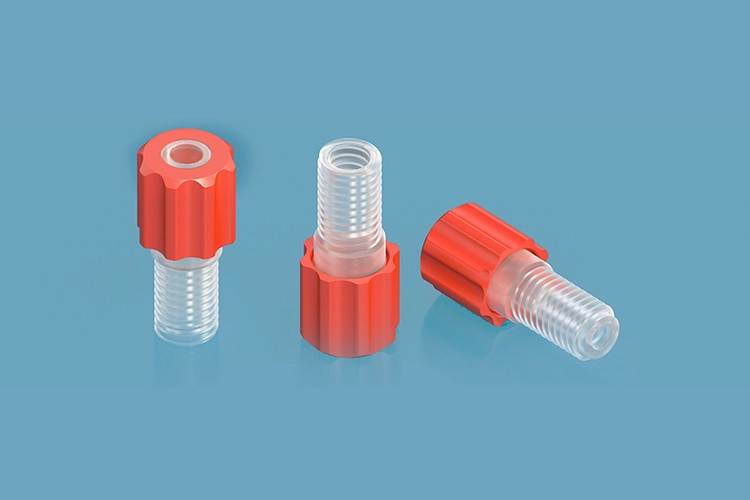

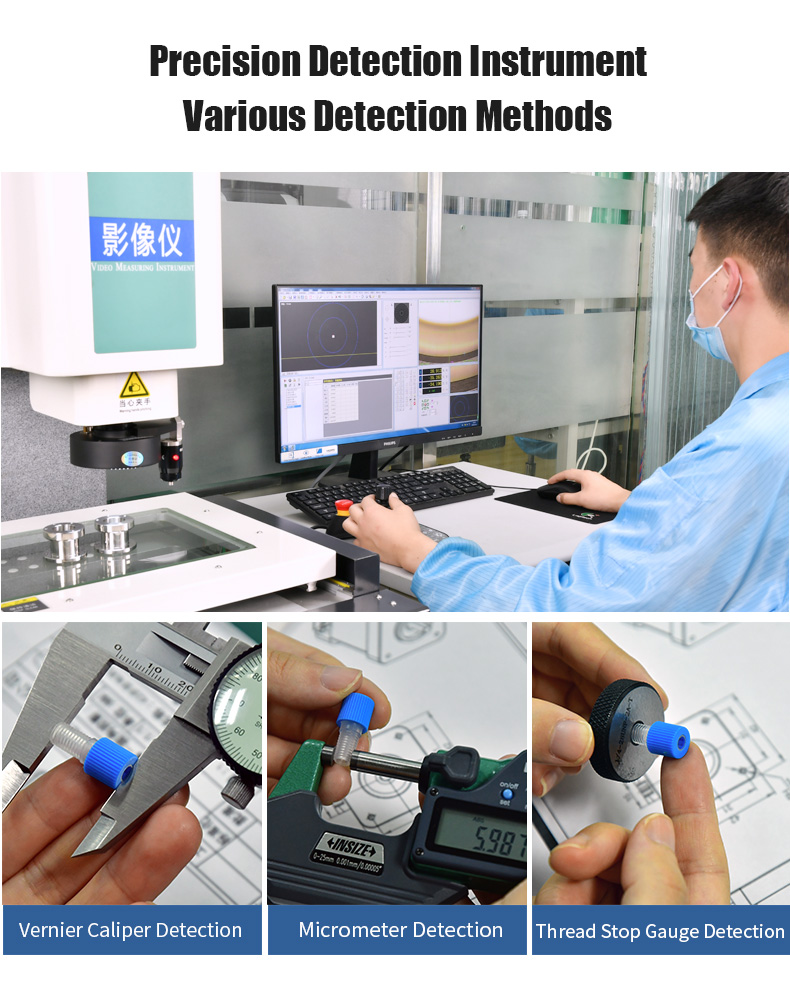

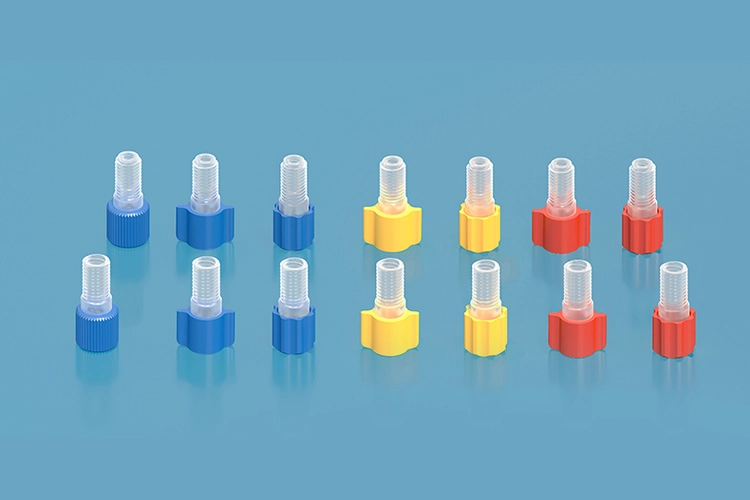

Pre-torque Flangeless Fittings
Pre-torque Flangeless Fittings offer a unique connection for hand-tight fittings by clicks when the resistance of the cap increases until reached the correct torque, it is made of PP or PTFE material and come with a pre-torque nut and ferrule for gas or liquid transfer. These threaded fittings are available for tubing outer diameters of 1.6/2.0/2.5/3.0/3.2mm.
Video of Pre-torque Flangeless Fittings

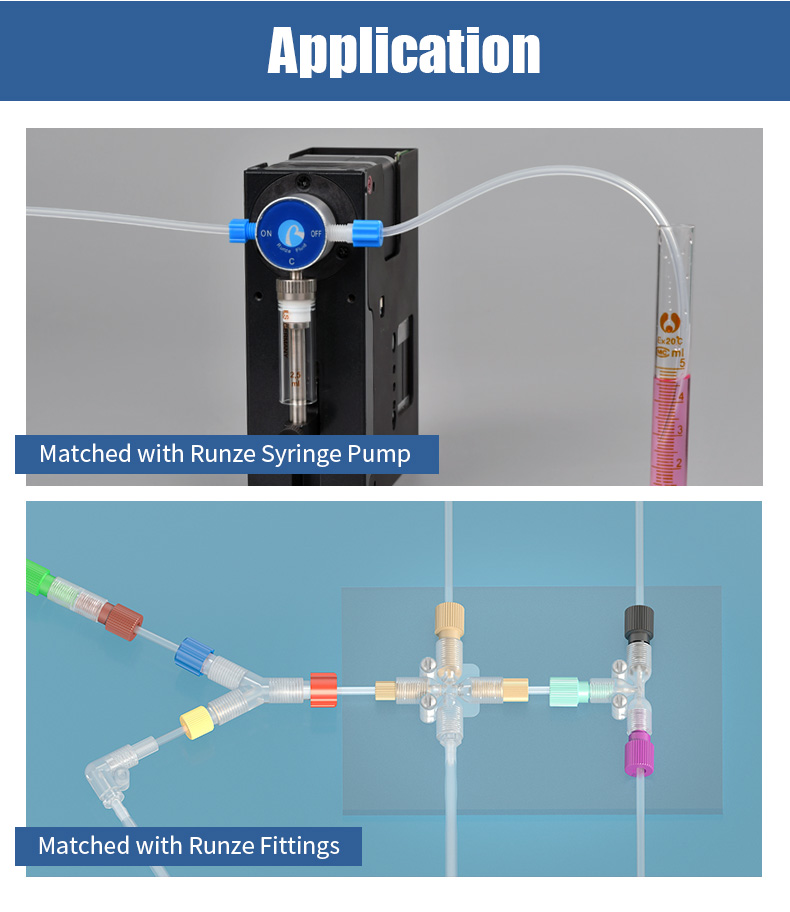

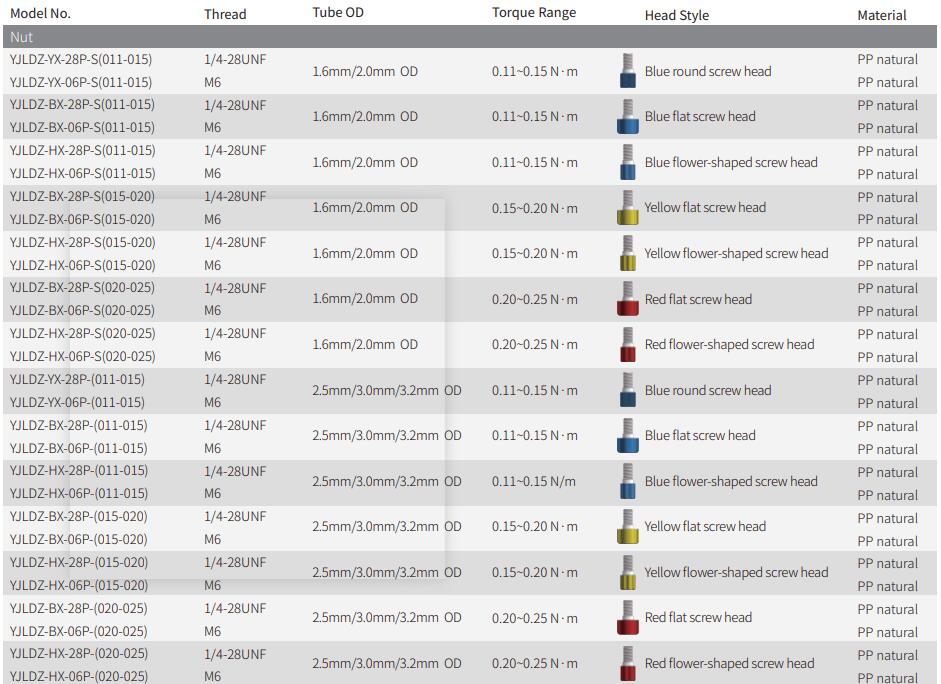

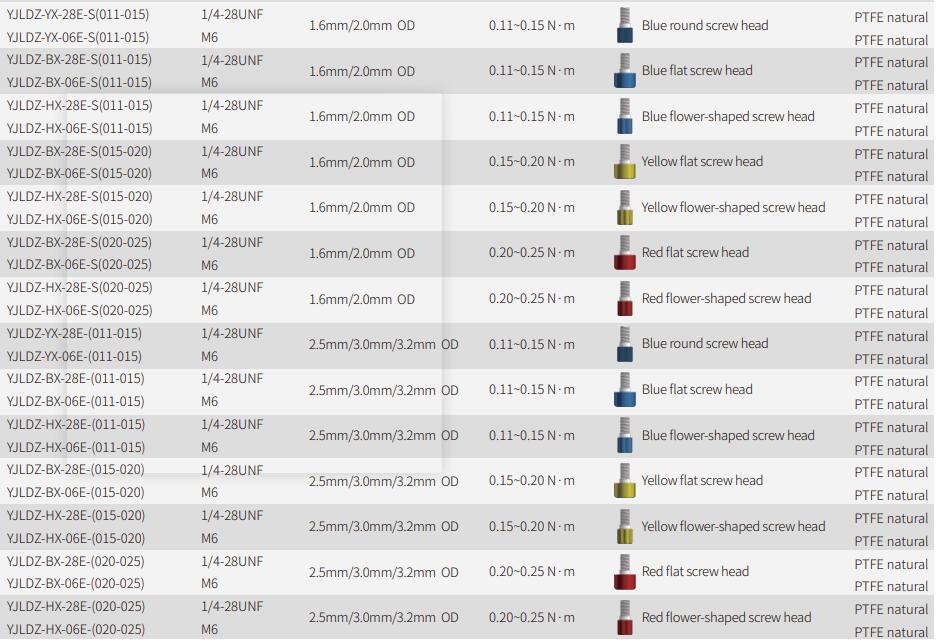

Specification of Pre-torque Flangeless Fittings
| Photo | Product Code | Product Name | Model No. | Specification (CN) | Unit | Material | Tubing Size (mm) |
 | 1006020001 | Pre-torque Flangeless Fittings | YJLDZ-YX-28E（011/015） | 1/4-28PTFE（0.11-0.15N/M） | Piece | PTFE | OD 2.5/3.0/3.2 |
| 1006020002 | Pre-torque Flangeless Fittings | YJLDZ-YX-28P（011/015） | 1/4-28PP（0.11-0.15N/M） | Piece | PP | OD 2.5/3.0/3.2 | |
| 1006020003 | Pre-torque Flangeless Fittings | YJLDZ-YX-06E（011/015） | M6PTFE（0.11-0.15N/M） | Piece | PTFE | OD 2.5/3.0/3.2 | |
| 1006020004 | Pre-torque Flangeless Fittings | YJLDZ-YX-06P（011/015） | M6PP（0.11-0.15N/M） | Piece | PP | OD 2.5/3.0/3.2 | |
 | 1006020005 | Pre-torque Flangeless Fittings | YJLDZ-BX-28E（011/015） | 1/4-28PTFE（0.11-0.15N/M） | Piece | PTFE | OD 2.5/3.0/3.2 |
| 1006020006 | Pre-torque Flangeless Fittings | YJLDZ-BX-28P（011/015） | 1/4-28PP（0.11-0.15N/M） | Piece | PP | OD 2.5/3.0/3.2 | |
 | 1006020009 | Pre-torque Flangeless Fittings | YJLDZ-HX-28E（011/015） | 1/4-28PTFE（0.11-0.15N/M） | Piece | PTFE | OD 2.5/3.0/3.2 |
| 1006020010 | Pre-torque Flangeless Fittings | YJLDZ-HX-28P（011/015） | 1/4-28PP（0.11-0.15N/M） | Piece | PP | OD 2.5/3.0/3.2 | |
| 1006020011 | Pre-torque Flangeless Fittings | YJLDZ-HX-06E（011/015） | M6PTFE（0.11-0.15N/M） | Piece | PTFE | OD 2.5/3.0/3.2 | |
 | 1006020013 | Pre-torque Flangeless Fittings | YJLDZ-YX-28E-S（011/015） | 1/4-28PTFE（0.11-0.15N/M） | Piece | PTFE | OD 1.6/2.0 |
| 1006020014 | Pre-torque Flangeless Fittings | YJLDZ-YX-28P-S（011/015） | 1/4-28PP（0.11-0.15N/M） | Piece | PP | OD 1.6/2.0 | |
| 1006020015 | Pre-torque Flangeless Fittings | YJLDZ-YX-06E-S（011/015） | M6PTFE（0.11-0.15N/M） | Piece | PTFE | OD 1.6/2.0 | |
| 1006020016 | Pre-torque Flangeless Fittings | YJLDZ-YX-06P-S（011/015） | M6PP（0.11-0.15N/M） | Piece | PP | OD 1.6/2.0 | |
 | 1006020018 | Pre-torque Flangeless Fittings | YJLDZ-BX-28P-S（011/015） | 1/4-28PP（0.11-0.15N/M） | Piece | PP | OD 1.6/2.0 |
| 1006020019 | Pre-torque Flangeless Fittings | YJLDZ-BX-06E-S（011/015） | M6PTFE（0.11-0.15N/M） | Piece | PTFE | OD 1.6/2.0 | |
 | 1006020021 | Pre-torque Flangeless Fittings | YJLDZ-HX-28E-S（011/015） | 1/4-28PTFE（0.11-0.15N/M） | Piece | PTFE | OD 1.6/2.0 |
| 1006020022 | Pre-torque Flangeless Fittings | YJLDZ-HX-28P-S（011/015） | 1/4-28PP（0.11-0.15N/M） | Piece | PP | OD 1.6/2.0 | |
| 1006020023 | Pre-torque Flangeless Fittings | YJLDZ-HX-06E-S（011/015） | M6PTFE（0.11-0.15N/M） | Piece | PTFE | OD 1.6/2.0 | |
 | 1006020025 | Pre-torque Flangeless Fittings | YJLDZ-YX-28E（015/020）-Yellow | 1/4-28PTFE（0.15-0.20N/M） | Piece | PTFE | OD 2.5/3.0/3.2 |
| 1006020026 | Pre-torque Flangeless Fittings | YJLDZ-YX-28E（020/025）-Red | 1/4-28PTFE（0.20-0.25N/M） | Piece | PTFE | OD 2.5/3.0/3.2 | |
| 1006020027 | Pre-torque Flangeless Fittings | YJLDZ-YX-28P（015/020）-Yellow | 1/4-28PP（0.15-0.20N/M） | Piece | PP | OD 2.5/3.0/3.2 | |
| 1006020028 | Pre-torque Flangeless Fittings | YJLDZ-YX-28P（020/025）-Red | 1/4-28PP（0.20-0.25N/M） | Piece | PP | OD 2.5/3.0/3.2 | |
 | 1006020033 | Pre-torque Flangeless Fittings | YJLDZ-BX-28E（015/020）-Yellow | 1/4-28PTFE（0.15-0.20N/M） | Piece | PTFE | OD 2.5/3.0/3.2 |
| 1006020034 | Pre-torque Flangeless Fittings | YJLDZ-BX-28E（020/025）-Red | 1/4-28PTFE（0.20-0.25N/M） | Piece | PTFE | OD 2.5/3.0/3.2 | |
| 1006020035 | Pre-torque Flangeless Fittings | YJLDZ-BX-28P（015/020）-Yellow | 1/4-28PP（0.15-0.20N/M） | Piece | PP | OD 2.5/3.0/3.2 | |
| 1006020036 | Pre-torque Flangeless Fittings | YJLDZ-BX-28P（020/025）-Red | 1/4-28PP（0.20-0.25N/M） | Piece | PP | OD 2.5/3.0/3.2 | |
 | 1006020041 | Pre-torque Flangeless Fittings | YJLDZ-HX-28E（015/020）-Yellow | 1/4-28PTFE（0.15-0.20N/M） | Piece | PTFE | OD 2.5/3.0/3.2 |
| 1006020042 | Pre-torque Flangeless Fittings | YJLDZ-HX-28E（020/025）-Red | 1/4-28PTFE（0.20-0.25N/M） | Piece | PTFE | OD 2.5/3.0/3.2 | |
| 1006020043 | Pre-torque Flangeless Fittings | YJLDZ-HX-28P（015/020）-Yellow | 1/4-28PP（0.15-0.20N/M） | Piece | PP | OD 2.5/3.0/3.2 | |
| 1006020044 | Pre-torque Flangeless Fittings | YJLDZ-HX-28P（020/025）-Red | 1/4-28PP（0.20-0.25N/M） | Piece | PP | OD 2.5/3.0/3.2 | |
| 1006020047 | Pre-torque Flangeless Fittings | YJLDZ-HX-06P（015/020）-Yellow | M6PP（0.15-0.20N/M） | Piece | PP | OD 2.5/3.0/3.2 | |
| 1006020048 | Pre-torque Flangeless Fittings | YJLDZ-HX-06P（020/025）-Red | M6PP（0.20-0.25N/M） | Piece | PP | OD 2.5/3.0/3.2 | |
 | 1006020051 | Pre-torque Flangeless Fittings | YJLDZ-YX-28P-S（015/020）-Yellow | 1/4-28PP小孔（0.15-0.20N/M） | Piece | PP | OD 1.6/2.0 |
| 1006020052 | Pre-torque Flangeless Fittings | YJLDZ-YX-28P-S（020/025）-Red | 1/4-28PP（0.20-0.25N/M） | Piece | PP | OD 1.6/2.0 | |
 | 1006020065 | Pre-torque Flangeless Fittings | YJLDZ-HX-28E-S（015/020）-Yellow | 1/4-28PTFE（0.15-0.20N/M） | Piece | PTFE | OD 1.6/2.0 |
| 1006020066 | Pre-torque Flangeless Fittings | YJLDZ-HX-28E-S（020/025）-Red | 1/4-28PTFE（0.20-0.25N/M） | Piece | PTFE | OD 1.6/2.0 | |
| 1006020067 | Pre-torque Flangeless Fittings | YJLDZ-HX-28P-S（015/020）-Yellow | 1/4-28PP（0.15-0.20N/M） | Piece | PP | OD 1.6/2.0 | |
| 1006020068 | Pre-torque Flangeless Fittings | YJLDZ-HX-28P-S（020/025）-Red | 1/4-28PP（0.20-0.25N/M） | Piece | PP | OD 1.6/2.0 | |
 | 1006110001 | Flangeless Ferrule | YC-032-P | Piece | pp | OD 3.2 | |
| 1006110002 | Flangeless Ferrule | YC-030-P | Piece | pp | OD 3.0 | ||
| 1006110003 | Flangeless Ferrule | YC-025-P | Piece | pp | OD 2.5 | ||
| 1006110004 | Flangeless Ferrule | YC-020-P | Piece | pp | OD 2.0 | ||
| 1006110005 | Flangeless Ferrule | YC-016-P | Piece | pp | OD 1.6 | ||
| 1006110006 | Flangeless Ferrule | YC-032-E | Piece | PTFE | OD 3.2 | ||
| 1006110007 | Flangeless Ferrule | YC-030-E | Piece | PTFE | OD 3.0 | ||
| 1006110008 | Flangeless Ferrule | YC-025-E | Piece | PTFE | OD 2.5 | ||
| 1006110009 | Ferrule | YC-020-E | Piece | PTFE | OD 2.0 | ||
| 1006110010 | Ferrule | YC-016-E | Piece | PTFE | OD 1.6 | ||
| 1006110017 | Flangeless Ferrule | YC-025-A | Piece | PFA | OD 2.5 | ||
| 1006110018 | Flangeless Ferrule | YC-030-A | Piece | PFA | OD 3.0 | ||
| 1006110019 | Flangeless Ferrule | YC-032-A | Piece | PFA | OD 3.2 | ||
| 1006110020 | Ferrule | YC-032-P-Yellow | Piece | pp | OD 3.2 | ||
 | 1006110011 | Flangeless Ferrule | YE-016-P | Piece | pp | OD 1.6 | |
| 1006110013 | Flangeless Ferrule | YE-016-A | Piece | PFA | OD 1.6 | ||
| 1006110014 | Flangeless Ferrule | YE-020-P | Piece | pp | OD 2.0 | ||
| 1006110016 | Flangeless Ferrule | YE-020-A | Piece | PFA | OD 2.0 |

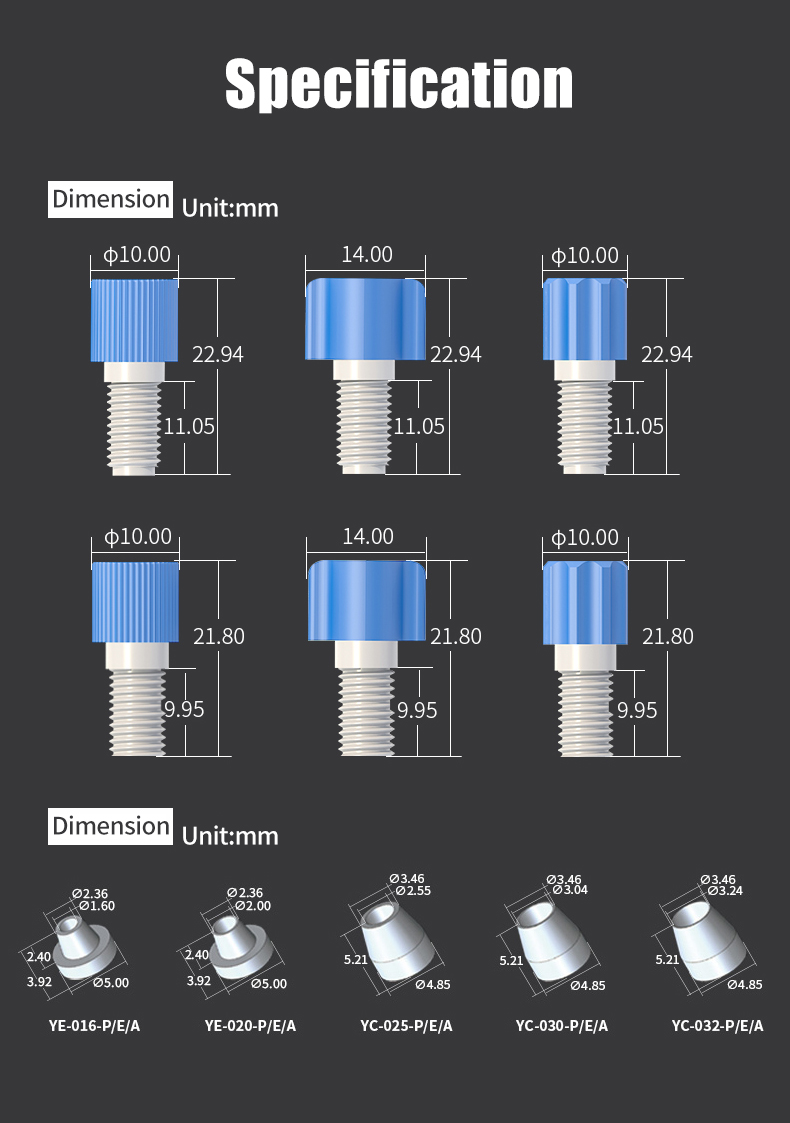

Dimension (unit: mm)

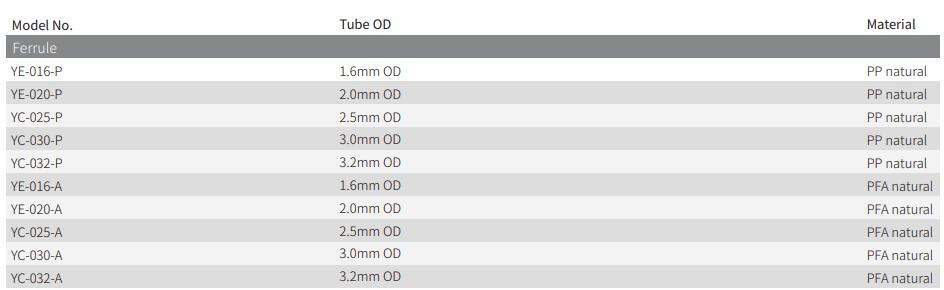

Ferrule Specification
Application Note of Flangeless Fittings
1. Choose 1/4-28 nut when receiving port is 1/4-28; Choose M6 nut when receiving port is M6.
2. Before connecting fittings, ensure the end of the tubing has a clean, square, burr-free cut. This is very important, as the square cut helps the tubing make full contact with the bottom of the mating port. Neglecting to properly cut the tubing could lead to dead volume, resulting in peak distortion such as fronting, tailing or broadening.

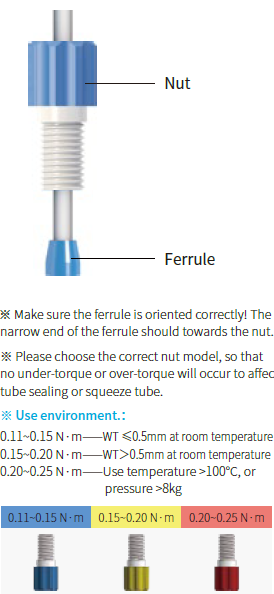

3. Two-Piece Fittings Installation Steps:
a. Slide the nut, followed by the ferrule, at least 3/16” (4.7625mm) from the end of the clean cut tubing
b. Insert the assembly into the receiving port, pushing the tubing into the port until it bottoms out.
c. Finger tighten the nut into the port until snug.
d. After several uses (especially at high pressure) the ferrule should be replaced.
