Imported raw material, non-toxic, tasteless, heat and corrosion resistant.
PP material is widely used in biomedical, environmental protection and food industries; PTFE material is also suitable for chemical industry and other fields
Fittings available in PP and PTFE, non-toxic, odourless, heat resistant, resistant to chemicals and organic substances
Suitable for standard 1/4-28UNF flat bottom threaded fittings
REACH and ROHS Certified ,Biocompatibility reports available.
안내사항 |
가격 기재가 되지 않은 별도 문의 상품인 경우 반드시 '온라인 견적문의' 혹은 '전화 문의' 후 구매 부탁드립니다. 설치/교육 신청의 경우 별도의 연락 후 직접 납품 드립니다. |
[Fitting]Low Pressure Crosses Fittings UNF나사탭 연결 아답터 피팅 PP,PTFE 재질 1/4-28UNF Thread HPLC용
Low Pressure Crosses 시리즈
Low Pressure Crosses

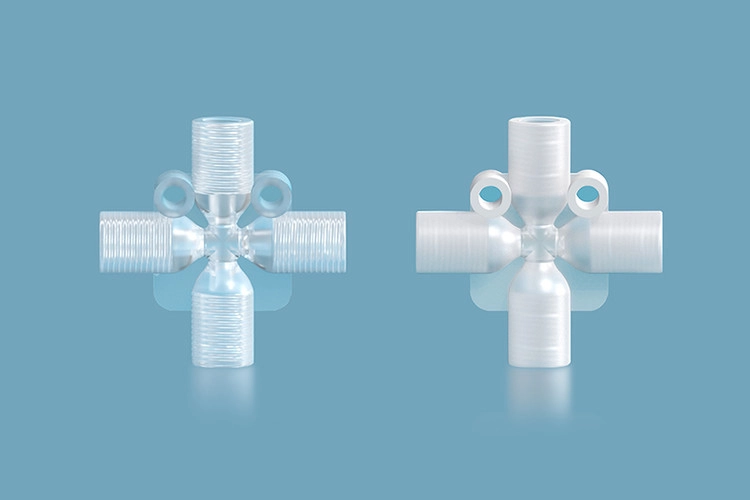

Low Pressure Crosses is used to connect four pieces of Teflon tubing together to create a four-way flow path in low pressure systems, designed with mounting holes to fix the channels tight so as not to affect the dispensing accuracy, 1/4-28UNF female threads works as receiving ports for male 1/4-28UNF fittings and its tubing, medical grade PP and PTFE materials are available for wide application requirements.
Video of Low Pressure Crosses
Specification of Low Pressure Crosses
| Photo | Product Code | Product Name | Model No. | Specification | Unit | Material |
 | 1006080001 | Female Cross Adapter | NS04-28P | 1/4-28-PP | Piece | PP |
| 1006080002 | Female Cross Adapter | NS04-28E | 1/4-28-PTFE | Piece | PTFE |
Model No | Material | Color | Female Thread | Pressure Rating Room Temperature (psi /MPa) | Tubing OD (mm) |
NS04-28P | PP | Natural PP | 1/4-28UNF | 116/0.8 | 3.2/3.175/3.0/2.5/ 2.0/1.6 |
NS04-28E | PTFE | Natural PTFE |

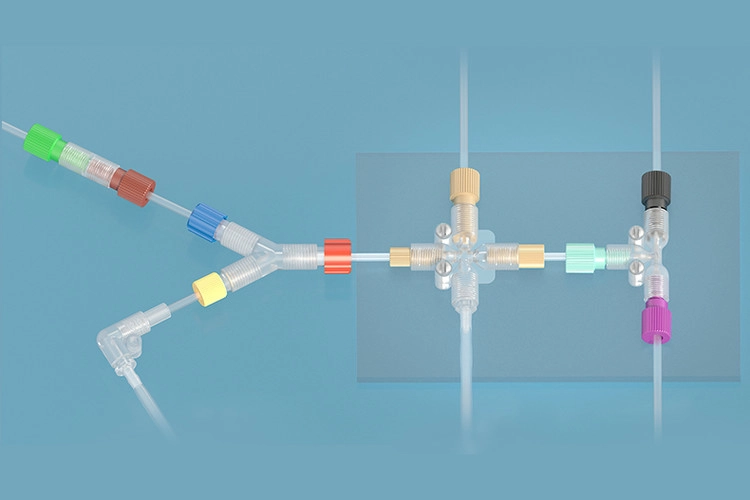

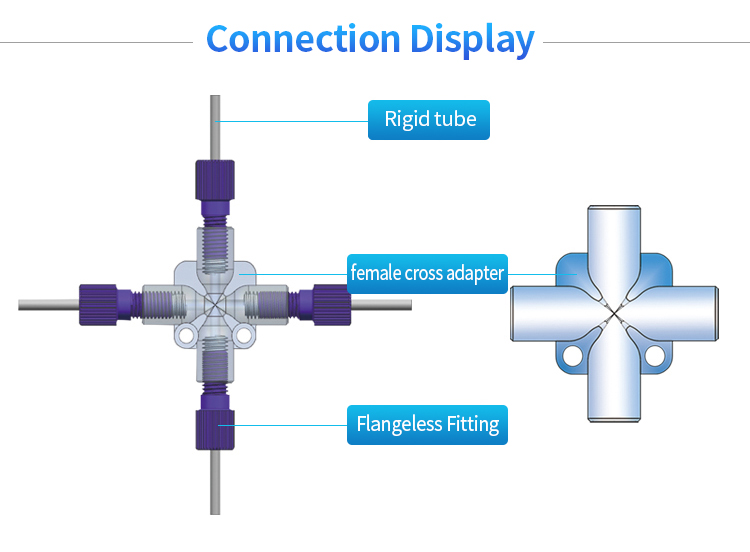

Connection Display

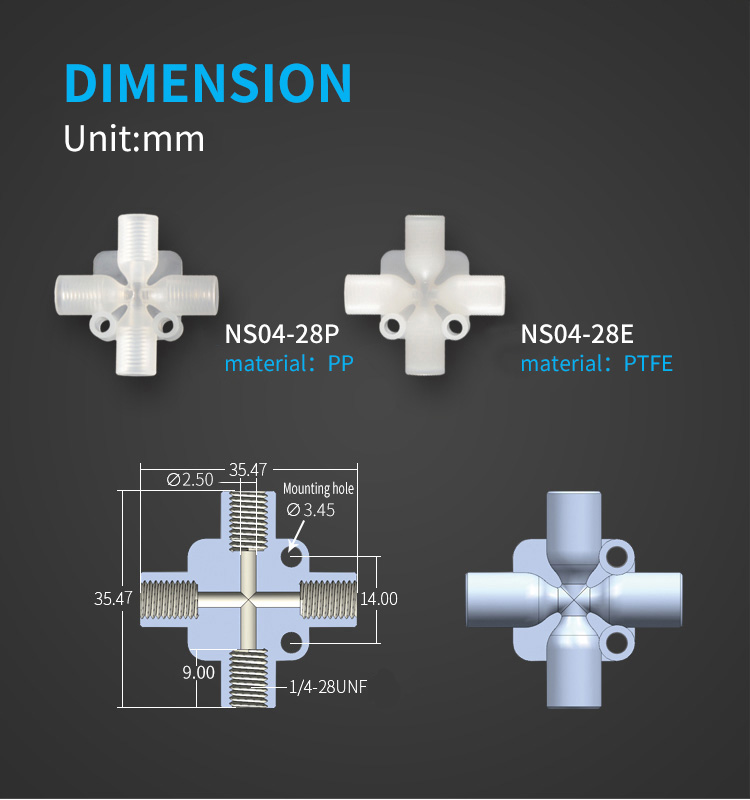

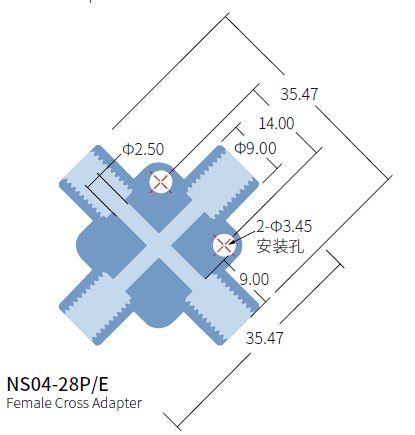

Dimension (unit: mm) of Low Pressure Crosses
