[Fitting] Bulkhead Two-piece Union UNF,M12 나사탭 아답터 피팅 PP,PTFE 재질 1/4-28UNF,M12 Thread HPLC용
SALE

7,600원 10,000원

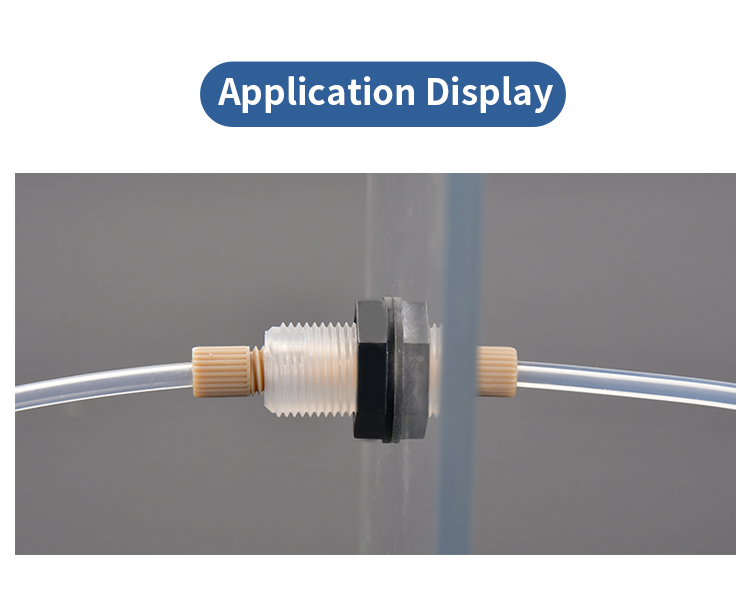

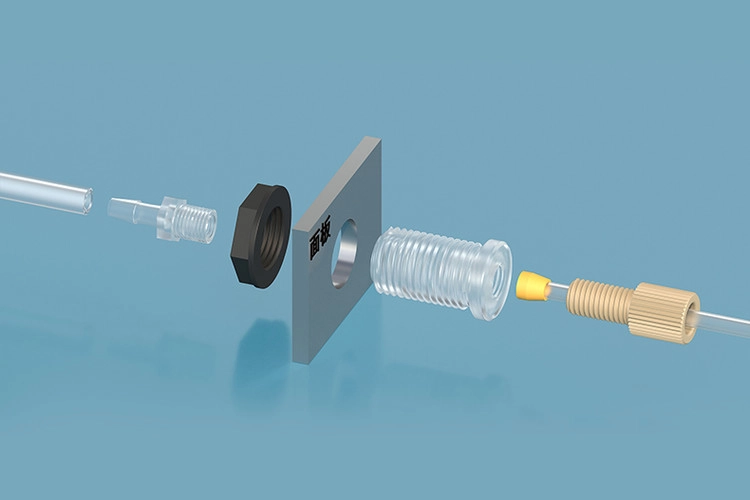

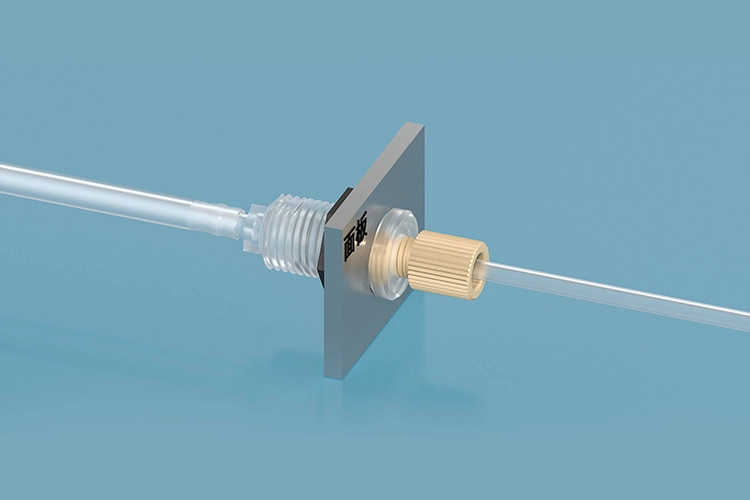

Designed to connect internal tubing to the outside through the equipment enclosure; the installation requires the panel to be pre-drilled
Interchangeable internal and external threads for leak-free connection with flexible and rigid pipe connection system

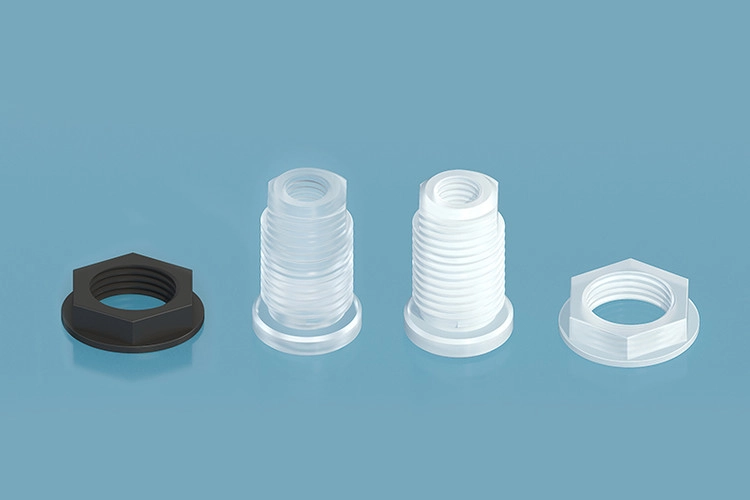

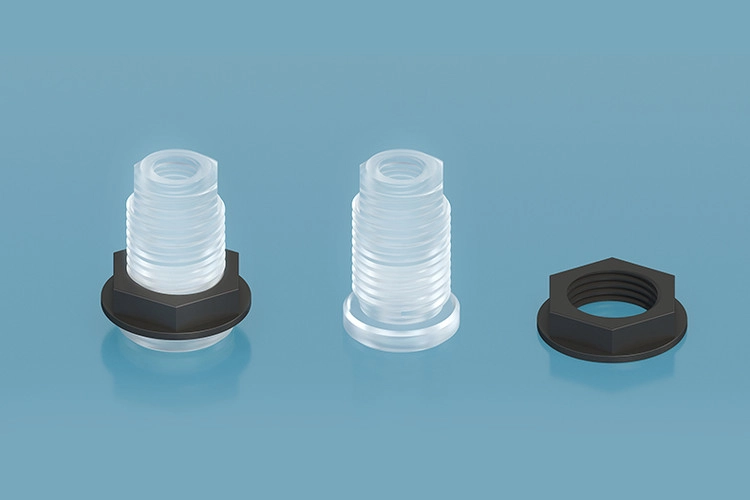

Fittings are available in PP and PTFE materials, non-toxic, odourless, heat resistant, resistant to chemical corrosion and various organic substances; thin fine pitch nut is available in PPS and PTFE materials
Suitable for standard 1/4-28UNF flat bottom threaded fittings
REACH and ROHS Certified ,Biocompatibility reports available.

상품

원산지 CHINA

적립

76 포인트 적립예정 적립예정

구매

최소 구매 수량 10

배송

택배 · 기본 4,000원 · 도서산간 배송비 popover

120,000원 이상 구매 시 무료배송

구매평

Q&A

반품/교환

구매하기 장바구니 0

장바구니 장바구니

구매하기 구매하기

구매평

Q&A

반품/교환

상품이 없습니다.

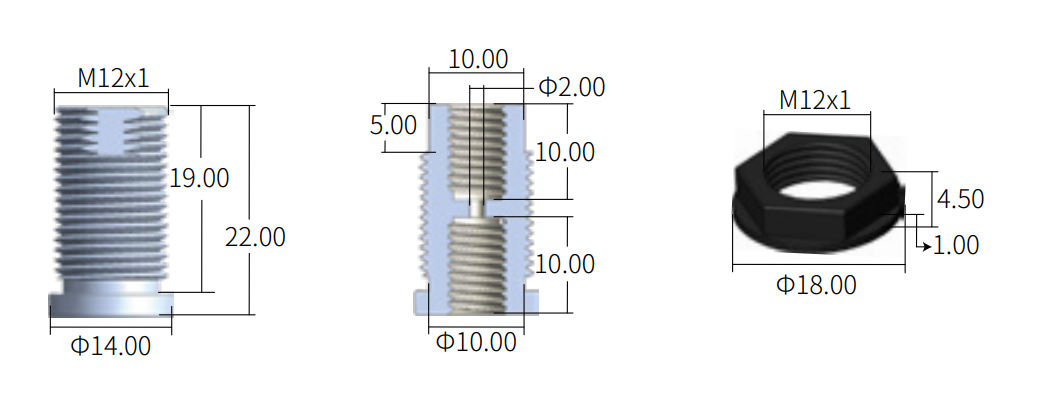

Model No.	Material	Color	Female Thread	Male Thread	Pressure/Rating Room Temp (psi /MPa)	Tubing OD (mm)
NC-28P	PP	Natural PP	1/4-28 UNF	M12	116/0.8	3.2/3.175/ 3.0/ 2.5/2.0/1.6
NC-28E	PTFE	Natural PTFE	1/4-28 UNF	M12
M12*1-S	PPS	Natural PPS	M12	/
M12*1-E	PTFE	Natural PTFE	M12	/

Model No.	Material	Color	Female Thread	Male Thread	Pressure/Rating Room Temp (psi /MPa)	Tubing OD (mm)
NC-28P	PP	Natural PP	1/4-28 UNF	M12	116/0.8	3.2/3.175/ 3.0/ 2.5/2.0/1.6
NC-28E	PTFE	Natural PTFE	1/4-28 UNF	M12
M12*1-S	PPS	Natural PPS	M12	/
M12*1-E	PTFE	Natural PTFE	M12	/
