[Fitting] Bulkhead Three-Piece Union UNF,M12 나사탭 아답터 피팅 PP,PTFE 재질 1/4-28UNF,M12 Thread HPLC용
Bulkhead Three-Piece Union 시리즈

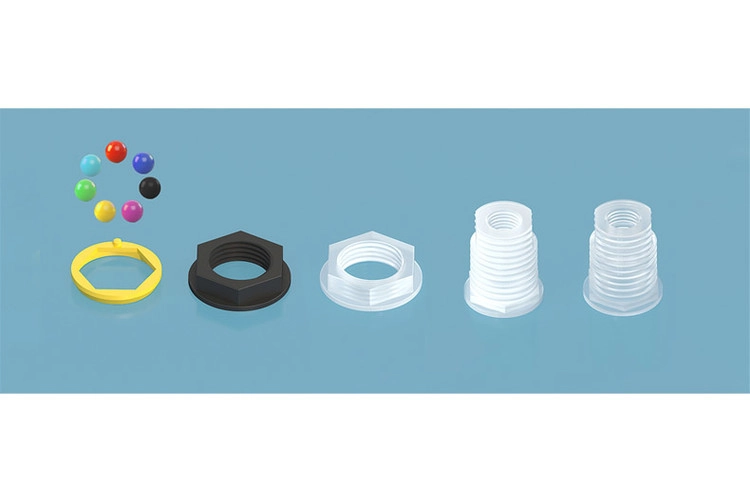

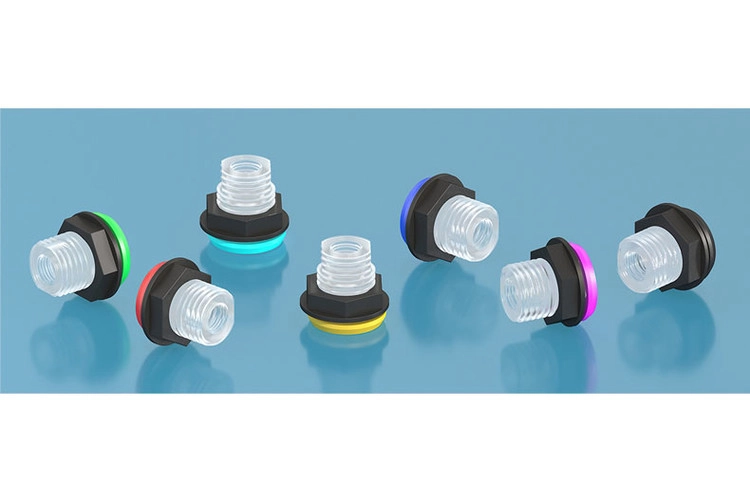

Bulkhead Three-Piece Union
Bulkhead three-piece union is designed to connect internal tubing to the outside through the equipment enclosure. And the anti-rotation sleeve has been added to prevent fitting from rotation. These fittings have Interchangeable internal and external threads for leak-free connection with flexible and rigid pipe connection system. Fittings are available in PP and PTFE materials, non-toxic, odourless, heat resistant, resistant to chemical corrosion and various organic substances. And fine pitch nut is available in PPS and PTFE materials.
Specification of Bulkhead Three-Piece Union
| Photo | Product Code | Product Name | Model No. | Specification | Unit | Material |
 | 1006090023 | Threaded bulkhead union | NC01-28P-Bright redanti-rotation cover-Snut | C12-P-Bright red+NC01-28P+M12*1-S | Set | PP*PPS |
| 1006090024 | Threaded bulkhead union | NC01-28P-Dark brownanti-rotation cover-Snut | C12-P-Dark brown+NC01-28P+M12*1-S | Set | PP*PPS | |
| 1006090025 | Threaded bulkhead union | NC01-28P-Ligh yellowanti-rotation cover-Snut | C12-P-Ligh yellow+NC01-28P+M12*1-S | Set | PP*PPS | |
| 1006090026 | Threaded bulkhead union | NC01-28P-Grass greenanti-rotation cover-Snut | C12-P-Grass green+NC01-28P+M12*1-S | Set | PP*PPS | |
| 1006090027 | Threaded bulkhead union | NC01-28P-Grass greenanti-rotation cover-Snut | C12-P-Grass green+NC01-28P+M12*1-S | Set | PP*PPS | |
| 1006090028 | Threaded bulkhead union | NC01-28P-Beige blueanti-rotation cover-Snut | C12-P-Beige blue+NC01-28P+M12*1-S | Set | PP*PPS | |
| 1006090029 | Threaded bulkhead union | NC01-28P-Dark purpleanti-rotation cover-Snut | C12-P-Dark purple+NC01-28P+M12*1-S | Set | PP*PPS | |
| 1006090030 | Threaded bulkhead union | NC01-28E-Bright redanti-rotation cover-Enut | C12-P-Bright red+NC01-28E+M12*1-E | Set | PTFE*PTFE | |
| 1006090031 | Threaded bulkhead union | NC01-28E-Dark brownanti-rotation cover-Enut | C12-P-Dark brown+NC01-28E+M12*1-E | Set | PTFE*PTFE | |
| 1006090032 | Threaded bulkhead union | NC01-28E-Ligh yellowanti-rotation cover-Enut | C12-P-Ligh yellow+NC01-28E+M12*1-E | Set | PTFE*PTFE | |
| 1006090033 | Threaded bulkhead union | NC01-28E-Grass greenanti-rotation cover-Enut | C12-P-Grass green+NC01-28E+M12*1-E | Set | PTFE*PTFE | |
| 1006090034 | Threaded bulkhead union | NC01-28E-Grass greenanti-rotation cover-Enut | C12-P-Grass green+NC01-28E+M12*1-E | Set | PTFE*PTFE | |
| 1006090035 | Threaded bulkhead union | NC01-28E-Beige blueanti-rotation cover-Enut | C12-P-Beige blue+NC01-28E+M12*1-E | Set | PTFE*PTFE | |
| 1006090036 | Threaded bulkhead union | NC01-28E-Dark purpleanti-rotation cover-Enut | C12-P-Dark purple+NC01-28E+M12*1-E | Set | PTFE*PTFE | |
 | 1006090003 | 304 Nuts with Fine Teeth | RZ-LMB12*1 | M12*1，可售M12*1, available for sale | Piece | |
| 1006090005 | Thin teeth nut | M12*1-S | Common mold with 1006090017, mold cavity: 1*4 | Piece | PPS | |
| 1006090017 | Thin teeth nut | M12*1-E | Dimensions are the same as 1006090005; shared mold with 1006090005, mold cavity: 1*4 | Piece | PTFE | |
 | 1006090001 | Threaded bulkhead union | NC-28P | RZ-JTM12-PP | Piece | PP |
| 1006090002 | Threaded bulkhead union | NC-28E | RZ-JTM12-PTFE | Piece | PTFE |
| Bulkhead Union | Material | Female Thread |
| Model No. | ||
| NC01-28P | PP (Medical Grade) | 1/4-28UNF |
| NC01-28E | PTFE (Medical Grade) | 1/4-28UNF |
| Nut Model No. | Material | Male Thread |
| M12*1-S | PPS(Black) (Medical Grade) | M12 |
| M12*1-E | PTFE (Medical Grade) | M12 |
| Anti-rotating Sleeve | Material | Color |
| C12-P- Red | PP (Medical Grade) | Red |
| C12-P- Deep Black | Deep Black | |
| C12-P- Lemon Yellow | Lemon Yellow | |
| C12-P- Grass Green | Grass Green | |
| C12-P- Beige Blue | Light Blue | |
| C12-P- Dark Blue | Dark Blue | |
| C12-P- Deep Purple | Purple |

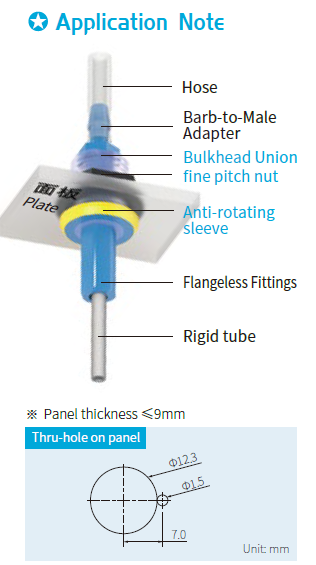

Application Note of Bulkhead Three-Piece Union
1. Bulkhead Union is used for fixing fluidic tubing through plastic, metal or wooden board to keep them an unobstructed flowing way on your device or production line.
2. Bulkhead Union need to match with female connector of same thread.

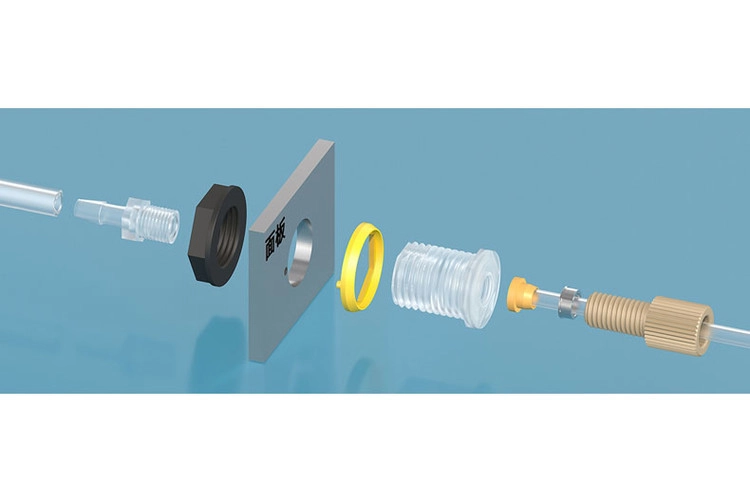

3. Two-Piece Fittings Installation Steps:
(1) Flexible tube – Panel – Flexible tube
a. Drill a hole (same or little bigger diameter than M12 male thread) on necessary specific place of your panel.
b. Insert the male thread of bulkhead union into the ready hole, then tighten the SST or black ABS nut forward until reaching the board.
c. Insert the prepared 2 pieces male-to-barb adapters into the receiving ports of bulkhead union, connecting 2 pieces prepared flexible tubes at two barbed ends.
(2) Flexible tube – Panel – Rigid tube
a. Drill a hole (same or little bigger diameter than M12 male thread) on necessary specific place of your panel.
b. Insert the male thread of bulkhead union into the ready hole, then tighten the SST or black ABS nut forward until reaching the board.
c. Insert the prepared 1 piece male-to-barb adapters and 1 piece flanged or flangeless fitting assembly into the receiving ports of bulkhead union, connecting 1 pieces prepared flexible tube at one-side barbed end.
(3) Rigid tube – Panel – Rigid tube
a. Drill a hole (same or little bigger diameter than M12 male thread) on necessary specific place of your board.
b. Insert the male thread of bulkhead union into the ready hole, then tighten the SST or black ABS nut forward until reaching the board.
c. Insert the prepared 2 pieces flanged or flangeless fitting assembly into the receiving ports of bulkhead union.

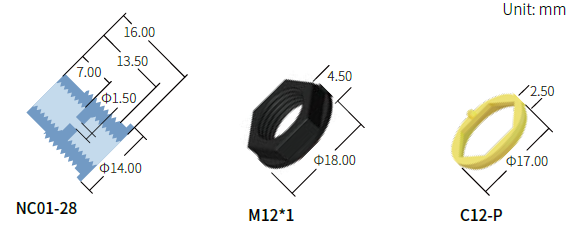

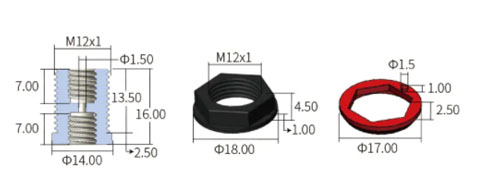

Dimension (Unit: mm) of Bulkhead Three-Piece Union
