[Fitting ]PEEK Female Thread Bulkhead Union Adapter Fitting Connector UNF 나사탭 아답터 피팅 PEEK 재질 UNF Thread
PEEK Female Thread Bulkhead Union 시리즈
PEEK Female Thread Bulkhead Union
Peek female thread bulkhead union, one of RUNZE newest peek fittings. PEEK is a type of material with high mechanical strength, it is suitable for hydraulic systems that require repeated disassembly and relative high pressure in liquid chromatography and biological analysis instruments.
Features of PEEK Female Thread Bulkhead Union
Designed to pass through the equipment housing and connect the internal tubing to the outside
Through-panel union with male thread M10*1, with PPS nut and PP anti-rotation clip to tighten the fittings, installation requires advance drilling of the panel; multi-color anti-rotation clip is for easy distinguishments of the flow path
Long-term working temperature range -100℃~+250℃
Suitable for standard 10-32UNF conical fittings or 1/4-28UNF flat bottom threaded fittings

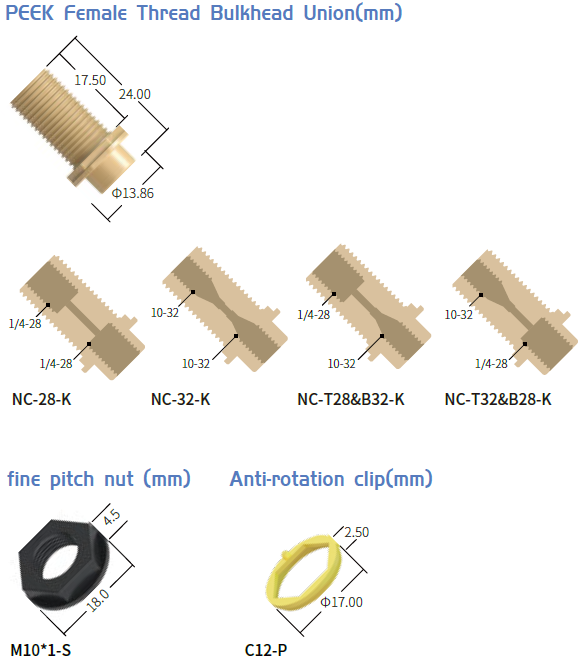

Specifications of PEEK Female Thread Bulkhead Union
| Photo | Product Code | Product Name | Model No. | Specification | Unit | Material |
  | 1011070001 | PEEK female threaded feed-through fittings | NC-28-K(0.8) | NC-28-K(0.8) | Piece | PEEK |
| 1011070002 | PEEK female threaded feed-through fittings | NC-28-K(1.25) | NC-28-K(1.25) | Piece | PEEK | |
| 1011070003 | PEEK female threaded feed-through fittings | NC-28-K(2.0) | NC-28-K(2.0) | Piece | PEEK | |
| 1011070004 | PEEK female threaded feed-through fittings | NC-32-K(0.8) | NC-32-K(0.8) | Piece | PEEK | |
| 1011070005 | PEEK female threaded feed-through fittings | NC-32-K(1.25) | NC-32-K(1.25) | Piece | PEEK | |
| 1011070006 | PEEK female threaded feed-through fittings | NC-T28&B32-K(0.8) | NC-T28&B32-K(0.8) | Piece | PEEK | |
| 1011070007 | PEEK female threaded feed-through fittings | NC-T28&B32-K(1.25) | NC-T28&B32-K(1.25) | Piece | PEEK | |
| 1011070008 | PEEK female threaded feed-through fittings | NC-T32&B28-K(0.8) | NC-T32&B28-K(0.8) | Piece | PEEK | |
| 1011070009 | PEEK female threaded feed-through fittings | NC-T32&B28-K(1.25) | NC-T32&B28-K(1.25) | Piece | PEEK |
| SKU | Model | Thread | Flow path Diameter | Wetted liquid volume | Material |
| NC-28-K | |||||
| 1011070010 | NC-28-K(0.8) * M10*1-S * C12-P red | 1/4-28UNF flflat bottom | 0.8mm | 4mm3 | PEEK natural*PPS black*PP red |
| 1011070011 | NC-28-K(0.8) * M10*1-S * C12-P deep dark | 1/4-28UNF flflat bottom | 0.8mm | 4mm3 | PEEK natural*PPS black*PP deep dark |
| 1011070012 | NC-28-K(0.8) * M10*1-S * C12-P lemon yellow | 1/4-28UNF flflat bottom | 0.8mm | 4mm3 | PEEK natural*PPS black*PP lemon yellow |
| 1011070013 | NC-28-K(0.8) * M10*1-S * C12-P grass green | 1/4-28UNF flflat bottom | 0.8mm | 4mm3 | PEEK natural*PPS black*PP grass yreen |
| 1011070014 | NC-28-K(0.8) * M10*1-S * C12-P beige blue | 1/4-28UNF flflat bottom | 0.8mm | 4mm3 | PEEK natural*PPS black*PP beige blue |
| 1011070015 | NC-28-K(0.8) * M10*1-S * C12-P dark blue | 1/4-28UNF flflat bottom | 0.8mm | 4mm3 | PEEK natural*PPS black*PP dark blue |
| 1011070016 | NC-28-K(0.8) * M10*1-S * C12-P deep purple | 1/4-28UNF flflat bottom | 0.8mm | 4mm3 | PEEK natural*PPS black*PP deep purple |
| SKU | Model No. | Thread | Flow Passage Diameter | Wetted liquid volum | Material |
| NC-28-K | |||||
| 1011070017 | NC-28-K(1.25) * M10*1-S * C12-P red | 1/4-28UNF flflat bottom | 1.25mm | 9.82MM3 | PEEK natural*PPS black*PP red |
| 1011070018 | NC-28-K(1.25) * M10*1-S * C12-P deep dark | 1/4-28UNF flflat bottom | 1.25mm | 9.82MM3 | PEEK natural*PPS black*PP deep dark |
| 1011070019 | NC-28-K(1.25) * M10*1-S * C12-P lemon yellow | 1/4-28UNF flflat bottom | 1.25mm | 9.82MM3 | PEEK natural*PPS black*PP lemon yellow |
| 1011070020 | NC-28-K(1.25) * M10*1-S * C12-P grass green | 1/4-28UNF flflat bottom | 1.25mm | 9.82MM3 | PEEK natural*PPS black*PP grass green |
| 1011070021 | NC-28-K(1.25) * M10*1-S * C12-P beige blue | 1/4-28UNF flflat bottom | 1.25mm | 9.82MM3 | PEEK natural*PPS black*PP beige blue |
| 1011070022 | NC-28-K(1.25) * M10*1-S * C12-P dark blue | 1/4-28UNF flflat bottom | 1.25mm | 9.82MM3 | PEEK natural*PPS black*PP dark blue |
| 1011070023 | NC-28-K(1.25) * M10*1-S * C12-P deep purple | 1/4-28UNF flflat bottom | 1.25mm | 9.82MM3 | PEEK natural*PPS black*PP deep purple |
| 1011070024 | NC-28-K(2.0) * M10*1-S * C12-P red | 1/4-28UNF flflat bottom | 2.0mm | 25.13mm3 | PEEK natural*PPS black*PP red |
| 1011070025 | NC-28-K(2.0) * M10*1-S * C12-P deep dark | 1/4-28UNF flflat bottom | 2.0mm | 25.13mm3 | PEEK natural*PPS black*PP deep dark |
| 1011070026 | NC-28-K(2.0) * M10*1-S * C12-P lemon yellow | 1/4-28UNF flflat bottom | 2.0mm | 25.13mm3 | PEEK natural*PPS black*PP lemon yellow |
| 1011070027 | NC-28-K(2.0) * M10*1-S * C12-P grass green | 1/4-28UNF flflat bottom | 2.0mm | 25.13mm3 | PEEK natural*PPS black*PP grass green |
| 1011070028 | NC-28-K(2.0) * M10*1-S * C12-P beige blue | 1/4-28UNF flflat bottom | 2.0mm | 25.13mm3 | PEEK natural*PPS black*PP beige blue |
| 1011070029 | NC-28-K(2.0) * M10*1-S * C12-P dark blue | 1/4-28UNF flflat bottom | 2.0mm | 25.13mm3 | PEEK natural*PPS black*PP dark blue |
| 1011070030 | NC-28-K(2.0) * M10*1-S * C12-P deep purple | 1/4-28UNF flflat bottom | 2.0mm | 25.13mm3 | PEEK natural*PPS black*PP deep purple |
| NC-32-K | |||||
| 1011070031 | NC-32-K(0.8) * M10*1-S * C12-P red | 10-32UNF conical | 0.8mm | 6.97mm3 | PEEK natural*PPS black*PP red |
| 1011070032 | NC-32-K(0.8) * M10*1-S * C12-P deep dark | 10-32UNF conical | 0.8mm | 6.97mm3 | PEEK natural*PPS black*PP deep dark |
| 1011070033 | NC-32-K(0.8) * M10*1-S * C12-P lemon yellow | 10-32UNF conical | 0.8mm | 6.97mm3 | PEEK natural*PPS black*PP lemon yellow |
| 1011070034 | NC-32-K(0.8) * M10*1-S * C12-P grass green | 10-32UNF conical | 0.8mm | 6.97mm3 | PEEK natural*PPS black*PP grass green |
| 1011070035 | NC-32-K(0.8) * M10*1-S * C12-P beige blue | 10-32UNF conical | 0.8mm | 6.97mm3 | PEEK natural*PPS black*PP beige blue |
| 1011070036 | NC-32-K(0.8) * M10*1-S * C12-P dark blue | 10-32UNF conical | 0.8mm | 6.97mm3 | PEEK natural*PPS black*PP dark blue |
| 1011070037 | NC-32-K(0.8) * M10*1-S * C12-P deep purple | 10-32UNF conical | 0.8mm | 6.97mm3 | PEEK natural*PPS black*PP deep purple |
| 1011070038 | NC-32-K(1.25) * M10*1-S * C12-P red | 10-32UNF conical | 1.25mm | 8.33mm3 | PEEK natural*PPS black*PP red |
| 1011070039 | NC-32-K(1.25) * M10*1-S * C12-P deep dark | 10-32UNF conical | 1.25mm | 8.33mm3 | PEEK natural*PPS black*PP deep dark |
| 1011070040 | NC-32-K(1.25) * M10*1-S * C12-P lemon yellow | 10-32UNF conical | 1.25mm | 8.33mm3 | PEEK natural*PPS black*PP lemon yellow |
| 1011070041 | NC-32-K(1.25) * M10*1-S * C12-P grass green | 10-32UNF conical | 1.25mm | 8.33mm3 | PEEK natural*PPS black*PP grass green |
| 1011070042 | NC-32-K(1.25) * M10*1-S * C12-P beige blue | 10-32UNF conical | 1.25mm | 8.33mm3 | PEEK natural*PPS black*PP beige blue |
| 1011070043 | NC-32-K(1.25) * M10*1-S * C12-P dark blue | 10-32UNF conical | 1.25mm | 8.33mm3 | PEEK natural*PPS black*PP dark blue |
| 1011070044 | NC-32-K(1.25) * M10*1-S * C12-P deep purple | 10-32UNF conical | 1.25mm | 8.33mm3 | PEEK natural*PPS black*PP deep purple |
| NC-T28&B32-K | |||||
| 1011070045 | NC-T28&B32-K(0.8) * M10*1-S * C12-P red | 1/4-28UNF flflat bottom & 10-32UNF conical | 0.8mm | 5.5mm3 | PEEK natural*PPS black*PP red |
| 1011070046 | NC-T28&B32-K(0.8) * M10*1-S * C12-P deep dark | 1/4-28UNF flflat bottom & 10-32UNF conical | 0.8mm | 5.5mm3 | PEEK natural*PPS black*PP deep dark |
| 1011070047 | NC-T28&B32-K(0.8) * M10*1-S * C12-P lemon yellow | 1/4-28UNF flflat bottom & 10-32UNF conical | 0.8mm | 5.5mm3 | PEEK natural*PPS black*PP lemon yellow |
| 1011070048 | NC-T28&B32-K(0.8) * M10*1-S * C12-P grass green | 1/4-28UNF flflat bottom & 10-32UNF conical | 0.8mm | 5.5mm3 | PEEK natural*PPS black*PP grass green |
| 1011070049 | NC-T28&B32-K(0.8) * M10*1-S * C12-P beige blue | 1/4-28UNF flflat bottom & 10-32UNF conical | 0.8mm | 5.5mm3 | PEEK natural*PPS black*PP beige blue |
| 1011070050 | NC-T28&B32-K(0.8) * M10*1-S * C12-P dark blue | 1/4-28UNF flflat bottom & 10-32UNF conical | 0.8mm | 5.5mm3 | PEEK natural*PPS black*PP dark blue |
| 1011070051 | NC-T28&B32-K(0.8) * M10*1-S * C12-P deep purple | 1/4-28UNF flflat bottom & 10-32UNF conical | 0.8mm | 5.5mm3 | PEEK natural*PPS black*PP deep purple |
| 1011070052 | NC-T28&B32-K(1.25) * M10*1-S * C12-P red | 1/4-28UNF flflat bottom & 10-32UNF conical | 1.25mm | 9.08mm3 | PEEK natural*PPS black*PP red |
| 1011070053 | NC-T28&B32-K(1.25) * M10*1-S * C12-P deep dark | 1/4-28UNF flflat bottom & 10-32UNF conical | 1.25mm | 9.08mm3 | PEEK natural*PPS black*PP deep dark |
| 1011070054 | NC-T28&B32-K(1.25) * M10*1-S * C12-P lemon yellow | 1/4-28UNF flflat bottom & 10-32UNF conical | 1.25mm | 9.08mm3 | PEEK natural*PPS black*PP lemon yellow |
| 1011070055 | NC-T28&B32-K(1.25) * M10*1-S * C12-P grass green | 1/4-28UNF flflat bottom & 10-32UNF conical | 1.25mm | 9.08mm3 | PEEK natural*PPS black*PP grass green |
| 1011070056 | NC-T28&B32-K(1.25) * M10*1-S * C12-P beige blue | 1/4-28UNF flflat bottom& 10-32UNF conical | 1.25mm | 9.08mm3 | PEEK natural*PPS black*PP beige blue |
| 1011070057 | NC-T28&B32-K(1.25) * M10*1-S * C12-P dark blue | 1/4-28UNF flflat bottom& 10-32UNF conical | 1.25mm | 9.08mm3 | PEEK natural*PPS black*PP dark blue |
| 1011070058 | NC-T28&B32-K(1.25) * M10*1-S * C12-P deep purple | 1/4-28UNF flflat bottom & 10-32UNF conical | 1.25mm | 9.08mm3 | PEEK natural*PPS black*PP deep purple |
| NC-T28&B32-K | |||||
| 1011070059 | NC-T32&B28-K(0.8) * M10*1-S * C12-P red | 10-32UNF conical& 1/4-28UNF flflat bottom | 0.8mm | 5.5mm3 | PEEK natural*PPS black*PP red |
| 1011070060 | NC-T32&B28-K(0.8) * M10*1-S * C12-P deep dark | 10-32UNF conical& 1/4-28UNF flflat bottom | 0.8mm | 5.5mm3 | PEEK natural*PPS black*PP deep dark |
| 1011070061 | NC-T32&B28-K(0.8) * M10*1-S * C12-P lemon yellow | 10-32UNF conical & 1/4-28UNF flflat bottom | 0.8mm | 5.5mm3 | PEEK natural*PPS black*PP lemon yellow |
| 1011070062 | NC-T32&B28-K(0.8) * M10*1-S * C12-P grass green | 10-32UNF conical & 1/4-28UNF flflat bottom | 0.8mm | 5.5mm3 | PEEK natural*PPS black*PP grass green |
| 1011070063 | NC-T32&B28-K(0.8) * M10*1-S * C12-P beige blue | 10-32UNF conical & 1/4-28UNF flflat bottom | 0.8mm | 5.5mm3 | PEEK natural*PPS black*PP beige blue |
| 1011070064 | NC-T32&B28-K(0.8) * M10*1-S * C12-P dark blue | 10-32UNF conical & 1/4-28UNF flflat bottom | 0.8mm | 5.5mm3 | PEEK natural*PPS black*PP dark blue |
| 1011070065 | NC-T32&B28-K(0.8) * M10*1-S * C12-P deep purple | 10-32UNF conical & 1/4-28UNF flflat bottom | 0.8mm | 5.5mm3 | PEEK natural*PPS black*PP deep purple |
| 1011070066 | NC-T32&B28-K(1.25) * M10*1-S * C12-P red | 10-32UNF conical & 1/4-28UNF flflat bottom | 1.25mm | 9.08mm3 | PEEK natural*PPS black*PP red |
| 1011070067 | NC-T32&B28-K(1.25) * M10*1-S * C12-P deep dark | 10-32UNF conical & 1/4-28UNF flflat bottom | 1.25mm | 9.08mm3 | PEEK natural*PPS black*PP deep dark |
| 1011070068 | NC-T32&B28-K(1.25) * M10*1-S * C12-P lemon yellow | 10-32UNF conical & 1/4-28UNF flflat bottom | 1.25mm | 9.08mm3 | PEEK natural*PPS black*PP lemon yellow |
| 1011070069 | NC-T32&B28-K(1.25) * M10*1-S * C12-P grass green | 10-32UNF conical & 1/4-28UNF flflat bottom | 1.25mm | 9.08mm3 | PEEK natural*PPS black*PP grass green |
| 1011070070 | NC-T32&B28-K(1.25) * M10*1-S * C12-P beige blue | 10-32UNF conical & 1/4-28UNF flflat bottom | 1.25mm | 9.08mm3 | PEEK natural*PPS black*PP beige blue |
| 1011070071 | NC-T32&B28-K(1.25) * M10*1-S * C12-P dark blue | 10-32UNF conical & 1/4-28UNF flflat bottom | 1.25mm | 9.08mm3 | PEEK natural*PPS black*PP dark blue |
| 1011070072 | NC-T32&B28-K(1.25) * M10*1-S * C12-P deep purple | 10-32UNFconical & 1/4-28UNF flflat bottom | 1.25mm | 9.08mm3 | PEEK natural*PPS black*PP deep purple |
Related Products of PEEK Female Thread Bulkhead Union
It is recommended to purchase a wrench (PPS material) to tighten the hexagonal nut, which is also available at RUNZE FLUID

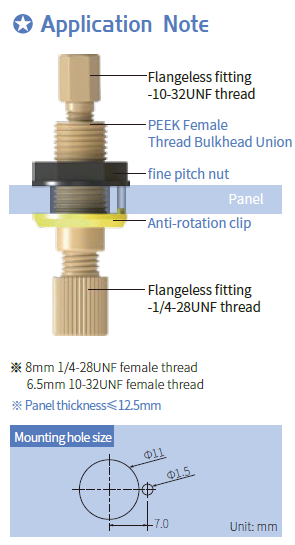

Application of PEEK Female Thread Bulkhead Union

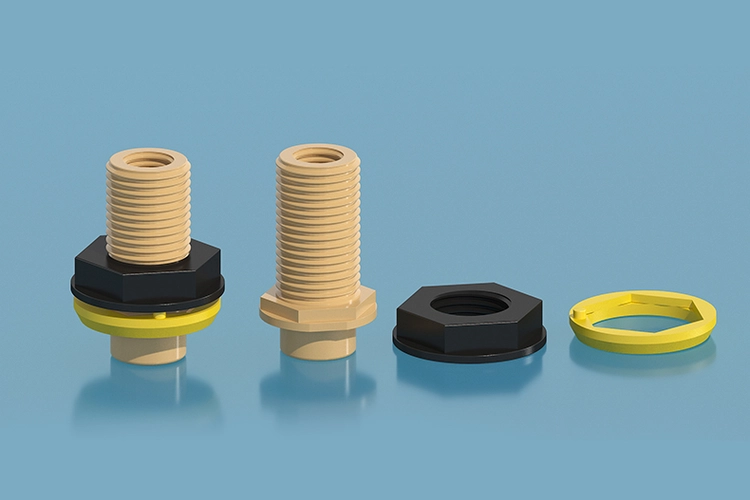

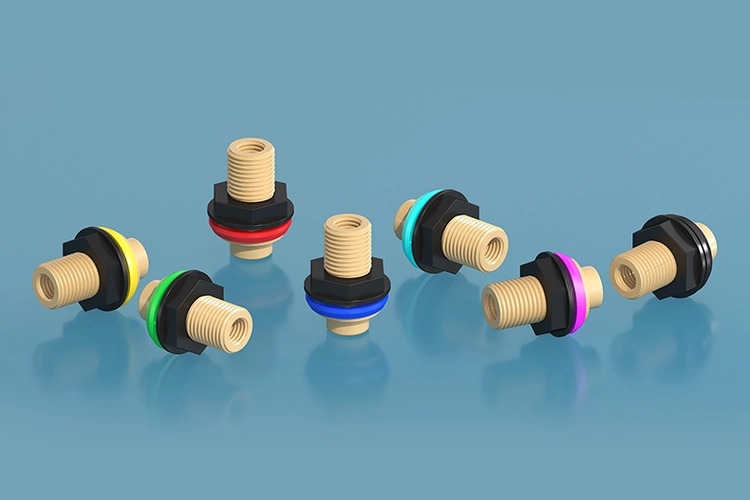

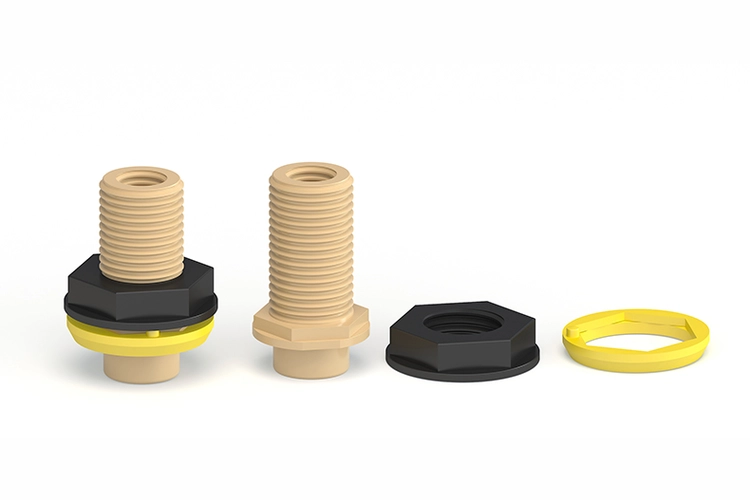

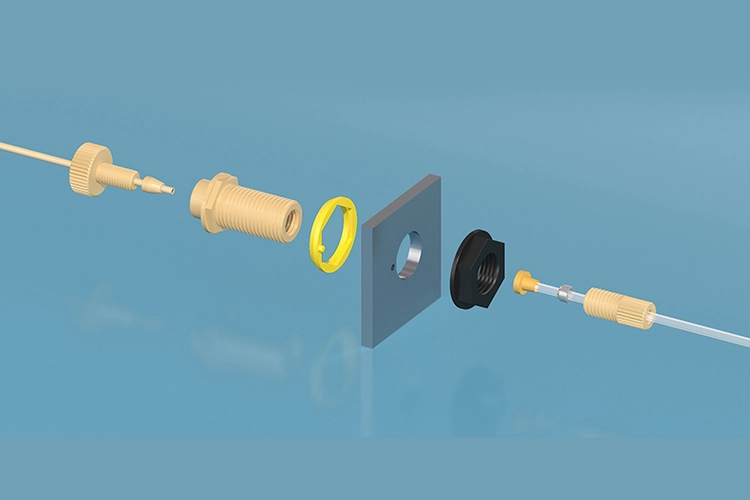

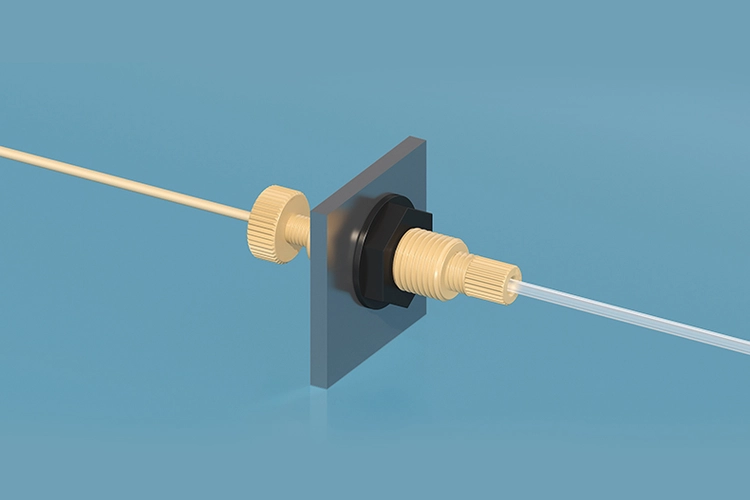

Details of PEEK Female Thread Bulkhead Union
