(Note: The above data were measured at room temperature 20°C, at atmospheric
pressure, and the test fluid was a neutral liquid.)
Very smooth internal surfaces
Reduced gas diffusion
Excellent chemical resistance
Ideal for thermoforming
Tight dimensional tolerances
Biocompatible
FDA & USP Class VI compliant
Gamma & ETO sterilizable
ROHS Certified
안내사항 |
가격 기재가 되지 않은 별도 문의 상품인 경우 반드시 '온라인 견적문의' 혹은 '전화 문의' 후 구매 부탁드립니다. 설치/교육 신청의 경우 별도의 연락 후 직접 납품 드립니다. |
[Tubings] FEP Tube for HPLC , HPLC용 FEP튜빙
FEP Tube 시리즈
FEP Tube

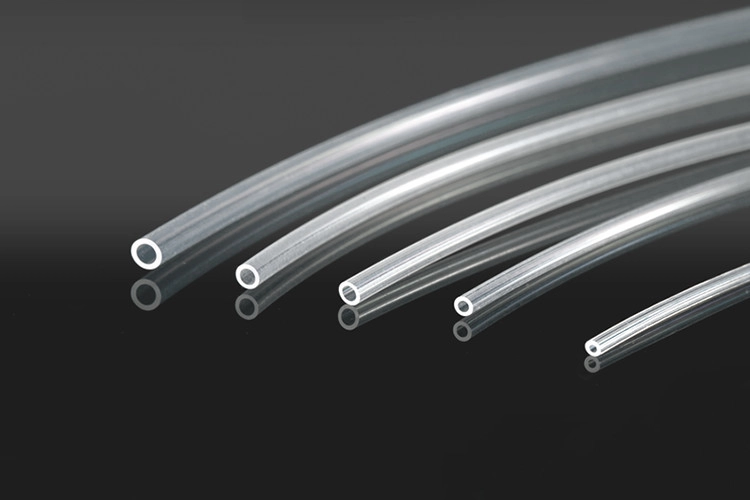

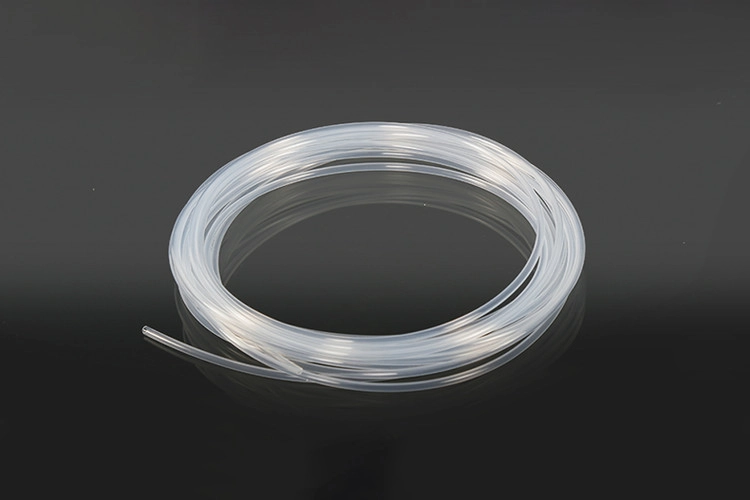

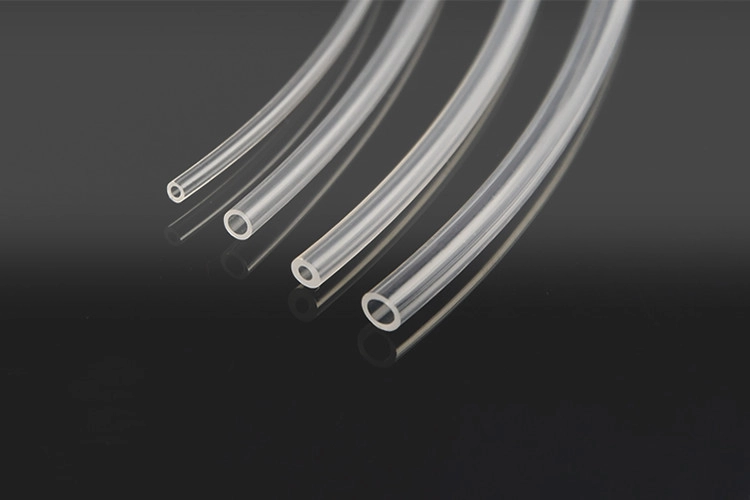

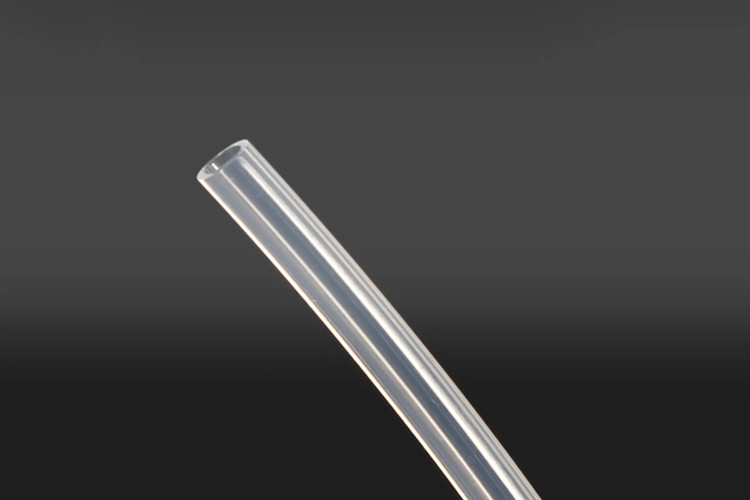

FEP tube is a kind of rigid Teflon tubing in transparent look which has strict tolerance requirements on inner and outer diameters, inner diameter to ensure high precision fluid volumes while outer diameter to ensure matching with standard tube fittings. It featured excellent chemical resistance and biocompatible with most solvents in analysis areas.
This attractive alternative to PTFE tubes has many similar properties such as biocompatibility and remarkable inertness to most chemicals. FEP is the preferred material in production of small diameter tubing of continuous lengths. Like PTFE, this flexible material is mainly used for low-pressure microfluidic applications. In addition, thanks to its excellent clarity, this fluid tubing is ideal for sight glass/flow monitoring applications. FEP tubing also has better gas and vapor permeability properties and excellent UV transmission ratings.
RUNZE FEP tubing continuous operating temperature is from -50°C and -50°C, has a slightly higher coefficient of friction, and is more transparent than PTFE, which is easy to observe the liquid.
Product name | FEP tube |
Color | Transparent |
CUT Temperature | -51℃-50℃ |

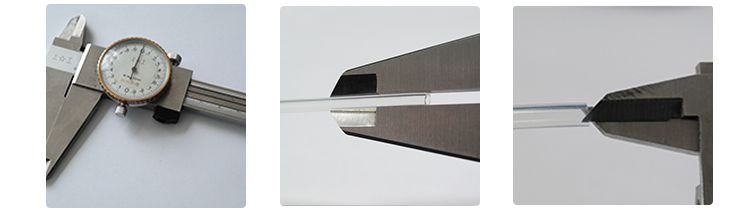

Tolerance | ±0.1mm |

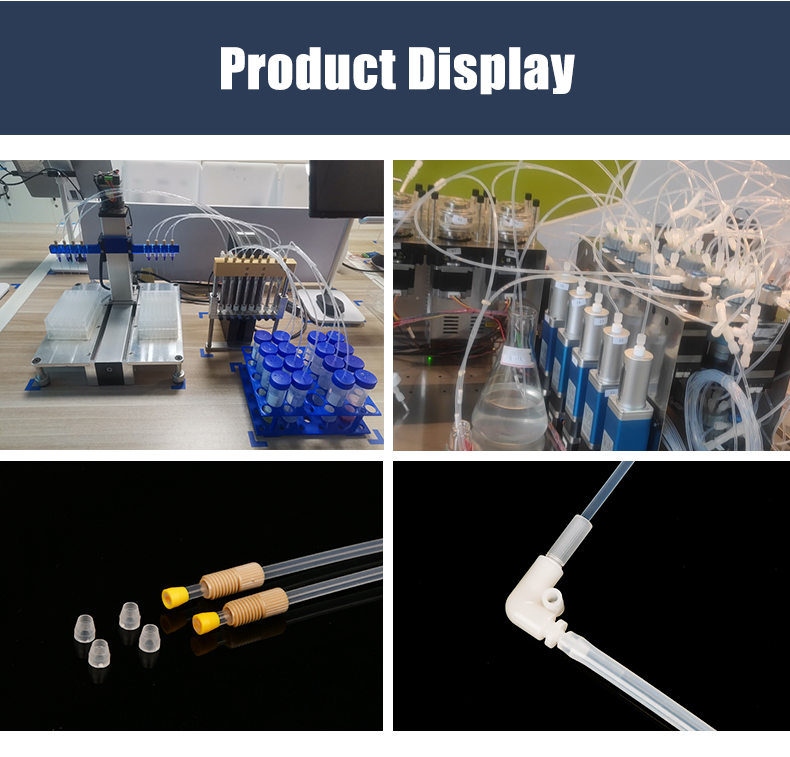

Application | Pharmaceuticals, medicine, lab |
Specification of RUNZE FEP Tubing
| Photo | Product Code | Product Name | Model No. (unit:mm) | Specification (CN) (unit:mm) | Unit | Material |
 | 1005040001 | Teflon Tube | TFLG00001（0.8*1.6） | ID0.8*OD1.6WT0.4*FEPMaterial | meter | FEP |
| 1005040002 | Teflon Tube | TFLG00002（1*2） | ID1*OD2WT0.5*FEPMaterial | meter | FEP | |
| 1005040003 | Teflon Tube | TFLG00003（1.5*2.5） | ID1.5*OD2.5WT0.5*FEPMaterial | meter | FEP | |
| 1005040004 | Teflon Tube | TFLG00004（2*3） | ID2*OD3WT0.5*FEPMaterial | meter | FEP | |
| 1005040005 | Teflon Tube | TFLG00005（2.175*3.175) | ID2.175*OD3.175WT0.5*FEPMaterial | meter | FEP | |
| 1005040006 | Teflon Tube | TFLG00006（1.6*3.175） | ID1.6*OD3.175WT0.7875*FEPMaterial | meter | FEP | |
| 1005040007 | Teflon Tube | TFLG00007（1.6*3.2） | ID1.6*OD3.2WT0.8*FEPMaterial | meter | FEP | |
| 1005040008 | Teflon Tube | TFLG00008（2.65*4） | ID2.65*OD4WT0.675*FEPMaterial | meter | FEP | |
| 1005040011 | Teflon Tube | TFLG00009（1.2*3） | ID1.2*OD3WT0.9*FEPMaterial | meter | FEP | |
| 1005040014 | Teflon Tube | BS-TFLG-Φ2*Φ4 | ID2*OD4WT1*FEPMaterial | meter | FEP | |
| 1005040024 | Teflon Tube | TFLG-Φ3*Φ4 | ID3*OD4*WT0.5*FEPMaterial | meter | FEP | |
| 1005040025 | Teflon Tube | TFLG0025（0.5*1.6） | ID0.5*OD1.6WT0.55*FEPMaterial | meter | FEP | |
| 1005040027 | Teflon Tube | BS-TFLG-Φ4.35*Φ6.35 | ID4.35*OD6.35*WT1*FEPMaterial | meter | FEP | |
| 1005040028 | Teflon Tube | BS-TFLG-Φ1*Φ1.6 | ID1*OD1.6WT0.3*FEPMaterial | meter | FEP | |
| 1066050001 | Teflon Tube | TFLG-Φ6*Φ8 | ID6*OD8*WT1*FEPMaterial | meter | FEP | |
| 1066050002 | Teflon Tube | TFLG-Φ4*Φ6 | ID4*OD6*WT1*FEPMaterial | meter | FEP | |
| 1066050003 | Teflon Tube | TFLG-Φ3.2*Φ4.8 | ID3.2*OD4.8*WT0.8*FEPMaterial | meter | FEP |

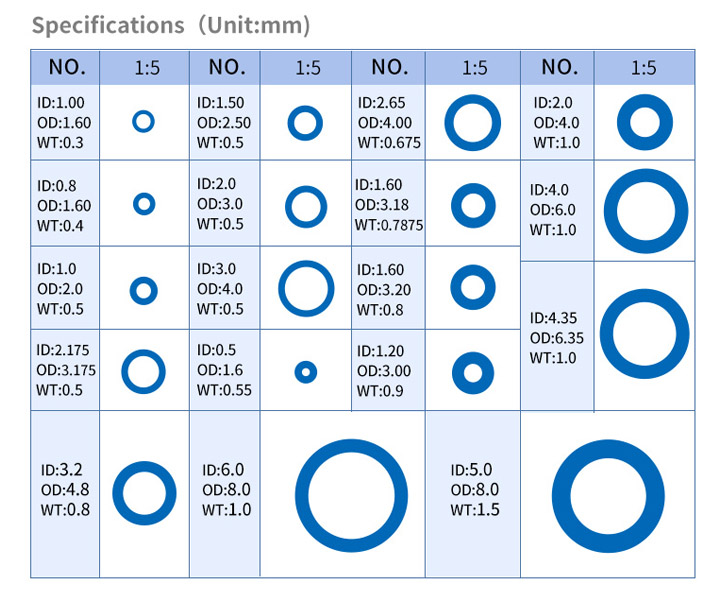

| Model No. | ID(mm) | OD(mm) | WT(mm) |
| BS-TFLG-Φ1*Φ1.6 | 1 | 1.6 | 0.3 |
| TFLG00001(0.8*1.6) | 0.8 | 1.6 | 0.4 |
| TFLG00002(1*2) | 1 | 2 | 0.5 |
| TFLG00005(2.175*3.175) | 2.175 | 3.175 | 0.5 |
| TFLG00003(1.5*2.5) | 1.5 | 2.5 | 0.5 |
| TFLG00004(2*3) | 2 | 3 | 0.5 |
| TFLG-Φ3*Φ4 | 3 | 4 | 0.5 |
| TFLG00008(2.65*4) | 2.65 | 4 | 0.675 |
| TFLG00006(1.6*3.175) | 1.6 | 3.175 | 0.7875 |
| TFLG00007(1.6*3.2) | 1.6 | 3.2 | 0.8 |
| TFLG00009(1.2*3) | 1.2 | 3 | 0.9 |
| BS-TFLG-Φ2*Φ4 | 2 | 4 | 1 |
| TFLG-Φ4*Φ6 | 4 | 6 | 1 |
| TFLG-Φ6*Φ8 | 6 | 8 | 1 |
| BS-TFLG-Φ4.35*Φ6.35 | 4.35 | 6.35 | 1 |
| TFLG-Φ3.2*Φ4.8 | 3.2 | 4.8 | 0.8 |
