(Note: The above data were measured at room temperature 20°C, at atmospheric pressure, and the test fluid was a neutral liquid.)
Very smooth internal surfaces
Reduced gas diffusion
Excellent chemical resistance
Ideal for thermoforming
Tight dimensional tolerances
Biocompatible
FDA & USP Class VI compliant
Gamma & ETO sterilizable
ROHS Certified
안내사항 |
가격 기재가 되지 않은 별도 문의 상품인 경우 반드시 '온라인 견적문의' 혹은 '전화 문의' 후 구매 부탁드립니다. 설치/교육 신청의 경우 별도의 연락 후 직접 납품 드립니다. |
[Tubings] PTFE Tube for HPLC , HPLC용 FEP튜빙(Milk White)
PTFE Tube 시리즈

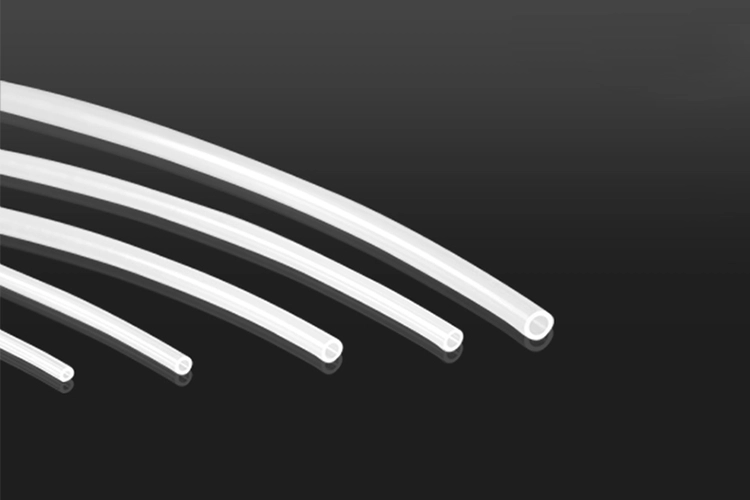

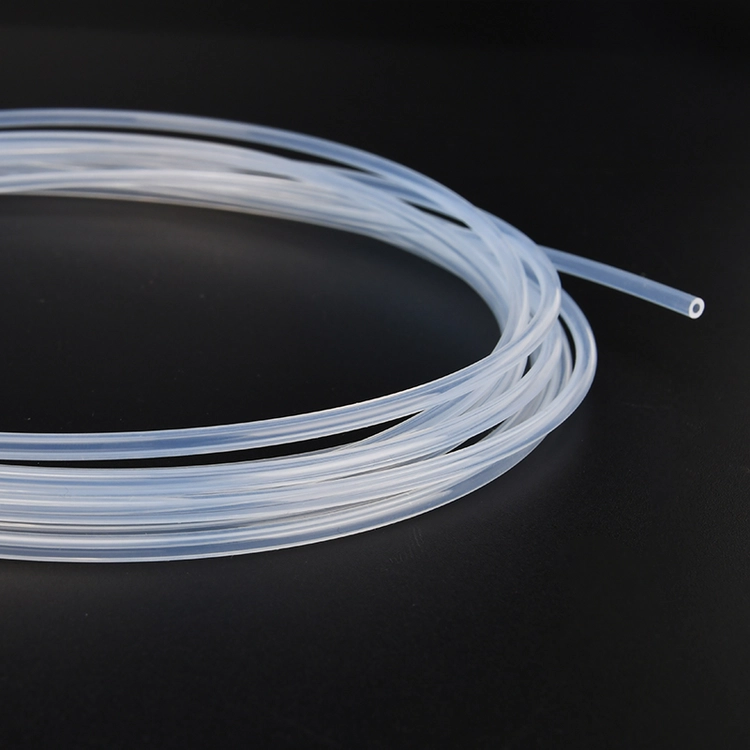

PTFE Tube
PTFE tube is kind of traditional clear rigid Teflon tubing in milk-white look which has strict tolerance requirements on inner and outer diameters, inner diameter to ensure high precision fluid volumes while outer diameter to ensure matching with standard tube fittings. It is widely used in microfluidic fluid analyzers because of its chemical resisting capability. Runze Fluid is a reliable tubing manufacturer offer different types of tube including PTFE tube, FEP tube, etc. Contact us now to check more we can offer.
PTFE (PolyTetraFluoroEthylene, often described as Teflon®)
PTFE tubing has the best performances in terms of chemical and thermal resistance and non-stick properties. Compared to similar fluoropolymers, PTFE offers the best price/performance ratio. In fact, it has many advantages, including unrivaled chemical resistance, a surface that facilitates flow, non-toxicity and chemical inert properties. When used in microfluidics, its rigidity can stabilize the flow rate and increase the reactivity of your microfluidic system.
RUNZE PTFE Tubing continuous operating temperature is from -100°C to 150°C
Product name | PTFE tube |
Color | Milk white |
CUT Temperature | -100℃- 150℃ |
Tolerance | ±0.1mm |
Application | Pharmaceuticals, medicine, lab, industry |
VIDEO
Specification of RUNZE PTFE Tube
| Photo | Product Code | Product Name | Model No. (unit:mm) | Specification (CN) (unit:mm) | Unit | Material |
 | 1005040009 | Teflon Tube | BS-TFLG-E-Φ1*Φ2 | ID1*OD2WT0.5*PTFEMaterial | meter | PTFE |
| 1005040010 | Teflon Tube | BS-TFLG-E-Φ3*Φ4 | ID3*OD4*WT0.5*PTFEMaterial | meter | PTFE | |
| 1005040012 | Teflon Tube | TFLG00007-E（1.6*3.2） | ID1.6*OD3.2WT0.8*PTFEMaterial | meter | PTFE | |
| 1005040013 | Teflon Tube | TFLG00001-E（0.8*1.6） | ID0.8*OD1.6WT0.4*PTFEMaterial | meter | PTFE | |
| 1005040017 | Teflon Tube | TFLG00005-E（2.175*3.175） | ID2.175*OD3.175*WT0.5*PTFE Material | meter | PTFE | |
| 1005040018 | Teflon Tube | TFLG00003-E（1.5*2.5） | ID1.5*OD2.5WT0.5*PTFEMaterial | meter | PTFE | |
| 1005040019 | Teflon Tube | TFLG00004-E（2*3） | ID2*OD3WT0.5*PTFEMaterial | meter | PTFE | |
| 1005040020 | Teflon Tube | BS-TFLG-E-Φ4.35*Φ6.35 | ID4.35OD6.35WT1 | meter | PTFE | |
| 1005040026 | Teflon Tube | BS-TFLG-E-Φ4*Φ6 | ID4*OD6*WT1 | meter | PTFE | |
| 1005040029 | Teflon Tube | BS-TFLG-E-Φ2*Φ4 | ID2*OD4WT1 | meter | PTFE | |
| 1005040030 | Teflon Tube | BS-TFLG-E-Φ5*Φ8 | ID5OD8WT1.5 | meter | PTFE | |
| 1066050004 | Teflon Tube | TFLG-E-Φ3.2*Φ4.8 | ID3.2*OD4.8*WT0.8*PTFE Material | meter | PTFE |
| SKU | Model No. | ID (mm) | OD (mm) | WT (mm) | Color |
| 1005040013 | TFLG0001-E(0.8*1.6) | 0.8 | 1.6 | 0.4 | milk white |
| 1005040009 | BS-TFLG-E-Φ1*Φ2 | 1 | 2 | 0.5 | |
| 1005040018 | TFLG0003-E(1.5*2.5) | 1.5 | 2.5 | 0.5 | |
| 1005040019 | TFLG0004-E(2*3) | 2 | 3 | 0.5 | |
| 1005040017 | TFLG0005-E(2.175*3.175) | 2.175 | 3.175 | 0.5 | |
| 1005040010 | BS-TFLG-E-Φ3*Φ4 | 3 | 4 | 0.5 | |
| 1005040012 | TFLG0007-E(1.6*3.2) | 1.6 | 3.2 | 0.8 | |
| 1005040029 | BS-TFLG-E-Φ2*Φ4 | 2 | 4 | 1 | |
| 1005040026 | BS-TFLG-E-Φ4*Φ6 | 4 | 6 | 1 | |
| 1005040020 | BS-TFLG-E-Φ4.35*Φ6.35 | 4.35 | 6.35 | 1 | |
| 1005040030 | BS-TFLG-E-Φ5*Φ8 | 5 | 8 | 1.5 | |
| 1066050004 | TFLG-E-Φ3.2*Φ4.8 | 3.2 | 4.8 | 0.8 |
