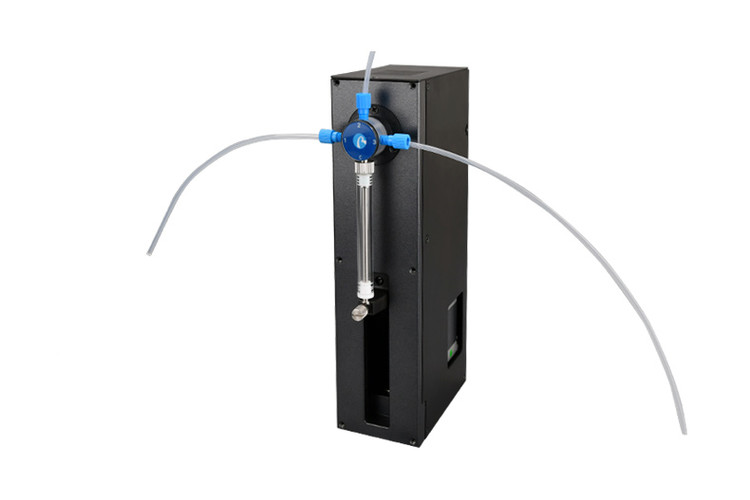

[RUNZEFLUID] SY-03B Syringe Pump Microfluidics
시린지펌프 OEM syringe pump
SY03B시리즈

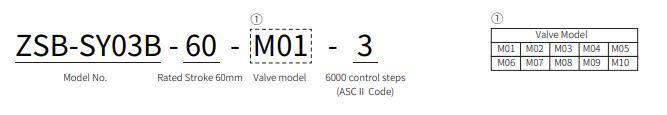

Model Numbers of Microfluidic Syringe Pump
SY-03B is a micro-syringe pump with extraordinary-precision in the series of high-end products developed by Runze Fluid. Accommodates distribution valves and syringes in a variety of configurations. Transfers liquid in high precision which can meet most users' requirements. Can be used in series with multiple pumps.Fully programmable pump module with open framework, which handling fluids from microliters to milliliters with extraordinary accuracy and precision. With functions in automatic pipetting, dilution and dispensing. Controlled by an external computer or microprocessor.
Syringe Pump Microfluidics
SY-03B microfluidics syringe pump works for continuous liquid delivering from microliters to milliliters in very high accuracy. The electric syringe pump can provide syringe varies from 25μL to 50ml while valve from 3 port to 15 ports in different flow configurations to meet a variety of applications. RS232/RS485/CAN communication programs make it possible to realize many different flow dispensing requirements.
Video of Syringe Pump Microfluidics
Specification of Syringe Pump Microfluidics
| Accuracy | ≤1%@100(rated stroke) |
| Precision (Repeatability) | 0.3%~0.5%@100%(rated stroke) |

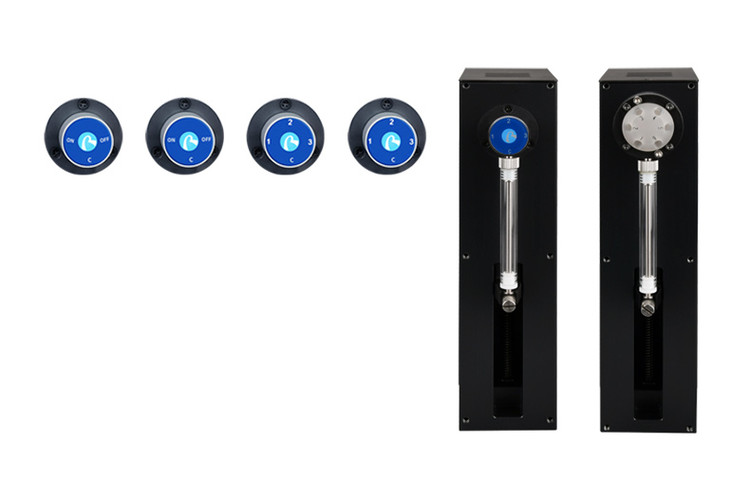

| Valve (Optional) | MY-3/MT-3/MC-4/MCC-4/T-03; T-04/T-06/T-08/T-09/T-10/T-12; T-14/T-16 (customize) |
| Valve Orifice Size | 1.2mm or 2.0mm / 1.0mm / 1.2mm |
| Valve head housing | Standard: PSU; Customizable: PEEK/PTFE/SUS316/all ceramic; Default: SUS316 (Not customizable) |
| Spool assembly | Alumina ceramic |

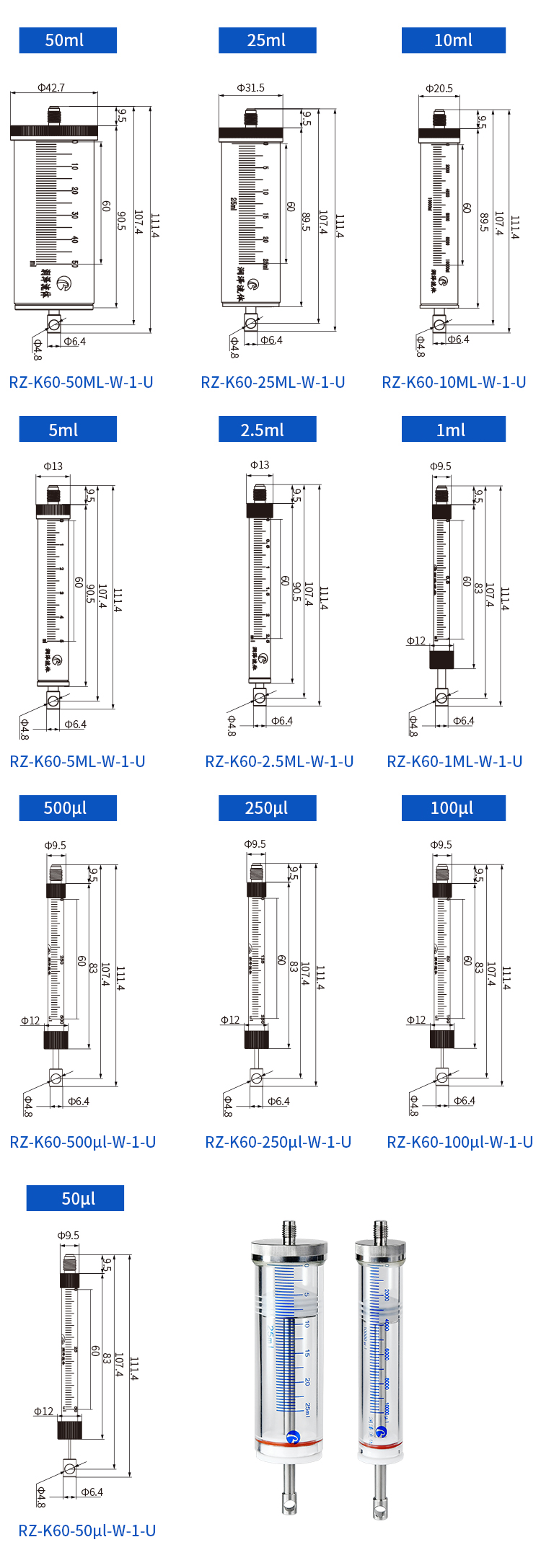

| Sampler (Optional) | 50µL - 50mL (customize); Optional Runze K60 Syringe or imported ILS Syringe |
| Rated stroke | 60mm |
| Control Steps | 6000 steps |
| Linear speed | 0.01 ~ 60mm/s |
| Running time (per rated stroke) | 1s ~ 6000s |
| Resolution | 0.01mm / 1 steps |
| Wetted Material | Alumina ceramic, injector (borosilicate glass, PTFE) |
| Actuator | Trapezoidal screw (Lead 6mm) |
| Piston maximum drive | >80N |
| Piston secondary drive | >40N |
| Valve Switching Time | ≤280ms |
| Connection | 1/4-28UNF |

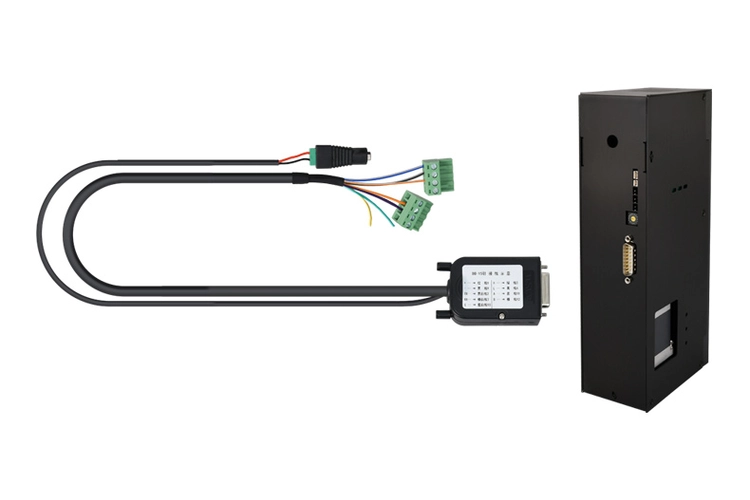

| Baud rate | RS232/RS485: 9600bps - 115200bps; CAN: 100kbps - 1Mbps |
| Communication address | Up to 15 individual addresses can be provided |
| Power supply | DC24V/3A |
| Operating temperature | 5°C ~ 55°C |
| Operating humidity | <80% relative humidity, non-condensing |

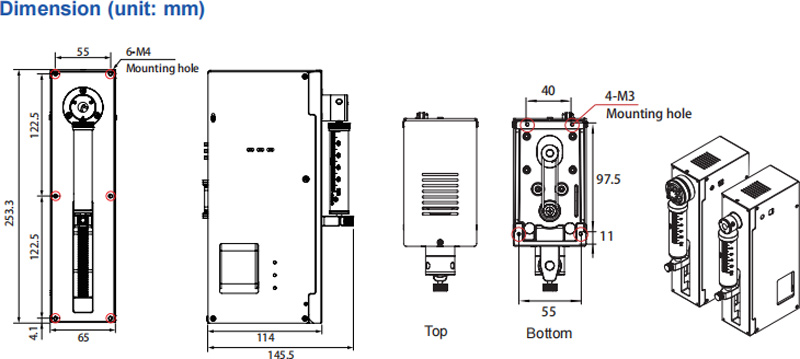

| Dimension (L*W*H) | 65*233.3*151mm |
| Net weight | 2.2kg |

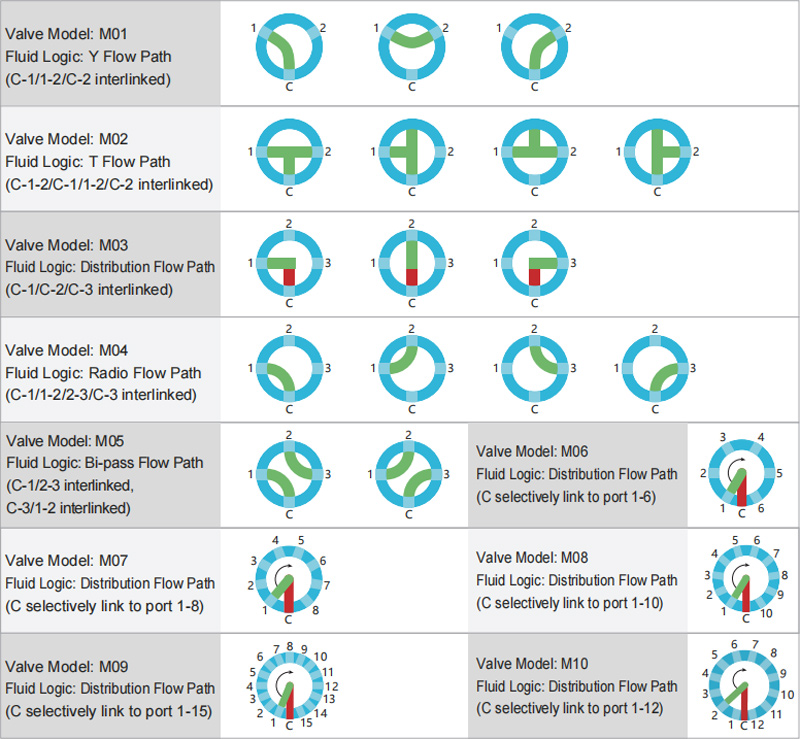

Valve Options of Microfluidic Syringe Pump
