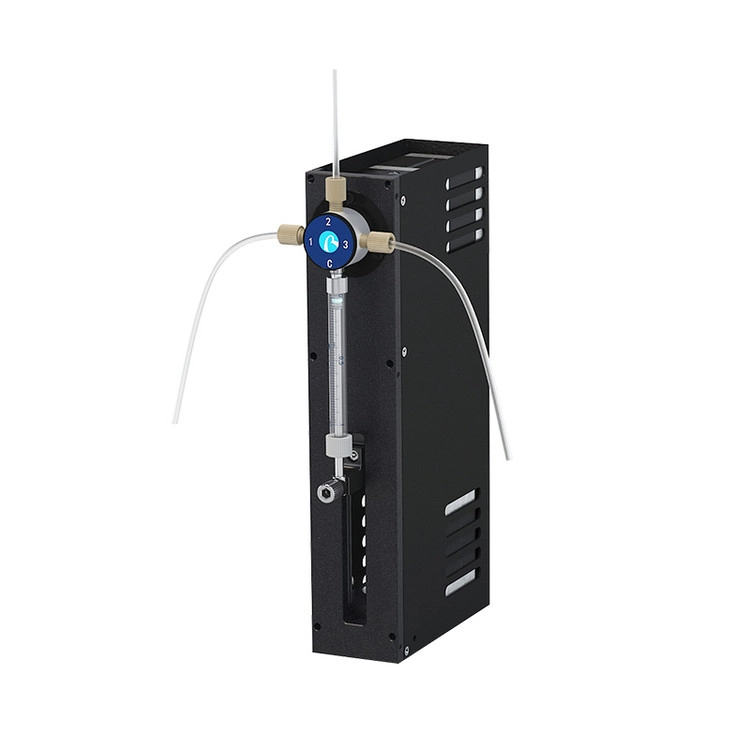

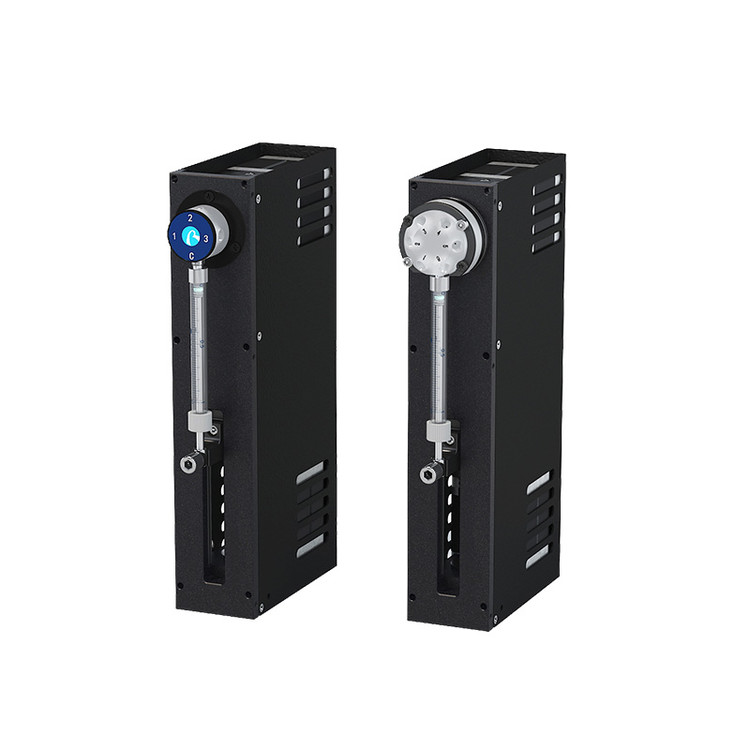

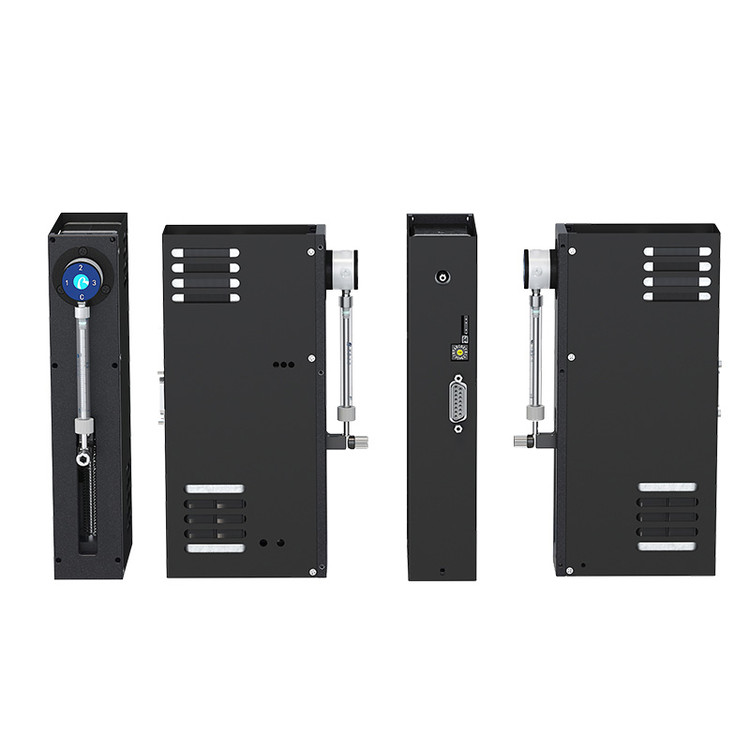

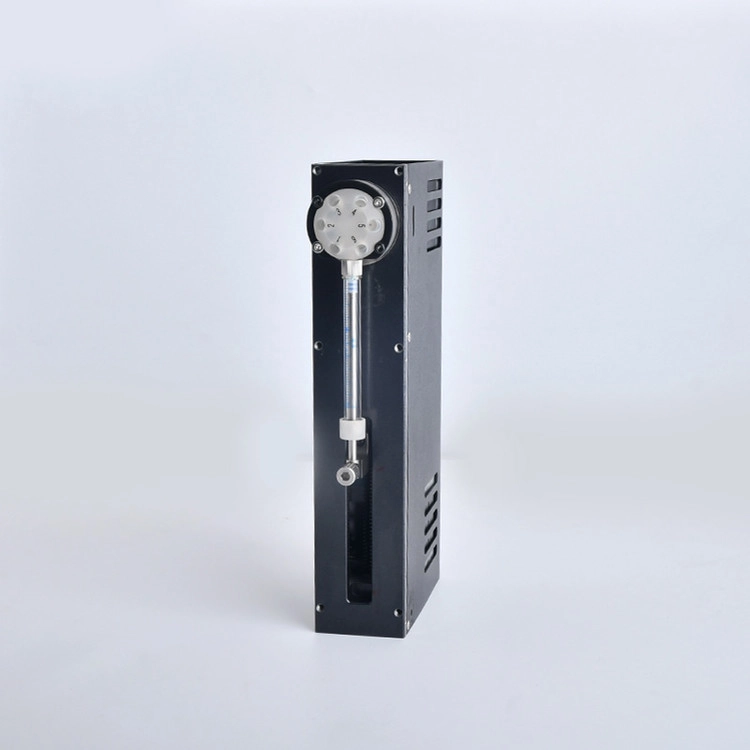

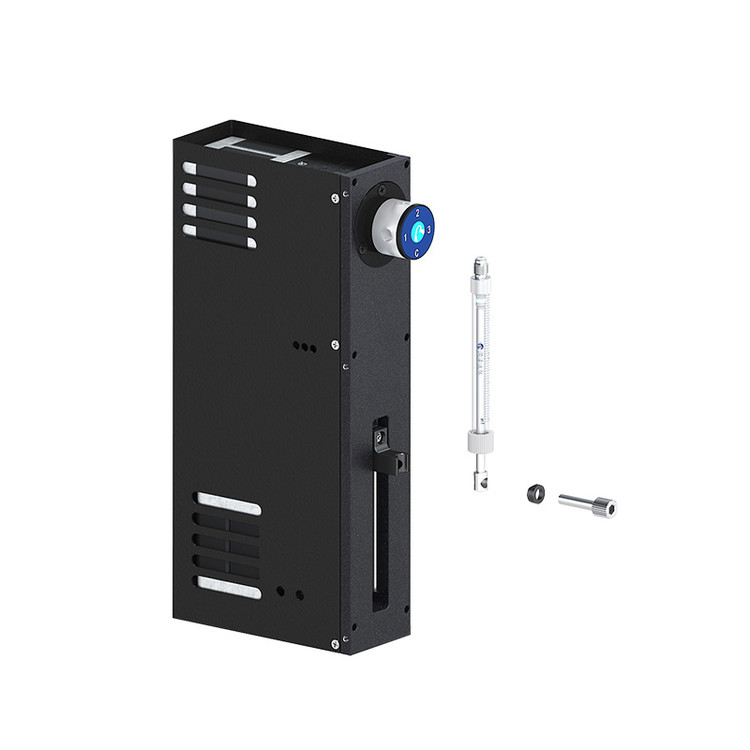

[RUNZEFLUID] SY-06B Industrial Syringe Pump
시린지펌프 OEM syringe pump
SY-06B시리즈

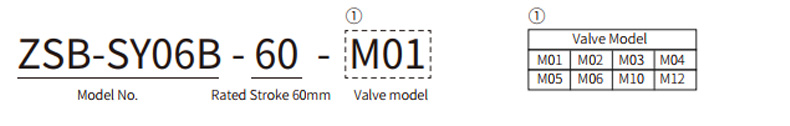

Model Numbers of Syringe Pump SY-06B
SY-06B is a syringe pump with extraordinary-precision in the series of high-end products developed by Runze Fluid. Accommodates distribution valves and syringes in a variety of configurations. Transfers liquid in high precision which can meet most users' requirements. Can be used in series with multiple pumps. Fully programmable pump module with open framework, which handling fluids from microliters to milliliters with extraordinary accuracy and precision. With functions in automatic pipetting, dilution and dispensing. Controlled by an external computer or microprocessor.

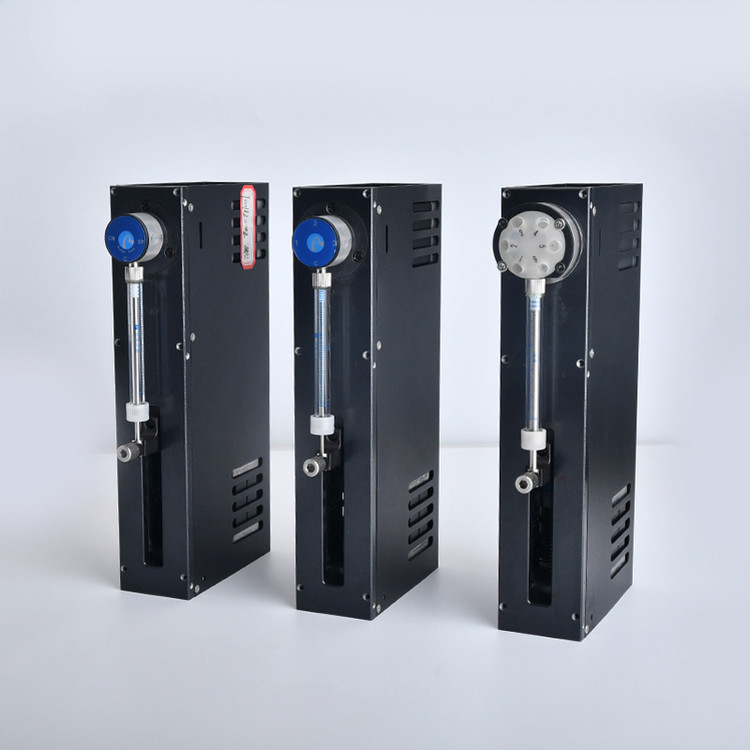

Syringe Pump SY-06B
Smart SY-06B syringe pump works for continuous liquid delivering from microliters to milliliters in very high accuracy. It is suitable for applications ranging from 50μl to 10ml to meet a variety of applications. Compared with other Runze's syringe pumps, it is small in size and saves installation space.
Specification of Syringe Pump SY-06B
| Accuracy | ≤1%@100(rated stroke) | ||
| Precision(Repeatability) | 0.3%~0.5%@100%(rated stroke) | ||
| Valve (Optional) | MY-3/MT-3/MC-4/MCC-4/T-03 | T-04/T-06/T-08/T-10/T-12/T-09(customize) | T-14/T-16 (customize) |
| Valve Orifice Size | 1.2mm or 2.0mm | 1.0mm | 1.2mm |
| Valve head housing | / | Standard: PSU Customizable: PEEK/PCTFE/SUS316 stainless steel/Al ceramic | Default: SUS316 Not customizable |
| Spool assembly | Alumina ceramic | ||

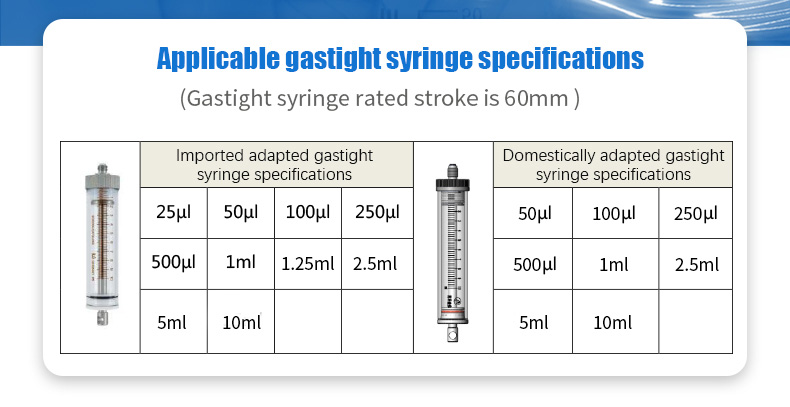

| Sampler (Optional) | 50μL, 100μL, 250μL, 500μL, 1mL, 1.25mL, 2.5mL, 5mL, 10mL (Optional Runze K60 Syringe or imported ILS Syringe) | ||
| Rated stroke | 60mm | ||
| Control Steps | 6000 steps | ||
| Linear speed | 0.005 ~ 30mm/s | ||
| Running time(per rated stroke) | 2s ~ 12000s | ||
| Resolution | 0.01mm/1 steps | ||
| Wetted Material | Alumina ceramic, injector (borosilicate glass, PTFE) | ||
| Actuator | Trapezoidal screw(Lead 2mm) | ||
| Piston maximum drive | > 80N | ||
| Piston secondary drive | > 40N | ||
| Valve Switching Time | < 280ms | ||
| Connection | 1/4-28UNF | ||
| Baud rate | RS232/RS485: 9600bps, 19200bps, 38400bps, 57600bps, 115200bps / CAN: 100kbps, 200kbps, 500kbps, 1Mbps | ||
| Communication address | Up to 15 individual addresses can be provide | ||
| Power supply | DC24V/3A | ||
| Operating temperature | 5°C~55°C | ||
| Operating humidity | <80% relative humidity, non condensing | ||
| Dimension(L*W*H) | 137.6*45*228.6mm | ||
| Net weight | 2.023kg | ||

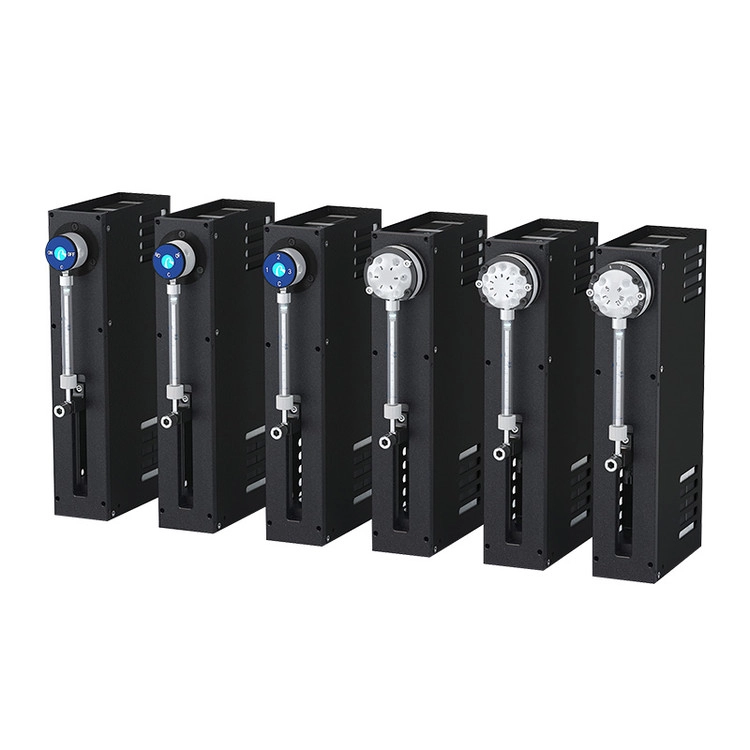

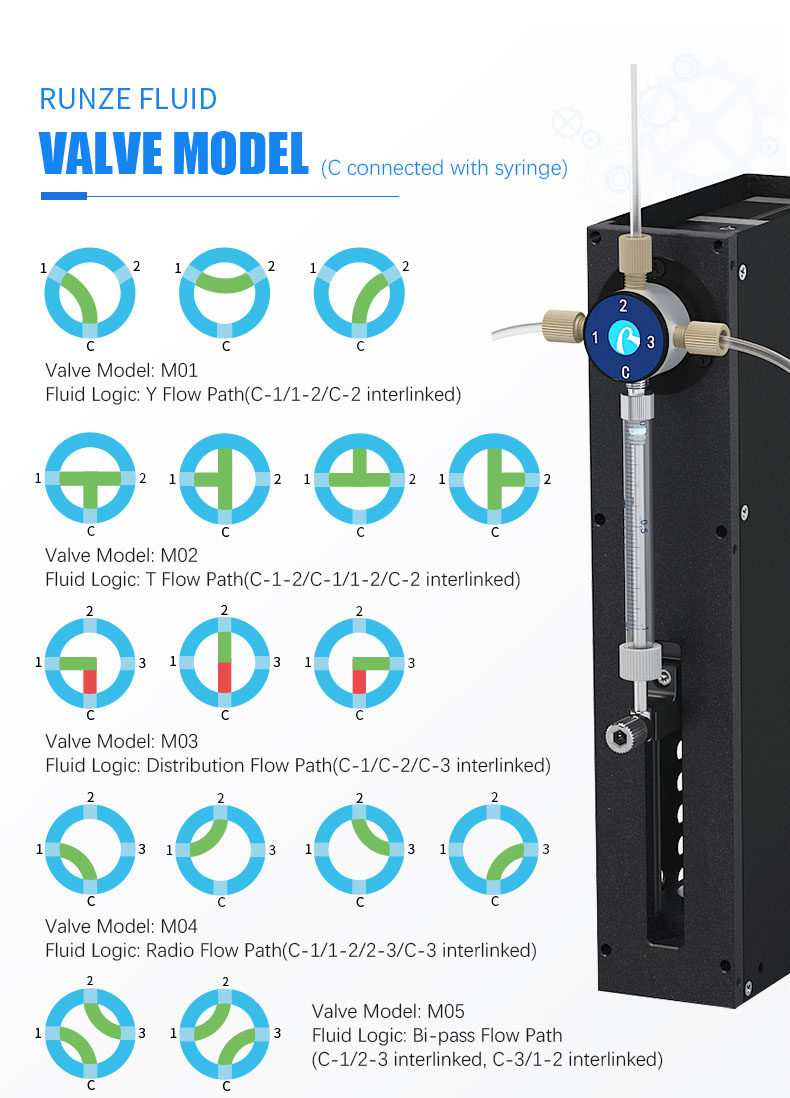

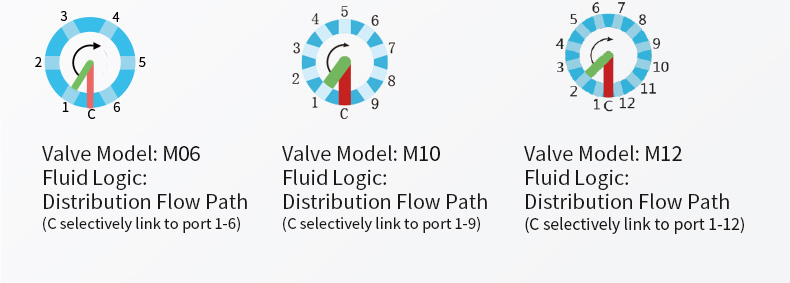

Valve Options of Syringe Pump SY-06B
