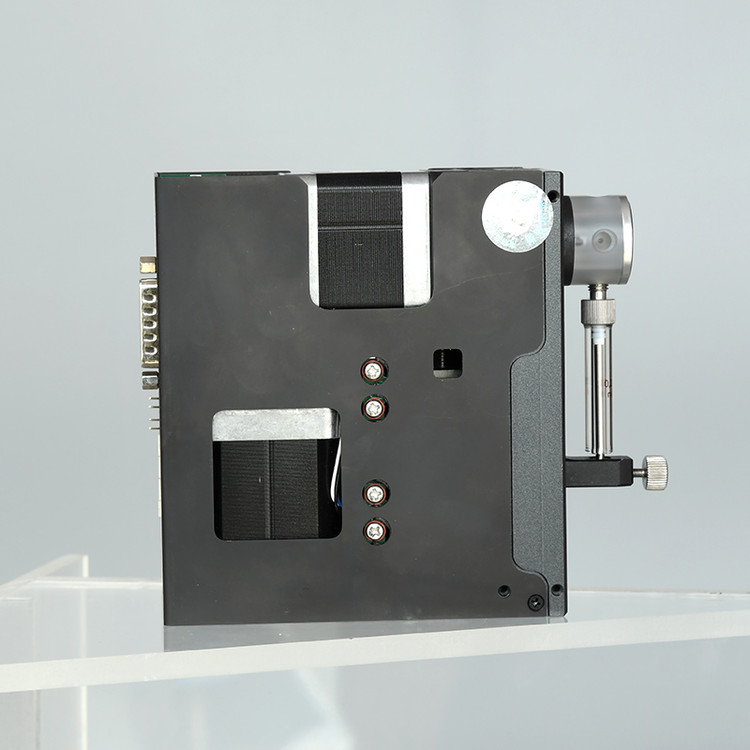

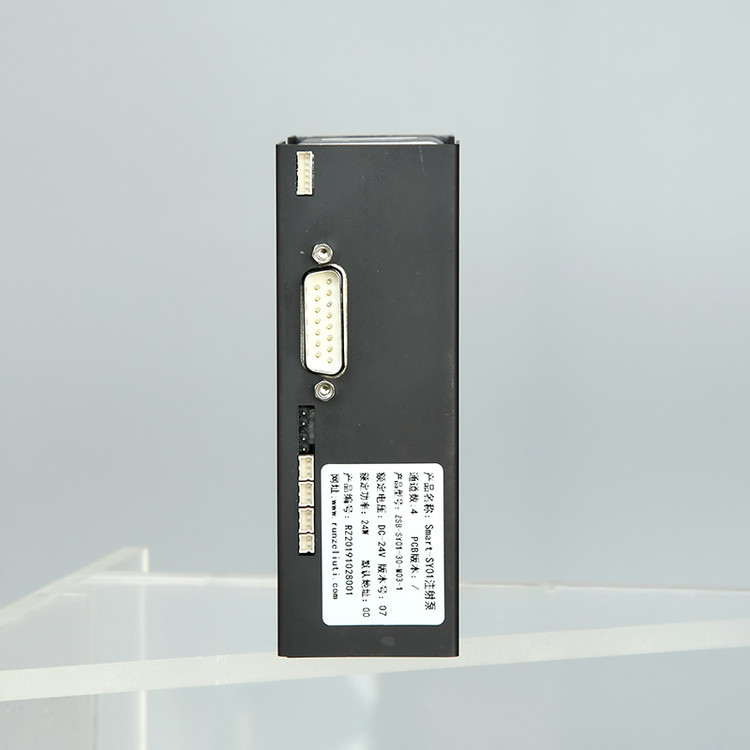

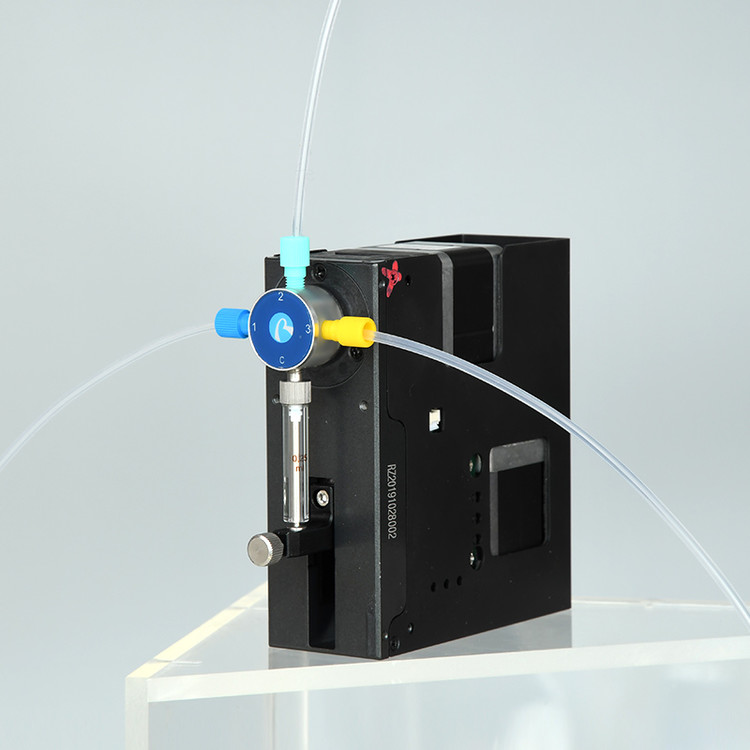

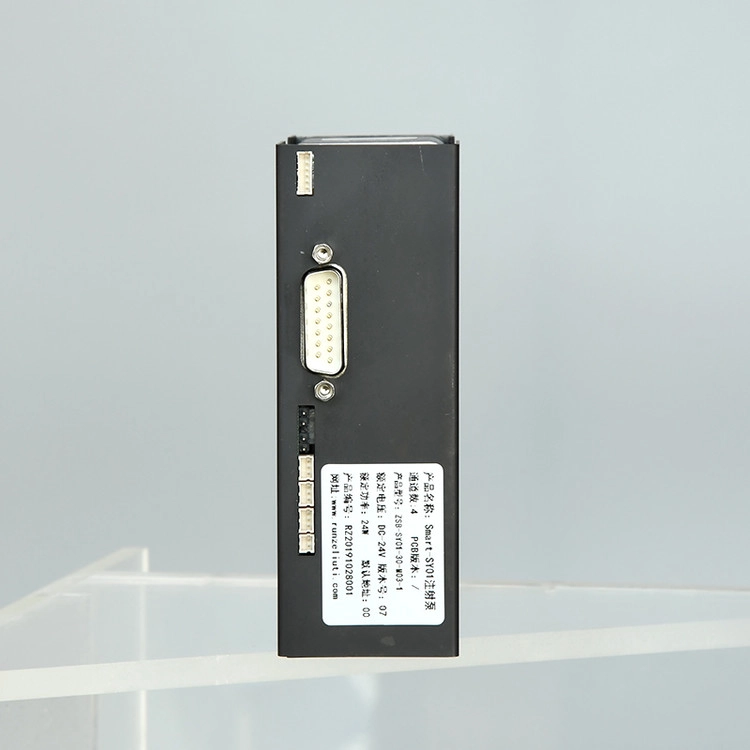

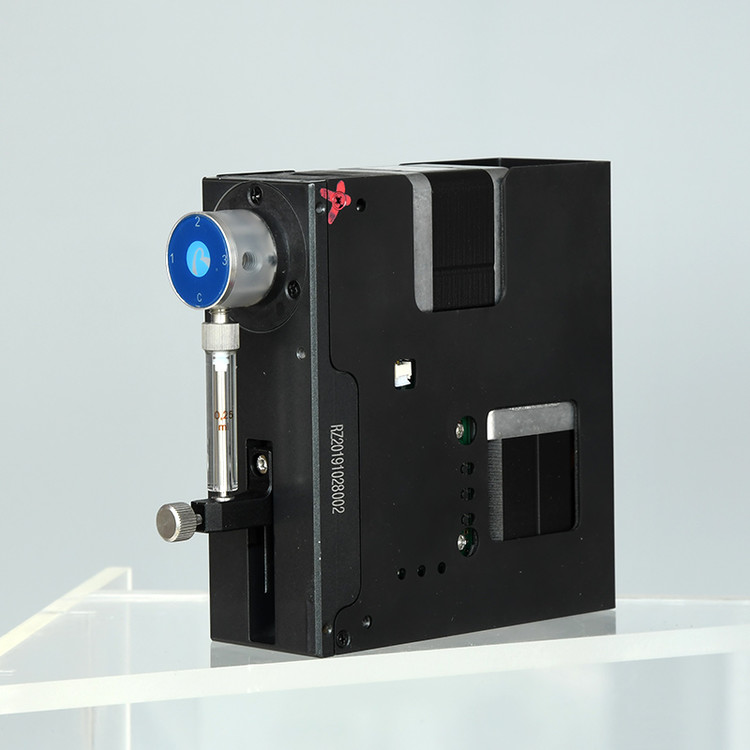

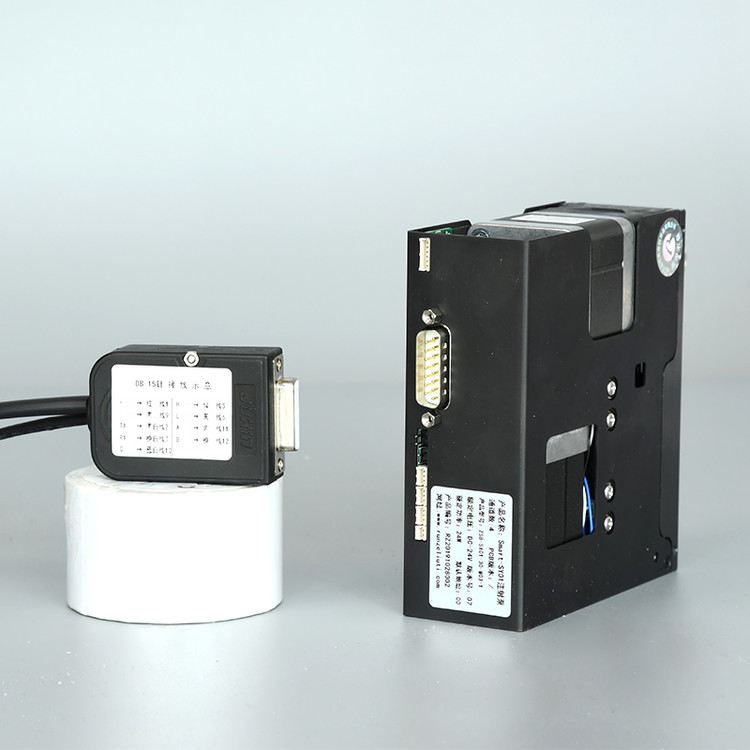

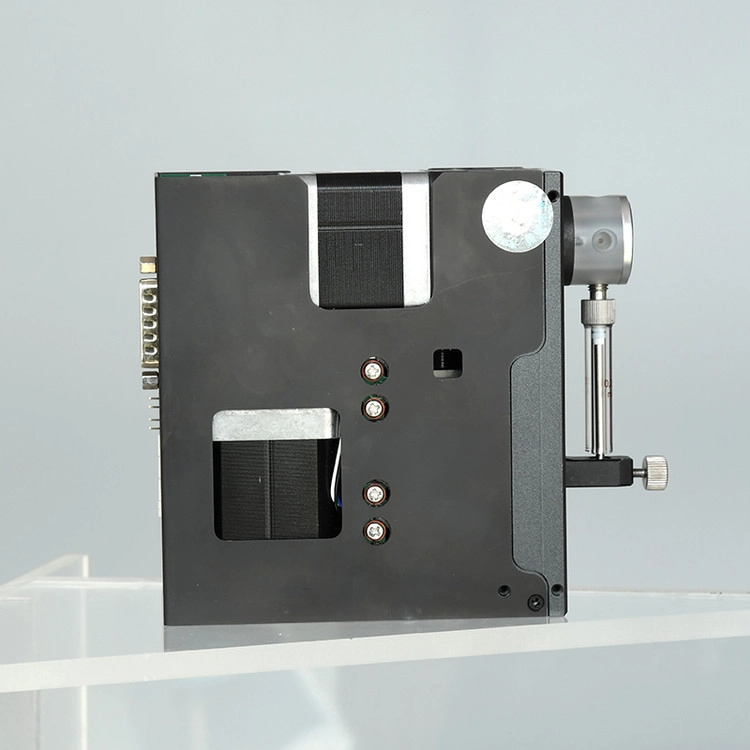

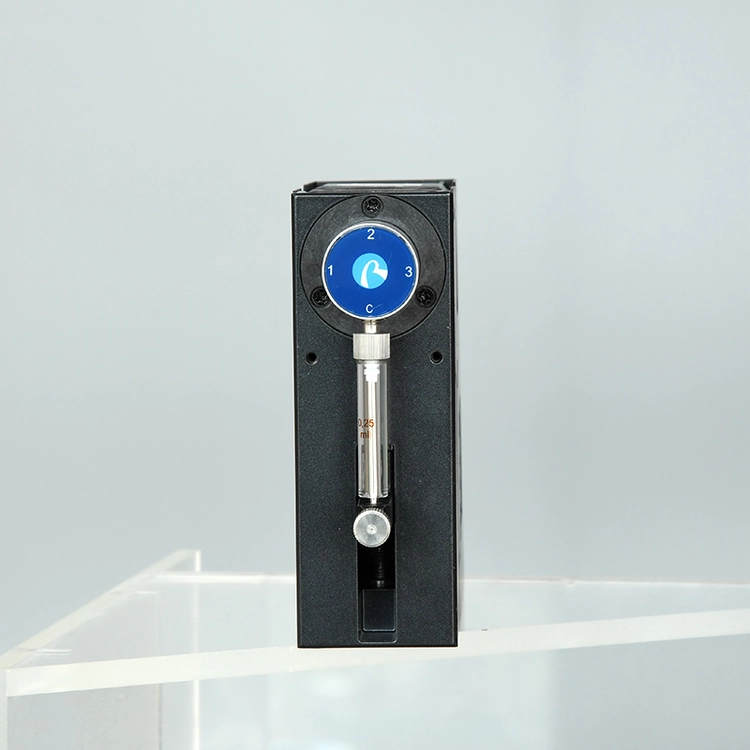

[RUNZEFLUID] High Precision Syringe Pump SY-01B / SY-01C 시린지펌프 OEM syringe pump

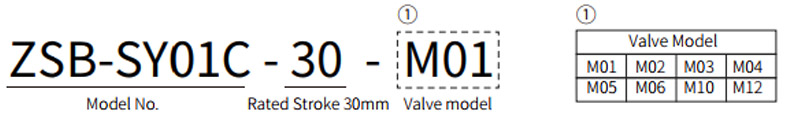

Model Numbers of High Precision Syringe Pump
Smart SY-01C syringe pump is the newest member in the series of micro-syringe pumps self-developed by Runze Fluid, which can handling fluids from microliters to milliliters with extraordinary accuracy and precision. Accommodates distribution valves and syringe in a variety of configurations. Transfers liquid in high precision which can meet most users' requirements. Can be used in series with multiple pumps. The excellent performance of Smart SY-01C syringe pump provides a guarantee on the R & D and application for users. High efficiency maintenance-free stepper motor drive system. Address up to 15 pumps individually via RS485 or CAN Communication.

High Precision Syringe Pump
Smart SY-01C high precision syringe pump is the newest member in the series of micro-syringe pumps self-developed by Runze Fluid. Smart SY-01C Syringe Pump is suitable for applications ranging from 0.5ml to 5ml. Fully programmable pump module with open frame-work, which handing fluids from microliters to milliters with extradinaryaccuracy and precison. It is controlled by an external computer or microprocessor and with functions in automatic pipetting,dilution and dispensing.
| Parameter | Smart SY-01B | Smart SY-01C |
| Accuracy | ≤1%@100(rated stroke) | ≤1%@100(rated stroke) |
| Precision(Repeatability) | 0.3%~0.5%@100%(rated stroke) | 0.3%~0.5%@100%(rated stroke) |
| Valve (Optional) | MY-3/MT-3/MC-4/MCC-4/T-03 | T-04/T-06/T-08/T-09/T-10/T-12 |
| Valve Orifice Size | 1.2mm or 2.0mm | 1.0mm |
| Valve head housing | / | Standard: PSU Customizable: PEEK/PTFE/SUS316 stainless steel/all ceramic |
| Spool assembly | Alumina ceramic | Alumina ceramic |
| Sampler (Optional) | 25µL, 50µL, 125µL, 250µL, 500µL, 1.25mL, 2.5mL, 5mL Optional Runze K30 Syringe or imported ILS Syringe | 25µL, 50µL, 125µL, 250µL, 500µL, 1.25mL, 2.5mL, 5mL Optional Runze K30 Syringe or imported ILS Syringe |
| Product Model | Smart SY-01B | Smart SY-01C |
| Rated stroke | 30mm | 30mm |
| Control Steps | 12000 steps | 3000 steps |
| Linear speed | 0.0025~15mm/s | 0.0005~300mm/s |
| Running time(per rated stroke) | 2s ~ 12000s | 1s ~ 60000s |
| Resolution | 0.0025mm/1 steps | 0.01mm/1 steps |
| Wetted Material | Alumina ceramic, injector (borosilicate glass, PTFE) | Alumina ceramic, injector (borosilicate glass, PTFE) |
| Actuator | Trapezoidal screw(Lead 2mm) | Trapezoidal screw(Lead 2mm) |
| Piston maximum drive | ≥ 80N | ≥ 80N |
| Piston secondary drive | ≥ 40N | ≥ 40N |
| Valve Switching Time | ≤ 640ms | ≤ 640ms |
| Connection | 1/4-28UNF | 1/4-28UNF |

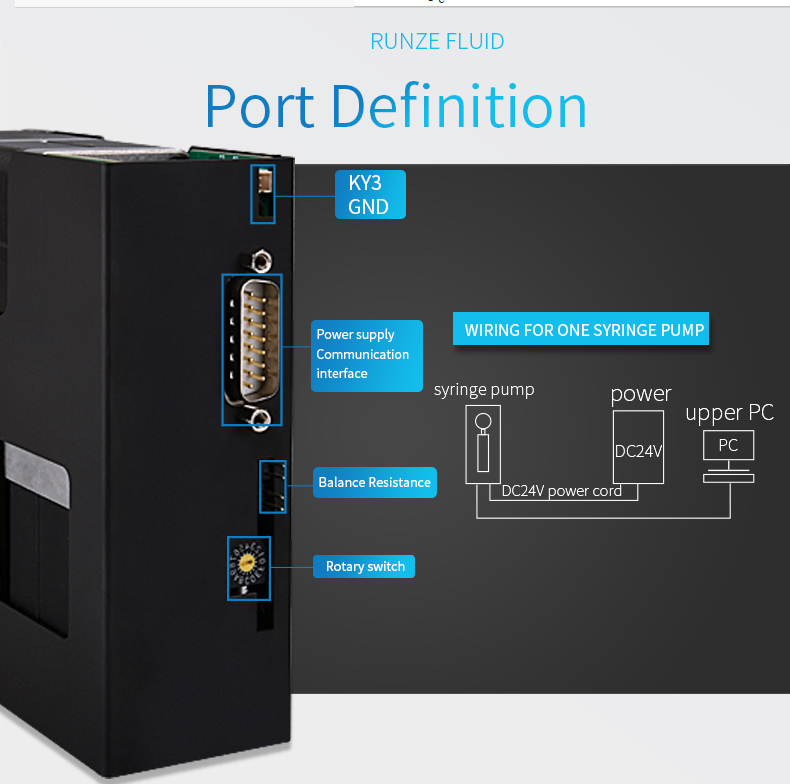

| Baud rate | RS232/RS485: 9600bps, 19200bps, 38400bps CAN: 100kbps, 200kbps, 500kbps, 1Mbps | RS232/RS485: 9600bps, 19200bps, 38400bps, 57600bps, 115200bps CAN: 100kbps, 200kbps, 500kbps, 1Mbps |
| Communication address | Up to 15 individual addresses can be provide | Up to 15 individual addresses can be provide |
| Power supply | DC24V/3A | DC24V/3A |
| Operating temperature | 5℃~55℃ | 5℃~55℃ |
| Operating humidity | <80% relative humidity,non condensing | <80% relative humidity,non condensing |

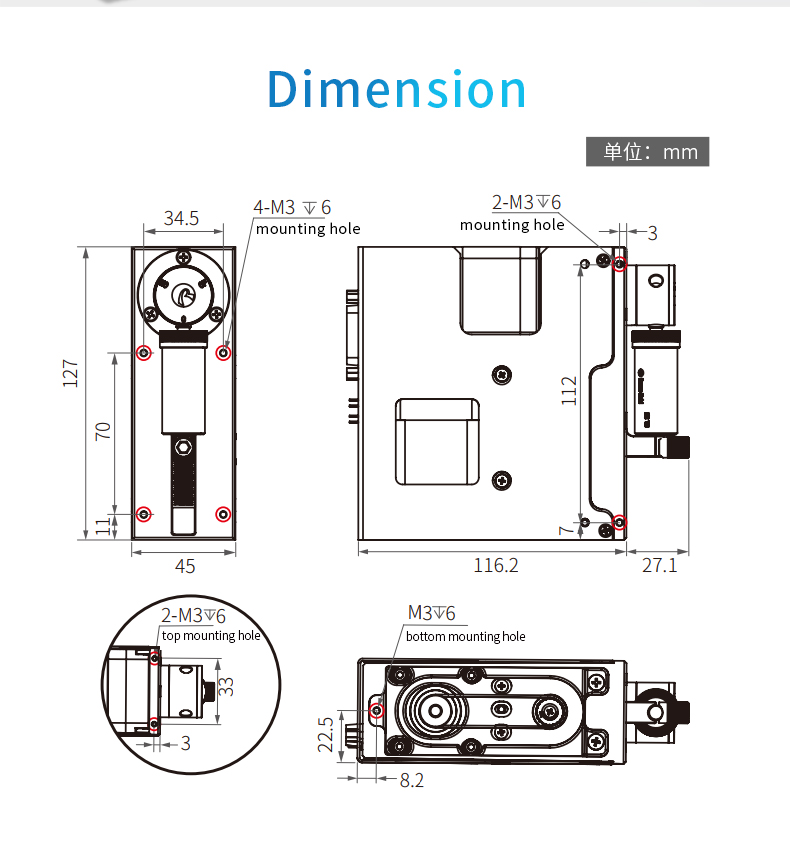

| Dimension(L*W*H) | 45*127*148.7 mm | 45*127*148.7 mm |
| Net weight | 1.5kg | 1.5kg |

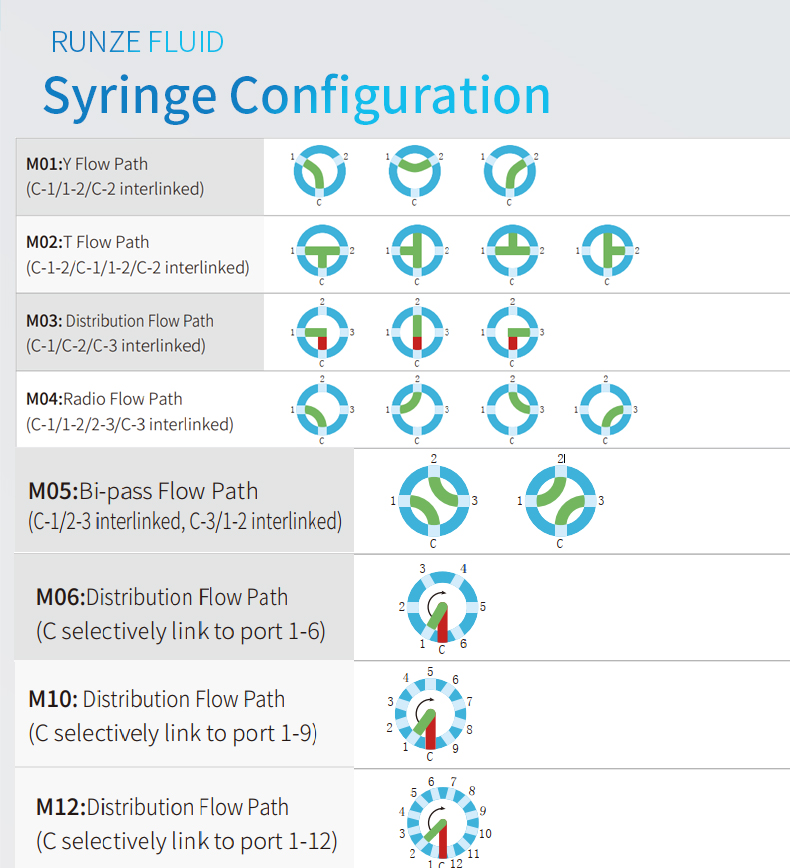

Valve Options of High Precision Syringe Pump
