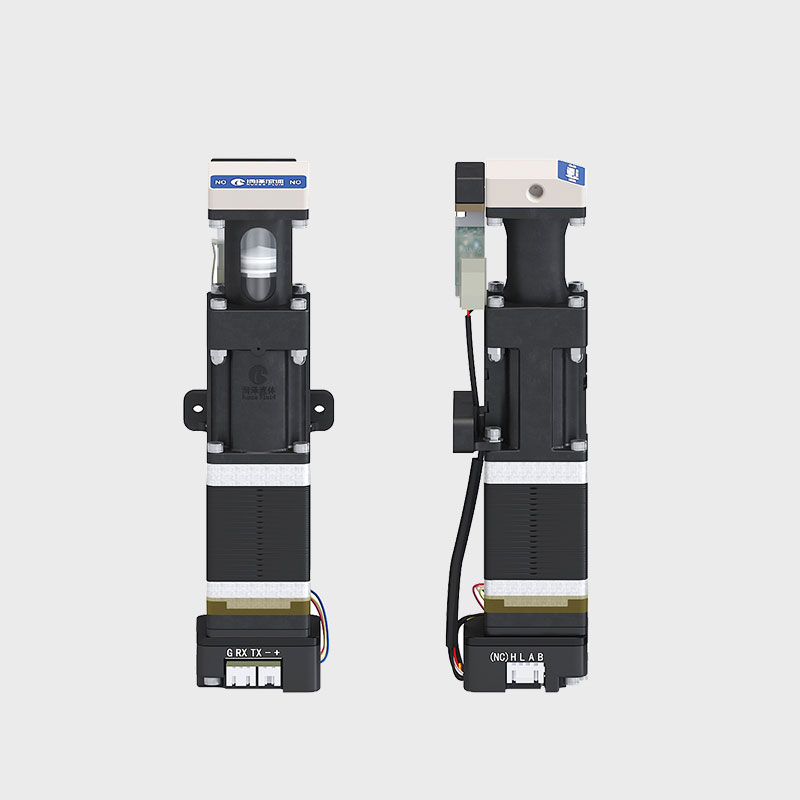

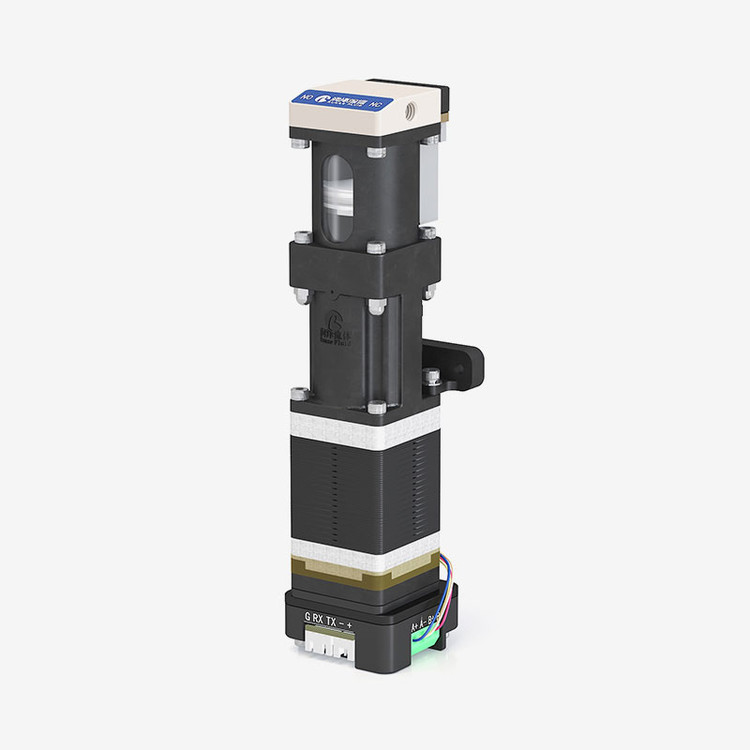

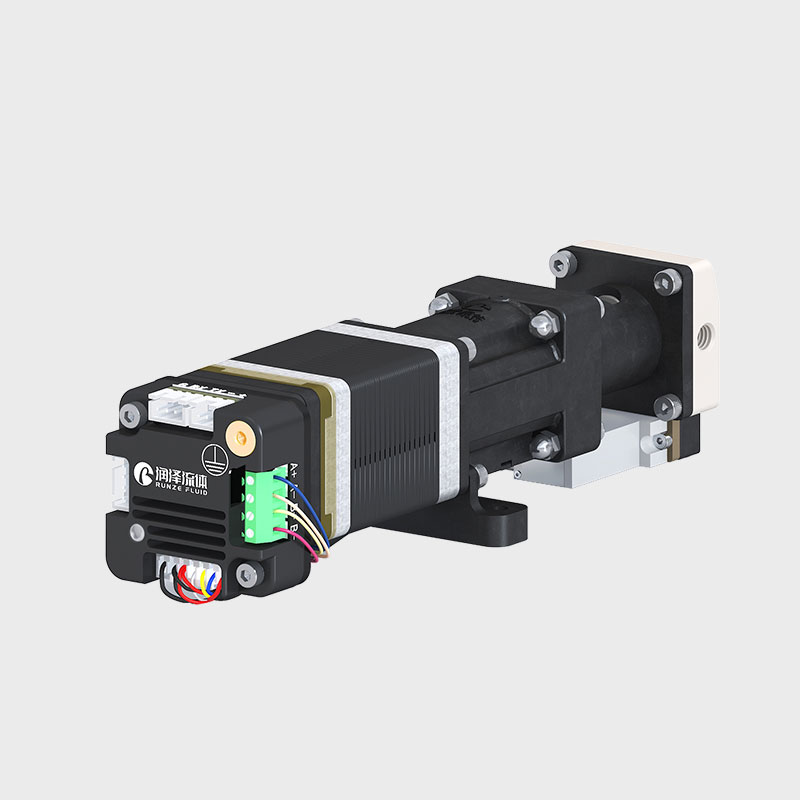

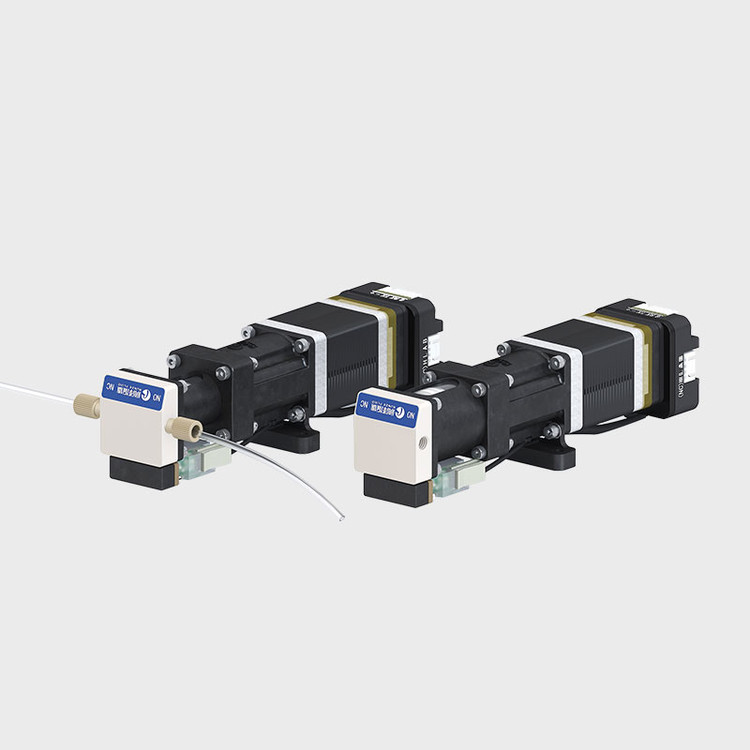

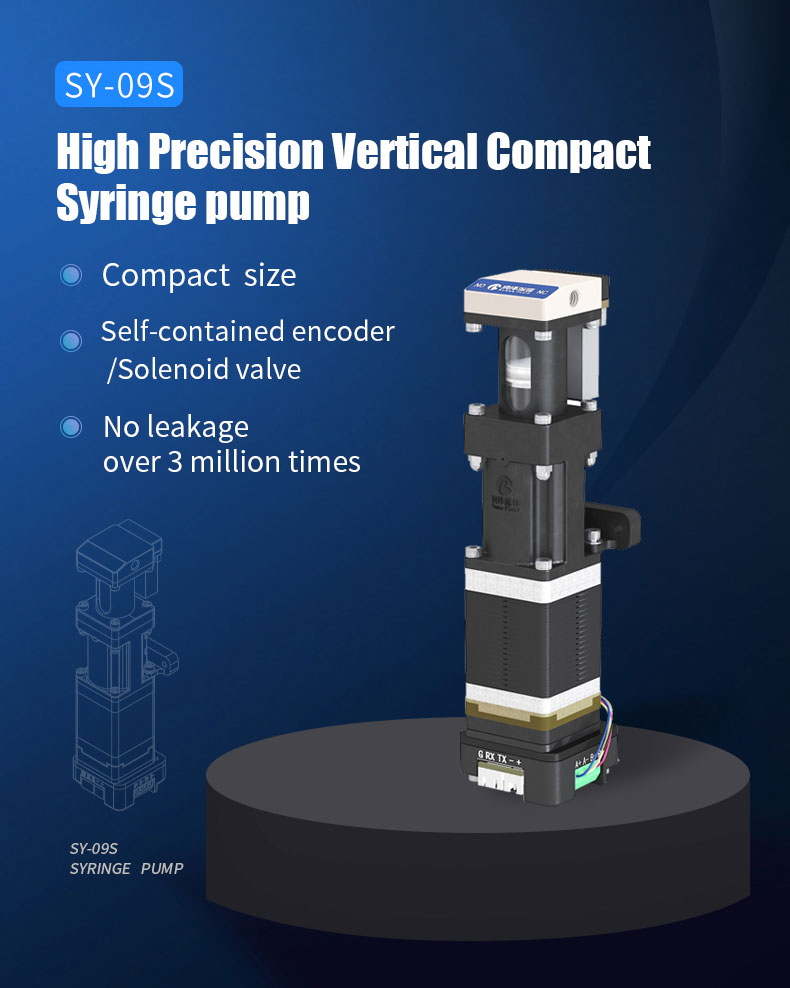

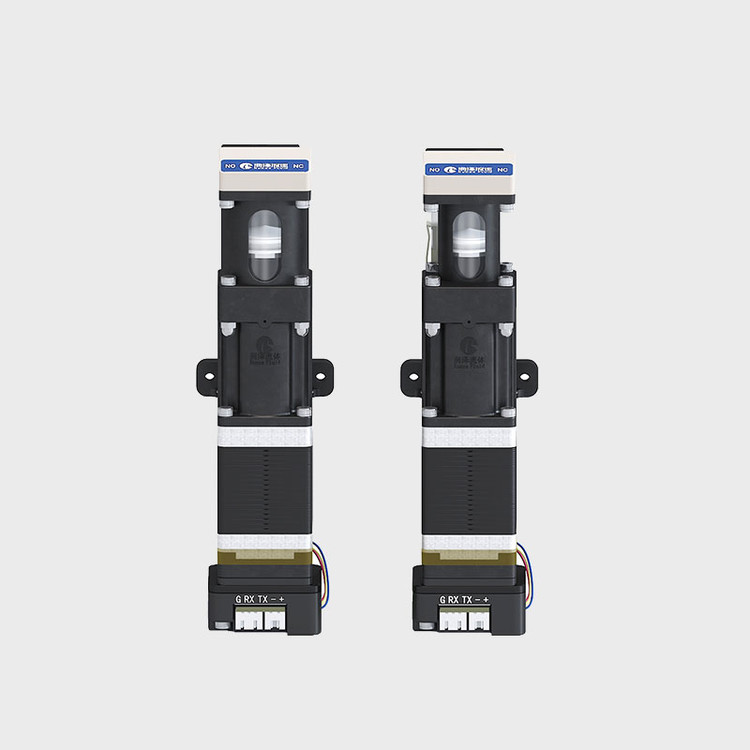

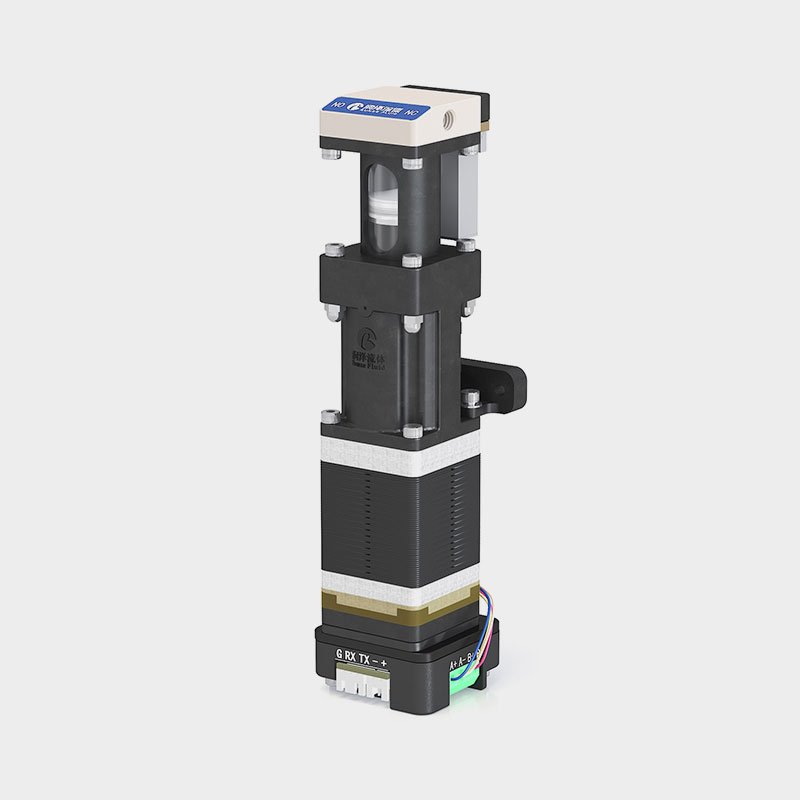

Name: [RUNZEFLUID] SY-09S Syringe Pump 시린지펌프 OEM syringe pump
Brand: RUNZEFLUID
Price: 212500 KRW
Availability: InStock

[RUNZEFLUID] SY-09S Syringe Pump 시린지펌프 OEM syringe pump

가격문의(상세정보 참조)

구매평

Q&A

반품/교환

구매평

Q&A

반품/교환

상품이 없습니다.

Accuracy	≤1%@100 (rated stroke)
Precision (Repeatability)	0.3%~0.7%@100% (rated stroke)
Service life	3 million times no leakage (media: water, 1 rated stroke = one time)
Volume	3ml	8ml
Back Pressure	--	--
Rated Stroke (control steps)	18mm (3600 steps)	19.2mm (3840 steps)
Maximum speed	600rpm	300rpm
Linear speed	0.017~10mm/s	0.017~5mm/s
Running time (per rated stroke)	1.8~1080s	3.84~1152s
Resolution	0.005mm/0.833μl	0.005mm/2.083μl
Syringe ID	14.55mm	23.03mm

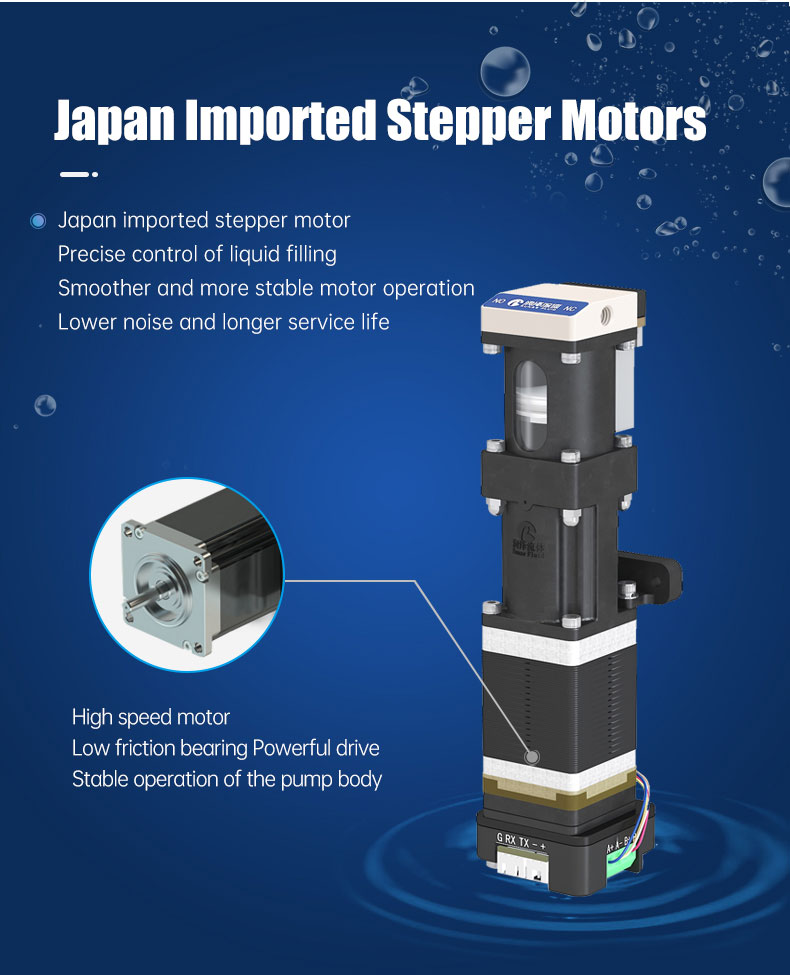

Actuator	Trapezoidal screw (Lead 1mm)

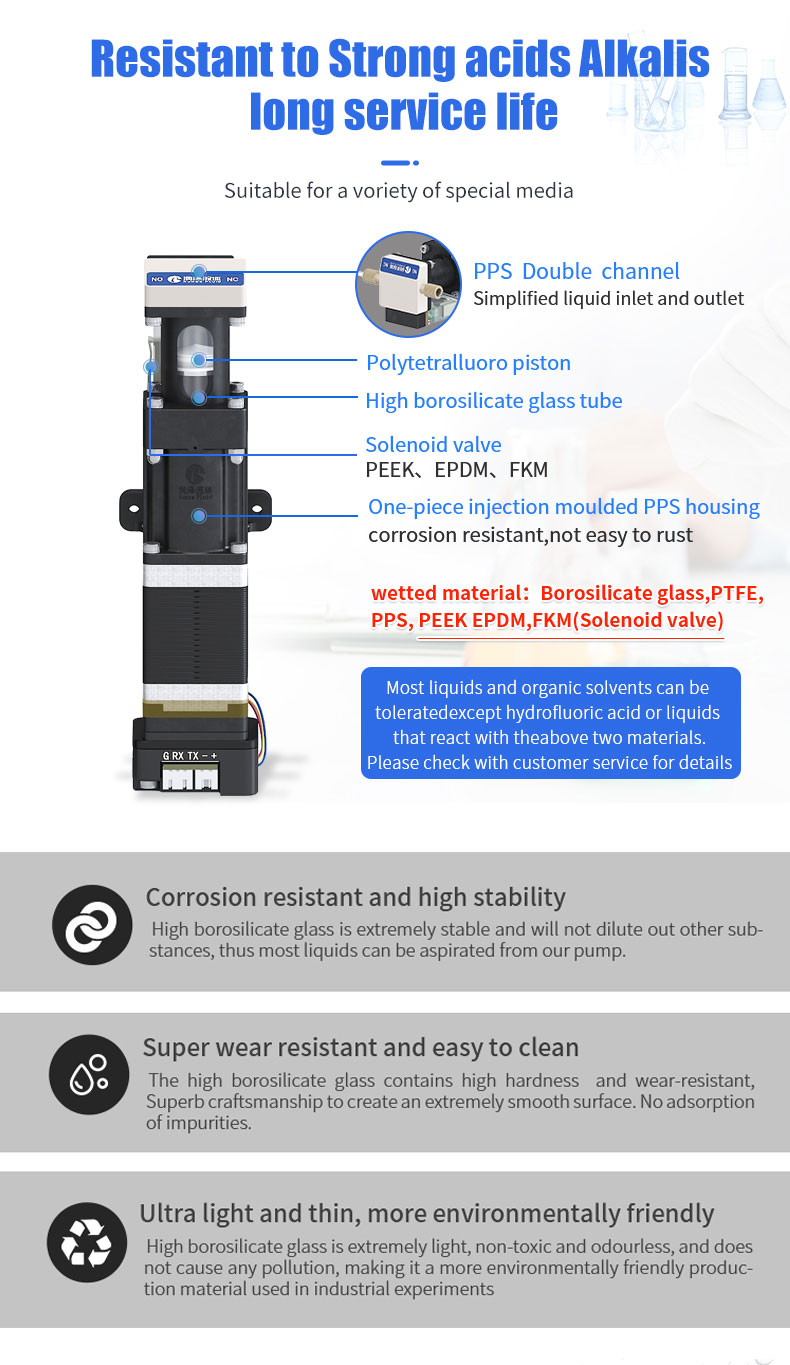

Wetted Material	Borosilicate glass, PTFE, FFKM, PPS, PEEK, EPDM, FKM (solenoid valve)
Max. Pressure	-0.075~0.15Mpa
Connection	1/4-28UNF
Baud rate	RS232/RS485: 9600bps, 19200bps, 38400bps, 57600bps, 115200bps
Power supply	DC24V/3A
Rated power	15W
Operating temperature	5℃ ~ 55℃
Operating humidity	≤ 80% relative humidity, non condensing

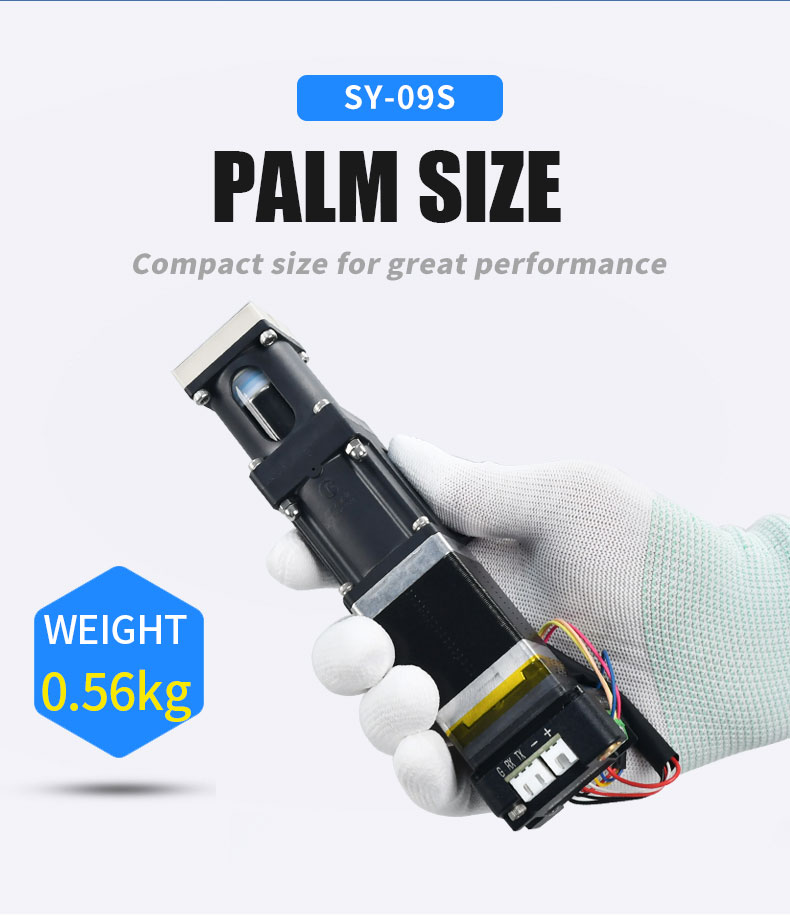

Net Weight	0.56kg	0.62kg
