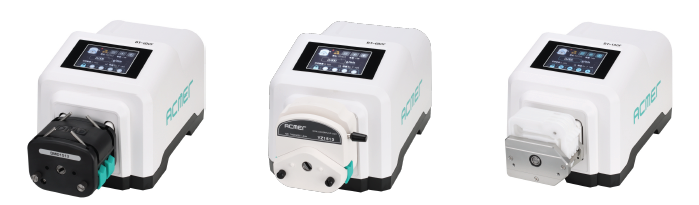

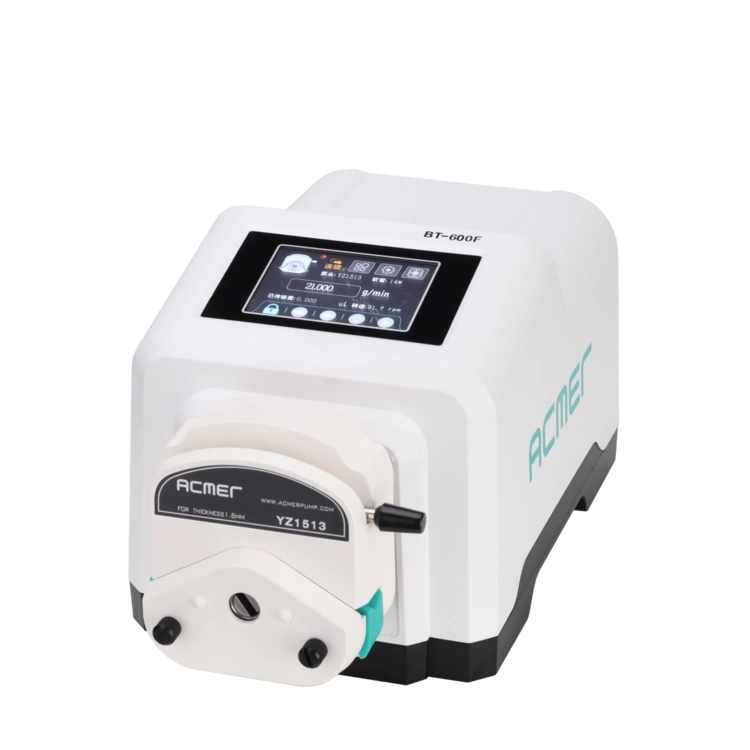

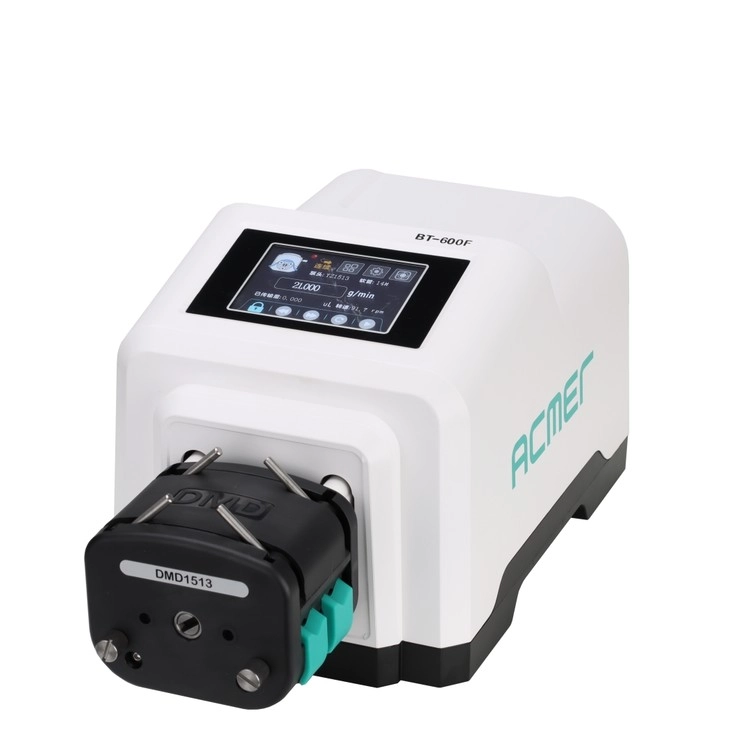

[ACMER] Flow rate peristaltic pump 유속 펌프 - BT-600F
BT-600F
![]() |
특징 Description | |
| • 대형3.5” 터치스크린 적용 | • 작동 모드 : 유속 모드, 유속& 타임 모드 |
| • 유량보정 기능 | • 작동중 유량 변경 가능 |
| Pump drive | Pump head | Suitable tuing | Flow rate |
BT-100F | YZ1513 | 13#、14#、19#、16#、25#、17#、18# | 0.0063ml/min~2200ml/min |
| YZ2513S | 15#、24# | 0.16m/min~1600ml/min | |
| DMD1513 | 13#、14#、19#、16#、25#、17#、18# | 0.012ml/min~3300ml/min | |
| BZ 、2xBZ、3xBZ、4xBZ | 14#、16#、24# | 0.025ml/min~1600ml/min |
| Speed range | 0.1-600rpm |
| Volume range | 0.1uL-9999.999uL、ml、L、mg、g、kg for option |
| Timing range | 0.1s-6553.5min or hr |
| Back Suction parameters | angle: 0-999° |
| External control speed regulation | 0-5V, 0-10V, 4-20mA, 0-10KHz, realize linear speed adjustment |
| RS485 | Address can be set and screen display, baud rate 1200-9600 bps |
| Status output | start-stop, direction, alarm |
| Applicable power supply | AC 100~240V 50~60Hz |
| Working environment: temperature | 0-40°C humidity: 20%-85% RH non-condensing |
| Protection class | IP31 |
| Dimensions | 246x170x164 mm |
