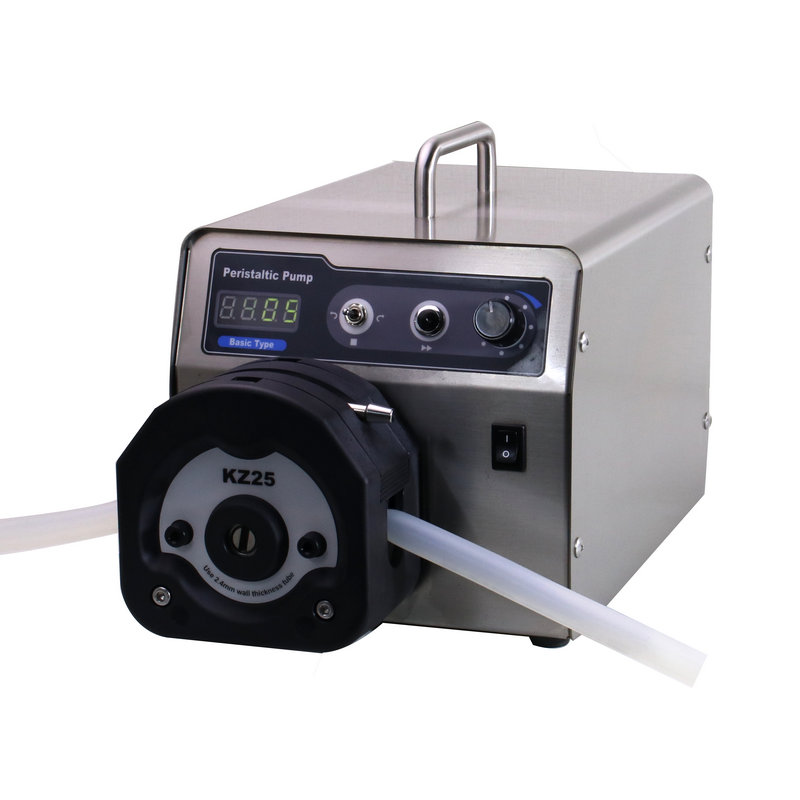

[ACMER] WT600-2J -6L급 Industrial peristaltic pump(대용량산업용튜빙펌프 RPM LED 표시)
WT600-2J
|
특징 Description | |
| • 4자리 LED 로 RPM 표시 | • KZ25채널 최대 2개 까지 장착 가능 |
| • 3가지 모드 : RPM, Flowrate and Timing mode | • 600RPM까지 사용 가능 |
| CPU | ARM Cortex-0 inner core,STM32 chips |
| Brushless motor drive | DBLS-07 |
| Motor speed | 40-600RPM |
| Speed resolution | 1RPM |
| Working mode | RPM mode ,Flow rate mode,Timing mode |
| Display | 4-digit LED to illustrate the RPM or flow rate,display of RPM and flow rate are switched to each other |
| Direction | running direction is reversible |
| Timing | Automatic stop to the set time, timing range 1S-99Hr |
| Operation mode | adjust the motor speed ,flow rate and timing via knob |
| Prime speed | fill and empty the pipeline by prime key quickly |
| Memory | After powering back on, continue operation as that before power off |
| External control | use different external control module to control start/stop,direction and flow rate |
| 0-5V、0-10V、4-20mA、0-10KHz 4 kinds of external control module are optional | |
| Communication | RS485 communication module for option. communication via Modbus protocol |
| Output function | start/stop ,direction,frenquence output0-10khz |
| Footswitch | foot switch to control the start/stop |
| Power consumption | <200W |
| Power supply | AC180V-260V 50Hz |
| Working environment | 0-40℃ Humidity 20%-80% RH no dewing |
| Drive weight | 5.8KG |
| IP rate | IP31 |
| Pump drive | Pump head | Channels | Motor speed | Tubing | Flow rate |
| WT600-2J | KZ25 | 1、2 | 600rpm | 15# | 120ml/min~1800ml/min |
| 24# | 213ml/min~3200ml/min | ||||
| 35# | 300ml/min-4500ml/min | ||||
| 36# | 400ml/min~6000ml/min | ||||
| WT600-2J | YZ1513 | 1、2、3、4、、5、6、7、8 | 600rpm | 13#、14#、19#、16#、25#、17#、18# | 2.5ml/min~2200ml/min |
| WT600-2J | YZ2513S | 1、2、3、4、、5、6、7、8 | 600rpm | 15#、24#、 | 106ml/min~1600ml/min |
| 35#、36# |
