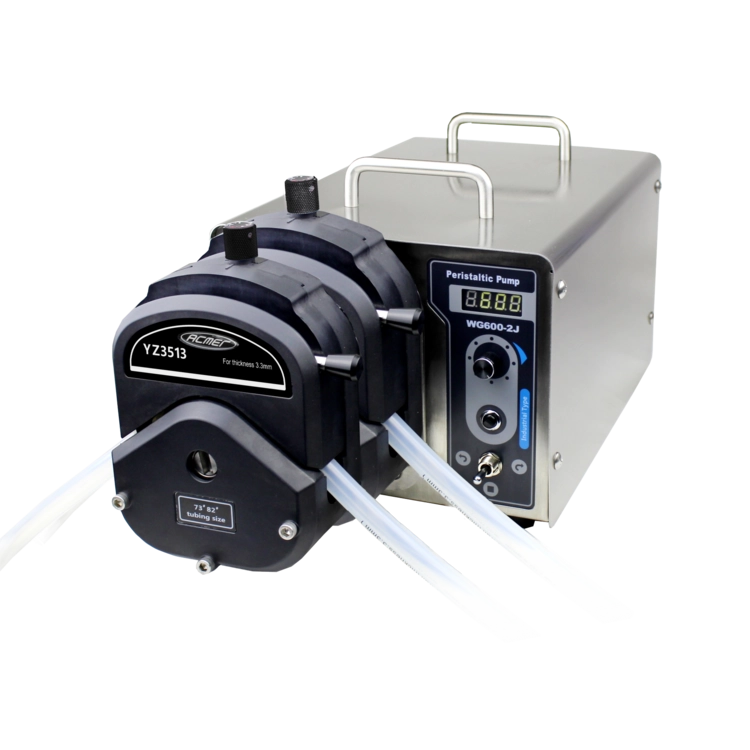

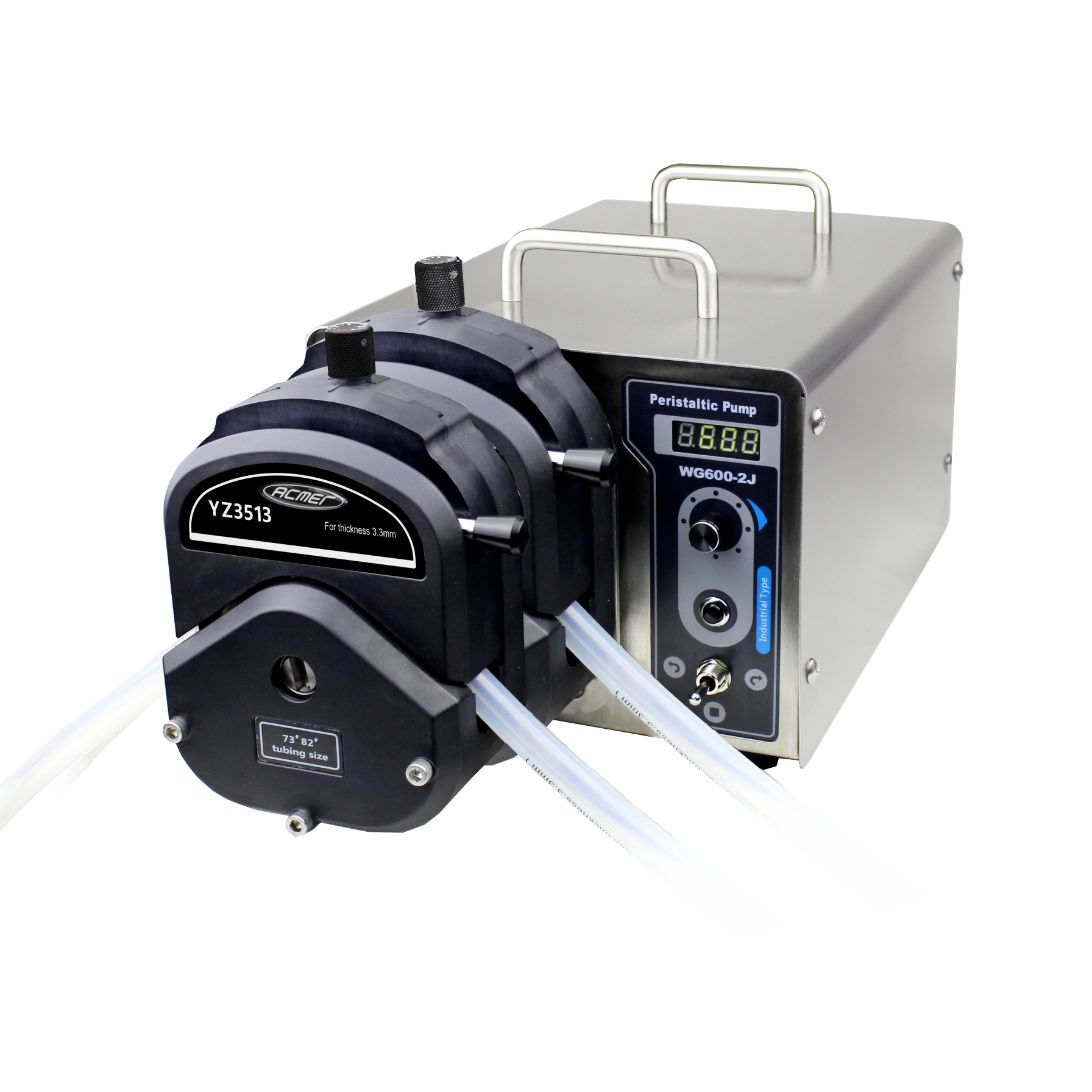

[ACMER] WG600-2J -12L급 Industrial peristaltic pump(대용량산업용튜빙펌프 RPM LED 표시)
SALE
BEST

2,261,600원 2,300,000원

It has three working display modes :RPM, flow rate and Timing
DC brushless motor drive,
large torque, maintenance-free,
higher reliability
Application:Bio-pharmaceutical, chemical production, water reducer small material dripping,
ultrafiltration application, tube centrifuge feeding

원산지 CHINA

22,616 포인트 적립예정 적립예정

택배 · 기본 무료 · 도서산간 배송비 popover

120,000원 이상 구매 시 무료배송

반품/교환

구매하기 장바구니 0

장바구니 장바구니

구매하기 구매하기

반품/교환

상품이 없습니다.

특징 Description
• 4자리 LED 로 RPM 표시	• KZ25채널 최대 2개 까지 장착 가능
• 3가지 모드 : RPM, Flowrate and Timing mode	• 600RPM까지 사용 가능

Motor speed	40-600RPM
Working mode	RPM mode ,Flow rate mode,Timing mode
Display	4-digit LED to illustrate the RPM or flow rate，display of RPM and flow rate are switched to each other
Direction	running direction is reversible
Timing	Automatic stop to the set time, timing range 1S-99Hr
Operation mode	adjust the motor speed ,flow rate and timing via knob
Prime speed	fill and empty the pipeline by prime key quickly
Memory	After powering back on, continue operation as that before power off
External control	use different external control module to control start/stop,direction and flow rate
External control	0-5V、0-10V、4-20mA、0-10KHz 4 kinds of external control module are optional
Communication	RS485 communication module for option. communication via Modbus protocol
Output function	start/stop ,direction,frenquence output0-10khz
Footswitch	foot switch to control the start/stop
Power consumption	＜300W
Power supply	AC180V-260V 50Hz
Working environment	0-40℃ Humidity 20%-80% RH no dewing
Drive weight	11.5KG

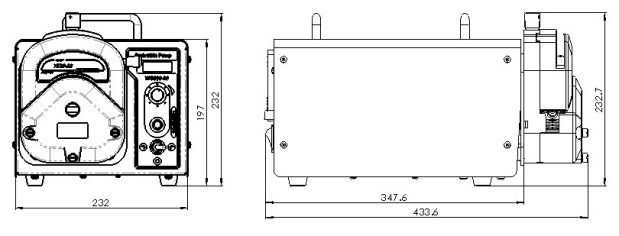

Measurement	370mm×235mm×240mm (without pump head)
IP rate	IP31

특징 Description
• 4자리 LED 로 RPM 표시	• KZ25채널 최대 2개 까지 장착 가능
• 3가지 모드 : RPM, Flowrate and Timing mode	• 600RPM까지 사용 가능

Motor speed	40-600RPM
Working mode	RPM mode ,Flow rate mode,Timing mode
Display	4-digit LED to illustrate the RPM or flow rate，display of RPM and flow rate are switched to each other
Direction	running direction is reversible
Timing	Automatic stop to the set time, timing range 1S-99Hr
Operation mode	adjust the motor speed ,flow rate and timing via knob
Prime speed	fill and empty the pipeline by prime key quickly
Memory	After powering back on, continue operation as that before power off
External control	use different external control module to control start/stop,direction and flow rate
External control	0-5V、0-10V、4-20mA、0-10KHz 4 kinds of external control module are optional
Communication	RS485 communication module for option. communication via Modbus protocol
Output function	start/stop ,direction,frenquence output0-10khz
Footswitch	foot switch to control the start/stop
Power consumption	＜300W
Power supply	AC180V-260V 50Hz
Working environment	0-40℃ Humidity 20%-80% RH no dewing
Drive weight	11.5KG
Measurement	370mm×235mm×240mm (without pump head)
IP rate	IP31
