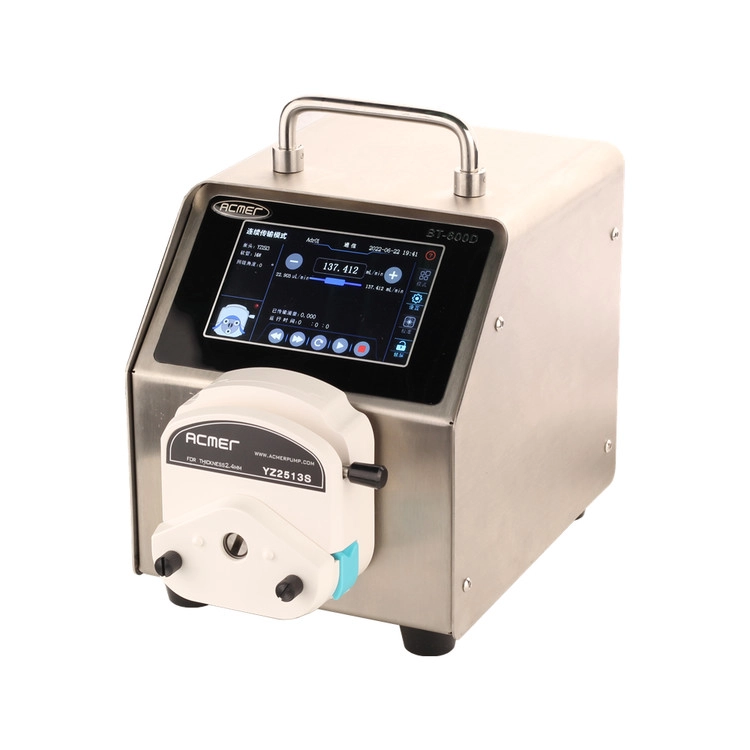

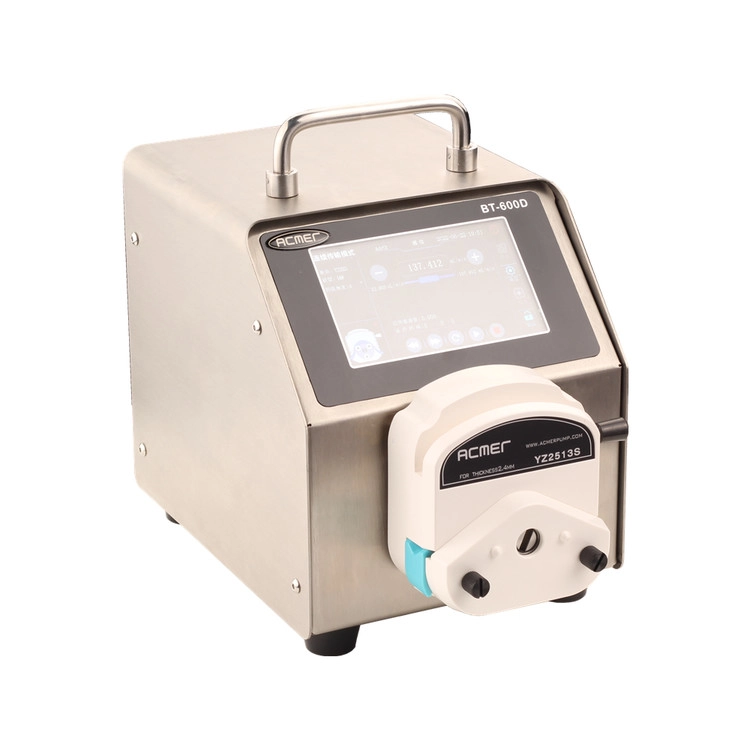

[ACMER] BT-600DS -2L급 Dispensing peristaltic pump(터치스크린 분주용 튜빙 펌프 SS하우징)
SALE
BEST

1,687,400원 1,700,000원

Reference flow：0.006ml/min~2600ml/min
5-inch high-definition touch screen,
artistic interface, convenient operation,
real-time display of operating parameters and status.
Multiple flow transmission and dispensing modes to achieve accurate measurement and quantitative feeding.
Unique calibration algorithm

16,874 포인트 적립예정 적립예정

택배 · 기본 무료 · 도서산간 배송비 popover

120,000원 이상 구매 시 무료배송

반품/교환

구매하기 장바구니 0

장바구니 장바구니

구매하기 구매하기

반품/교환

상품이 없습니다.

Motor speed	0.1-600RPM
Motor speed resolution	0.1rpm（<100rpm ） 1rpm（≥100rpm）
Display	5 inch touch screen
Filling volume range	0.1uL-99999.999L
Timing range	0.1s-99999.999hr
Dispensing time	0-6553.5s
Dispensing times	0-9999；0 is for infinite times
Back suction parameters	angle：0-999°；delay：0-100s
External control	use different external control module to control start/stop,direction and flow rate
External control	0-5V、0-10V、4-20mA、0-10KHz 4 kinds of external control module are optional
Communication	RS485 communication module for option. communication via Modbus protocol
Footswitch	foot switch to control the start/stop
Power supply	AC100V-240V 50~60Hz
Working environment	0-40℃ Humidity 20%-80% RH no dewing

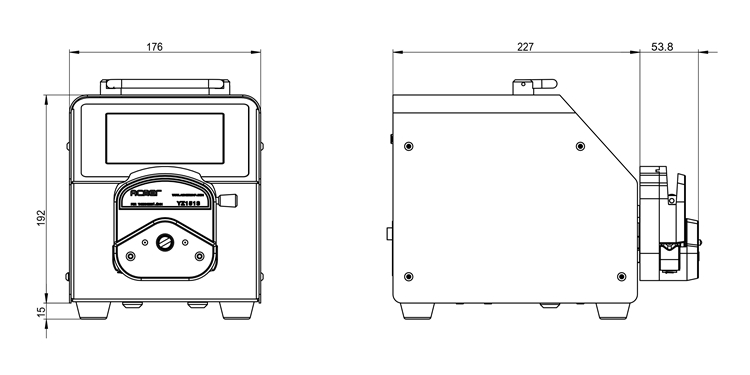

Measurement	227x176x207 mm (without pump head)
IP rate	IP31

Motor speed	0.1-600RPM
Motor speed resolution	0.1rpm（<100rpm ） 1rpm（≥100rpm）
Display	5 inch touch screen
Filling volume range	0.1uL-99999.999L
Timing range	0.1s-99999.999hr
Dispensing time	0-6553.5s
Dispensing times	0-9999；0 is for infinite times
Back suction parameters	angle：0-999°；delay：0-100s
External control	use different external control module to control start/stop,direction and flow rate
External control	0-5V、0-10V、4-20mA、0-10KHz 4 kinds of external control module are optional
Communication	RS485 communication module for option. communication via Modbus protocol
Footswitch	foot switch to control the start/stop
Power supply	AC100V-240V 50~60Hz
Working environment	0-40℃ Humidity 20%-80% RH no dewing
Measurement	227x176x207 mm (without pump head)
IP rate	IP31
