CATEGORY：LSP H high pressure type
Reference flow：7.13nl/min-152.15ml/min
Product features:High precision, high thrustHigh-stiffness supports ensure system stability5-inch high-definition touch screen, friendly interface, easy to controlSuitable for the transfer of viscous liquids in small quantity.
안내사항 |
가격 기재가 되지 않은 별도 문의 상품인 경우 반드시 '온라인 견적문의' 혹은 '전화 문의' 후 구매 부탁드립니다. 설치/교육 신청의 경우 별도의 연락 후 직접 납품 드립니다. |

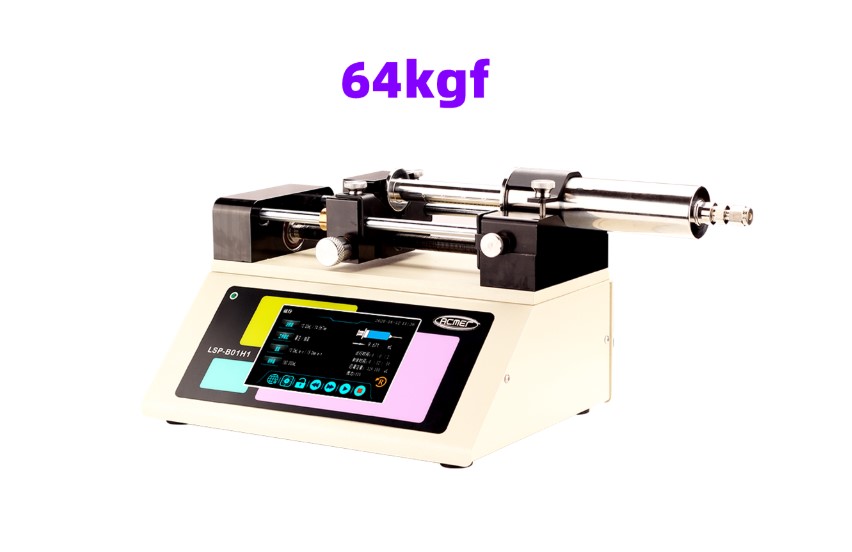

[ACMER] Hi-pressure syringe pump - LSP-B01H1
1、Touch screen display：5-inch high-definition touch screen, simple, clear, easy to understand and use.
2、Syringe option: The main syringe models are available (ACMER syringes) and can be customized
3、Calibration: Syringe calibration is available and can store calibration parameters .
4、Parameter settings: liquid volume, flow rate, injection time, suction time, interval time, injection times can be set and stored
5、Speed adustment on line: Current flow rate is adjustable during operation
6、Power-on operation: The current dynamic operation parameters are stored when the power is off, and the operation continues when the power is on
7、Prompt function: Real-time display of available flow rates range; display of running parameters dynamically
8、Reminder function: Sound alarm when run to the target liquid volume
9、Pushing force : The appropriate thrust can be set according to the syringe specifications
10、External control start/stop: external control level signal (5-24v) or contact signal to realize start/stop
11、Communication control: RS485/USB optional, touch setting address and baud rate
12、Status output: output start/stop and direction status
Working mode：injection,suction,injection/suction,suction/injection,continuous,multiple injection.
Channel：1
Stroke length：max 150mm
Linear thrust：>640N
Precision： 1%
Repeat precision： 0.05%
Linear speed range： 0.1um/min~100mm/min
Steping resolution：0.078um/ustep
Power supply: Ac90—264V 50/60 Hz
Working environment： temperature 0-40℃ Humidity 20%-80% RH no dewing
IP rating: IP31
Measurement: 256*190*146（mm）
Flow rate table
| Syringe | Inner diameter of syringe（mm） | Flow rate | Max pressure of outlet |
| 6ml | 9.525 | 7.13nl/min~7.13ml/min | 7.19Mpa |
| 20ml | 19.13 | 28.74nl/min~28.74ml/min | 1.78Mpa |
| 50ml | 28.6 | 64.24nl/min~64.24ml/min | 0.8Mpa |
| 100ml | 35 | 96.21nl/min~96.21ml/min | 0.53Mpa |
| 200ml | 44 | 152.05nl/min~152.05ml/min | 0.337Mpa |
