CATEGORY：LSP A series standard type
Reference flow：0.0007nl/min-27.786ml/min
Product features:5-inch high-definition touch screen with friendly interface ,convenient operation; The high rigidity sole plate ensures the stability of the system; Precision transmission mechanism and motor control design; Suitable for small flow liquid transmission.
안내사항 |
가격 기재가 되지 않은 별도 문의 상품인 경우 반드시 '온라인 견적문의' 혹은 '전화 문의' 후 구매 부탁드립니다. 설치/교육 신청의 경우 별도의 연락 후 직접 납품 드립니다. |

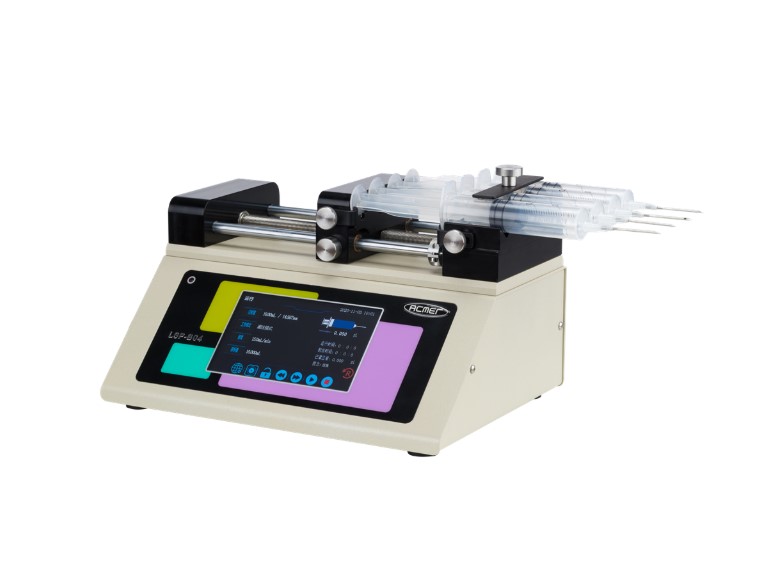

[ACMER] 4 channels syringe pump - LSP-A04
1、Touch screen display：5-inch high-definition touch screen, simple, clear, easy to understand and use.
2、Syringe option:built-in mainly used syringe produced by major manufacturers , and can be customized.
3、Calibration: Syringe calibration is available and can store calibration parameters .
4、Parameter settings: liquid volume, flow rate, injection time, suction time, interval time, injection times can be set and stored
5、Speed adustment on line: Current flow rate is adjustable during operation
6、Power-on operation: The current dynamic operation parameters are stored when the power is off, and the operation continues when the power is on
7、Prompt function: real-time display of the Max/Min flow rate；display of running parameters dynamically
8、Reminder function: Sound alarm when run to the target liquid volume
9、Pushing force : The appropriate thrust can be set according to the syringe specification
10、External control start/stop: external control level signal (5-24v) or contact signal to realize start/stop
11、Communication control: RS485/USB optional, touch setting address and baud rate
12、Status output: output start/stop and direction status
Working mode： LSP-A04 injection、multiple injection LSP-B04 injection、suction、injection/suction、suction/injection、continuous、multiple injection
Channel：4
Precision：accuracy 1%, Repeat precision0.05%
Stroke length：max 150mm
Syringe specification： 0.5ul-100ml
Linear thrust range： >160N
Linear speed range：0.08um/min~160mm/min
Steping resolution：0.0625um/ustep
Touch screen display： 800*400 5"high-definition touch screen
Power supply： AC90-264V 50/60Hz
Working environment： temperature 0-40℃ Humidity 20%-80% RH no dewing
IP rating： IP31
Measurement： 256*190*146(mm)
Flow rate table
| Syringe | Inner diameter of syringe（mm） | Flow rate（nl/min~ml/min） | Syringe | Inner diameter of syringe（mm） | Flow rate（nl/min~ml/min） |
| 0.5ul | 0.103 | 0.0007~0.0013 | 250ul | 2.304 | 0.3335~0.6671 |
| 1ul | 0.146 | 0.0013~0.0027 | 500ul | 3.256 | 0.6658~1.3322 |
| 2ul | 0.206 | 0.0027~0.0053 | 1ml | 4.73 | 1.4060~2.8110 |
| 5ul | 0.343 | 0.0074~0.0148 | 2ml | 8.92 | 4.9990~9.9980 |
| 10ul | 0.485 | 0.0148~0.0295 | 2.5ml | 8.92 | 4.9990~9.9980 |
| 25ul | 0.729 | 0.0334~0.0668 | 5ml | 12.4 | 9.6620~19.3220 |
| 50ul | 1.03 | 0.0667~0.1333 | 10ml | 14.87 | 13.8940~27.7860 |
| 100ul | 1.457 | 0.1334~0.2668 | - | - | - |
