CATEGORY：DSC series split-body type
Reference flow：1pl/min~44.11ml/min
Product features:One driven two structure, double drive independent control; high-precision; Low pulsation; Suitable for a variety of complex application combinations; Full touch screen; can install μ L standard injector or 1~10ml disposable syringe,expended range of flow rate,and is widely used in various biological experimental fields.
안내사항 |
가격 기재가 되지 않은 별도 문의 상품인 경우 반드시 '온라인 견적문의' 혹은 '전화 문의' 후 구매 부탁드립니다. 설치/교육 신청의 경우 별도의 연락 후 직접 납품 드립니다. |

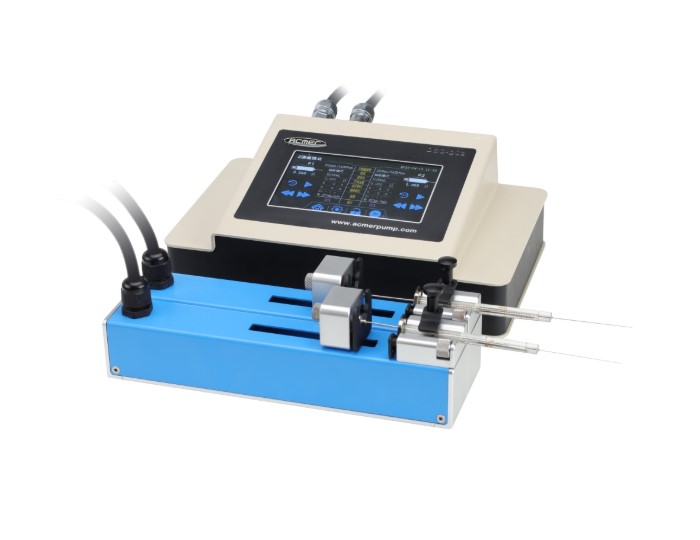

[ACMER] 2 channel split-body syringe pump - DSC-D02/2xW70B
DSC-D02/W70B is dual channel indenpendent control syringe pump,can use ul grade injector and 1~10ml disposable plastic syringe.small size ,wide flow range.
1、Working mode：Independent, reciprocating, synchronous, synchronous confluence
2、Touch screen display：5-inch high-definition touch screen, simple, clear, easy to understand, and clear channel information
3、Syringe option：Built-in main models of syringes of manufacturers , and support self-definition
4、Calibration：Each channel can be calibrated independently and the calibration parameters can be stored.
5、Speed adustment on line: Current flow rate is adjustable during operation
6、Power-on operation: The current dynamic operation parameters are stored when the power is off, and the operation continues when the power is on
7、Parameter setting: each channel can be independently set with liquid volume, flow rate, injection time, extraction time, interval time and independent storage
8、Prompt function: each channel displays its available Min/Max flow rate in real time; Dynamic display of operation parameters of each channel
9、Reminder function: each channel runs to the target volume, and the sound alarm prompts each other
10、Pushing force : sets the appropriate pushing force of each channel according to its injector specification
11、External control start/stop: external control level signal (5-24v) or contact signal to realize independent start/stop control of each channel
12、Communication control: RS485/USB optional, touch setting address and baud rate
13、Status output: each channel independently outputs start/stop and direction status
Working mode：Independent, reciprocating, synchronous, synchronous confluence
Channels：2
Precision：Repetition precision 0.05%
Stroke length：Max70mm
Syringe specification：0.5ul-10mll
Linear thrust：>90N
Linear speed range：0.127um/min~254mm/min
Control resolution：0.198um/ustep
Touch screen display： 800*400 5" high defination touch screen
Power supply： AC90-264V 50/60Hz
Working environment： temperature 0-40℃ Humidity 20%-80% RH no dewing
IP rating： IP31
Measurement： controller 240*149*87.5(mm) Executive unit 230*38*72（mm）
Flow rate table
| Syringe | Inner diameter of syringe（mm） | Flow rate（nl/min~ml/min） | Syringe | Inner diameter of syringe（mm） | Flow rate（nl/min~ml/min） |
| 0.5ul | 0.103 | 1~1.99 | 2.304 | 0.53~1.06 | |
| 1ul | 0.146 | 2.24~4.49 | 500ul | 3.256 | 1.05~2.11 |
| 2ul | 0.206 | 3.99~7.98 | 1000ul | 4.61 | 2.12~4.24 |
| 5ul | 0.343 | 12.22~24.44 | 1ml | 4.73 | 2.23~4.46 |
| 10ul | 0.485 | 24.94~49.87 | 2ml | 8.92 | 7.94~15.87 |
| 25ul | 0.729 | 63.84~127.67 | 2.5ml | 8.92 | 7.94~15.87 |
| 50ul | 1.03 | 120.69~241.38 | 5ml | 12.4 | 15.34~30.67 |
| 100ul | 1.457 | 255.35~510.7 | 10ml | 14.87 | 22.06~44.11 |
