CATEGORY：LSP U series precision type
Reference flow：0.0001nl/min·20.99ml/min
Product features:High precision and small pulsation; The system is preset with a variety option of syringe brands and specifications , 5-inch high-definition touch screen, friendly interface, easy to control; Suitable for ultra-microscopic flow transfer, such as microfluidics.
안내사항 |
가격 기재가 되지 않은 별도 문의 상품인 경우 반드시 '온라인 견적문의' 혹은 '전화 문의' 후 구매 부탁드립니다. 설치/교육 신청의 경우 별도의 연락 후 직접 납품 드립니다. |

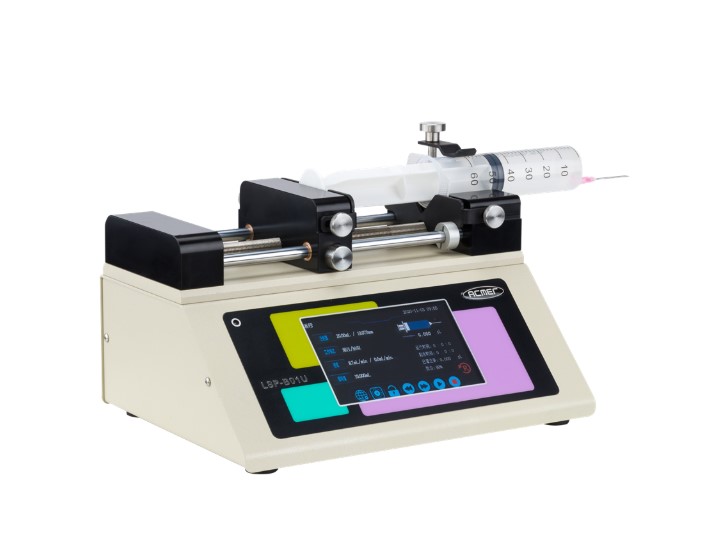

[ACMER] Ultra-precision syringe pump - LSP-B01U
1、Touch screen display：5-inch high-definition touch screen, simple, clear, easy to understand and use.
2、Syringe option:built-in mainly used syringe produced by major manufacturers , and can be customized.
3、Calibration: Syringe calibration is available and can store calibration parameters .
4、Parameter settings: liquid volume, flow rate, injection time, suction time, interval time, injection times can be set and stored
5、Speed adustment on line: Current flow rate is adjustable during operation
6、Power-on operation: The current dynamic operation parameters are stored when the power is off, and the operation continues when the power is on
7、Prompt function: real-time display of the Max/Min flow rate；display of running parameters dynamically
8、Reminder function: Sound alarm when run to the target liquid volume
9、Pushing force : The appropriate thrust can be set according to the syringe specification
10、External control start/stop: external control level signal (5-24v) or contact signal to realize start/stop
11、Communication control: RS485/USB optional, touch setting address and baud rate
12、Status output: output start/stop and direction status
Model : LSP-B01U
Channel : 1
Repeat precision : ±0.05%
Working mode : independent ,Reciprocating, synchronizing, synchronizing
Stroke length : max 150mm
Syringe specification : 0.5ul-100ml
Linear thrust range : >160N
Steping resolution : 0.012um/ustep
Linear speed range : 0.015um/min~30.77mm/min
Power supply : Ac96~260V 50~60Hz
IP rating : IP31
Working environment : temperature 0-40℃ Humidity 20%-80% RH no dewing
Measurement : 256*190*152mm
Flow rate table
| Syringe | Inner diameter of syringe（mm） | Flow rate（nl/min~ml/min） | Syringe | Inner diameter of syringe（mm） | Flow rate （nl/min~ml/min） |
| 0.5ul | 0.103 | 0.00013~0.00025 | 500ul | 3.256 | 0.1286~0.2562 |
| 1ul | 0.146 | 0.0025~0.00052 | 1ml | 4.73 | 0.2704~0.5406 |
| 2ul | 0.206 | 0.00052~0.001 | 2ml | 8.92 | 0.9613~1.9227 |
| 5ul | 0.343 | 0.0014~0.0028 | 2.5ml | 8.92 | 0.9613~1.9227 |
| 10ul | 0.485 | 0.0028~0.0057 | 5ml | 12.4 | 1.8581~3.7158 |
| 25ul | 0.729 | 0.0064~0.0128 | 10ml | 14.87 | 2.6719~5.3435 |
| 50ul | 1.03 | 0.0128~0.0256 | 20ml | 19.07 | 4.3942~8.7883 |
| 100ul | 1.457 | 0.256~0.0513 | 50ml | 28.95 | 10.1269~20.2537 |
| 250ul | 2.304 | 0.641~0.1283 | 60ml | 29.47 | 10.4938~20.9877 |
모바일 환경에서는 표를 좌·우로 스크롤해주세요.
