CATEGORY：DSC series split-body type
Reference flow：0.96pl/min~506.55ul/min
Product features:Full touch screen; The controller and the execution unit are of split structure, and the execution unit has a clamping mechanism. can μ L standard injector. The vertical installation structure can be conveniently used together with biological instruments such as micromanipulator, brain stereolocator, and is widely used in various biological experimental fields.
안내사항 |
가격 기재가 되지 않은 별도 문의 상품인 경우 반드시 '온라인 견적문의' 혹은 '전화 문의' 후 구매 부탁드립니다. 설치/교육 신청의 경우 별도의 연락 후 직접 납품 드립니다. |

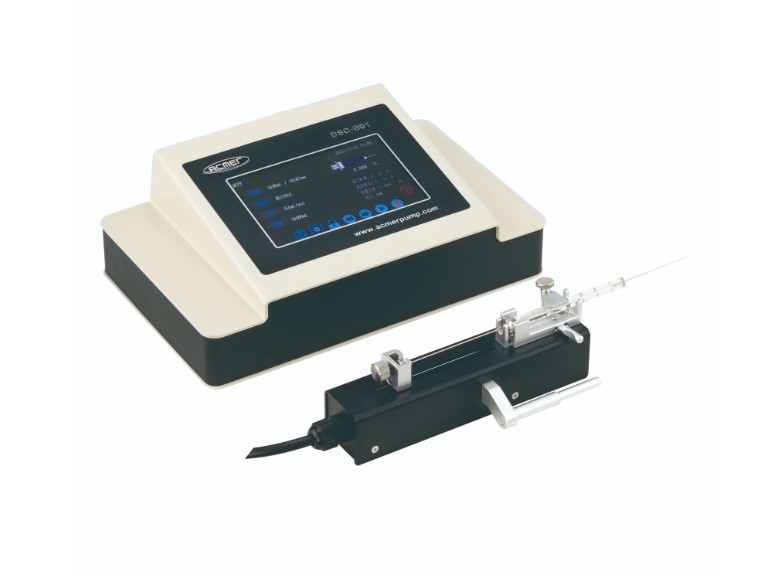

[ACMER] Split-body syringe pump - DSC-A01/SL70B DSC-B01/SL70B
1、Touch screen display：5-inch high-definition touch screen, simple, clear, easy to understand and use.
2、Syringe option:built-in mainly used syringe produced by major manufacturers , and can be customized.
3、Calibration: Syringe calibration is available and can store calibration parameters .
4、Parameter settings: liquid volume, flow rate, injection time, suction time, interval time, injection times can be set and stored
5、Speed adustment on line: Current flow rate is adjustable during operation
6、Power-on operation: The current dynamic operation parameters are stored when the power is off, and the operation continues when the power is on
7、Prompt function: real-time display of the Max/Min flow rate；display of running parameters dynamically
8、Reminder function: Sound alarm when run to the target liquid volume
9、Pushing force : The appropriate thrust can be set according to the syringe specification
10、External control start/stop: external control level signal (5-24v) or contact signal to realize start/stop
11、Communication control: RS485/USB optional, touch setting address and baud rate
12、Status output: output start/stop and direction status
Working mode： DSC-A01/SL70B injection、multiple injection DSC-B01/SL70B injection、suction、injection/suction、suction/injection、continuous、multiple injection
Channel：1
Precision：Repeat precision0.05%
Stroke length： Max70mm
Syringe specification：0.5ul-250ul
Linear speed range： >25N
Linear speed range：0.12um/min~121.92mm/min
Steping resolution：0.190um/ustep
Touch screen display： 800*400 5"high-definition touch screen
Power supply： AC90-264V 50/60Hz
Working environment：temperature 0-40℃ Humidity 20%-80% RH no dewing
IP rating： IP31
Measurement： Controller 240*149*87.5(mm) executive unit 163*34*34（mm）
Flow rate table
| Syringe | Inner diameter of syringe（mm） | Flow rate（nl/min~ml/min） | Syringe | Inner diameter of syringe（mm） | Flow rate （nl/min~ml/min） |
| 0.5ul | 0.103 | 0.96~0.96 | 25ul | 0.729 | 61.28~61.28 |
| 1ul | 0.146 | 2.15~2.15 | 50ul | 1.03 | 115.86~115.86 |
| 2ul | 0.206 | 3.83~3.83 | 100ul | 1.457 | 245.13~245.13 |
| 5ul | 0.343 | 11.73~11.73 | 250ul | 2.304 | 506.55~506.55 |
| 10ul | 0.485 | 23.94~23.94 | - | - | - |
