CATEGORY：LSP D independent 2-channels
Reference flow：0.0007nl/min-109.14ml/min
Product features:Dual independent drive control; High precision; low pulsation; Suitable for a wide range of complex application combinations
안내사항 |
가격 기재가 되지 않은 별도 문의 상품인 경우 반드시 '온라인 견적문의' 혹은 '전화 문의' 후 구매 부탁드립니다. 설치/교육 신청의 경우 별도의 연락 후 직접 납품 드립니다. |

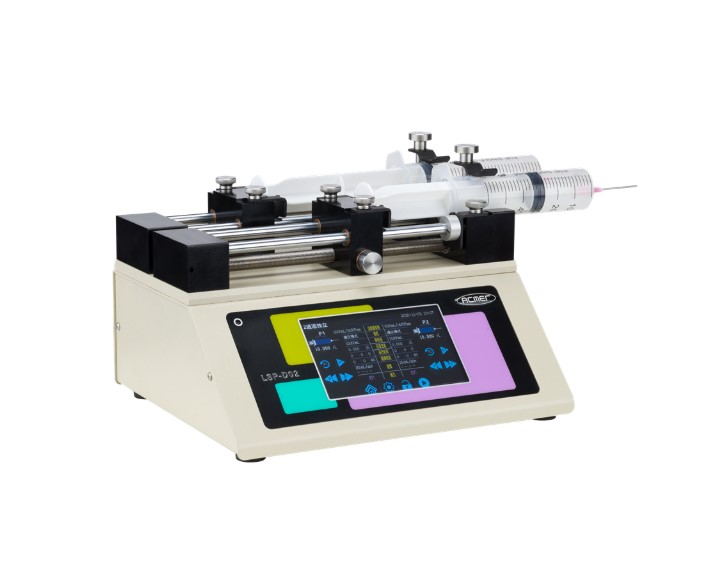

[ACMER] Dual independent channel syringe pump - LSP-D02
1、Working mode：independent ,Reciprocating, synchronizing, Synchronous confluence
2、Touch screen display：5-inch high-definition touch screen, simple, clear, easy to understand and use.
3、Syringe option:built-in mainly used syringe produced by major manufacturers , and can be customized.
4、Calibration: Syringe calibration is available and can store calibration parameters .
5、Parameter setting: each channel can be independently set with liquid volume, flow rate, injection time, extraction time, interval time and independent storage
6、Parameter setting: each channel can be independently set with liquid volume, flow rate, injection time, extraction time, interval time and independent storage
7、Prompt function: each channel displays its available Min/Max flow rate in real time; Dynamic display of operation parameters of each channel
8、Pushing force : sets the appropriate pushing force of each channel according to its injector specification
9、External control start/stop: external control level signal (5-24v) or contact signal to realize independent start/stop control of each channel
10、Communication control: RS485/USB optional, touch setting address and baud rate
11、Status output: each channel independently outputs start/stop and direction status
Model : LSP-D02
Channel : 2
Repeat precision : ±0.05%
Working mode : independent ,Reciprocating, synchronizing,Synchronous confluence
Stroke length : 150mm
Syringe specification : 0.5ul-60ml
Linear thrust range : >160N
Steping resolution : 0.0625um/ustep
Linear speed range : 0.08um/min~160mm/min
Power supply : Ac96~260V 50~60Hz
IP rating : IP31
Working environment ：0-40℃ 온도20%-80% RH
Measurement : 256*218*152mm
Flow rate table
| Syringe | Inner diameter of syringe（mm） | Flow rate（nl/min~ml/min） | Syringe | Inner diameter of syringe（mm） | Flow rate （nl/min~ml/min） |
| 0.5ul | 0.103 | 0.0007~0.0013 | 500ul | 3.256 | 0.6658~1.3322 |
| 1ul | 0.146 | 0.0013~0.0027 | 1ml | 4.73 | 1.4060~2.8110 |
| 2ul | 0.206 | 0.0027~0.0053 | 2ml | 8.92 | 4.9990~9.9980 |
| 5ul | 0.343 | 0.0074~0.0148 | 2.5ml | 8.92 | 4.9990~9.9980 |
| 10ul | 0.485 | 0.0148~0.0295 | 5ml | 12.4 | 9.6620~19.3220 |
| 25ul | 0.729 | 0.0334~0.0668 | 10ml | 14.87 | 13.8940~27.7860 |
| 50ul | 1.03 | 0.0667~0.1333 | 20ml | 19.07 | 22.8500~45.6990 |
| 100ul | 1.457 | 0.1334~0.2668 | 50ml | 28.95 | 52.6600~105.3190 |
| 250ul | 2.304 | 0.3335~0.6671 | 60ml | 29.47 | 54.5680~109.1360 |
