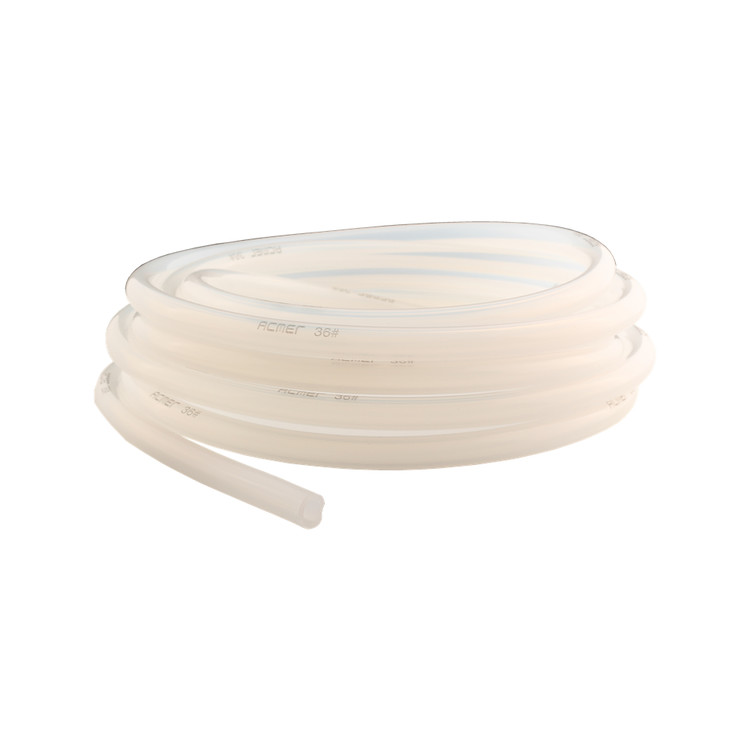

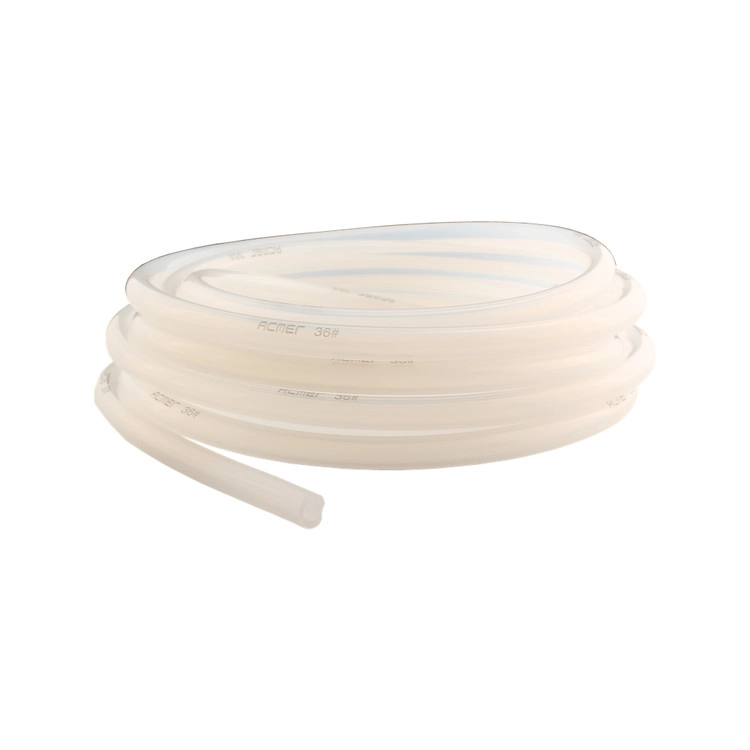

Name: [ACMER] Platinum-Curing Process Silicone L/S Precision Pump Tubing
Brand: ACMER
Price: 3300 KRW
Availability: InStock

[ACMER] Platinum-Curing Process Silicone L/S Precision Pump Tubing

SALE

BEST

3,300원 5,000원

구매하기 장바구니 0

장바구니 장바구니

구매하기 구매하기

상품이 없습니다.

Precision Pump Tubing
Cat No.		ACMER-S13	ACMER-S14	ACMER-S16	ACMER-S25	ACMER-S17	ACMER-S18
Inside Diameter(Nominal)		0.8mm ( 0.03″)	1.6mm ( 0.06″)	3.1mm ( 0.12″)	4.8mm ( 0.19″)	6.4mm (0.25″)	7.9mm ( 0.31″)
Outside Diameter		4mm	4.8mm	6.3mm	8mm	9.6mm	11.1mm
Hose Barb Size		1.6mm ( 1/18″)	1.6mm ( 1/18″)	3.2mm ( 1/8″)	4.8mm ( 3/16″)	6.4mm ( 1/4″)	9.5mm ( 3/8″)
Flow Range (Approximate) With 1 to 600 rpm Drive		0.06 to 36 mL/min	0.21 to 130 mL/min	0.8 to 480 mL/min	1.7 to 1000 mL/min	2.8 to 1700 mL/min	3.8 to 2300 mL/min
Maximun Pressure(bar)	Continuous	1.7			1.4	1.0	0.7
Maximun Pressure(bar)	Incontinuous	2.7			2.4	1.4	1.0
Maximum Vacuum		660 mm Hg ( 26″Hg)				510 mm Hg ( 20″Hg)
Suction Lift		8.8 m H2O				6.7 m H2O

Precision Pump Tubing
Cat No.		ACMER-S13	ACMER-S14	ACMER-S16	ACMER-S25	ACMER-S17	ACMER-S18
Inside Diameter(Nominal)		0.8mm ( 0.03″)	1.6mm ( 0.06″)	3.1mm ( 0.12″)	4.8mm ( 0.19″)	6.4mm (0.25″)	7.9mm ( 0.31″)
Outside Diameter		4mm	4.8mm	6.3mm	8mm	9.6mm	11.1mm
Hose Barb Size		1.6mm ( 1/18″)	1.6mm ( 1/18″)	3.2mm ( 1/8″)	4.8mm ( 3/16″)	6.4mm ( 1/4″)	9.5mm ( 3/8″)
Flow Range (Approximate) With 1 to 600 rpm Drive		0.06 to 36 mL/min	0.21 to 130 mL/min	0.8 to 480 mL/min	1.7 to 1000 mL/min	2.8 to 1700 mL/min	3.8 to 2300 mL/min
Maximun Pressure(bar)	Continuous	1.7			1.4	1.0	0.7
Maximun Pressure(bar)	Incontinuous	2.7			2.4	1.4	1.0
Maximum Vacuum		660 mm Hg ( 26″Hg)				510 mm Hg ( 20″Hg)
Suction Lift		8.8 m H2O				6.7 m H2O
