Electrophoresis power supplies apply for protein electrophoresis and nucleic acid
electrophoresis. It can meet the requirements of basic electrophoresis such as horizontal nucleic acid electrophoresis, vertical electrophoresis and electrophoretic transfer systems.
Advanced circuit design, high precision of voltage and current stabilization, excellent
performance, easy operation, safe and reliable.
안내사항 |
가격 기재가 되지 않은 별도 문의 상품인 경우 반드시 '온라인 견적문의' 혹은 '전화 문의' 후 구매 부탁드립니다. 설치/교육 신청의 경우 별도의 연락 후 직접 납품 드립니다. |

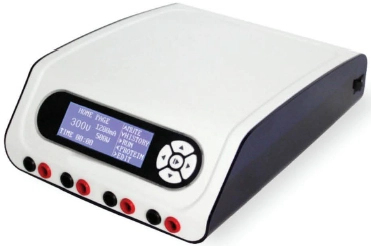

Electrophoresis Power Supply EP300/EP600
EP300/EP600/EP600Pro/EP3000Pro
-Transparent casing allows you to see the internal structure
-Protein function: after concentrating the gel, the power supply automatically connects to the separating gel, reducing the tedious manual resetting
-Safety: over voltage, arc, no-load and load mutation monitor, overload /short circuit monitoring, leakage protection, auto restart after power outage
-10methods programmable storage, each method contains up to 1 0 steps
-The LCD screen displays voltage, current, power and timing
| Model | EP300 |
| Output voltage | 5~300V (1V step) |
| Voltage accuracy | ±1% |
| Output current | 1~400mA |
| Current accuracy | ±1% |
| Power | 1~75W |
| Generate constant values | / |
| Micro current function | / |
| Timing range | 1 min~99h59min |
| Output port | 4 ports |
| Auto restart after power outage | Yes |
| Output type | constant voltage/constant current/constant power |
| Dimension | L308xW242xH1100mm |
| Weight | 2.6kg |
| Power supply | 100~240V;50/ 60Hz |

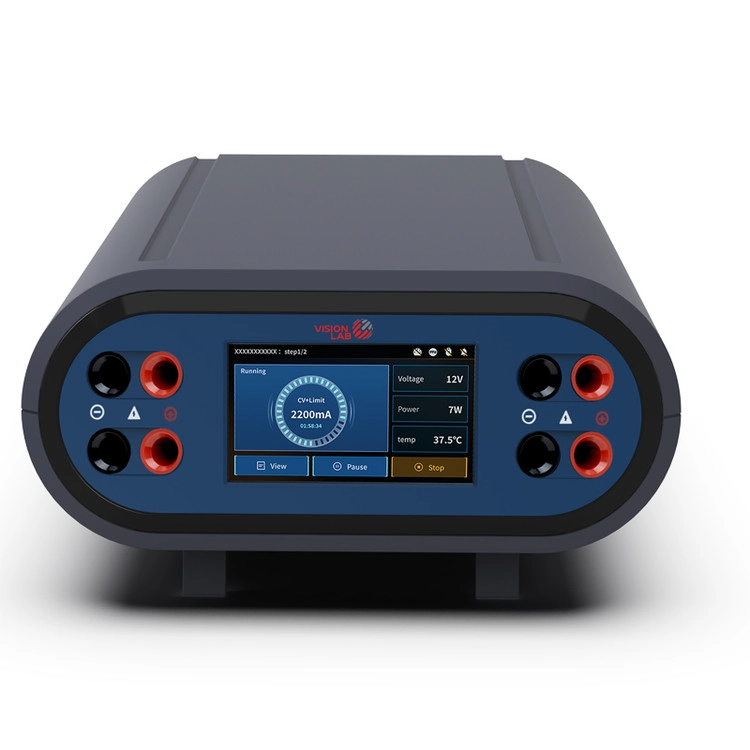

-LCD Touchscreen: Simple programming and progress tracking
-High Precision: Adjustable voltage, current, and power with automatic mode switching
-Real-time Data Recording: USB support for data analysis
-Easy Programming: Multi-step programs with tabular entry
-Stable Performance: Multi-CPU control ensures reliability
-Power Failure Recovery: ON/OFF setting based on experimental needs
-Low Current Maintenance: ON/OFF setting as needed
-Safety Protection and Alamm: Short-circuit protection, no-load protection, and a buzzer that can be set according to experimental needs

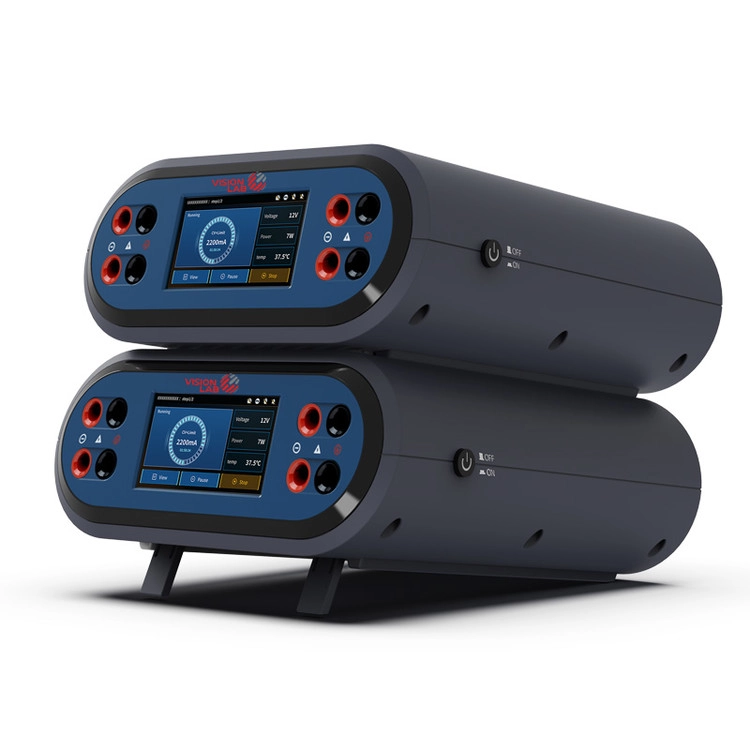

-Space-saving Design: Anti-slip grooves enable stacking multiple power supplies, saving labspace
-Multiple Outputs: Four sockets for simultaneous use of four electrophoresis units

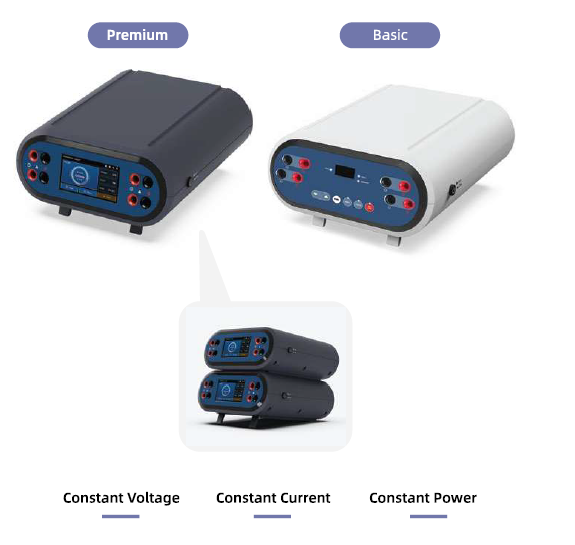

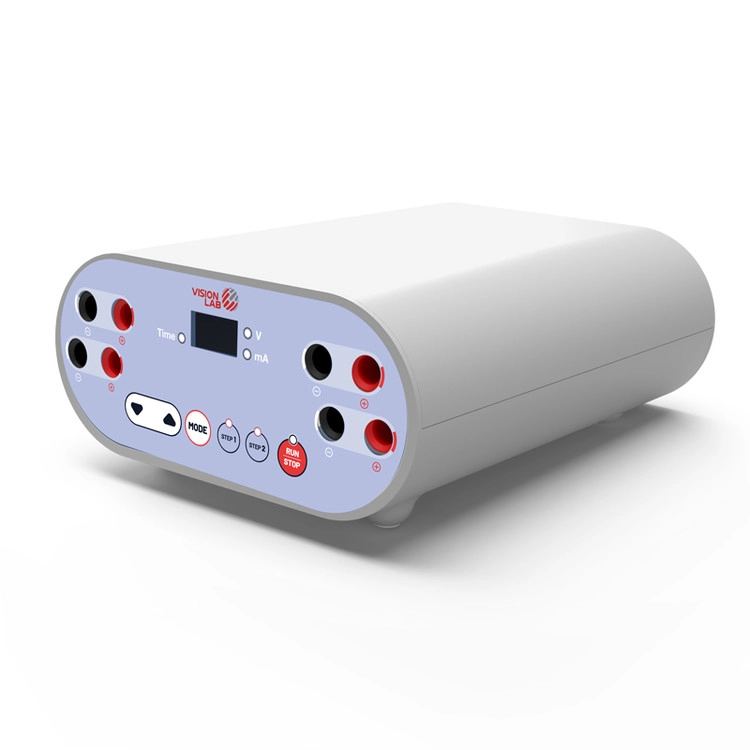

| Model | EP600（Basic） | EP600pro（Premium） | EP3000pro（Premium） | |
| Display | LCD | LCD touchscreen | ||
| Output Types | Constant Voltage/Current | Constant Voltage/ Current/ Power | ||
| Voltage Range | 10~600V | 0~600V | 0~300V | |
| Current Range | 1~400 mA | 0~600mA | 0~3000mA | |
| Power Range | 120W | 0~360W | 0~400W | |
| Resolution | Voltage (1V), Current(1mA) | Voltage (1V), Current(1mA), Power (1W) | ||
| Time Setting Range | 1min~ 999min | 1min ~ 99h59min | ||
| Interface | USB | |||
| Output Sockets | 4 sets | |||
| Operating Temperature and Humidity | 0℃~40℃,≤95% | |||
| Dimensions | L156 x W212 x H84 | L310xW260xH115mm | ||
| Weight | 1.1kg | 1.96kg | 2.05kg | |
| Power supply | 100-240V；50-60Hz | 100-120V/200-240V,50/60Hz | 100~240V,50/60Hz | |
