The mini transilluminator is designed for easy and fast detection of clear DNA/RNA/protein gel staining visualization in modern laboratories,classroom and on-sites.

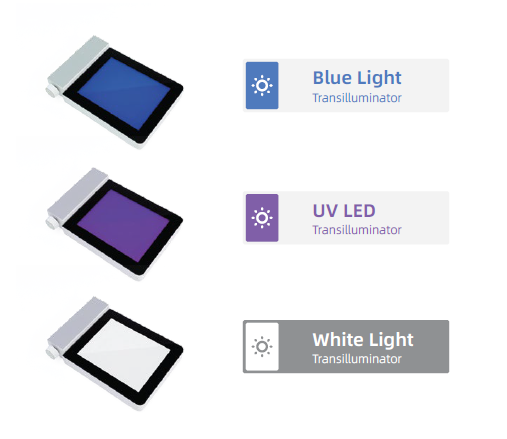

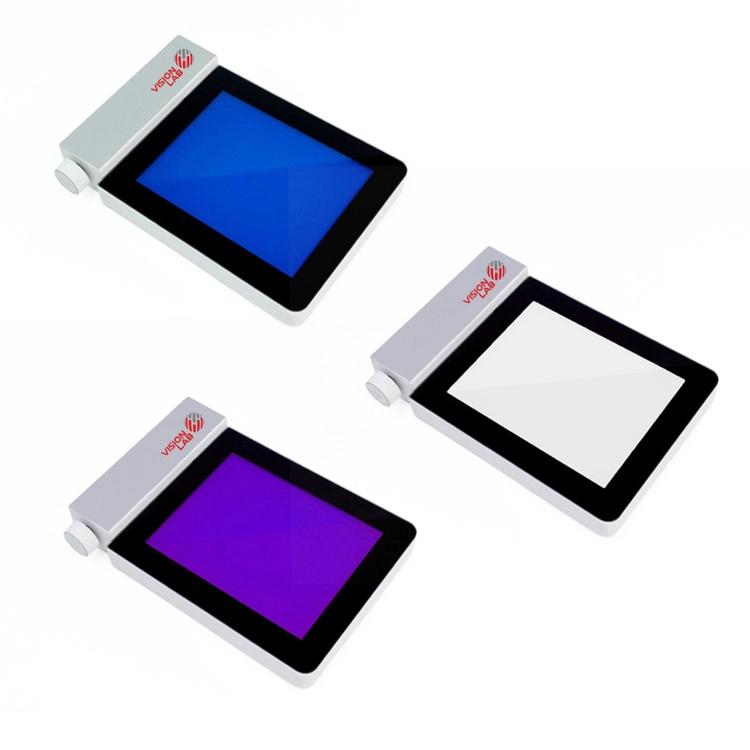

It provides a variety of spectral excitation light source styles such as white light,blue light (470nm),and ultraviolet (302nm).
It is compact in size and comes with matching filters.
It can be placed close to the bottom of the horizontal electrophoresis tank (compatible with most common horizontal electrophoresis tanks on the market ) to display DNA/RNA gel results in real time.
안내사항 |
가격 기재가 되지 않은 별도 문의 상품인 경우 반드시 '온라인 견적문의' 혹은 '전화 문의' 후 구매 부탁드립니다. 설치/교육 신청의 경우 별도의 연락 후 직접 납품 드립니다. |

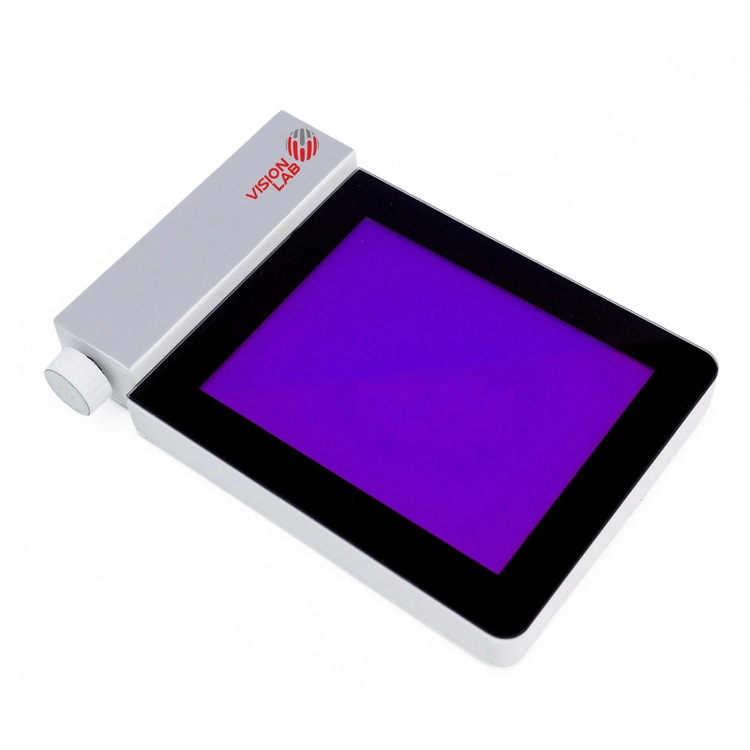

Mini Transilluminator
TI470-mini/TIW-mini/TI302-mini
- The system can also be used as an independent transilluminator. Place the gel at the light source perspective window. The high-brightness LED illuminator can achieve a wide range of fluorescent gel staining visualization and provide excellent uniformity.
| Model | TI470-mini | TIW-mini | TI302-mini | |
| Observation area | L130×W110mm | |||
| Power adapter | 12V 1A | |||

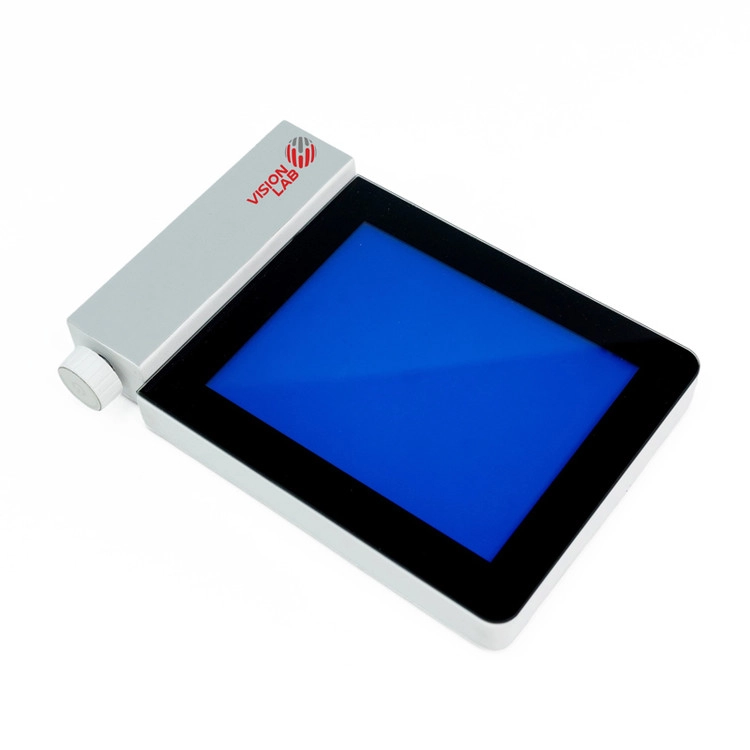

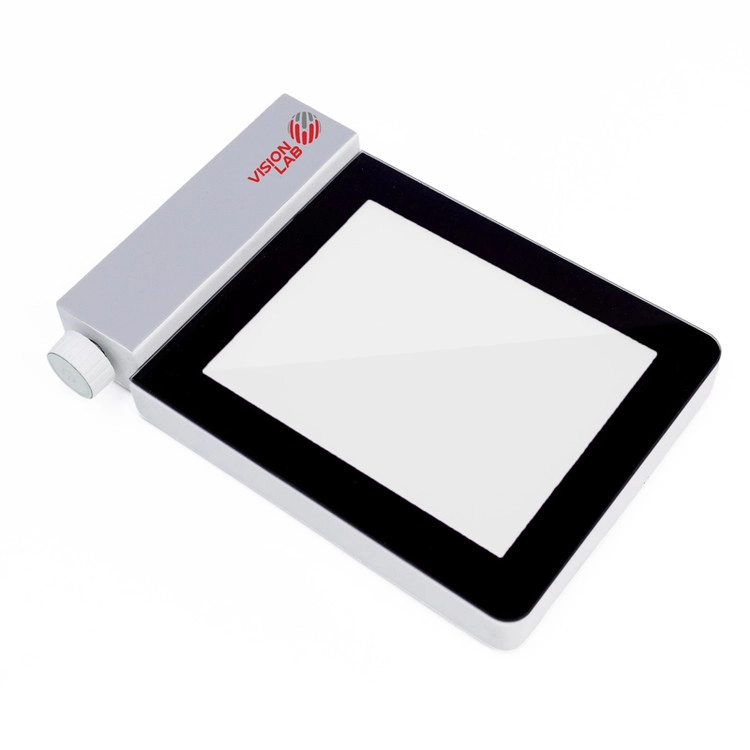

| Built-in LED source | Blue LED light | White LED light | UV LED light | |
| Emission wavelength | 470nm | Full-band visible light | Standard: 302nm; Optional: 245nm//365nm | |
| LED Lifetime | >50,000h | |||
| Irradiation method | Bottom light module | |||
| Filter plate size | L140mm×W130mm | |||

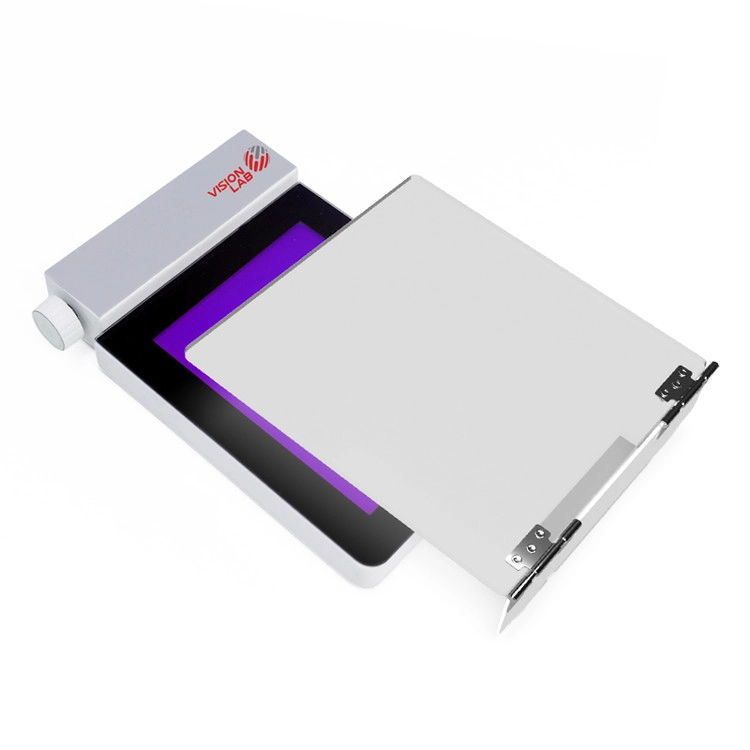

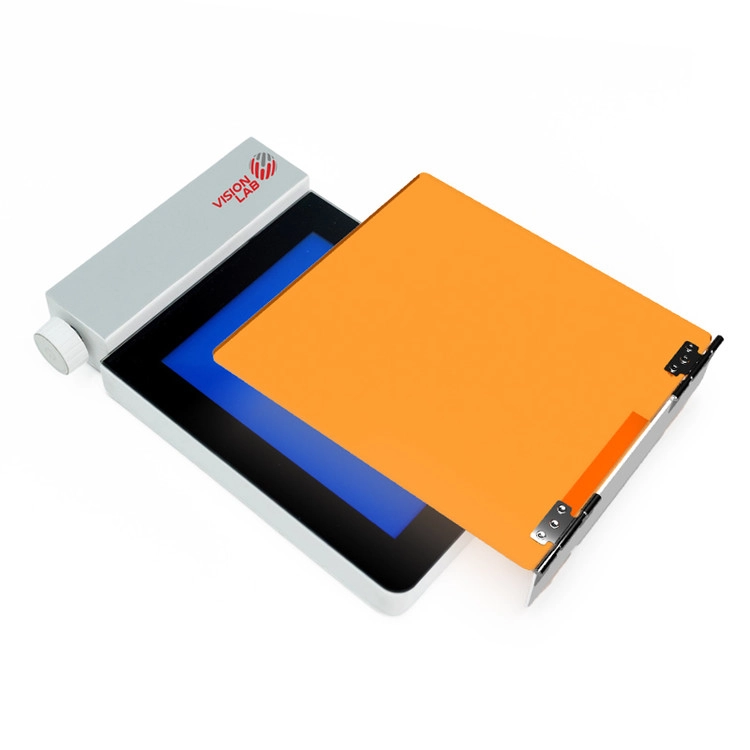

| Filter Plate | Amber filter | / | Highly UV-resistant transparent board | |
| Brightness Adjustment | Stepless adjustment | |||
| Dimension | L180×W120×H32mm | |||
| Weight | 0.12Kg | |||
| Power supply | 100~240V；50/60HZ | |||
모바일 환경에서는 표를 좌·우로 스크롤해주세요.
고객센터
배송안내
배송기간
주의사항
안내사항 |
가격 기재가 되지 않은 별도 문의 상품인 경우 반드시 '온라인 견적문의' 혹은 '전화 문의' 후 구매 부탁드립니다. 설치/교육 신청의 경우 별도의 연락 후 직접 납품 드립니다. |
Mini Transilluminator
TI470-mini/TIW-mini/TI302-mini
- The system can also be used as an independent transilluminator. Place the gel at the light source perspective window. The high-brightness LED illuminator can achieve a wide range of fluorescent gel staining visualization and provide excellent uniformity.
| Model | TI470-mini | TIW-mini | TI302-mini | |
| Observation area | L130×W110mm | |||
| Power adapter | 12V 1A | |||
| Built-in LED source | Blue LED light | White LED light | UV LED light | |
| Emission wavelength | 470nm | Full-band visible light | Standard: 302nm; Optional: 245nm//365nm | |
| LED Lifetime | >50,000h | |||
| Irradiation method | Bottom light module | |||
| Filter plate size | L140mm×W130mm | |||
| Filter Plate | Amber filter | / | Highly UV-resistant transparent board | |
| Brightness Adjustment | Stepless adjustment | |||
| Dimension | L180×W120×H32mm | |||
| Weight | 0.12Kg | |||
| Power supply | 100~240V；50/60HZ | |||
모바일 환경에서는 표를 좌·우로 스크롤해주세요.
