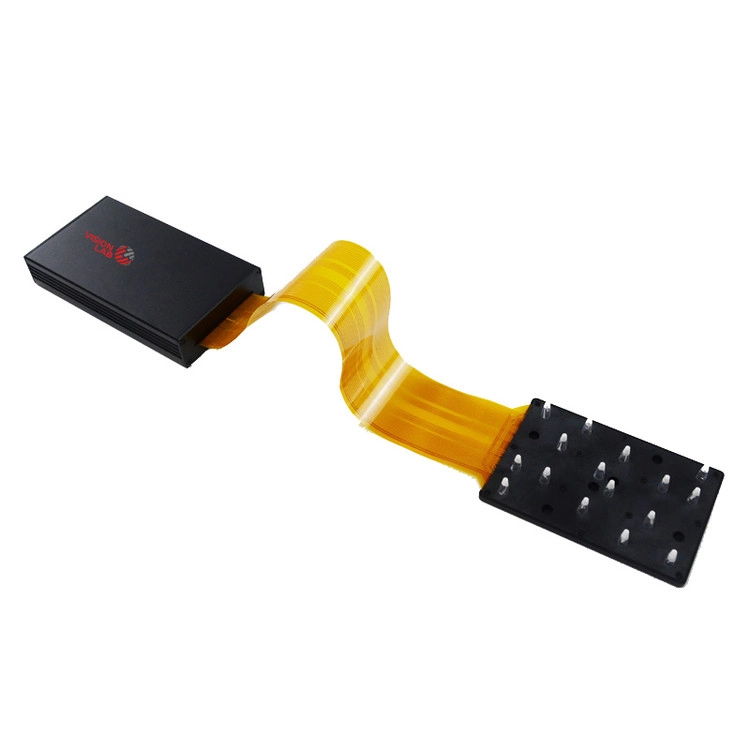

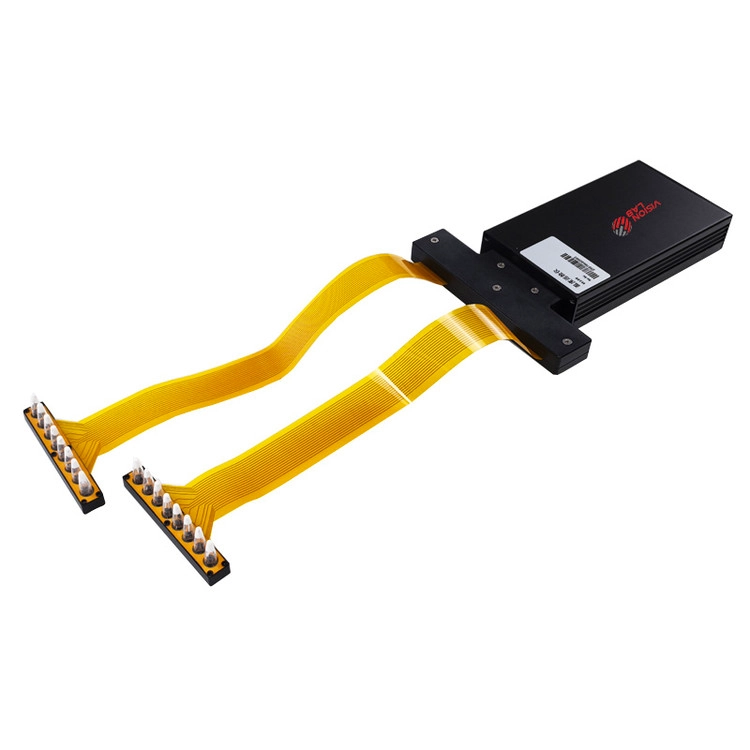

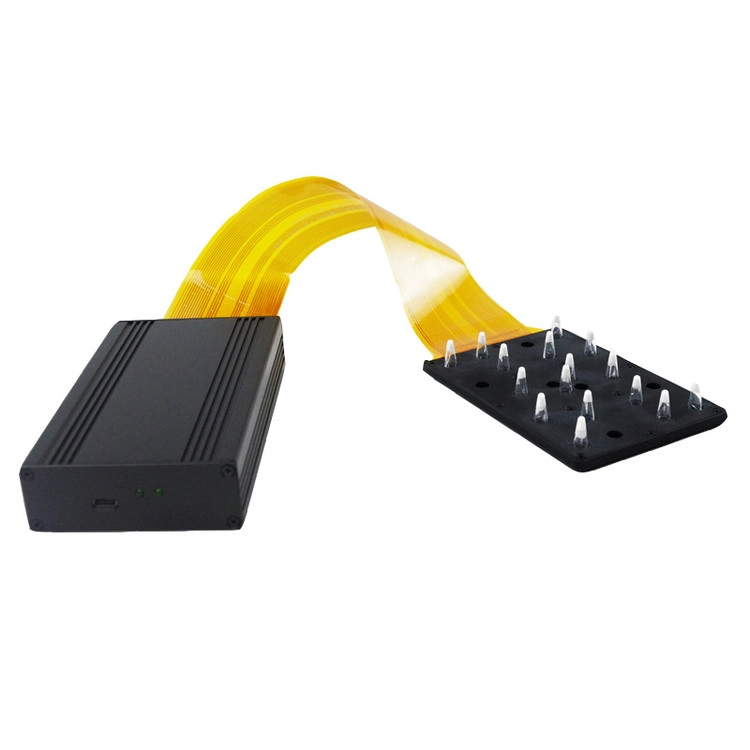

[VISION] Picture Temperature Verification System
SALE

5,310,000원 5,500,000원

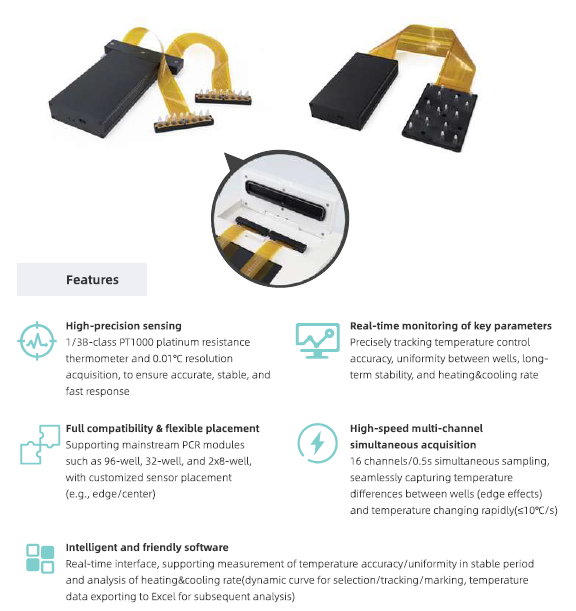

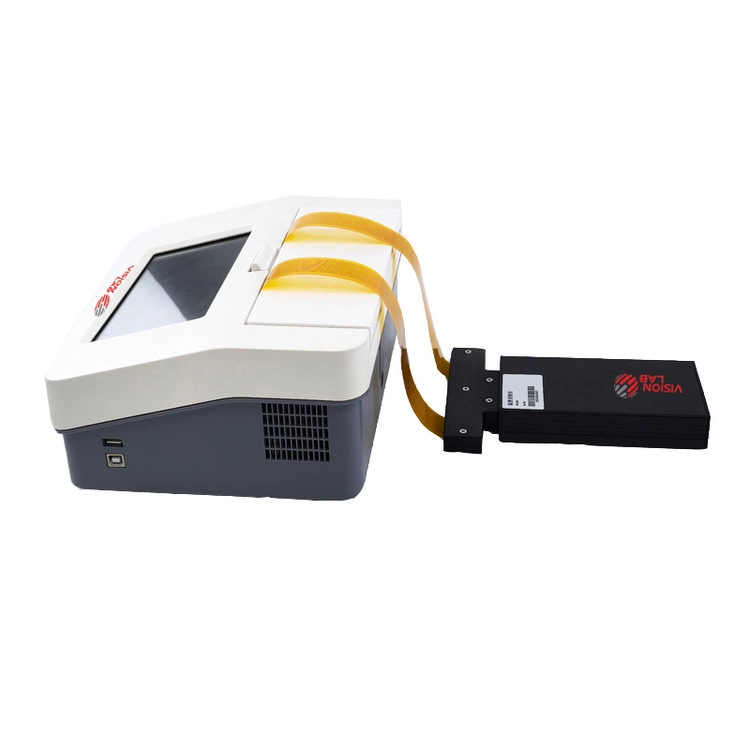

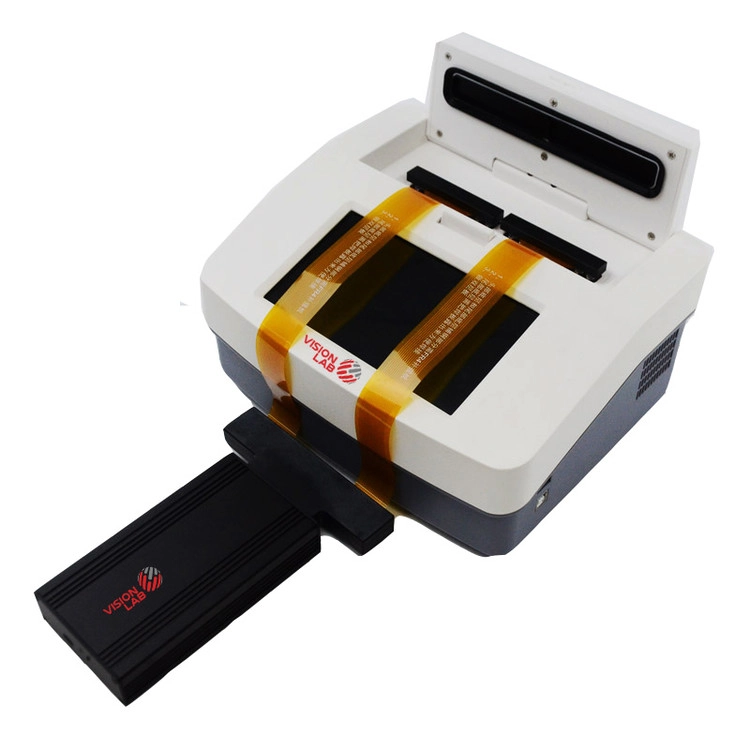

A professional PCR instrument temperature calibration and detection system,with integrated PT1000-grade platinum resistance sensor and 0.01°C resolution acquisition system.
It features high linearity, millisecond response, and ultra-low temperature drift, ensuring reliable and accurate PCR results.

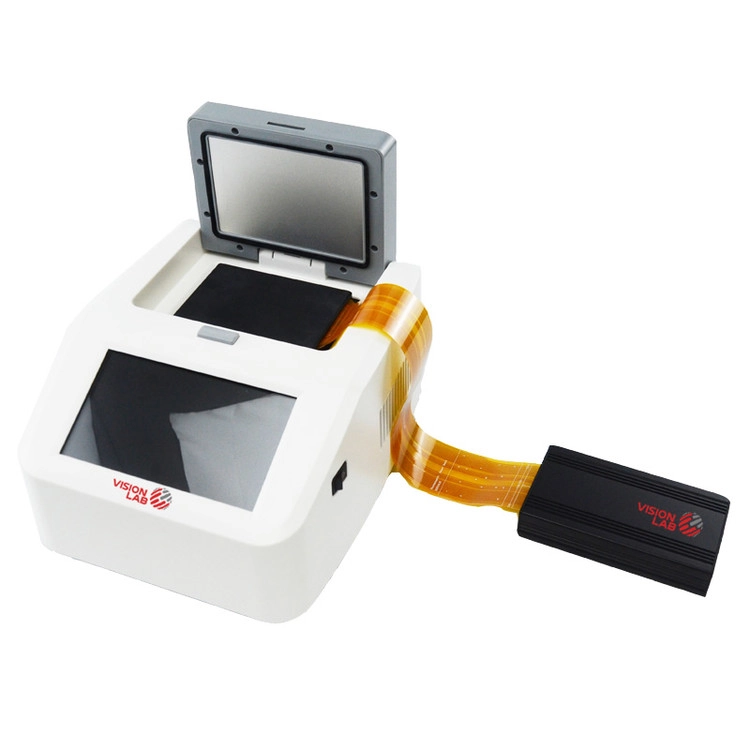

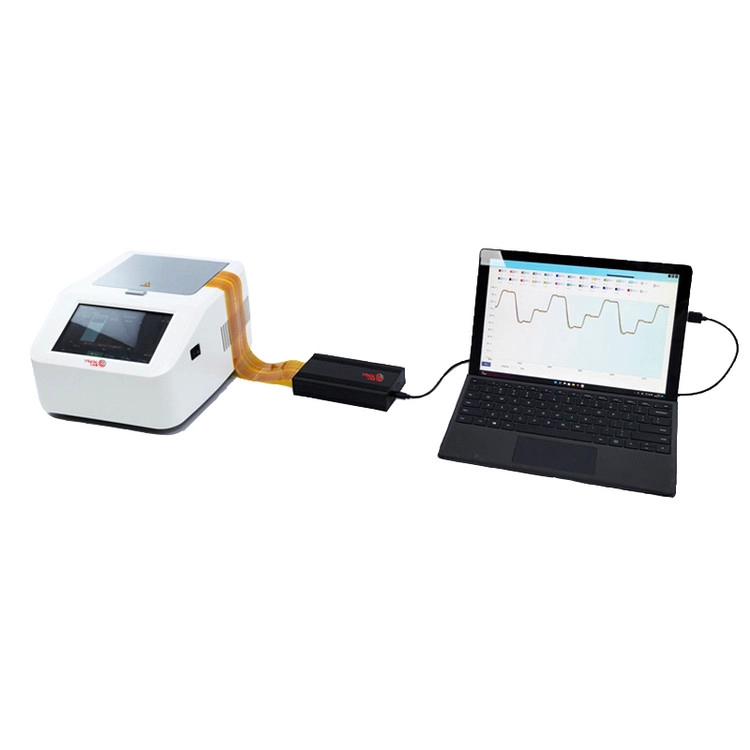

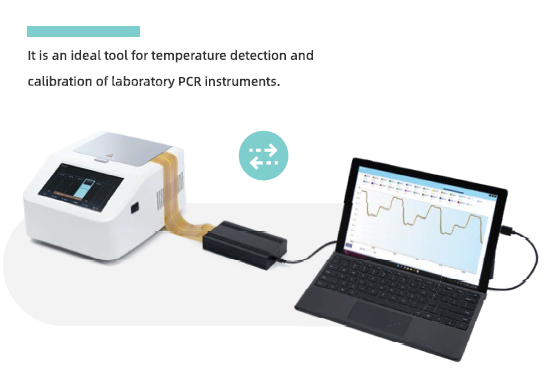

It is an ideal tool for temperature detection and calibration of laboratory PCR instruments.

원산지 CHINA

53,100 포인트 적립예정 적립예정

택배 · 기본 무료 · 도서산간 배송비 popover

120,000원 이상 구매 시 무료배송

반품/교환

구매하기 장바구니 0

장바구니 장바구니

구매하기 구매하기

반품/교환

상품이 없습니다.

Model	TVS96	TVS32	TVS16
Measuring range	0℃~120℃
Number of sensors	16
Sensor	1/3B class PT1000
Sensor resolution	0.01℃

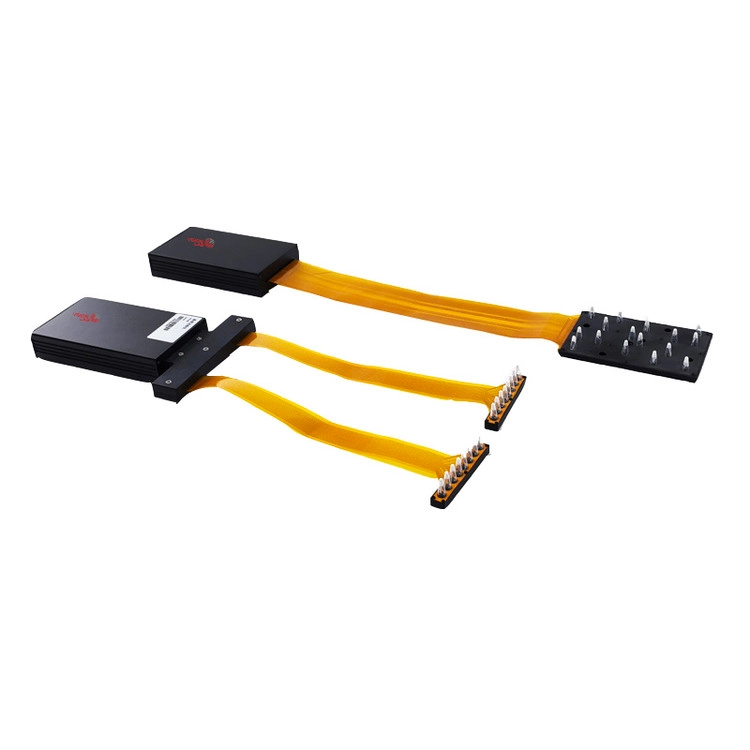

Compatibility	96-well PCR module	32-well PCR module	8/16-well PCR module
Temp. Accuracy	0.1℃
Stability	<0.1℃
Temp. uniformity	<0.2°C
Linearity	R2>0.9999
Temp. acquisition speed	16 channels/0.5S simultaneous acquisition
Software features	Real-time curve; Temp. value display; Temp. Max./ min. value mark; Data EXCEL export
Relative humidity	10%~90%(non-condensing)
Ambient temp.	10℃~35℃
Diameter	L148×W83×H29mm
Weight	0.25kg
Power Supply	USB Power(DC5V/1A;5W)
