[VISION] EP150eH - Horizontal Gel Electrophoresis System
SALE

930,000원 1,200,000원

The horizontal gel electrophoresis system is a multifunctional device integrating preparation, operation and power supply.

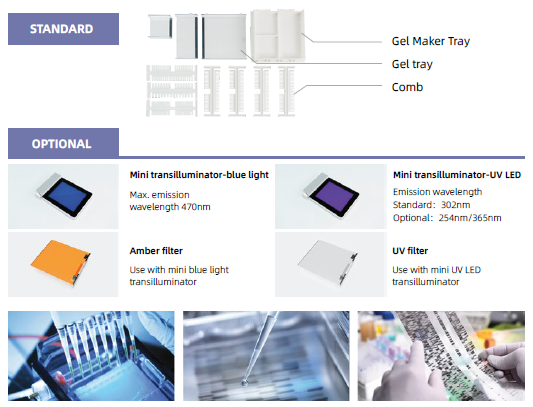

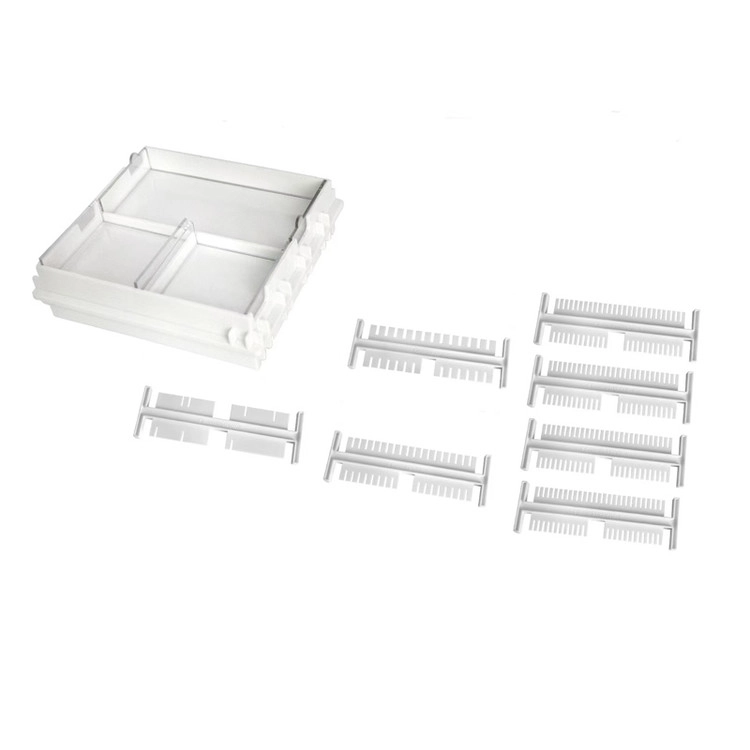

It consists of gel tray, comb, gel tray base, gel tank and digital power supply.
The electrophoresis tank, gel tray, and multi-channel comb are all molded for leak-proof performance and long service life.
The overall design is compact and much smaller than traditional electrophoresis tanks and power supplies.

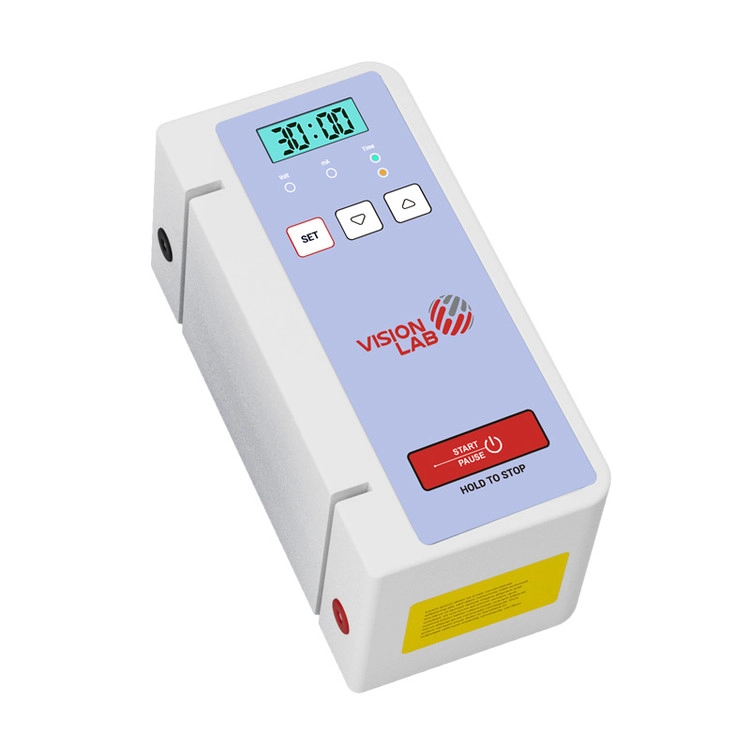

The power supply is directly connected to the electrophoresis tank, no wire connections.

원산지 CHINA

9,300 포인트 적립예정 적립예정

택배 · 기본 무료 · 도서산간 배송비 popover

120,000원 이상 구매 시 무료배송

반품/교환

구매하기 장바구니 0

장바구니 장바구니

구매하기 구매하기

반품/교환

상품이 없습니다.

Model	EP150eH	EP150H
Electrophoresis tank capacity	500mL
Gel tank size	150×150×40mm
Timing function	0~99h59min or continuous
Output Types	Constant Voltage(continuously adjustable)	Constant Voltage, Constant Current(continuously adjustable)
Output voltage/current	0~130v(Step10v)	10~150v(Step10v)/10~400mA(Step5mA)
Gel size	130×130㎜ 1pcs/130×65㎜ 1pcs/60×65㎜ 2pcs
Comb size	1.0mm，12+12/27 wells 4pcs;1.5mm，7+7/14 wells 1pcs;1.5mm，9+9/19 wells 1pcs;2.0mm，2+3/3+3 wells 1pcs;
Gel tray size	135×135㎜ 1pcs /135×65㎜ 1pcs / 65×65㎜ 2pcs
Dimension	L245×W190×H63mm
Weight	0.83kg
Voltage/Frequency	100~240V;50/60Hz

Model	EP150eH	EP150H
Electrophoresis tank capacity	500mL
Gel tank size	150×150×40mm
Timing function	0~99h59min or continuous
Output Types	Constant Voltage(continuously adjustable)	Constant Voltage, Constant Current(continuously adjustable)
Output voltage/current	0~130v(Step10v)	10~150v(Step10v)/10~400mA(Step5mA)
Gel size	130×130㎜ 1pcs/130×65㎜ 1pcs/60×65㎜ 2pcs
Comb size	1.0mm，12+12/27 wells 4pcs;1.5mm，7+7/14 wells 1pcs;1.5mm，9+9/19 wells 1pcs;2.0mm，2+3/3+3 wells 1pcs;
Gel tray size	135×135㎜ 1pcs /135×65㎜ 1pcs / 65×65㎜ 2pcs
Dimension	L245×W190×H63mm
Weight	0.83kg
Voltage/Frequency	100~240V;50/60Hz
