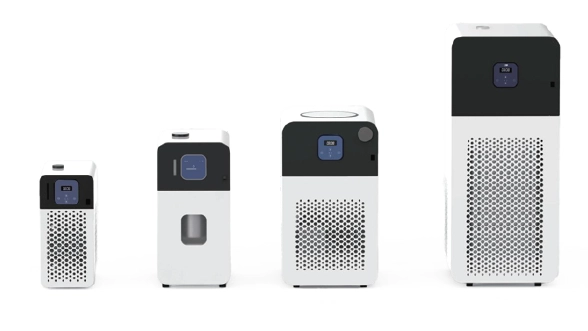

Low-Temperature Cooling Circulator
LTC series
-Easy operation: LED display, simple menu, one-touch start
-Compact design: Small size, suitable for desktops and fume hoods
-Precise temperature Control: Built-in sensor and PlD technology ensure high temperature stability.
-Convenient handling: Top liquid filling, rear draining, clear liquid level, with overflow protection
-Rapid response: Quickly adjusts to load and temperature changes, with strong adaptability
-Eco-Friendly refrigerant: Non-toxic, non-polluting, with excellent cooling performance
-Energy efficiency: Proportional cooling adjustment for low-energy operation
-Stable circulation system: Powerful pump ensures uniform cooling
-Extended lifespan: Low-speed operation reduces wear.
-Low noise: Suitable for quiet environments.
-Easy cleaning: Removable panel for easy filter cleaning and convenient drainage.
-High-quality insulation: Reduces heat exchange, ensuring temperature stability.
-Rapid heat dissipation: Prevents overheating, maintaining stable equipment operation.
| Model | LTC205 | LTC217 | LTC220 | LTCU07 |
| Temp. range | -20~40℃ | 5~35℃ | ||
| Temp. control accuracy | ±0.3℃ | ±0.5℃ | ±0.1℃ | |
| Temp. display | LED | 3.5-inch LCD touch screen | ||
| Display accuracy | 0.1℃ | |||
| Temp. control method | Intelligent PID | |||
| Control temp. sensor | PT 100 | |||
| Cooling capacity @20℃ | 700W | 2400W | 3200W | 1000W |
| Cryogen | R404a | |||
| Tank capacity | 4.5L | 17L | 20L | 7L |
| Max. pump pressure | 0.3bar | 1.5bar | 1.3bar | |
| Max. flow rate of pump | 22L/min | 2~20L/min (Adjustable) | ||
| Instrument fixing method | Floor standing | |||
| Allow continuous operation | 100% | |||
| Allow ambient temp. | 5~40℃ | |||
| Allow relative humidity | 80% | |||
| Internal diameter of external pipe mouth | 8mm | 10mm | ||
| Max. electric current | 3.5A | 5.0A | 7.5A | 3.5A |
| Max. power | 700W | 1000W | 1500W | 650W |
| Dimension | W230×L490×H450mm | W400×L560×H705mm | W450×L600×H1100mm | W310×L650×H530mm |
| Power Supply | 100-120V/200-240V, 50/60Hz | |||
