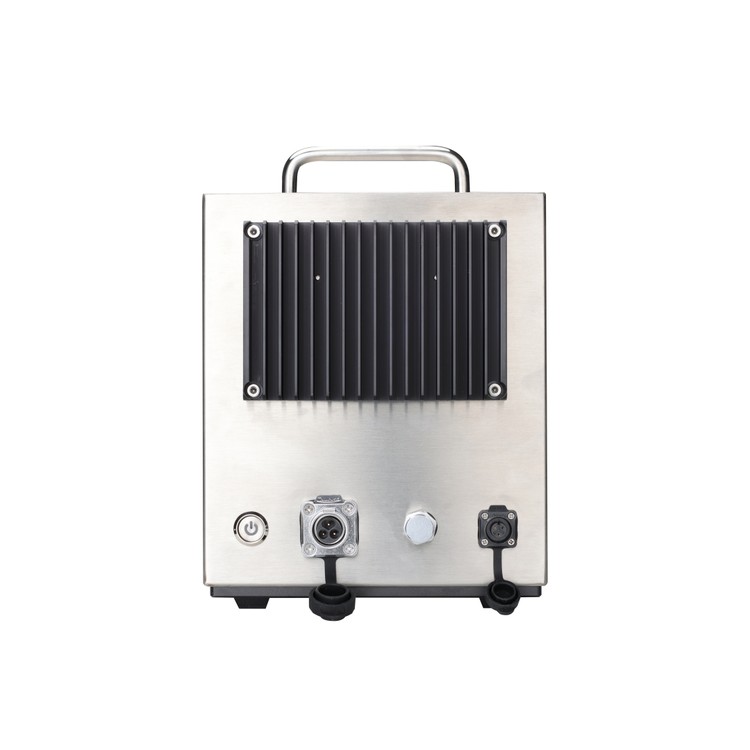

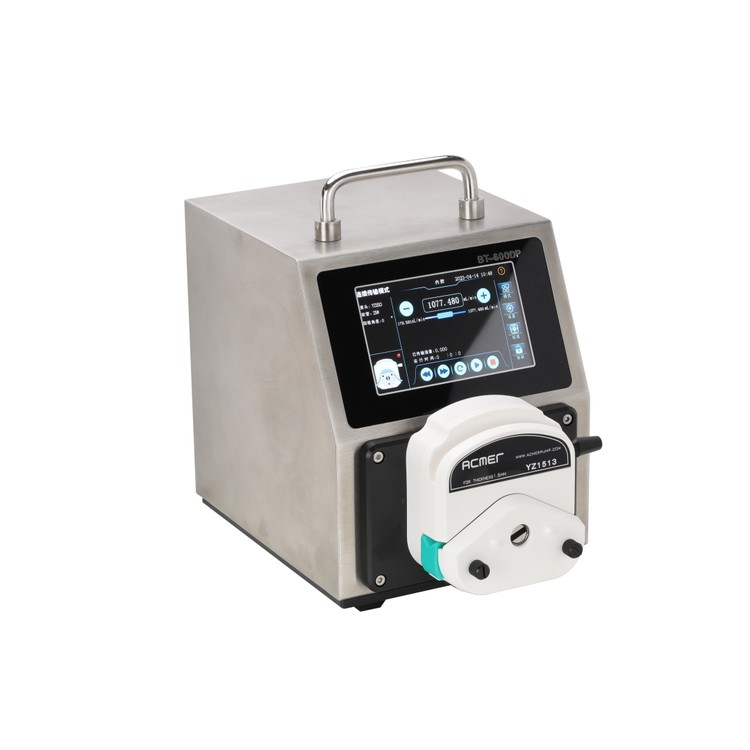

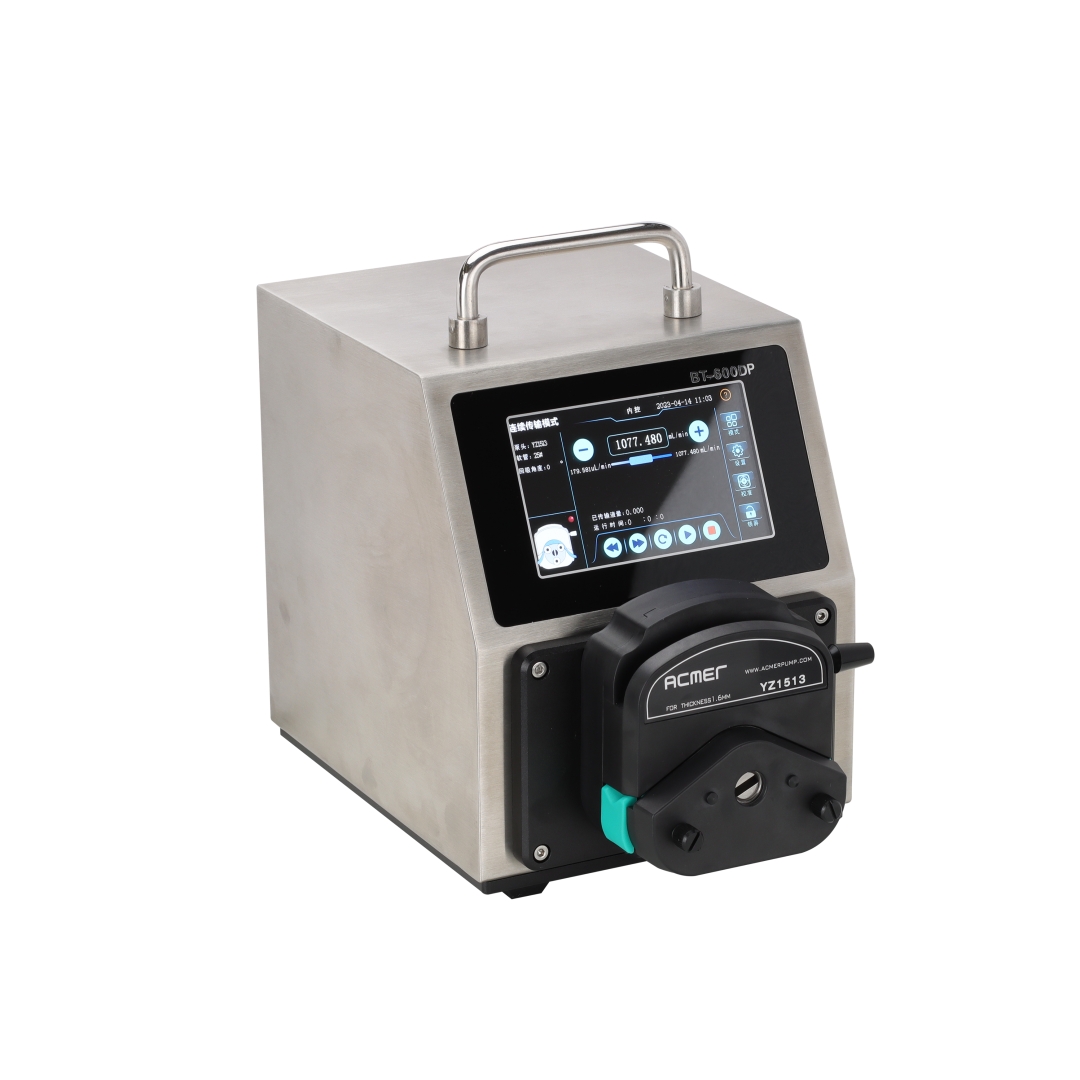

[ACMER] BT-600DP -2L급 Water-proof Dispensing peristaltic pump(터치스크린 분주용 튜빙 펌프 IP65 등급)

SALE

BEST

2,052,600원 2,100,000원

Reference flow：0.006ml/min~2600ml/min
Protection class IP65,
suitable for distribution pumps in humid,
dusty and electromagnetic interference industrial environments;
Small size,
full touch HD large screen,
friendly interface,
simple operation
Real-time display of operating parameters and status
Multiple flow transmission and distribution modes for accurate metering and dosing

구매하기 장바구니 0

장바구니 장바구니

구매하기 구매하기

상품이 없습니다.

특징 Description
• 5인치 터치스크린 적용	• IP65 등급으로, 뛰어난 방진 방수
• 다양한 분주 모드	• 외부연동 컨트롤 가능(아날로그,디지털 통신)

Motor speed	0.1-600RPM
Motor speed resolution	0.1rpm (<100rpm) 1rpm(≥100rpm) in timer and fixed speed mode
Display	5 inch touch screen
Filling volume range	0.1uL-99999.999L
Timing range	0.1s-99999.999hr
Dispensing time	0-6553.5s
Dispensing times	0-9999；0 is for infinite times
Back suction parameters	angle：0-999°；delay：0-100s
External control	use different external control module to control start/stop,direction and flow rate
External control	0-5V、0-10V、4-20mA、0-10KHz 4 kinds of external control module are optional
Communication	RS485 communication module for option. communication via Modbus protocol
Footswitch	foot switch to control the start/stop
Power supply	AC100V-240V 50~60Hz
Working environment	0-40℃ Humidity 20%-80% RH no dewing
Measurement	240x176x228 mm (without pump head)
IP rate	IP65

Pump drive	Pump head	Channels	Motor speed	Tubing	Flow rate
BT-600DP	YZ1513	1、2	0.1-600rpm	13#, 14#, 19#, 16#, 25#, 17#, 18#	0.0063~2240ml/min
	YZ2513S	1、2		15#, 24#	0.16~1600ml/min

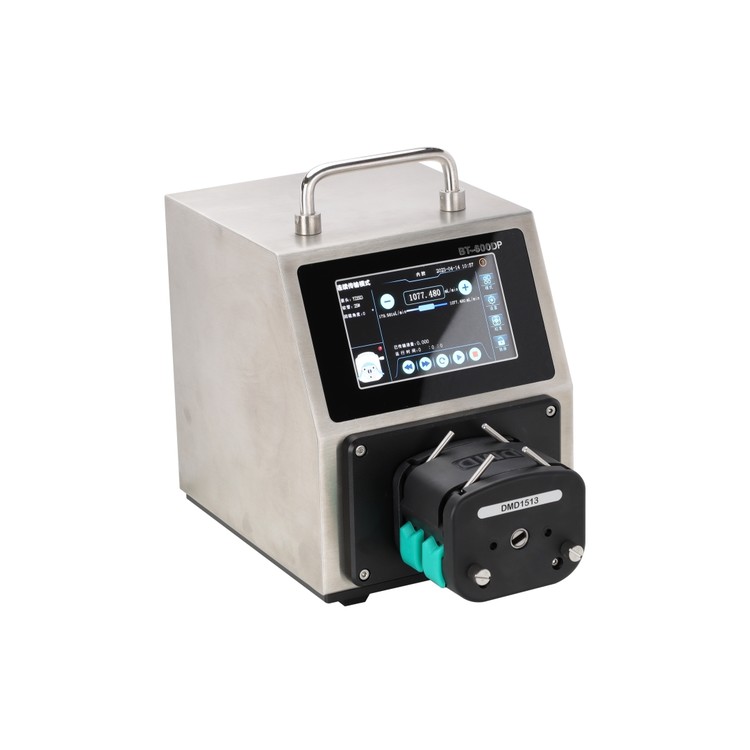

	DMD1513	1		13#, 14#, 19#, 16#, 25#, 17#	0.012~2600ml/min
	BZ	2		14#, 16#, 24#	0.025~1600ml/min
