Name: [ACMER] BT-100BP BT-300BP BT-600BP -2L급 Water-proof Dispensing peristaltic pump(RPM 표시 튜빙 펌프 IP65 등급)
Brand: ACMER
Price: 767800 KRW
Availability: InStock

Home
ACMER

상품 이미지
상품 이미지
상품 이미지

[ACMER] BT-100BP BT-300BP BT-600BP -2L급 Water-proof Dispensing peristaltic pump(RPM 표시 튜빙 펌프 IP65 등급)

SALE

BEST

767,800원 1,000,000원

Reference flow：0.006ml/min~1730ml/min
IP65 Suitable for humid ,
dustful and electromagnetic interference environment

구매하기 장바구니 0

장바구니 장바구니

구매하기 구매하기

상품이 없습니다.

특징 Description
• 3자리 LCD RPM 표시	• IP65 등급으로, 뛰어난 방진 방수
• Stainless steel Housing	• 멤브레인 키패드로 간단한 동작 가능

Motor speed	0.1-400RPM
Motor speed resolution	0.1rpm（<100rpm ） 1rpm（≥100rpm）
Display	3-Digit LCD
Footswitch	foot switch to control the start/stop
Power supply	AC100V-240V 50~60Hz
Working environment	0-40℃ Humidity 20%-80% RH no dewing

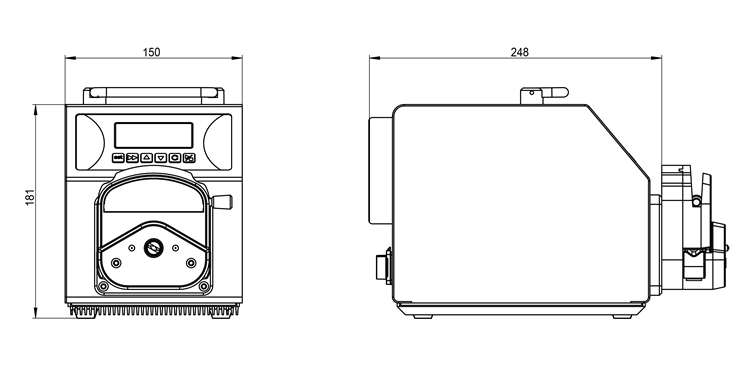

Measurement	248x150x181 mm (without pump head)
IP rate	IP65

Pump drive	Pump head	Channels	Motor speed	Tubing	Flow rate
BT-300BP	YZ1513	1、2	0.1-400rpm	13#, 14#, 19#, 16#, 25#, 17#, 18#	0.006~1460ml/min
	YZ2513S	1、2		15#, 24#	0.16~1060ml/min
	DMD1513	1		13#, 14#, 19#, 16#, 25#, 17#	0.006~1730ml/min
	DG series	6		Inner diameter≤3.17mm wall thickness 0.76～1mm	0.032～72ml/min

특징 Description
• 3자리 LCD RPM 표시	• IP65 등급으로, 뛰어난 방진 방수
• Stainless steel Housing	• 멤브레인 키패드로 간단한 동작 가능

Motor speed	0.1-400RPM
Motor speed resolution	0.1rpm（<100rpm ） 1rpm（≥100rpm）
Display	3-Digit LCD
Footswitch	foot switch to control the start/stop
Power supply	AC100V-240V 50~60Hz
Working environment	0-40℃ Humidity 20%-80% RH no dewing
Measurement	248x150x181 mm (without pump head)
IP rate	IP65
